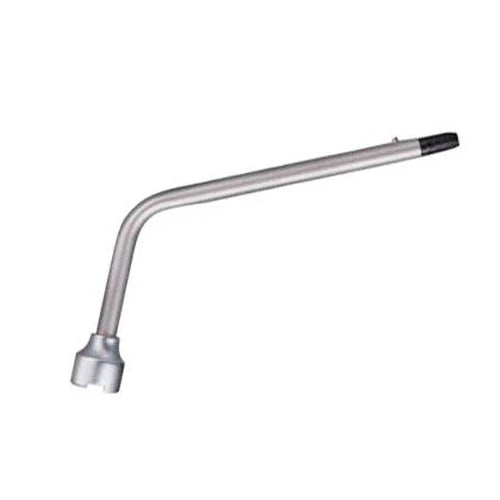

ADC 5215-TH Bent Arm Throat Illuminator for 5215 Diagnostic Set (1 Each)

Features

• Function: Serves as a larynx and nasopharynx illuminator, designed for lighting the oral cavity and pharyngeal area during examination.
• Design: Features a chrome-plated bent arm for optimal light direction and ease of use in confined spaces.
• Accessory Attachment: Allows for easy attachment of essential diagnostic accessories, including the laryngeal mirrors and tongue depressor holders.
• Versatility: Can be used with laryngeal mirrors (3.0 mm and 4.0 mm) for non-invasive, indirect visualization of the hypopharynx.

Specifications

• Product Type: Bent Arm Throat Illuminator (Instrument Head)
• Part Number: 5215-TH
• Compatibility: Attaches to the ADC "C" cell powered battery handle (5211-5) via a Bayonet locking mount.
• Illumination: 2.5V illumination (uses the standard lamp from the diagnostic set).
• Included Attachments (when purchased with the 5215 set):
• One 3.0 mm Laryngeal Mirror (5215-M3)
• One 4.0 mm Laryngeal Mirror (5215-M4)
• Metal Tongue Depressor (5215-TD)
• Disposable Tongue Depressor Adapter (5215-TO)
• Weight: 0.08 lb / 0.04 kg
• component).
• Warranty: One-year quality performance guarantee.
• Material: Chrome-plated metal construction.
