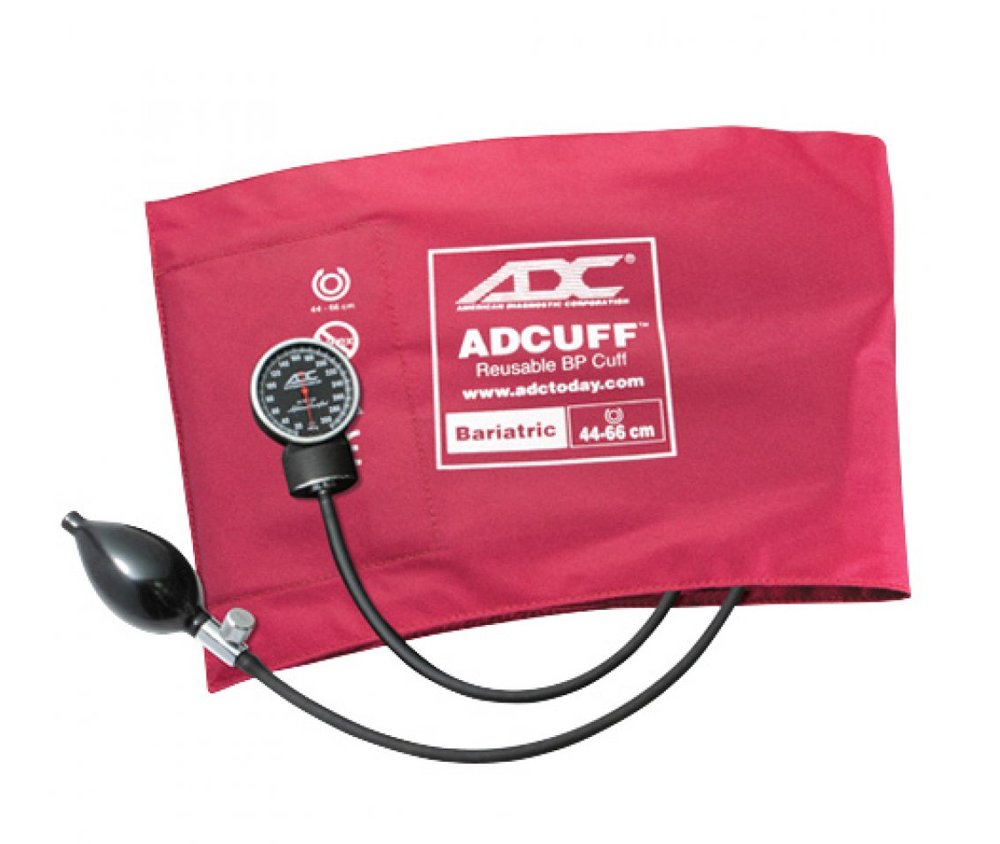

ADC-720-12BXBD Diagnostix 720 Pocket Aneroid Sphygmomanometer - Bariatric

Features

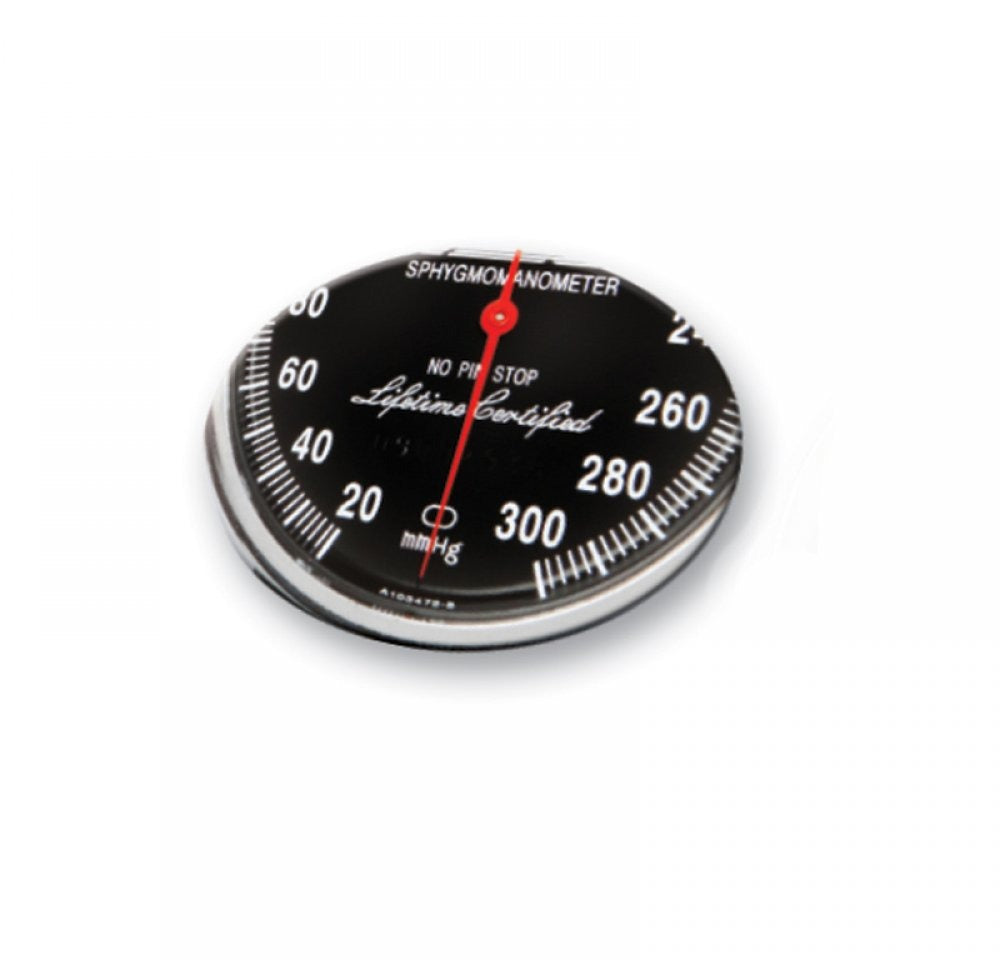

• Extended scaleplate graduation marks reduce parallax for easier viewing from virtually any angle.

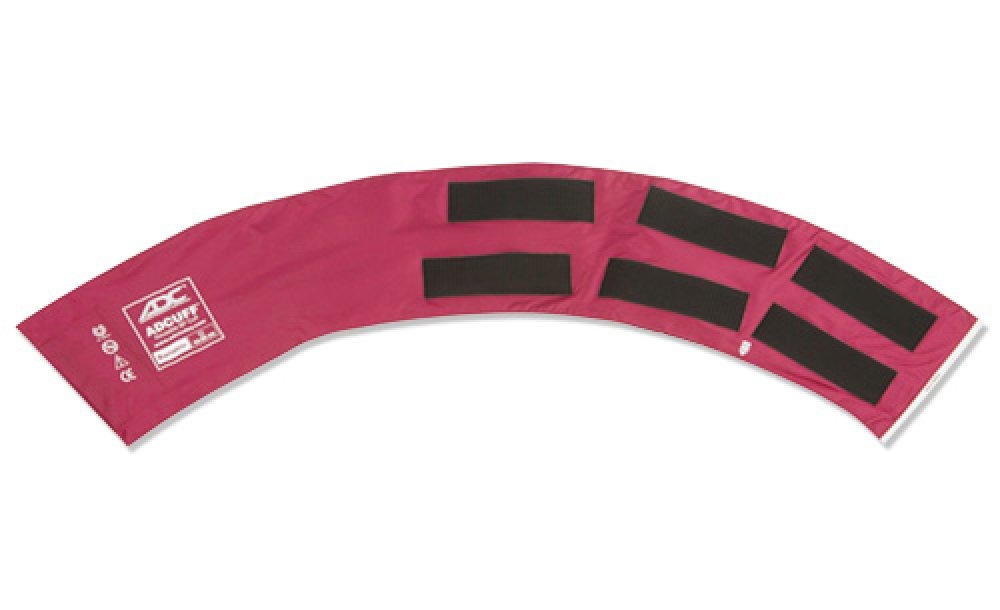

• Bariatric Adcuff Nylon Cuff with ADC’s proprietary Size Guide marking system prevents mis-cuffing.
• Custom sized inflation bladder with one 50 cm and one 25 cm tube.

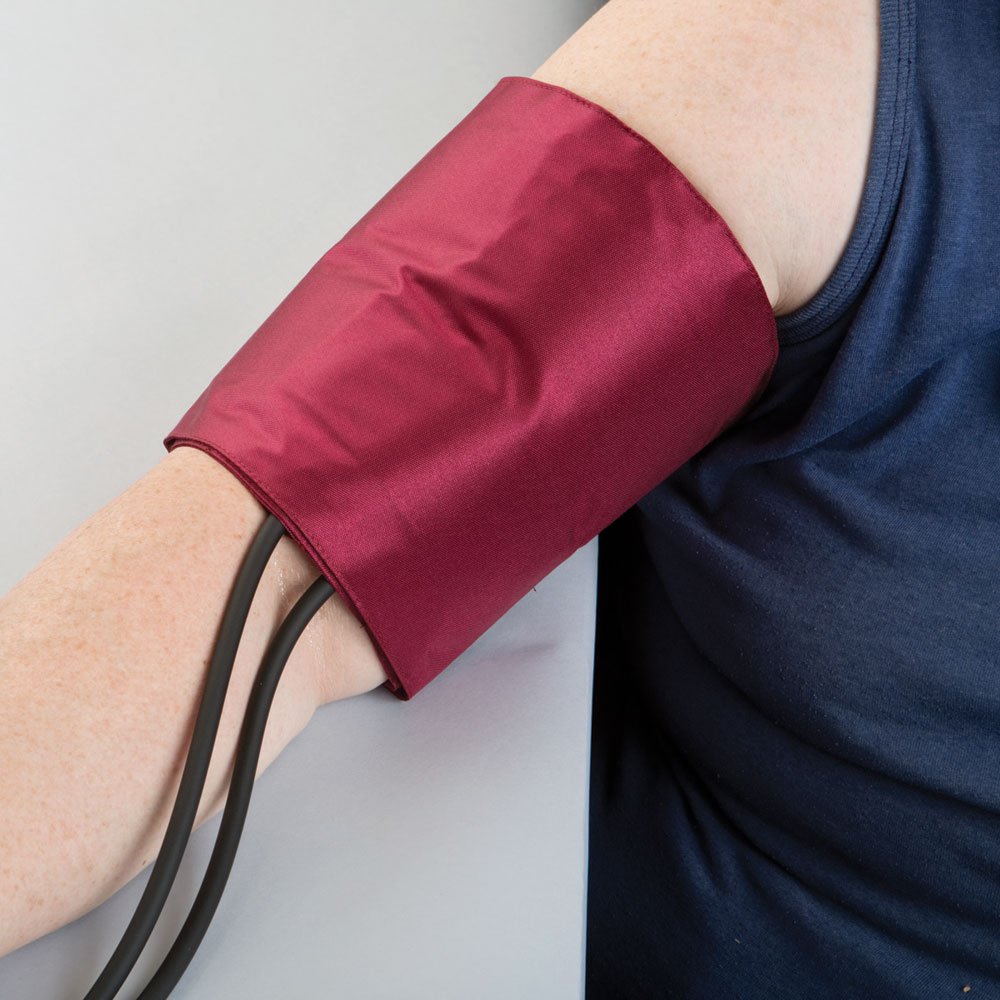

• Design provides a better fit on conically shaped bariatric arms.
• Fits limbs with a circumference of 44 cm to 66 cm.
• Adflow oversized bulb and valve (#872LN) with filter screen protection allows for faster inflation of the larger cuff.
• Adflow filter screen check and deflation valve reduce dust build-up.
• Adflow chrome-plated brass air release valve for precise deflation control.
• Not made with natural rubber latex.
• Meets or exceeds ANSI/AAMI/ISO 81060-1.

Specifications

• Sphyg Type: Pocket.

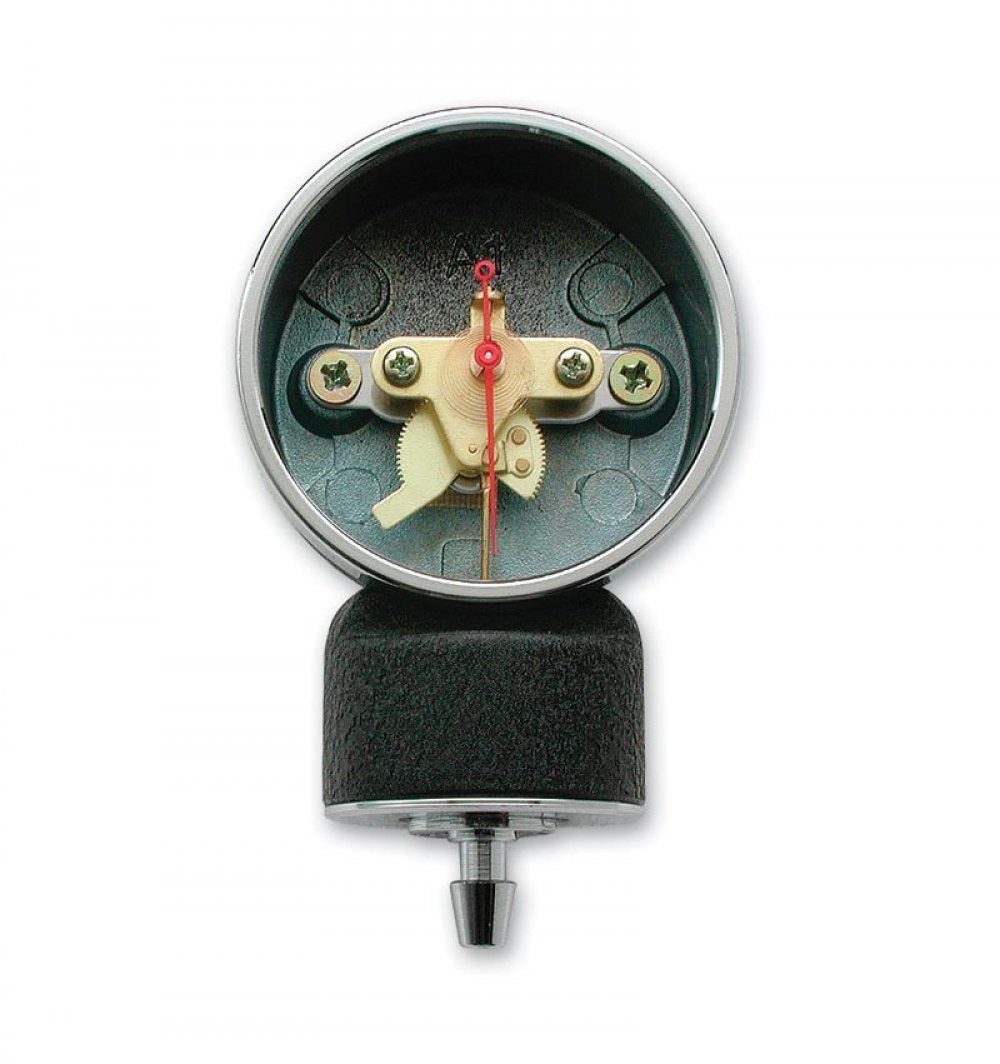

• Gauge Product Number: #802.
• Gauge Warranty: Lifetime.
• Sphyg Accuracy: +/-3 mm Hg at 50º F (10º C) - 104º F (40º C).
• Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50º F (10º C) and > 104º F (40º C).
• Storage Temp: -4º F (-20º C) - 131º F (55º C).
• Valve Type: ADFLOW.
• Number of Tubes: 2.
• Cuff Type: ADCUFF.
• Cuff Size: Bariatric.
• Cuff Range: 15.75" - 26" (40 cm - 66 cm).
• Cuff Color: Burgundy.

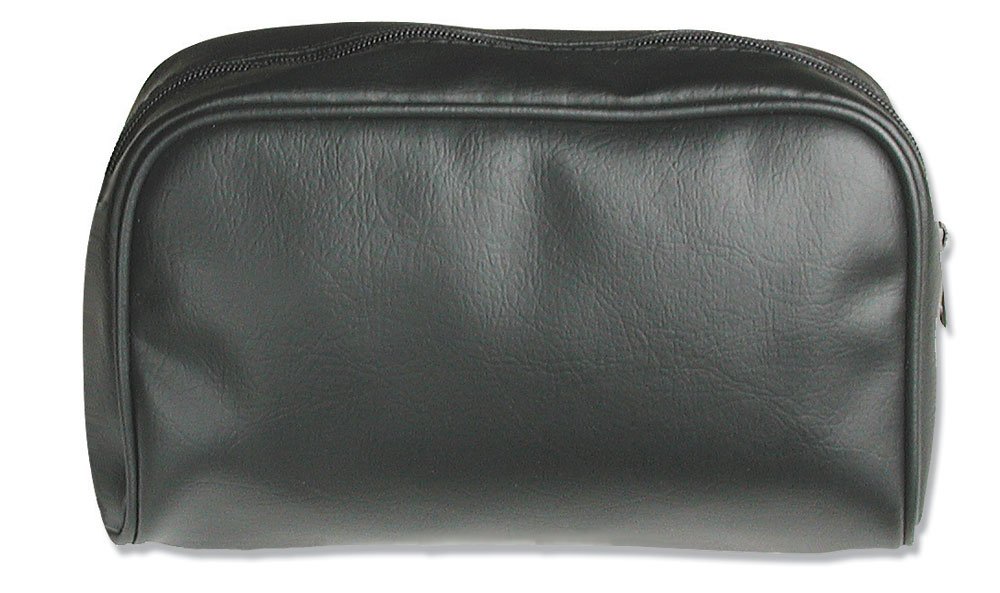

• Zipper Storage Case Product Number: #880.

Data Sheets

ADC® Bariatric Cuff

Diagnostix Sphygs - Instructions for use

ADC® Sphygmomanometer Accessories - Instructions for use
