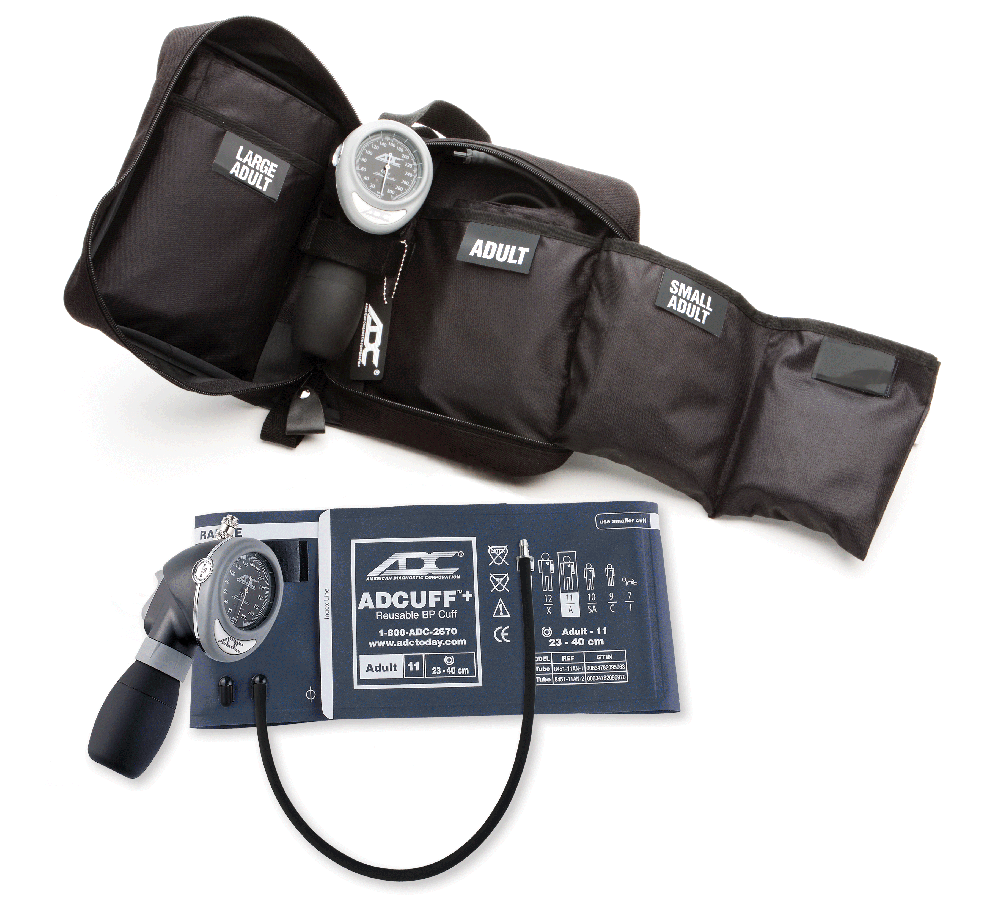

ADC-731-MCC1 Portable 3 Cuff Sphygmomanometer Multicuff Kit

Features

• Case measures a compact 8” x 6” x 3.5” and can easily be stored in most emergency boxes and trauma kits.

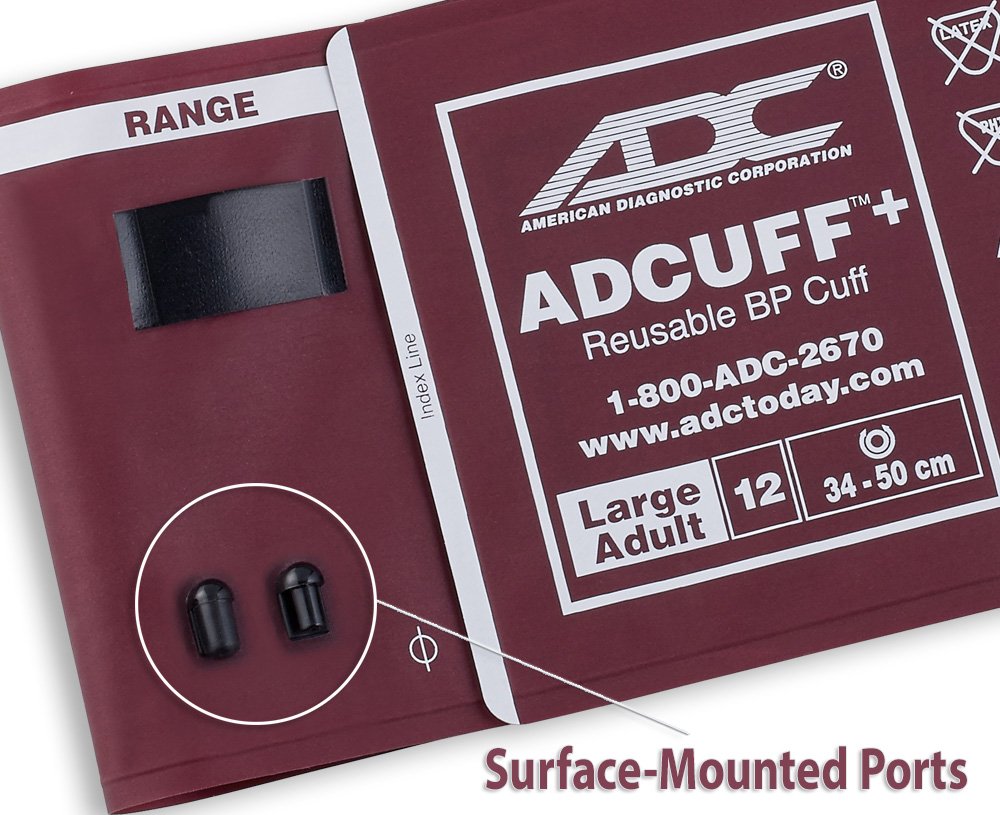

• One-tube bladder with quick release luer slip connector.
• Features our #804 series palm gauge with integrated infinite control trigger valve.

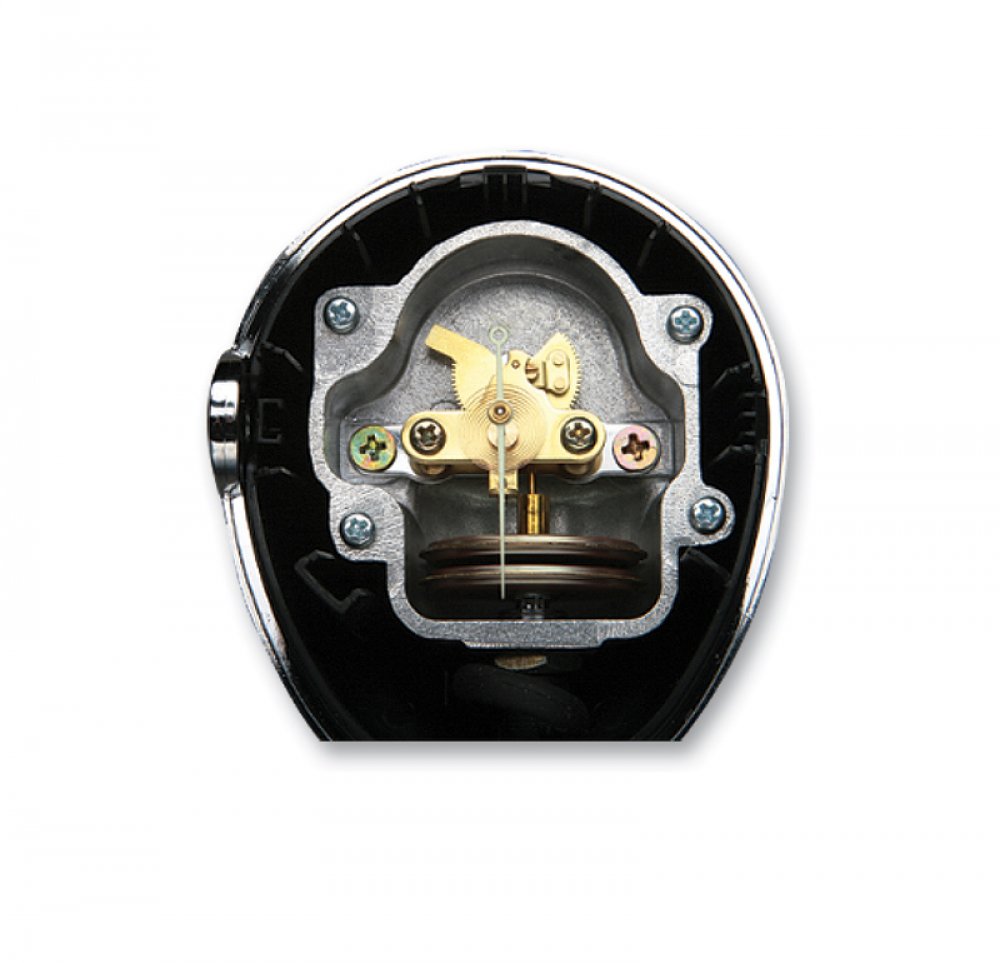

• 804 utilizes a Japanese engineered movement housed in a zinc safety cage within its rugged ABS housing.
• Not made with natural rubber latex.
• Assembled, inspected, and packaged in the U.S.A. from foreign components.
• Meets or exceeds ANSI/AAMI/ISO 81060-1.

Specifications

• Sphyg Type: Multicuff.
• Gauge Product Number: #804N.
• Gauge Warranty: Lifetime.
• Sphyg Accuracy: +/-3 mm Hg at 50º F (10º C) - 104º F (40º C).
• Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%.
• Whichever is greater at < 50º F (10º C) and > 104º F (40º C).
• Storage Temp: -4º F (-20º C) - 131º F (55º C).
• Valve Type: Integral.
• Number of Tubes: 1.

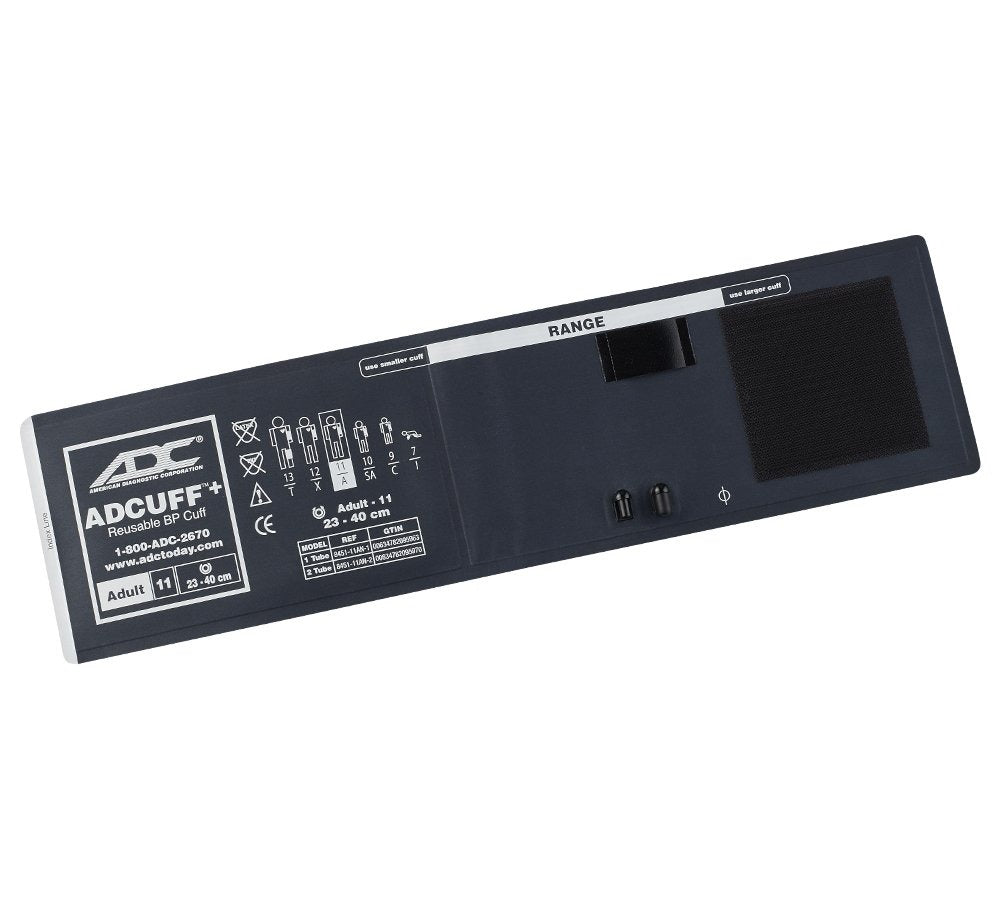

• Cuff Type: ADCUFF.
• Cuff Sizes:Small Adult:(19 cm- 27 cm).Adult:(23 cm - 40 cm). Large Adult:(34 cm - 50 cm).
• Inflation Warranty: 3 Years.

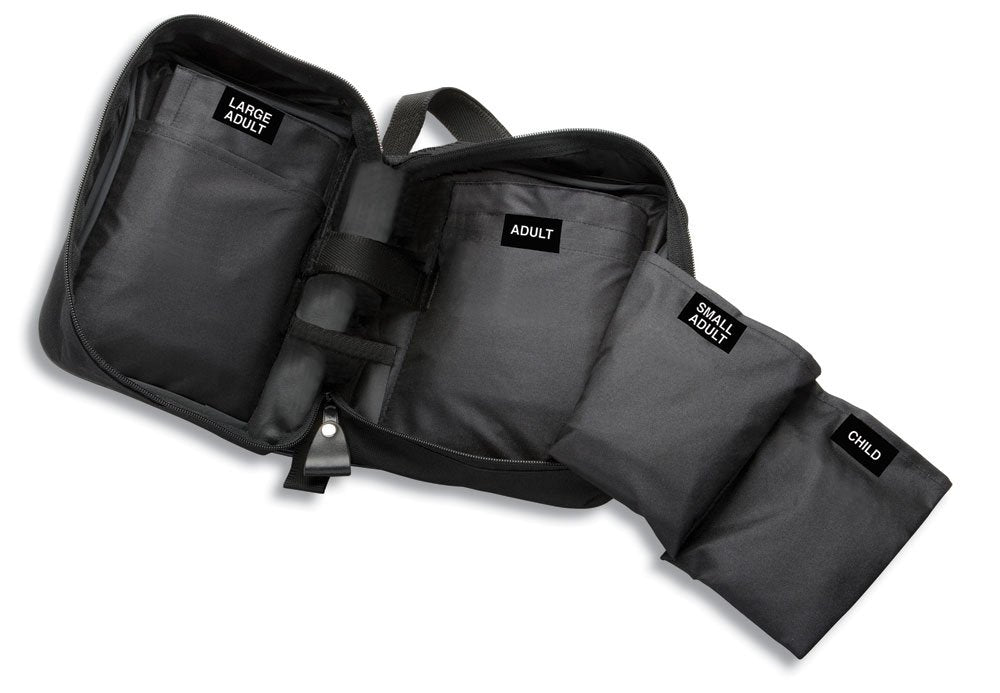

• Zipper Storage Case Product Number: 8814BK.
