ADC Diagnostix 54802 3.5V Portable PMV Otoscope/Coax Plus Ophthalmoscope Diagnostic Set (1 Each)

Details: Description| Features| Specifications| Data Sheets

Select a configuration: ADC-54802A LED Otoscope/Xenon Ophthalmoscope

Variante

Precio:

$1,151.14 $1,229.00

Gastos de envío calculados en la caja

Stock:

Disponible

Cantidad:

Comparte este producto

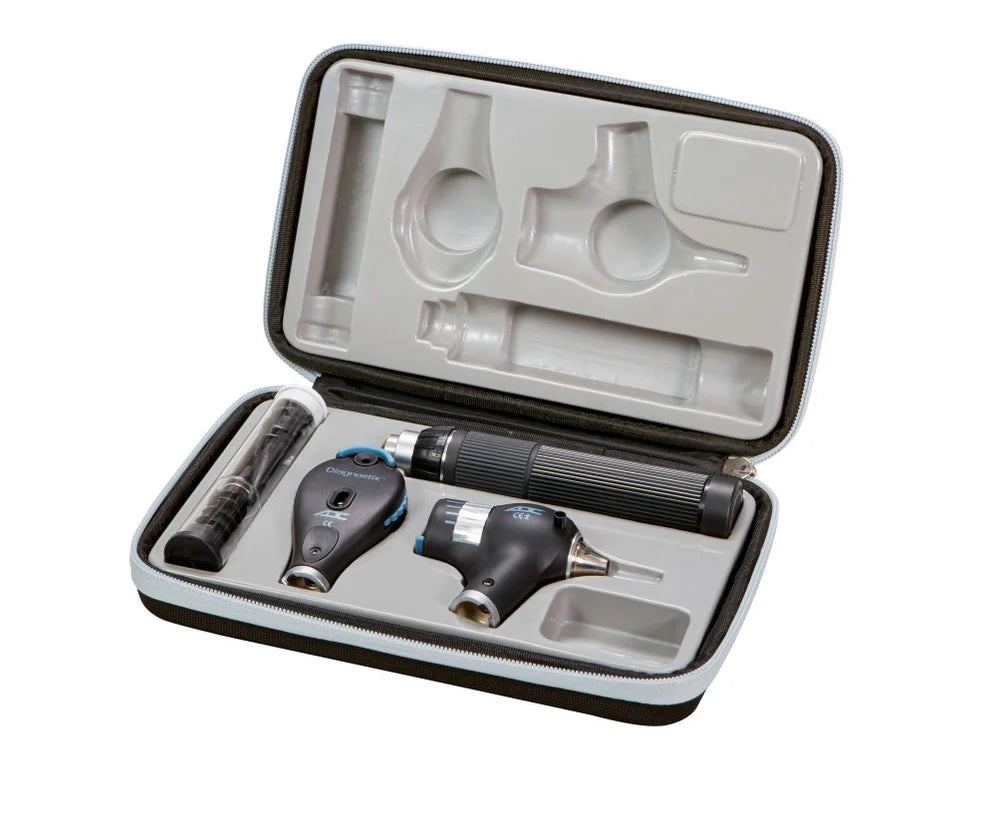

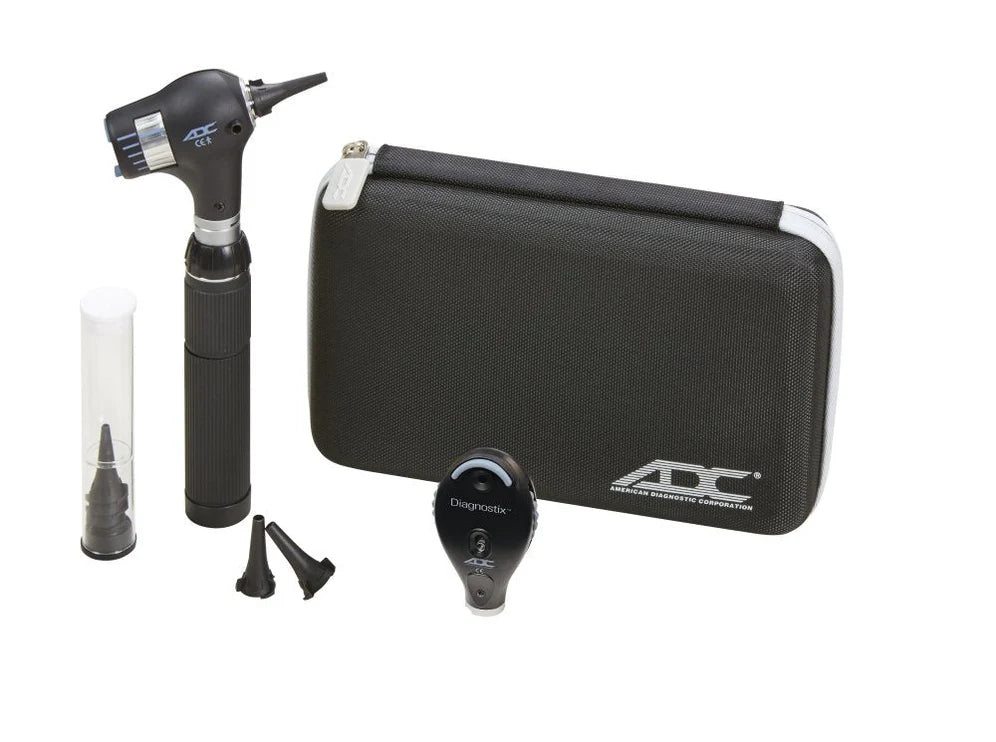

ADC Diagnostix 54802 3.5V Portable PMV Otoscope/Coax Plus Ophthalmoscope Diagnostic Set

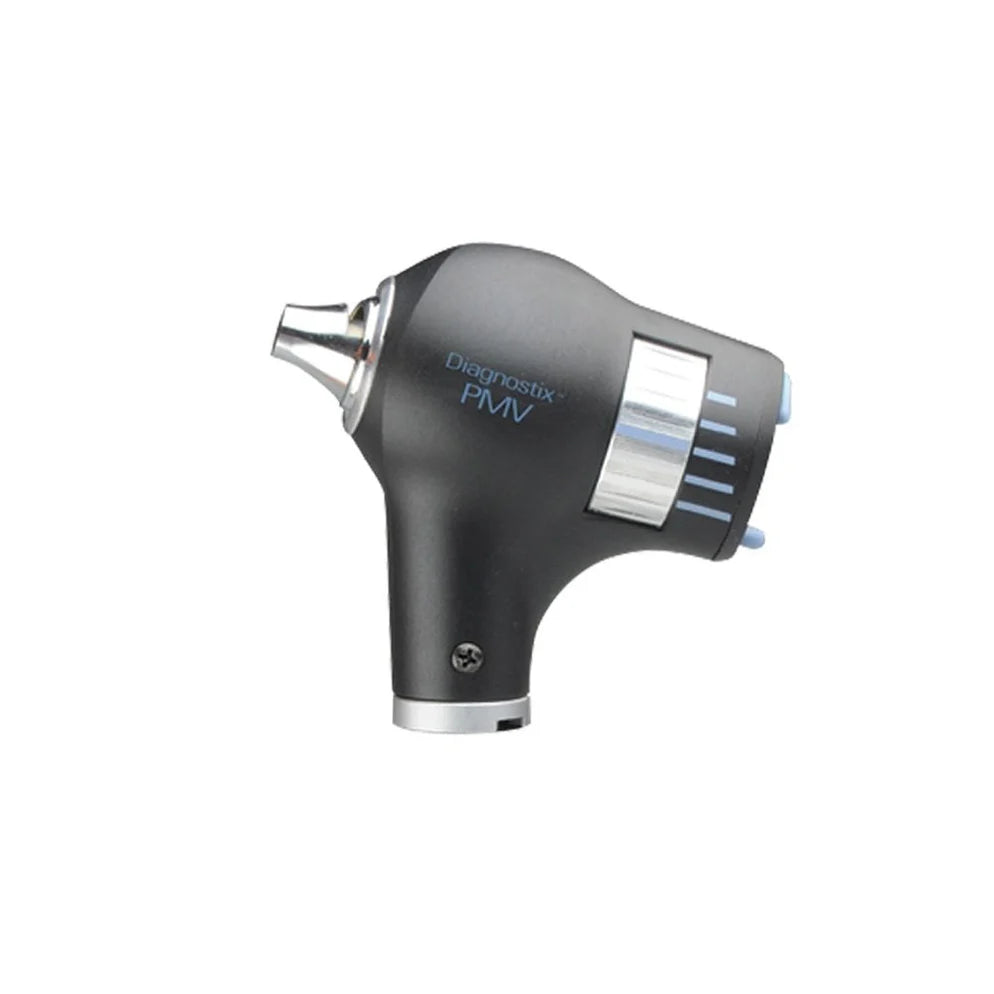

Includes an ADC Diagnostix 5481 3.5V Portable PMV Otoscope Head and an ADC Diagnostix 54122 3.5V Portable Coax Plus Ophthalmoscope Head that can be attached to the plug-in rechargeable Li-ion battery handle.
A tube containing five Welch Allyn 2.75 mm and five 4.25 mm disposable specula is also included.

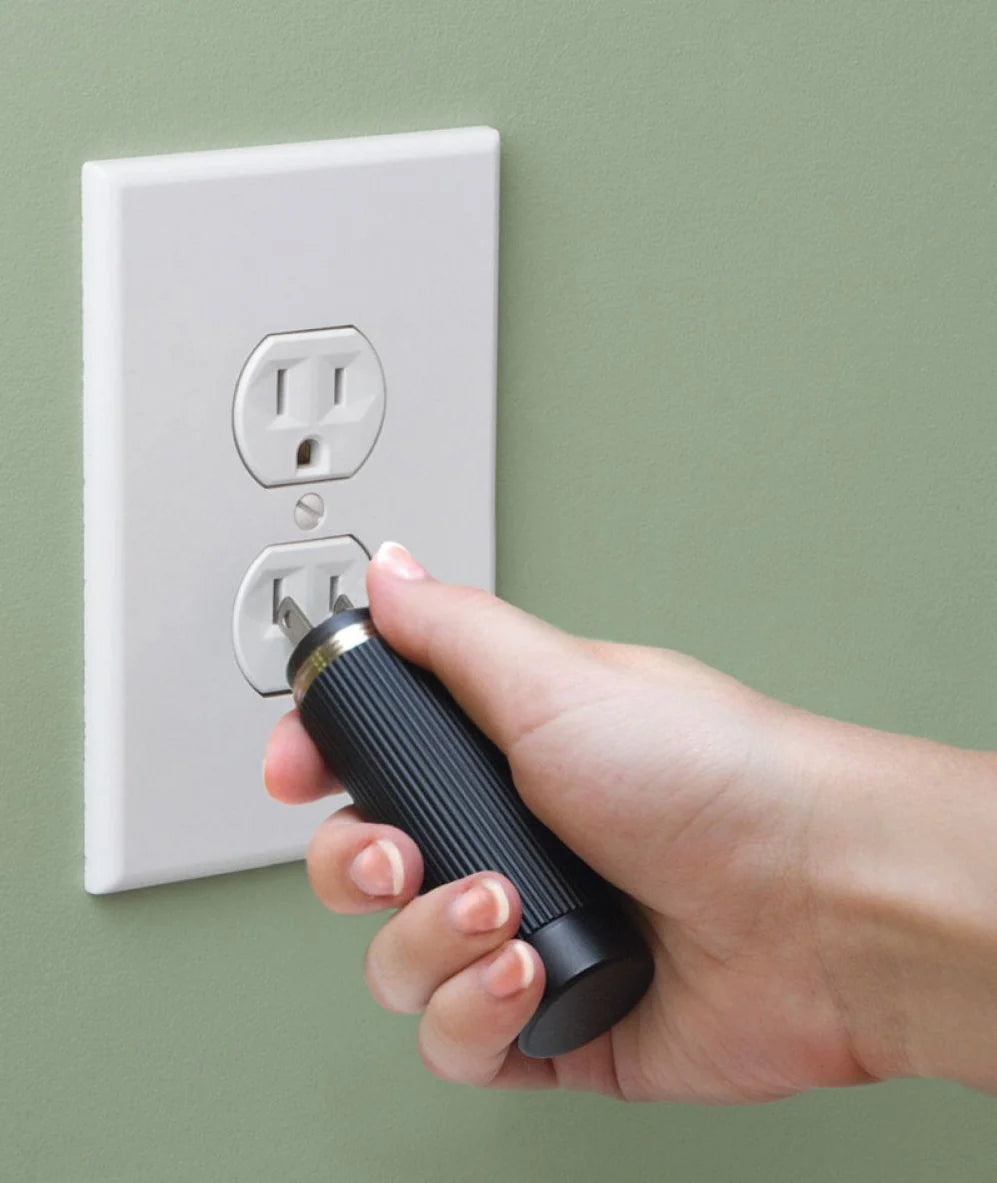

The top half of the handle unscrews to access the wall plug which is available in US or Euro fittings.

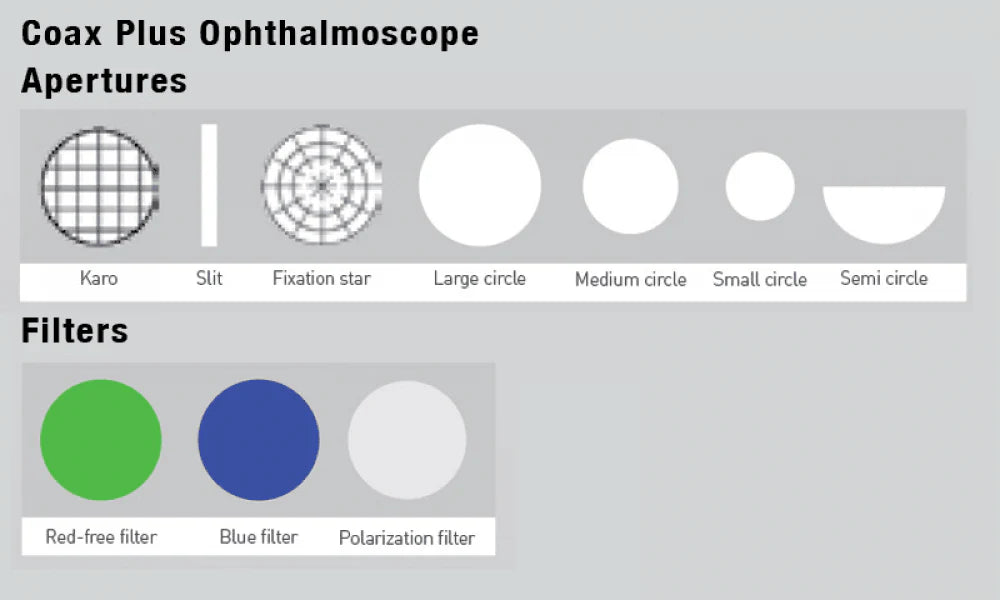

Three filters (plus neutral) include:

Red free – excludes red rays from examination field for easy identification of veins, arteries, and nerve fibers
Cobalt – used with fluorescent dye to view small lesions, abrasions, and foreign objects on the cornea
Polarizing – virtually eliminates corneal reflection

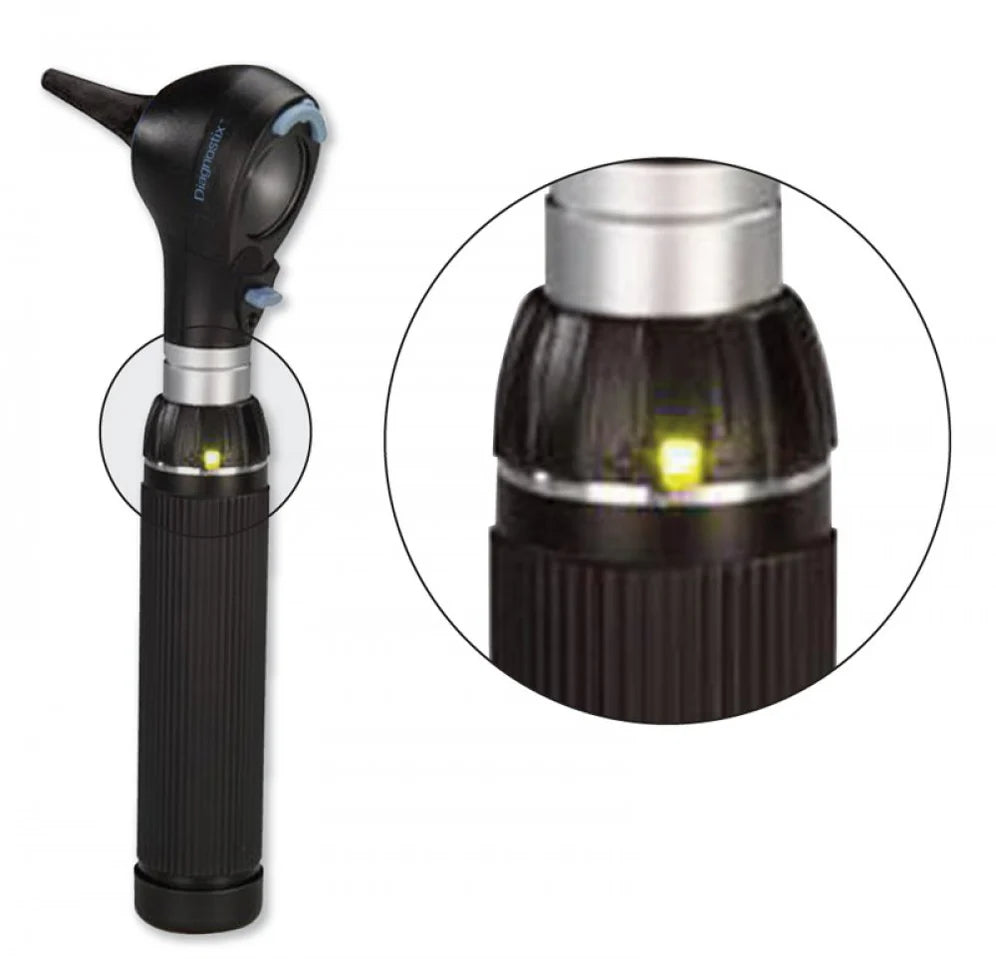

Diagnostix 3.5V Portable Battery Handle Features:

C-sized handle with 1400mAh Li-ion battery
CNC machined from solid brass, the handle is chrome plated in black with a ribbed surface for a sure grip
Adtronic electronic rheostatic light intensity control provides infinite continuous control and auto-off feature after two minutes
Li-ion battery provides two to three hours continuous use with halogen/xenon lamp, 30 hours use with LED lamp when charged for 24 hours
Up to 1,200 charge cycles
Universal bayonet mount for compatibility with other brands of 3.5V instrument head

Features

Diagnostix 54122 3.5V Portable Coax Plus Ophthalmoscope Head Features:

High-performance aspherical condenser lens reduces corneal reflection
Further reduction provided by utilizing distinct parallel observational and illuminating light beams
Ergonomic design and integral thumb rest improves stability and allows one finger control
Synthetic rubber brow rest facilitates use with practitioner eyeglasses
Dust proof
Universal bayonet mount for compatibility with other brands of 3.5V power supply handles
Anti-theft locking feature is standard
Secondary focusing wheel with zero retention for quick correction of ametropias, provides virtually unlimited fine focus or fast focus in lieu of the 89 viewing lenses
Include Slit – used to help determine levels of tumors and lesions
Include Fixation – has graduated crosshairs for measuring eccentric fixation or locating lesions
Include Large – standard aperture for a dilated pupil and general examination of the eye
Include Small – provides excellent view of fundus through an undilated pupil
Include Micro spot – allows quick entry into small, undilated pupils
Include Half moon – provides a combination of depth perception and field of view
