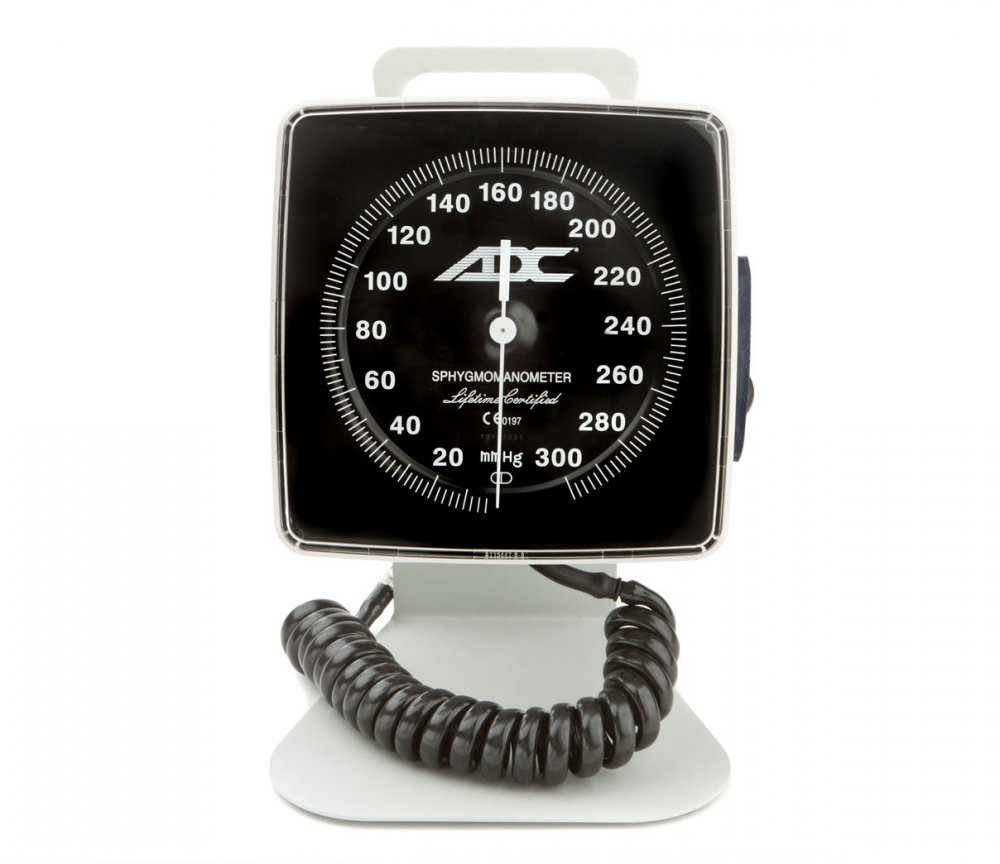

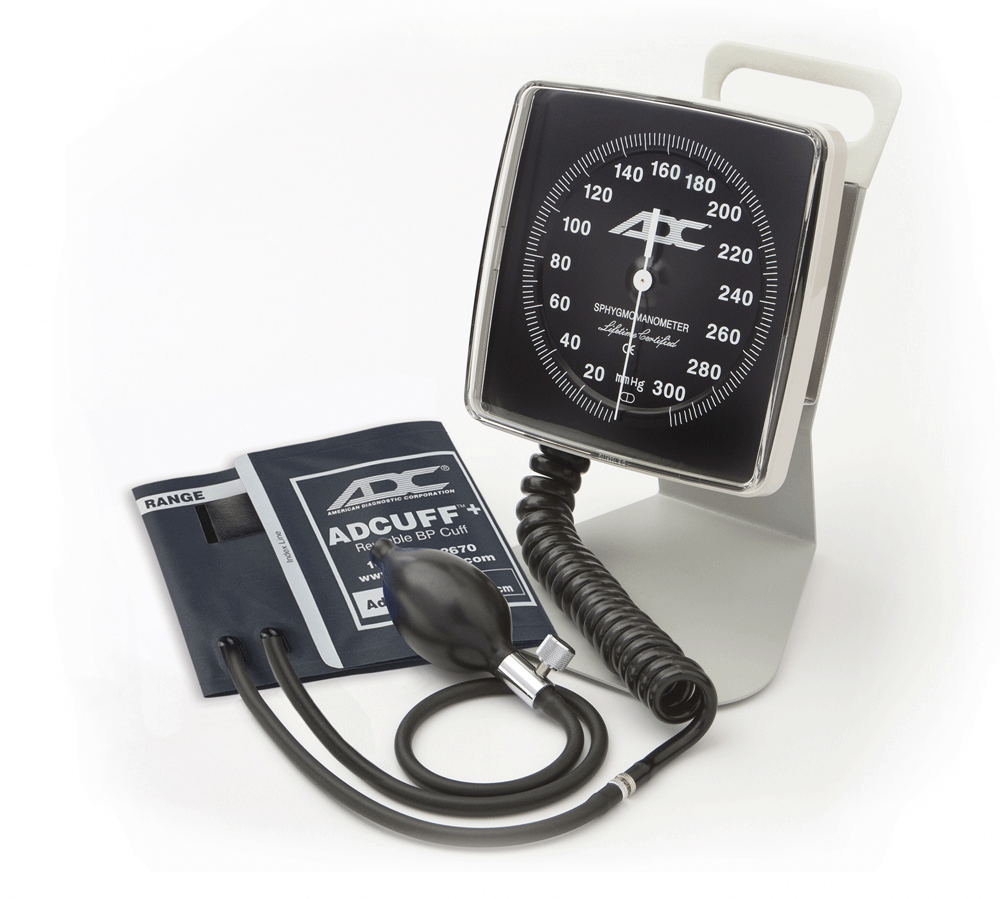

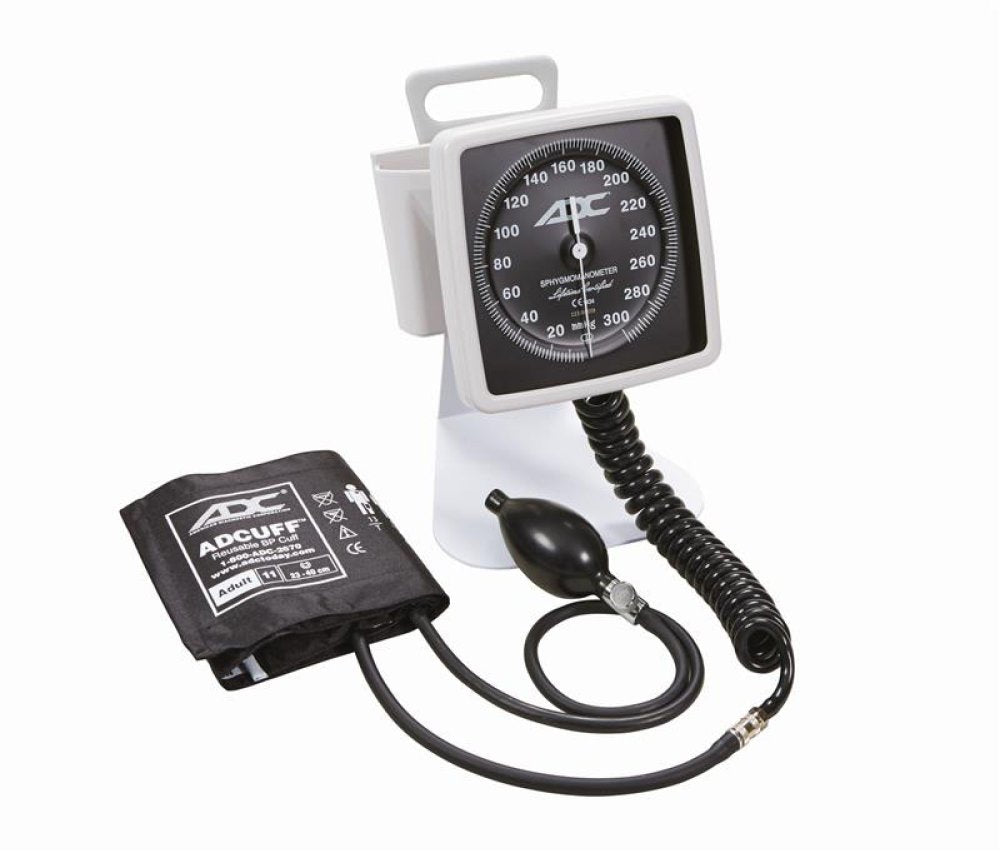

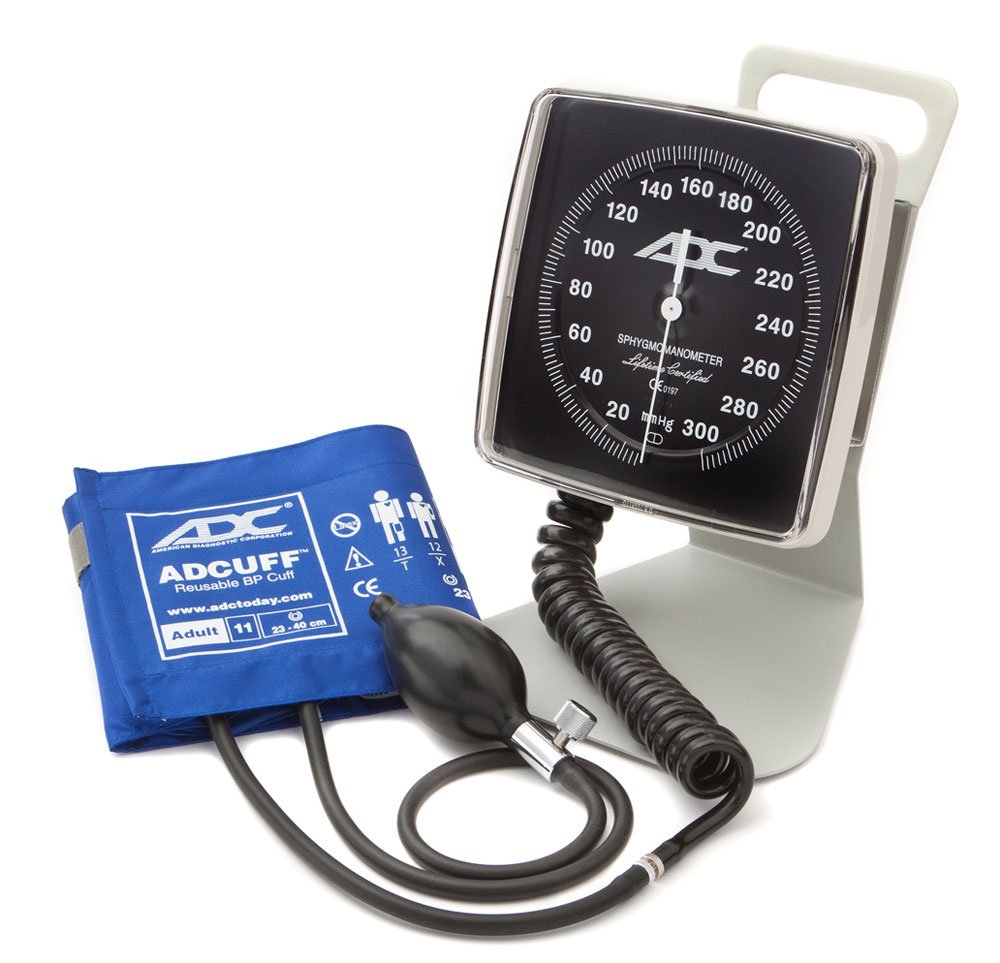

ADC Diagnostix 750D Desk Aneroid Sphygmomanometer

Features

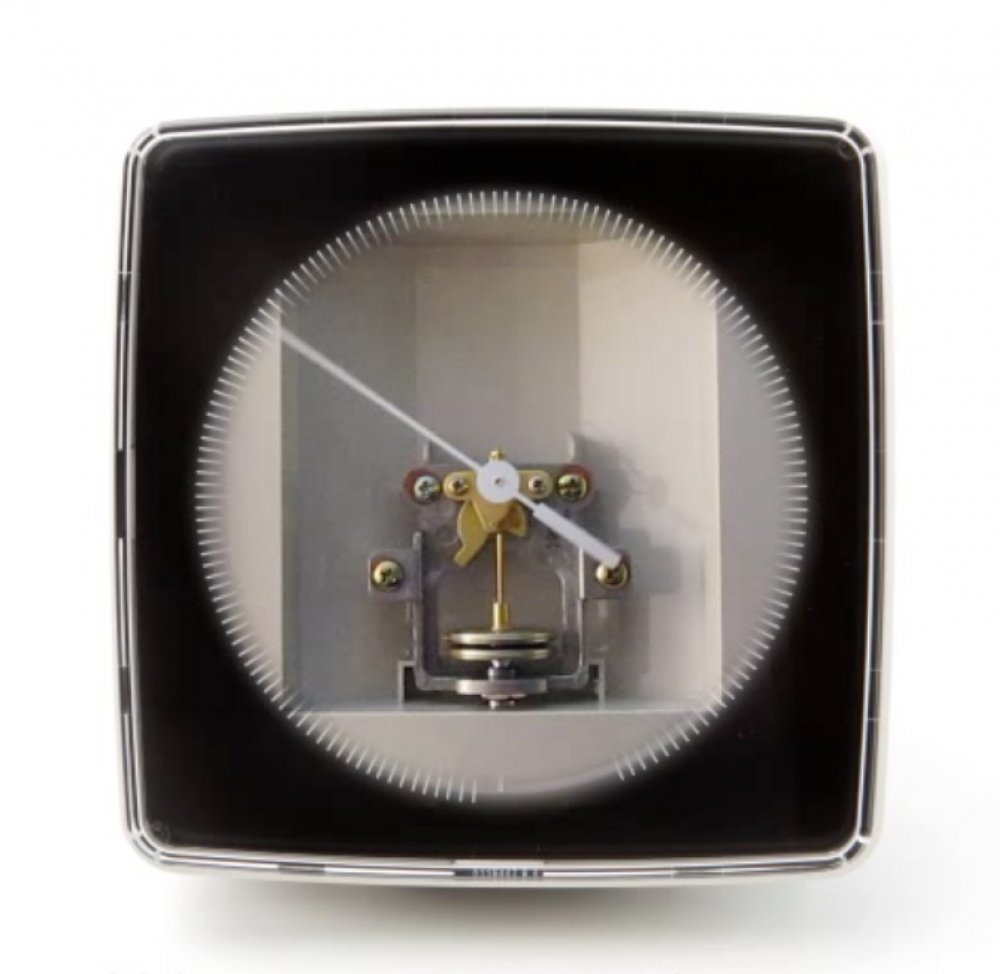

• 300 mm Hg no-pin stop movement withstands the heaviest use.

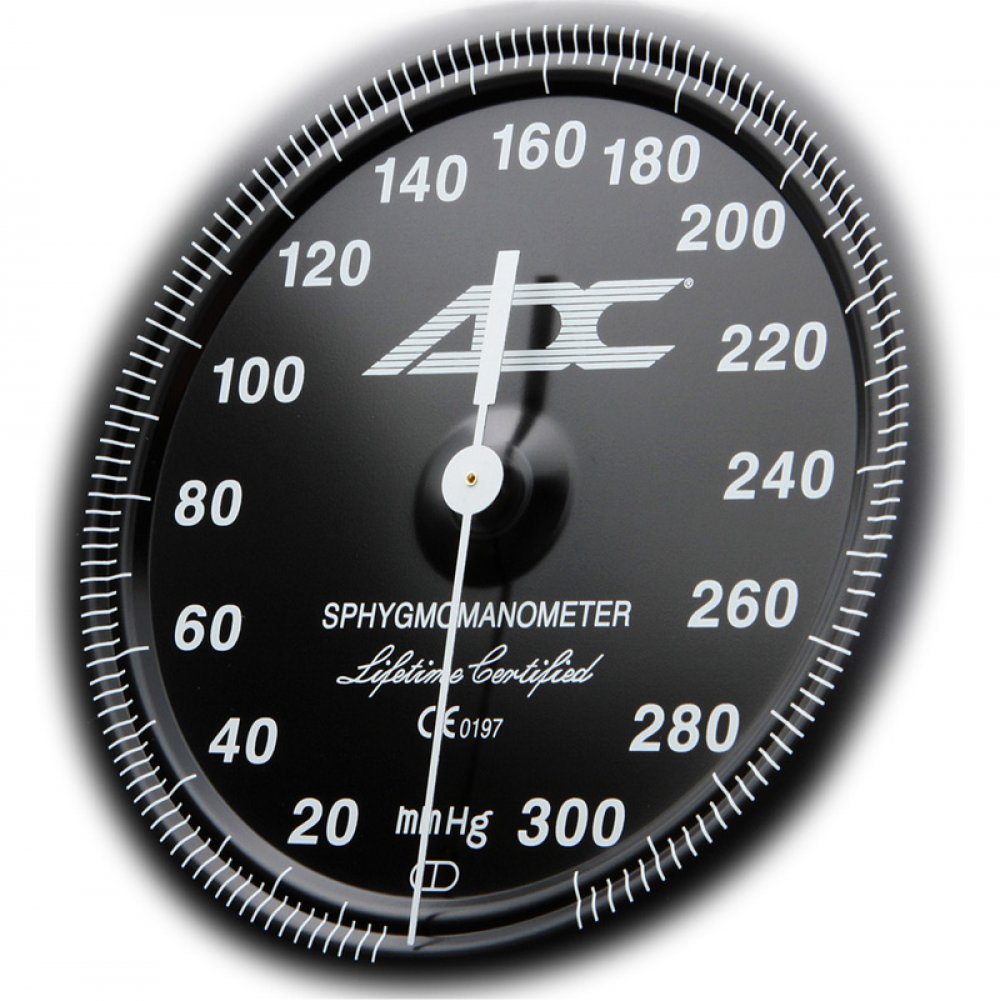

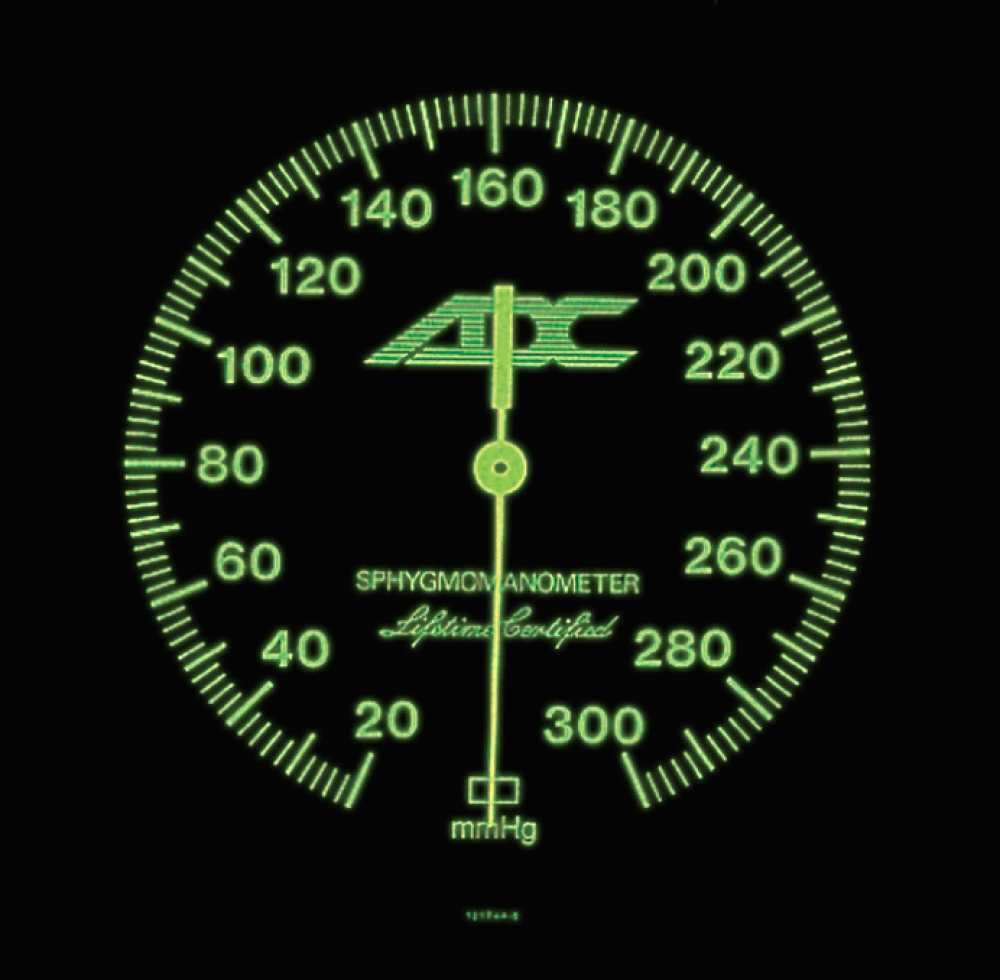

• Large, easy-to-read, 6” luminescent dial for high visibility in virtually any light condition.
• Tabletop bracket with convenient, integrated, cushioned carry handle.
• Contemporary Euro-style ivory casing compliments any decor.
• Meets or exceeds ANSI/AAMI/ISO 81060-1.
• Coiled tubing is not made with natural rubber latex.
• Assembled, inspected, and packaged in the U.S.A. from foreign components.
• Fitted with a female bayonet connector

Specifications

• Sphyg Type: Clock-Desk.
• Gauge Product Number: #805.
• Gauge Warranty: Lifetime.
• Sphyg Accuracy: +/-3 mm Hg at 50º F (10º C) - 104º F (40º C).
• Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50º F (10º C) and > 104º F (40º C).
• Storage Temp: -4º F (-20º C) - 131º F (55º C).
• Valve Type: ADFLOW.
• Number of Tubes: 2.
• Cuff Type: ADCUFF.
• Inflation Warranty: 3 Years.

Configurations

• 750D-10SABK
• 750D-10SARB
• 750D-10SARB1
• 750D-11ABK
• 750D-11AN
• 750D-11AN1
• 750D-12XBD
• 750D-12XBD1
• 750D-12XBK
• 750D-13TBK
• 750D-13TBR
• 750D-13TBR1
• 750D-7IBK
• 750D-7IOR
• 750D-7IOR1
• 750D-9CBK
• 750D-9CGR
• 750D-9CGR1
