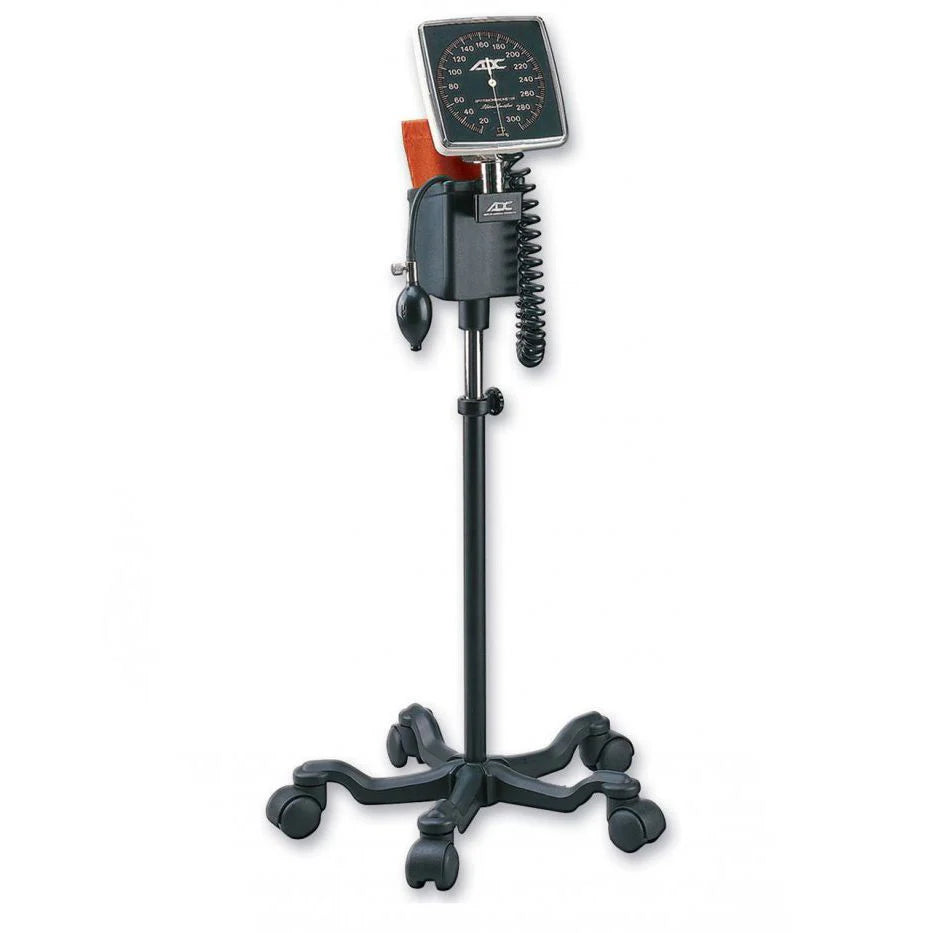

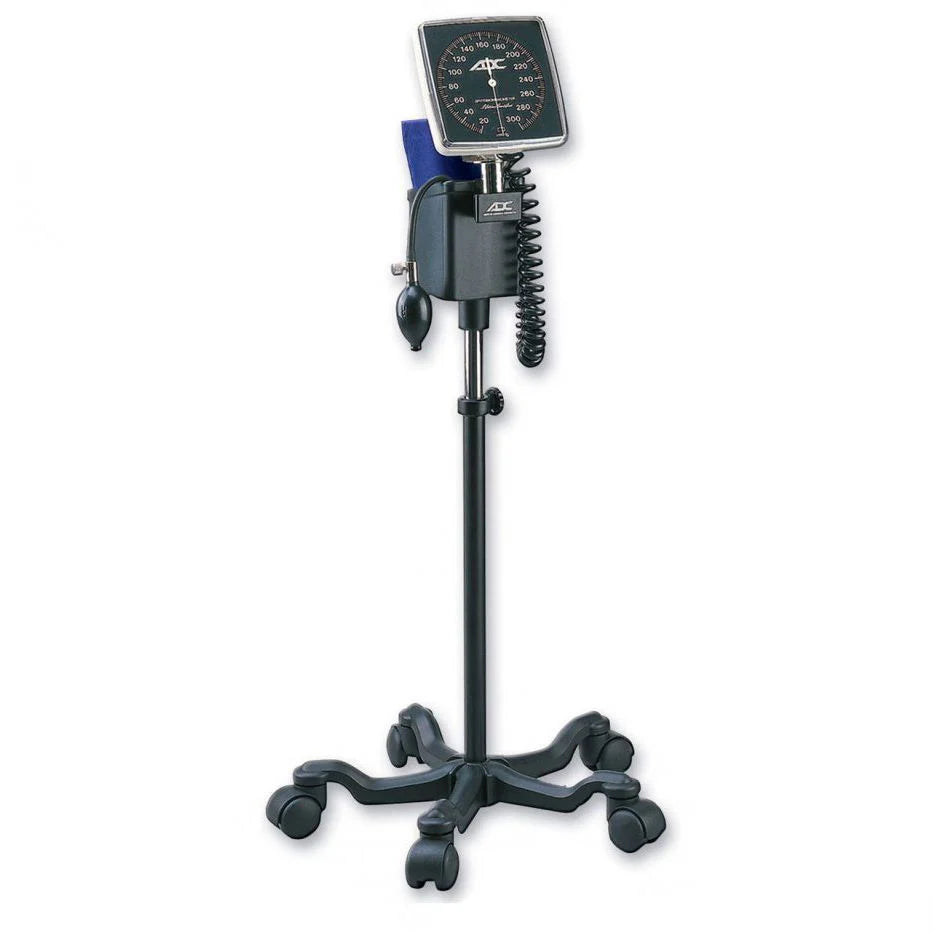

ADC Diagnostix 752M Mobile Aneroid Sphygmomanometer

Features

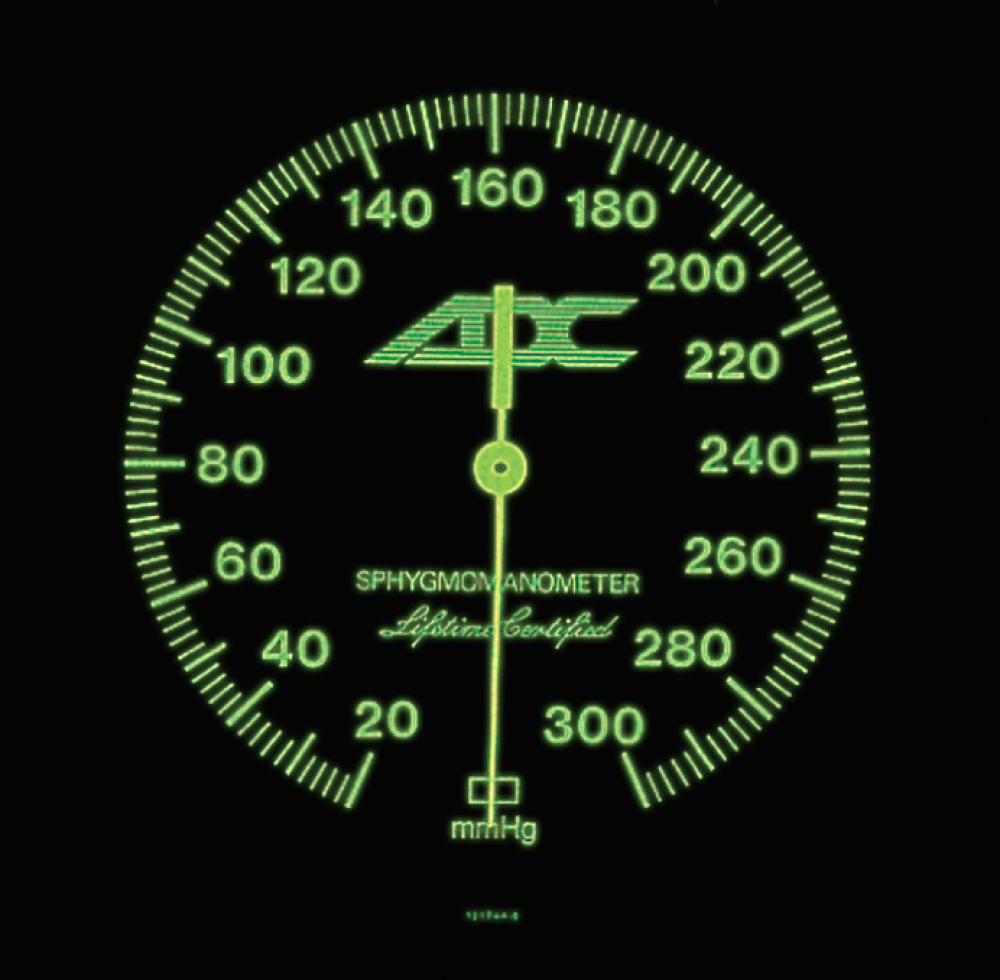

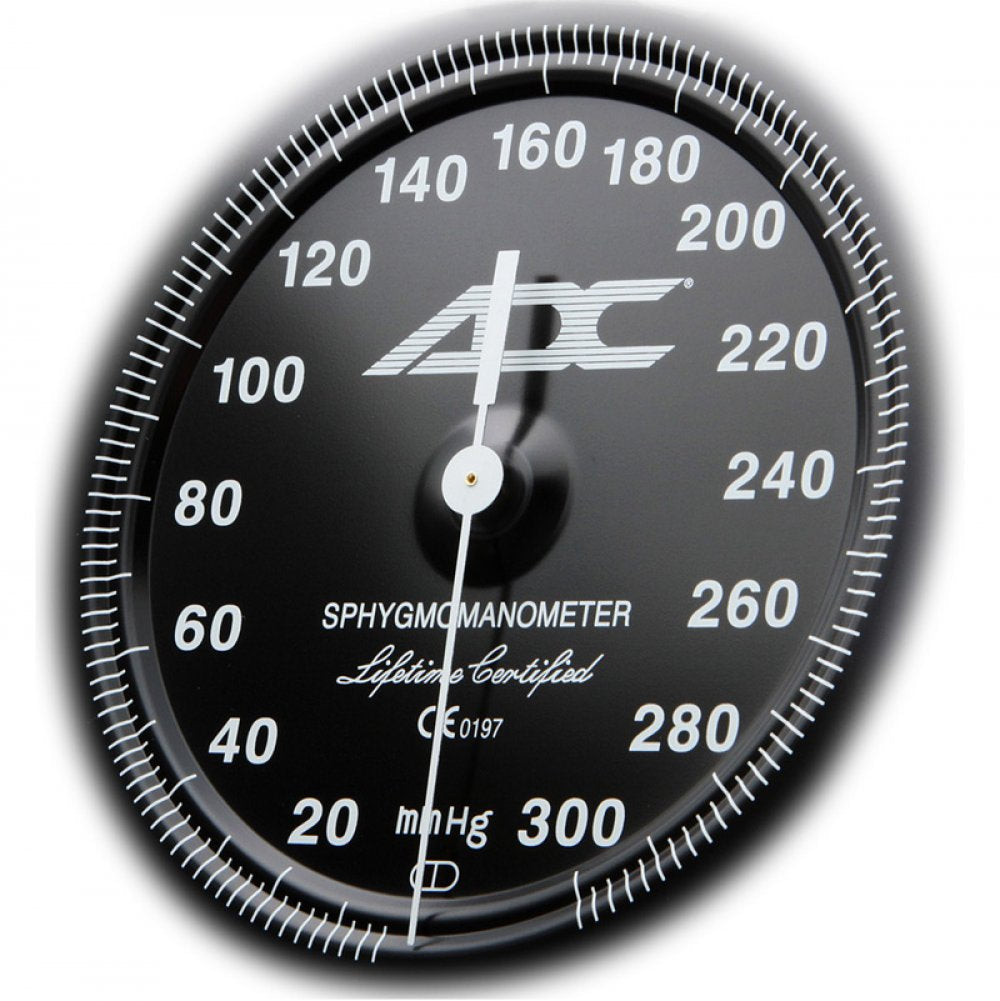

• Large, easy-to-read 6” luminescent dial for high visibility in virtually any light condition.

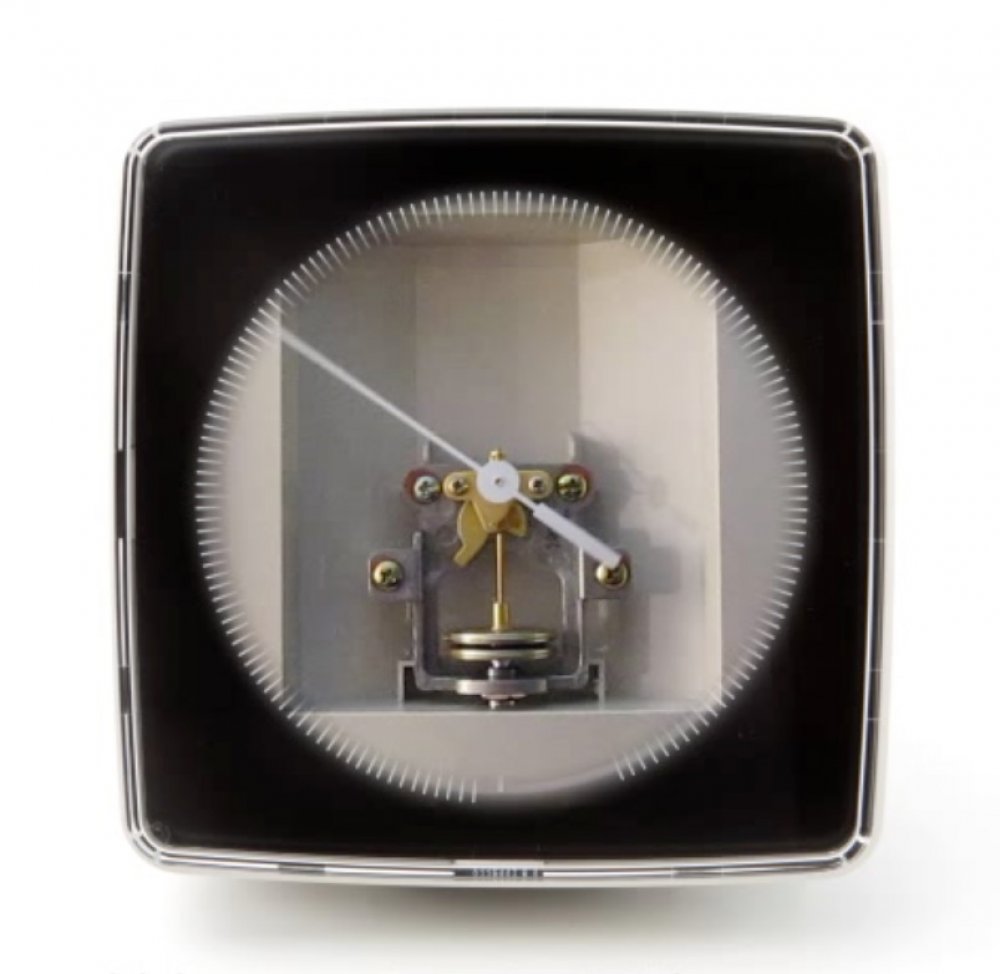

• 300 mm Hg no-pin stop movement withstands the heaviest use.
• Eight foot length (when extended) of coiled tubing not made with natural rubber latex.
• Contemporary Euro-style ivory casing compliments any decor.
• Integral ABS cuff storage compartment.
• Manometer angled back 15° for easy viewing.

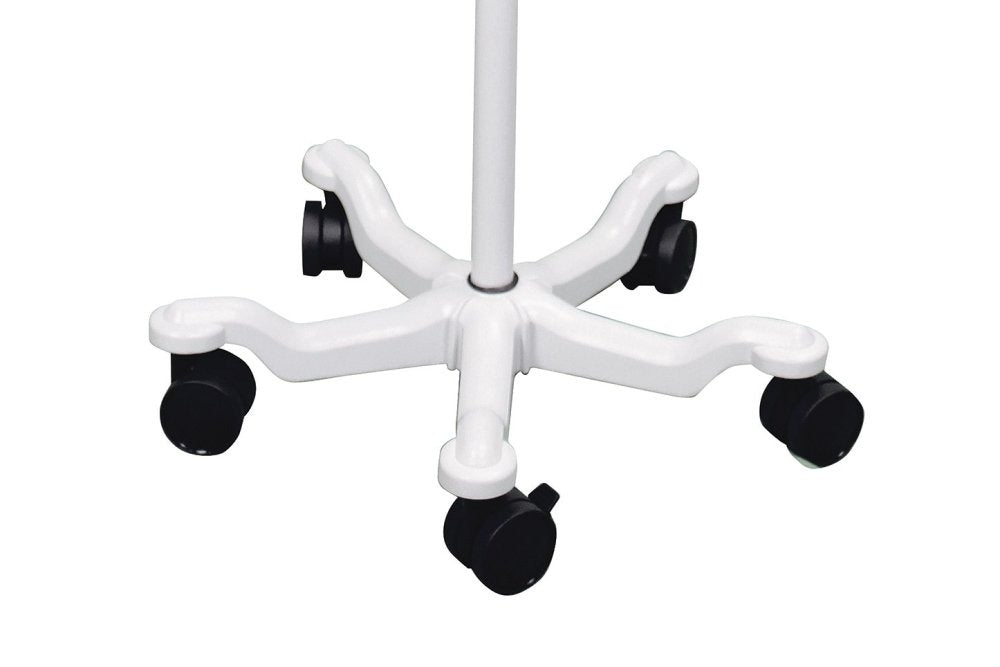

• Height adjustable Spider-Leg caster stand with range of 34” to 48” (from bottom of base to top of unit).
• 18” base diameter.
• Meets or exceeds ANSI/AAMI/ISO 81060-1.
• Inspected and packaged in the U.S.A. from foreign components.
• Some assembly required.

Specifications

• Sphyg Type: Clock-Mobile.

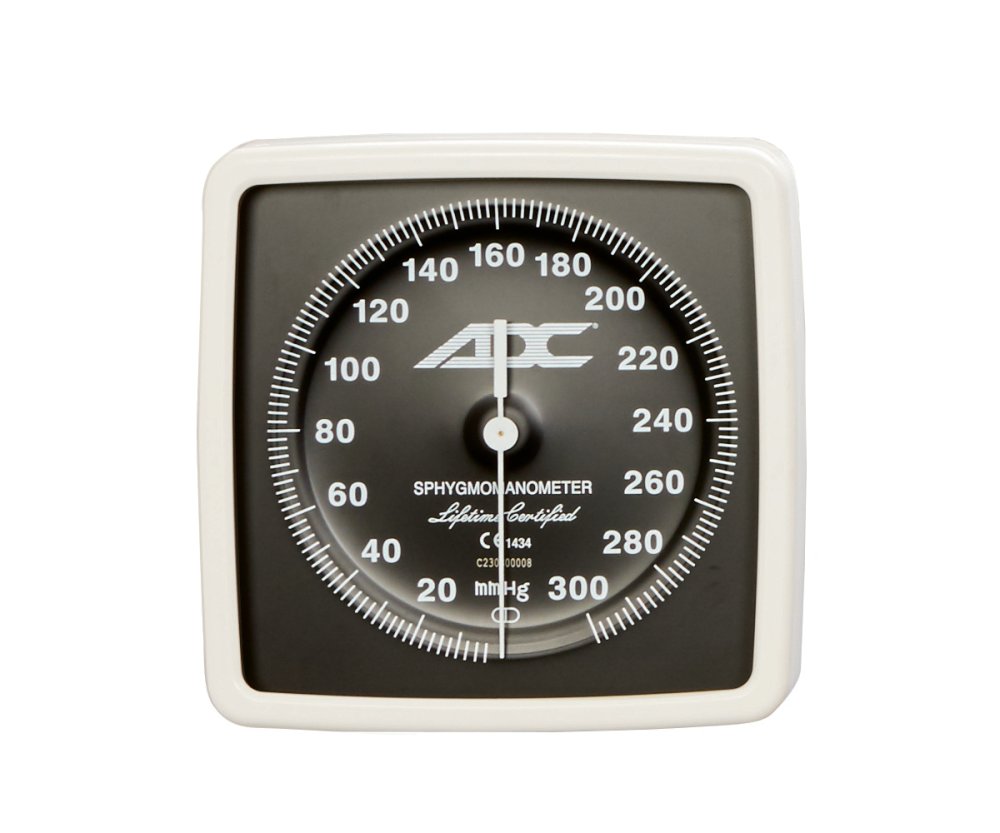

• Gauge Product Number: #805.
• Gauge Warranty: Lifetime.
• Sphyg Accuracy: +/-3 mm Hg at 50º F (10º C) - 104º F (40º C).
• Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50º F (10º C) and > 104º F (40º C).
• Storage Temp: -4º F (-20º C) - 131º F (55º C).
• Valve Type: ADFLOW.
• Number of Tubes: 2.
• Cuff Type: ADCUFF.
• Inflation Warranty: 3 Years.

Configurations

• 752M-10SABK
• 752M-10SARB
• 752M-10SARB1
• 752M-11ABK
• 752M-11AN
• 752M-11AN1
• 752M-12XBD
• 752M-12XBD1
• 752M-12XBK
• 752M-13TBK
• 752M-13TBR
• 752M-13TBR1
• 752M-7IBK
• 752M-7IOR
• 752M-7IOR1
• 752M-9CBK
• 752M-9CGR
• 752M-9CGR1

Data Sheets

ADC Adcuff Literature

ADC® Sphygmomanometer Accessories - Instructions for use

Diagnostix 752M, 750W Schematics and Parts List - Assembly Instructions
