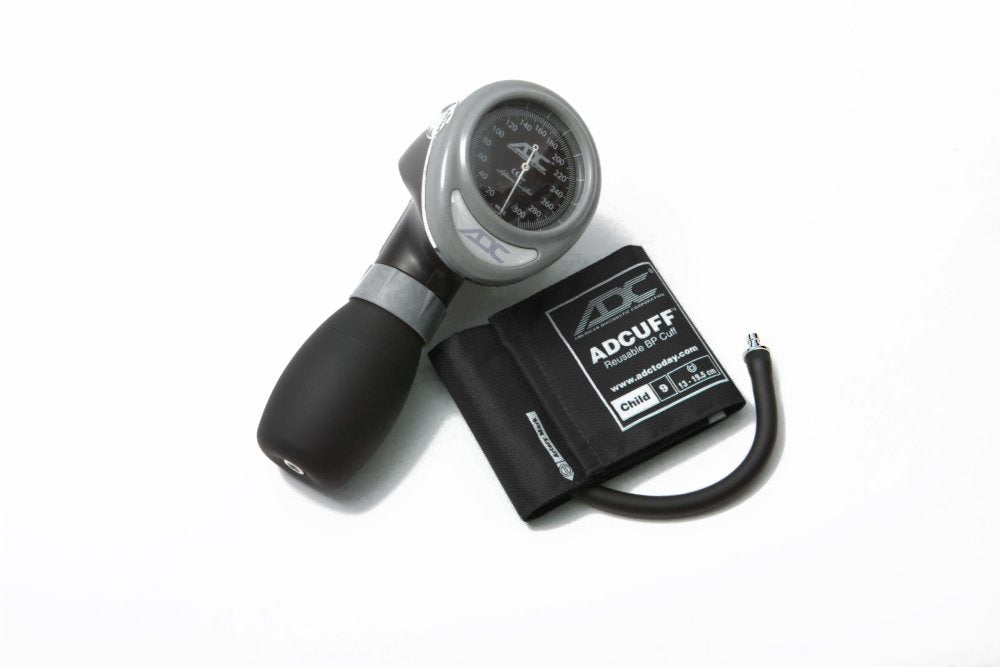

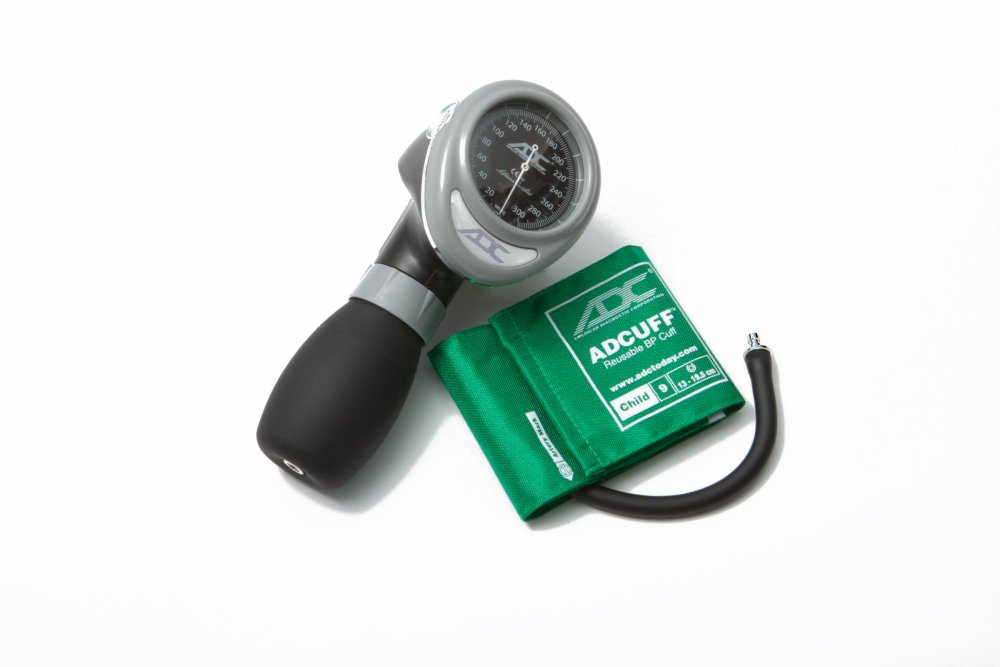

ADC Diagnostix Palm Aneroid Sphygmomanometer-Child

Features

• Revolutionary palm style manometer (#804N) with integral bulb not made with natural rubber latex and trigger style air release valve for one-hand convenience.
• Precision crafted 300 mm Hg Japanese engineered movement tested to 50,000 cycles.
• Movement housed in a zinc cage that suspends within the polymer housing for enhanced shock resistance.
• Luminescent dial.
• Ambidextrous infinite control trigger release air valve.
• Adcuff Nylon Cuff with ADC’s proprietary Size Guide marking system, prevents mis-cuffing.
• Quick release luer slip connector.
• Meets or exceeds ANSI/AAMI/ISO 81060-1.
• Assembled, inspected, and packaged in the U.S.A. from foreign components.

Specifications

• Sphyg Type: Palm.
• Gauge Product Number: #804N.
• Gauge Warranty: Lifetime.
• Sphyg Accuracy: +/-3 mm Hg at 50º F (10º C) - 104º F (40º C).
• Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50º F (10º C) and > 104º F (40º C).
• Storage Temp: -4º F (-20º C) - 131º F (55º C).
• Valve Type: Integral.
• Number of Tubes: 1.
• Cuff Type: ADCUFF.
• Cuff Size: Child.
• Cuff Range: 5.1" - 7.6" (13 cm - 19.5 cm).
• Inflation Warranty: 3 Years.
• Zipper Storage Case Product Number: #880.

Configurations

• 703-9CBK
• 703-9CGR
• 703-9CGR1
