ADC Diagnostix Pocket Aneroid Sphygmomanometer

Features

• Luminescent dial features bold numerals and extended graduation marks for easy reading in all light conditions and from virtually any angle.
• Adcuff Nylon Cuff with ADC's proprietary Size Guide marking system prevents mis-cuffing.
• Adflow filter screen check and deflation valves reduce dust build-up.
• Adflow chrome-plated brass air release valve with micro-threads for precision deflation control.
• Meets or exceeds ANSI/AAMI/ISO 81060-1.
• Not made with natural rubber latex.
• Assembled, inspected, and packaged in the U.S.A from foreign components.

Specifications

• Sphyg Type: Pro's Combo.
• Gauge Product Number: #800.
• Gauge Warranty: Lifetime.
• Sphyg Accuracy: +/-3 mm Hg at 50 degrees F (10 degrees C) - 104 degrees F (40 degrees C).
• Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50 degrees F (10 degrees C) and > 104 degrees F (40 degrees C).
• Storage Temp: -4 degrees F (-20 degrees C) - 131 degrees F (55 degrees C).
• Valve Type: Adflow.
• Number of Tubes: 2.
• Cuff Type: ADCUFF.
• Cuff Size: Adult.
• Cuff Range: 9" - 15.7" (23 cm - 40 cm).
• Inflation Warranty: 3 Years.
• Storage Case Dimensions: 10" x 6" x 3" (25.4 cm 15.24 cm 7.62 cm).

Configurations

• Burgundy (#778-11ABD) / Storage Case (#888BD).

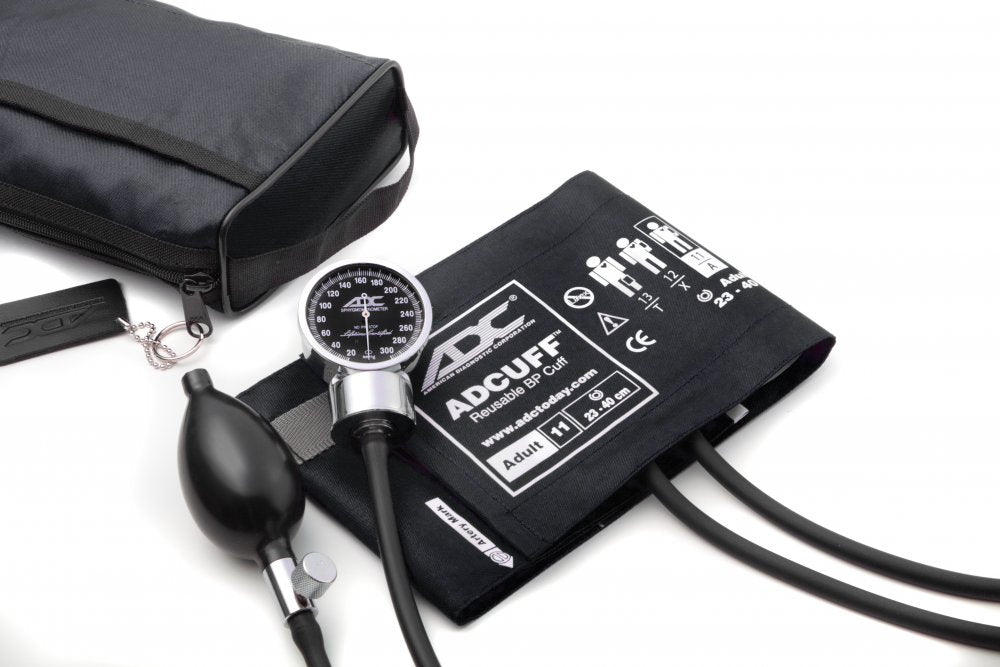

• Black (#778-11ABK) / Storage Case (#888BK).
• Dark Green (#778-11ADG) / Storage Case (#888DG).
• Gray (#778-11AG) / Storage Case (#888G).
• Magenta (#778-11AM) / Storage Case (#888M).

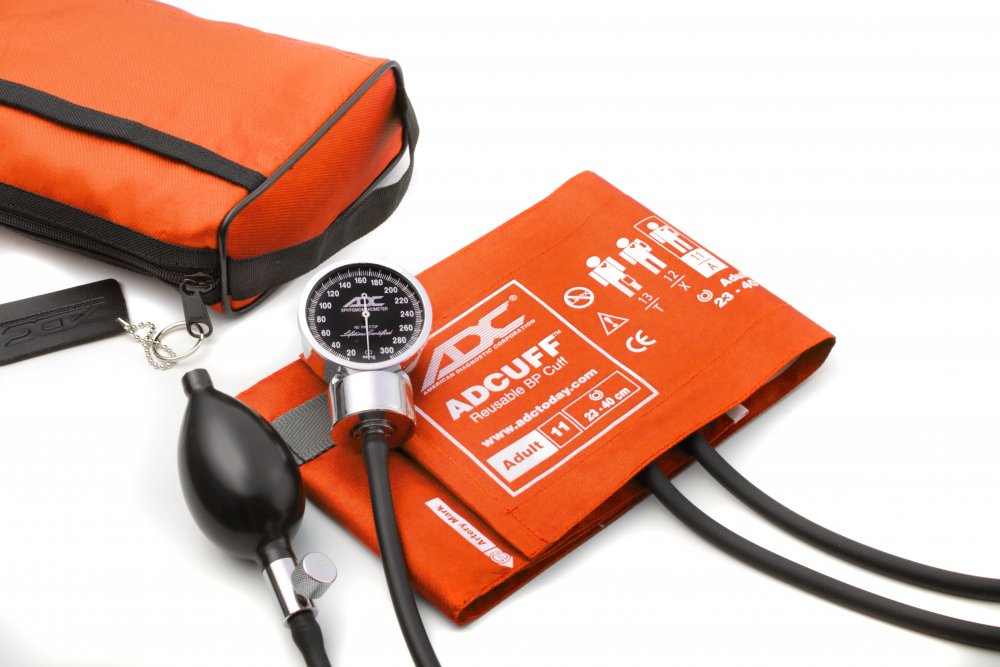

• Orange (#778-11AOR) / Storage Case (#888O).

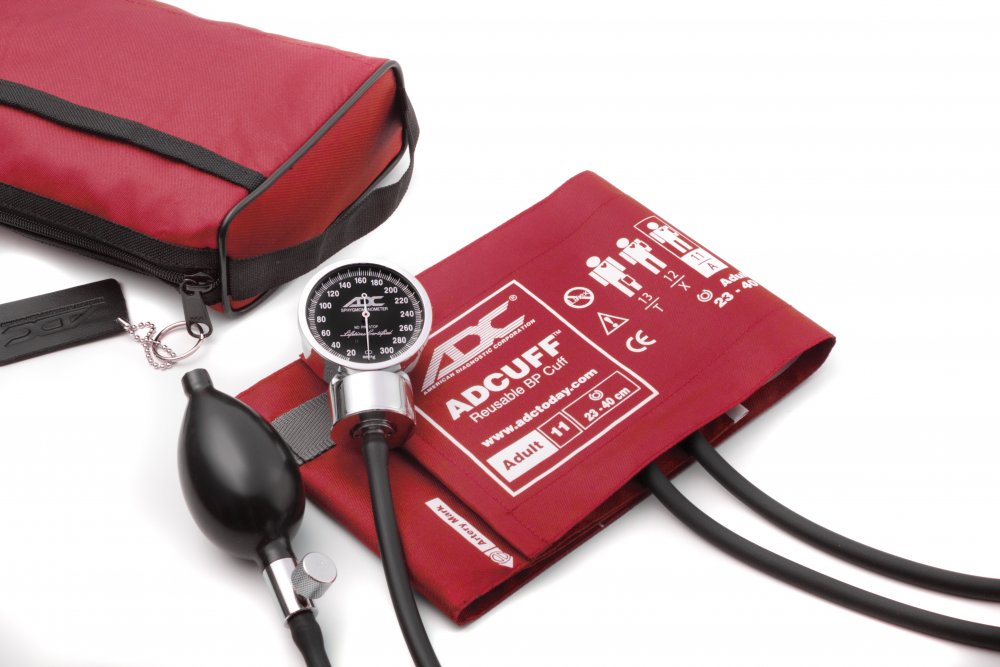

• Red (#778-11AR) / Storage Case (#888R).
• Royal Blue (#778-11ARB) / Storage Case (#888RB).
• Teal (#778-11ATL) / Storage Case (#888TL).
• Purple (#778-11AV) / Storage Case (#888V).
• Navy (#778-11AN) / Storage Case (#888DB).
