ADC Diagnostix 720 Pocket Aneroid Sphygmomanometer-Adult

Features

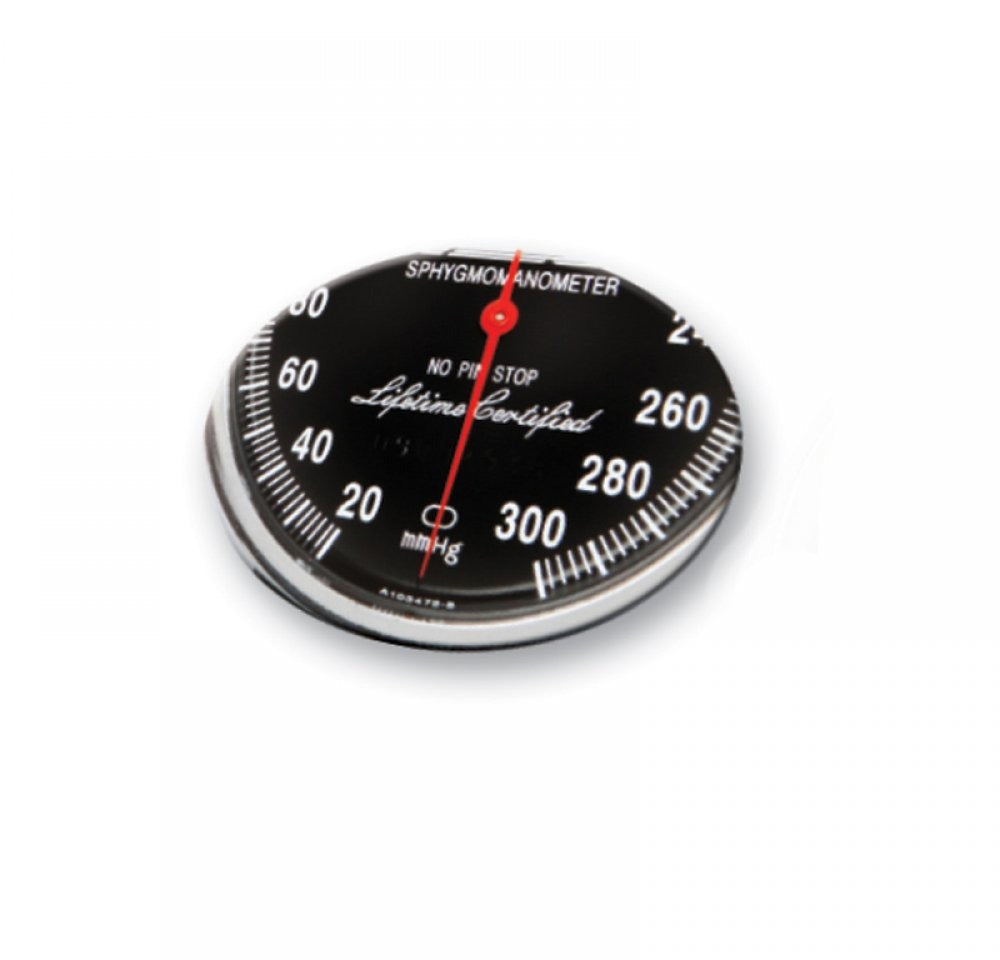

• Extended scaleplate graduation marks reduce parallax for easier viewing from virtually any angle.
• Adcuff Nylon Cuff with ADC’s proprietary Size Guide marking system prevents mis-cuffing.
• Adflow filter screen check and deflation valve reduces dust build-up.
• Adflow chrome-plated brass air release valve for precise deflation control.
• Meets or exceeds ANSI/AAMI/ISO 81060-1.
• Not made with natural rubber latex.

Specifications

• Sphyg Type: Pocket.

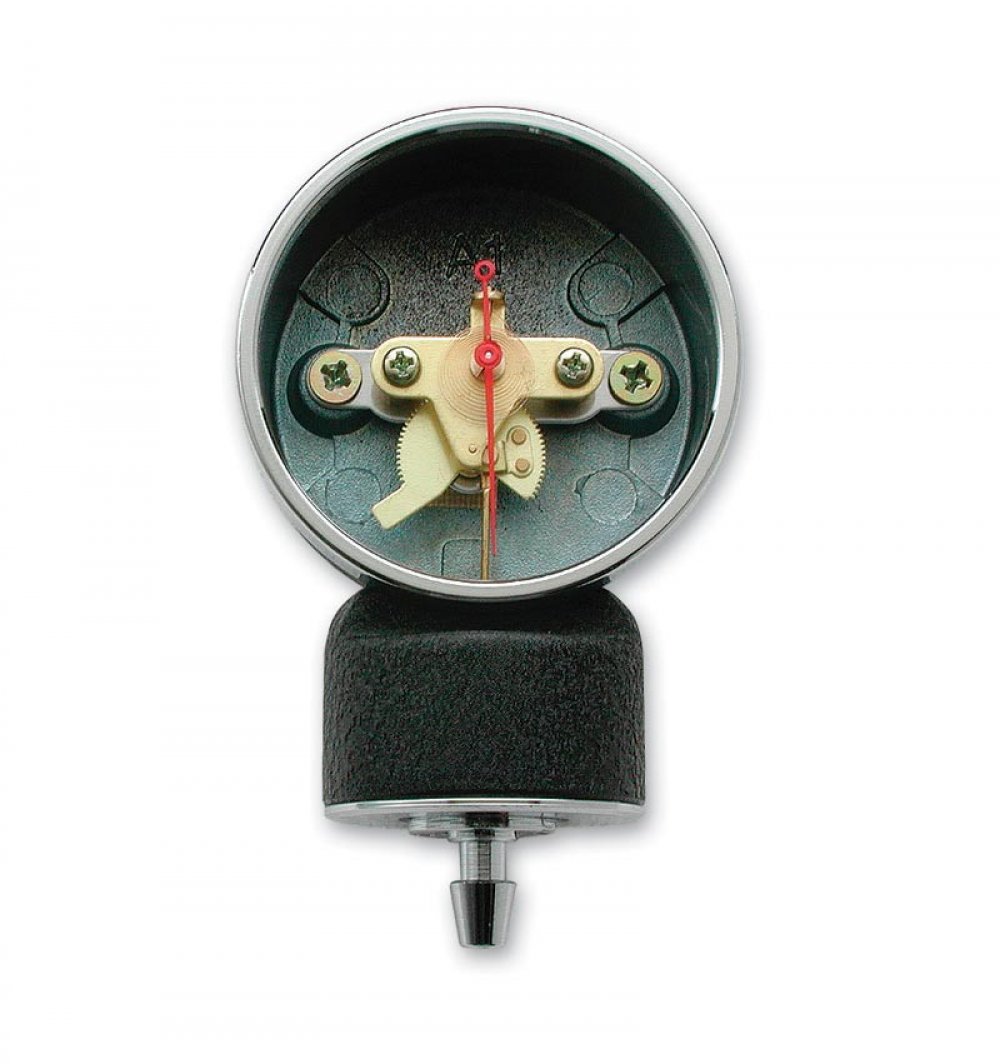

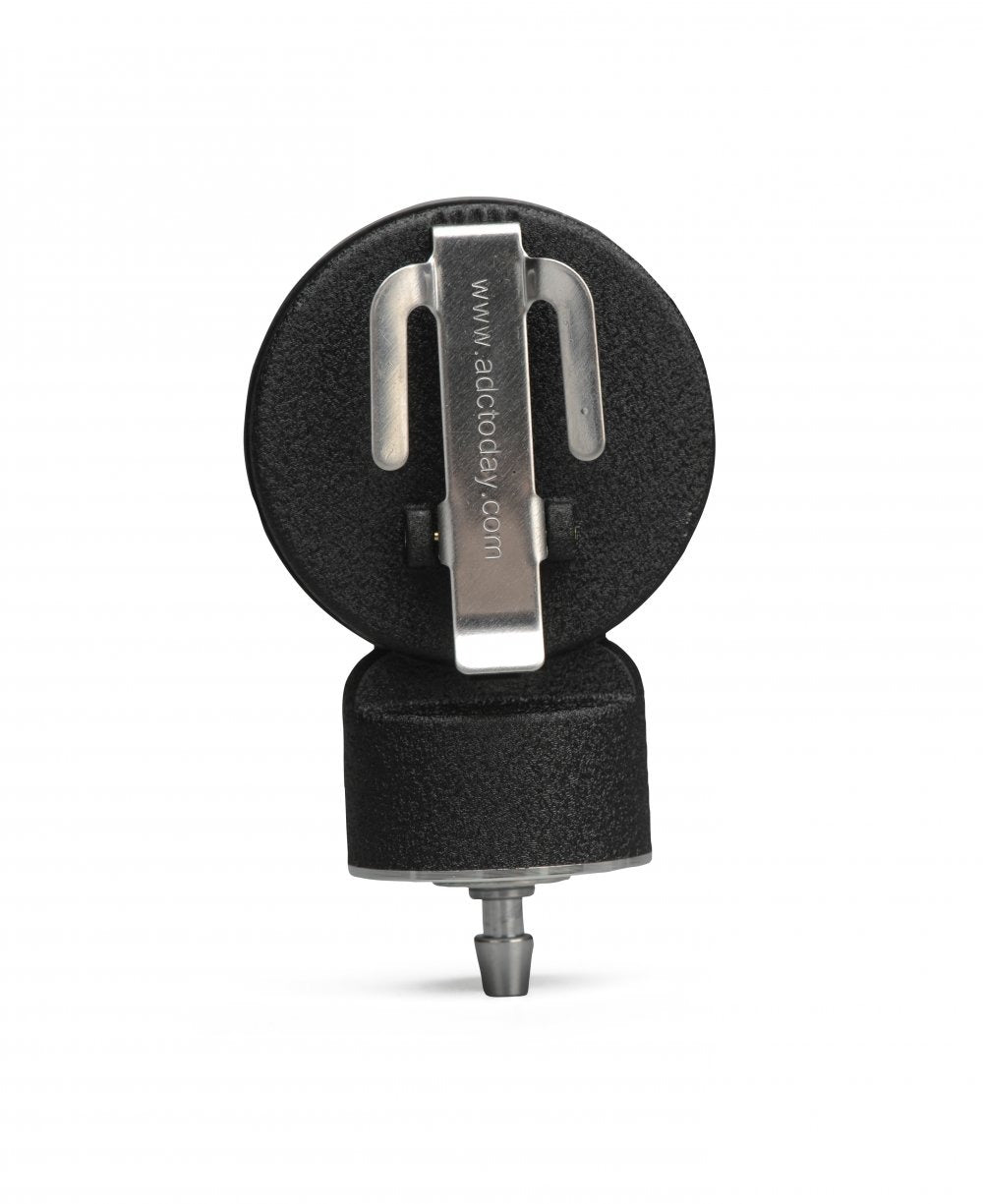

• Gauge Product Number: #802.
• Gauge Warranty: Lifetime.
• Sphyg Accuracy: +/-3 mm Hg at 50º F (10º C) - 104º F (40º C).
• Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50º F (10º C) and > 104º F (40º C).
• Storage Temp: -4º F (-20º C) - 131º F (55º C).
• Valve Type: ADFLOW.
• Number of Tubes: 2.
• Cuff Type: ADCUFF.
• Cuff Size: Adult.
• Cuff Range: 9" - 15.7" (23 cm - 40 cm).

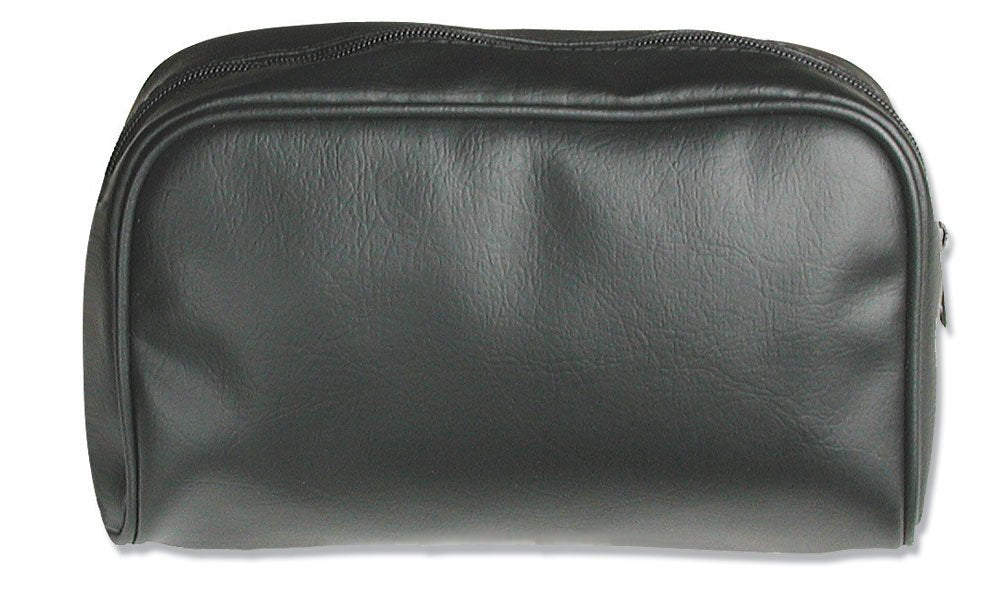

• Zipper Storage Case Product Number: #880.

Configurations

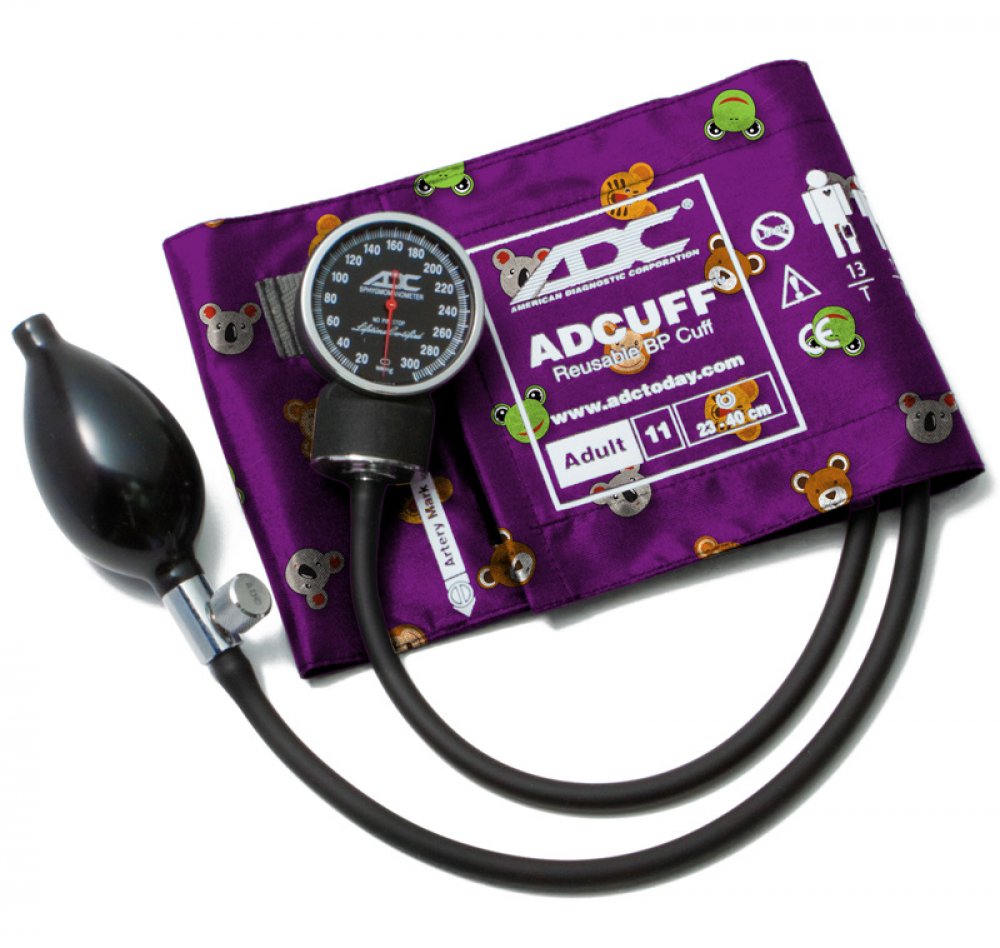

• 720-11AAD

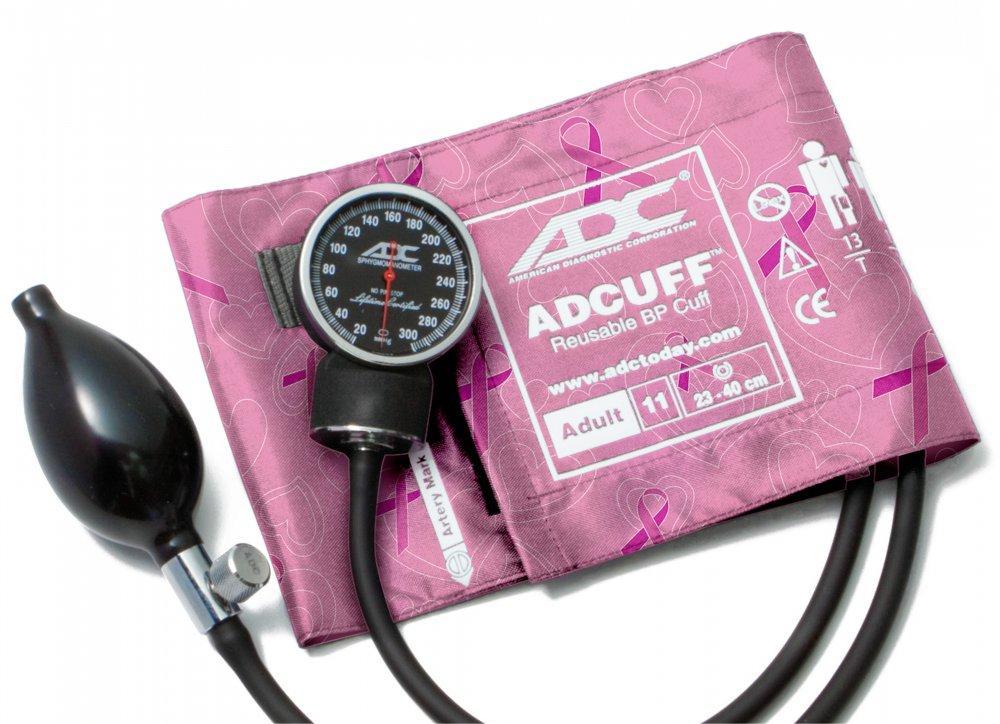

• 720-11ABCA
• 720-11ABD
• 720-11ABDQ
• 720-11ABK
• 720-11ABKQ
• 720-11ADG
• 720-11ADGQ

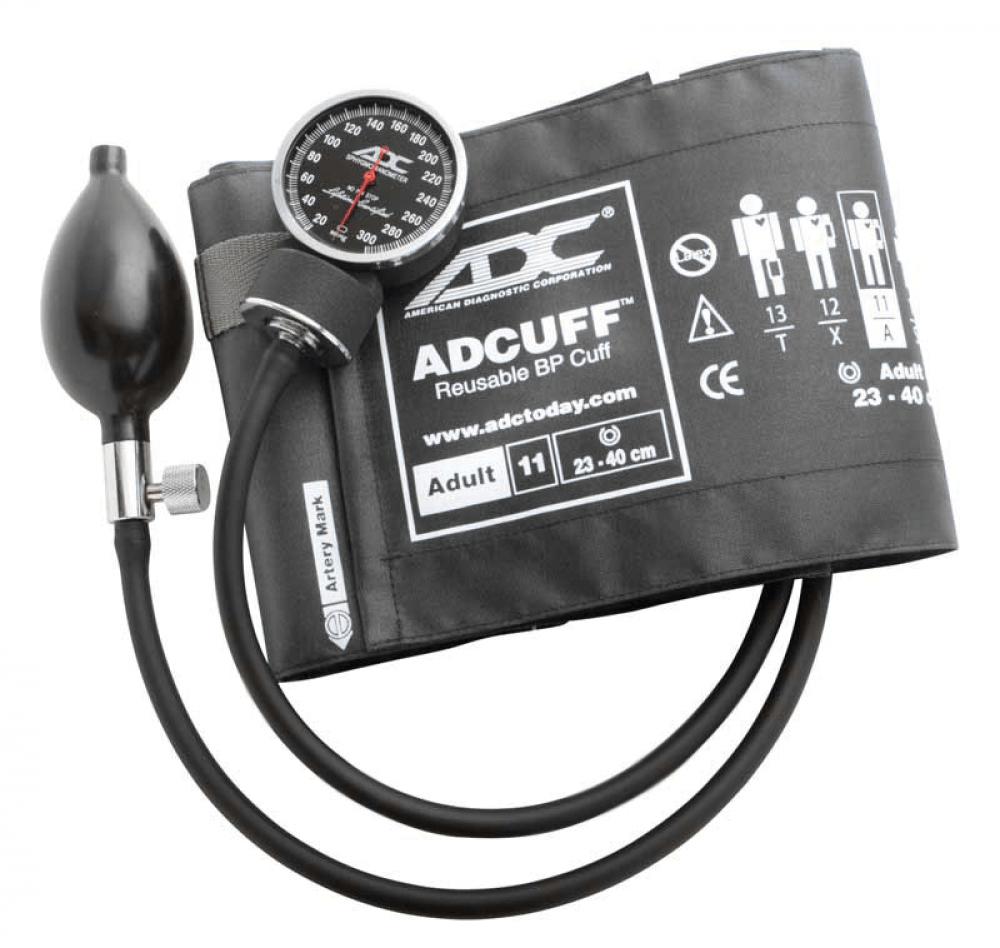

• 720-11AG
• 720-11AGQ
• 720-11AGR
• 720-11AGRQ

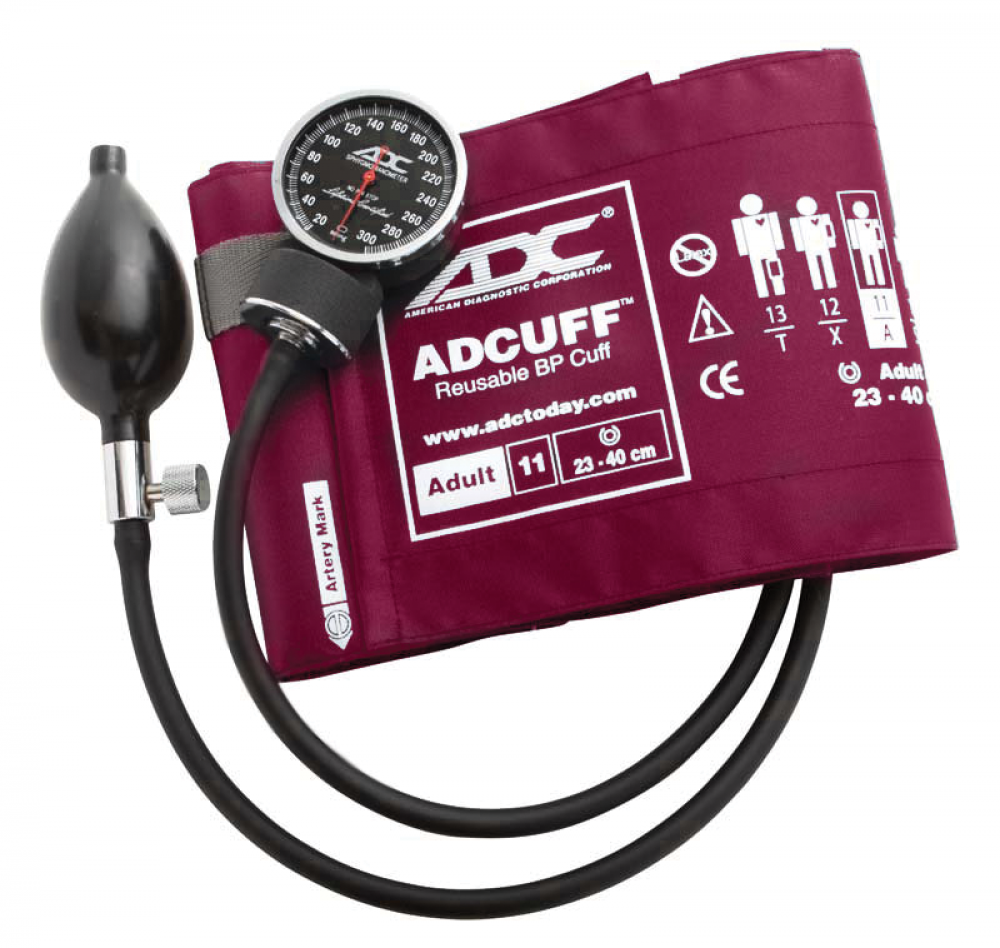

• 720-11AM
• 720-11AMQ

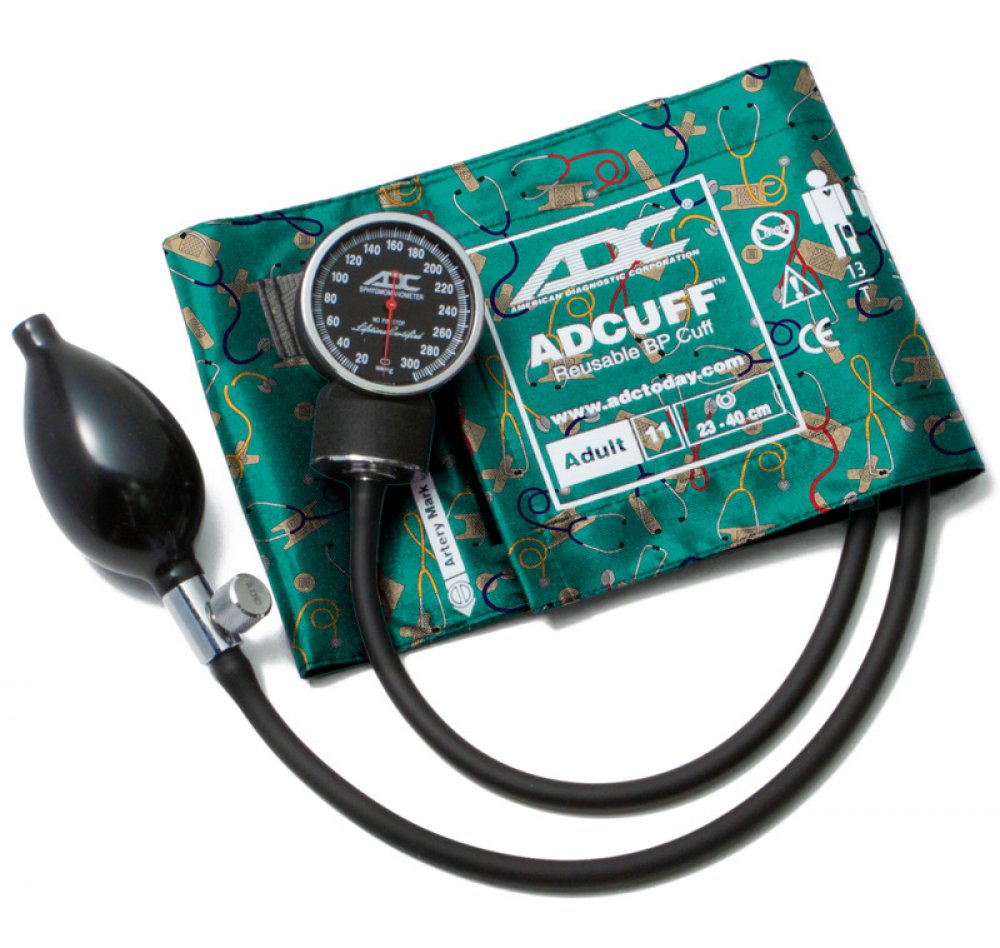

• 720-11AMT
• 720-11AN
• 720-11ANQ
• 720-11AN1

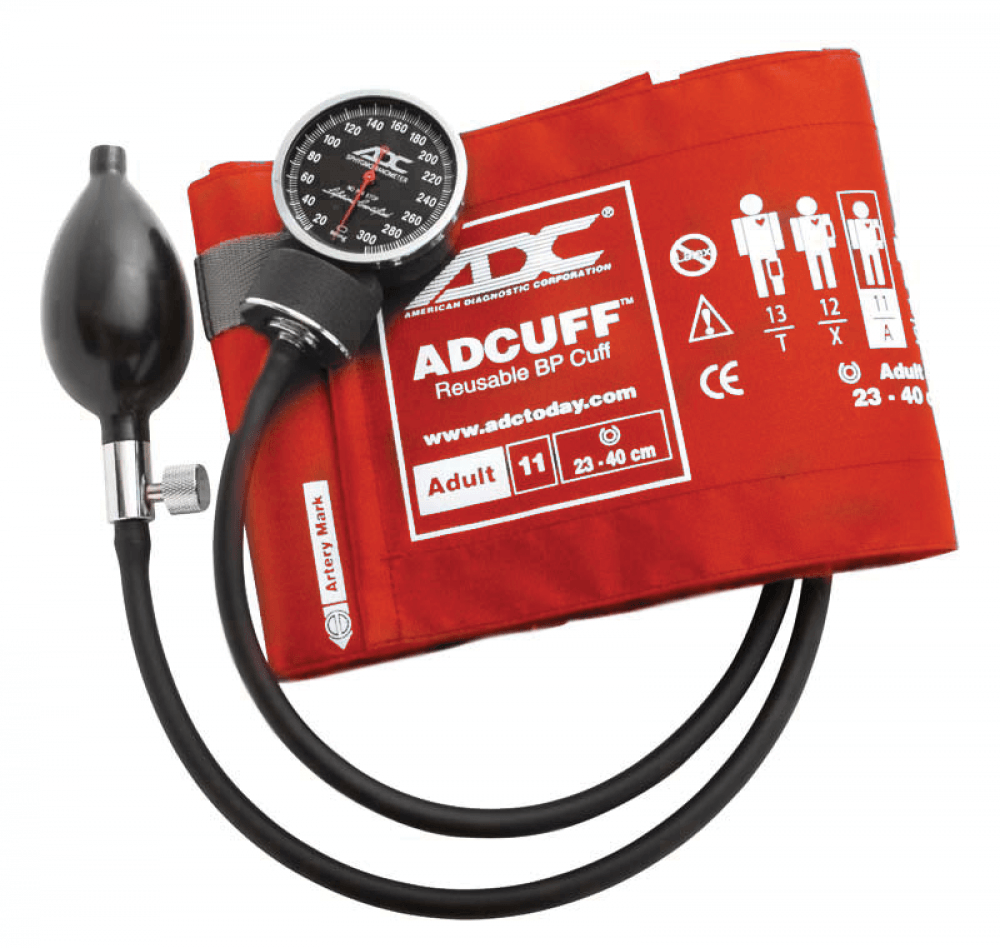

• 720-11AOR
• 720-11AORQ

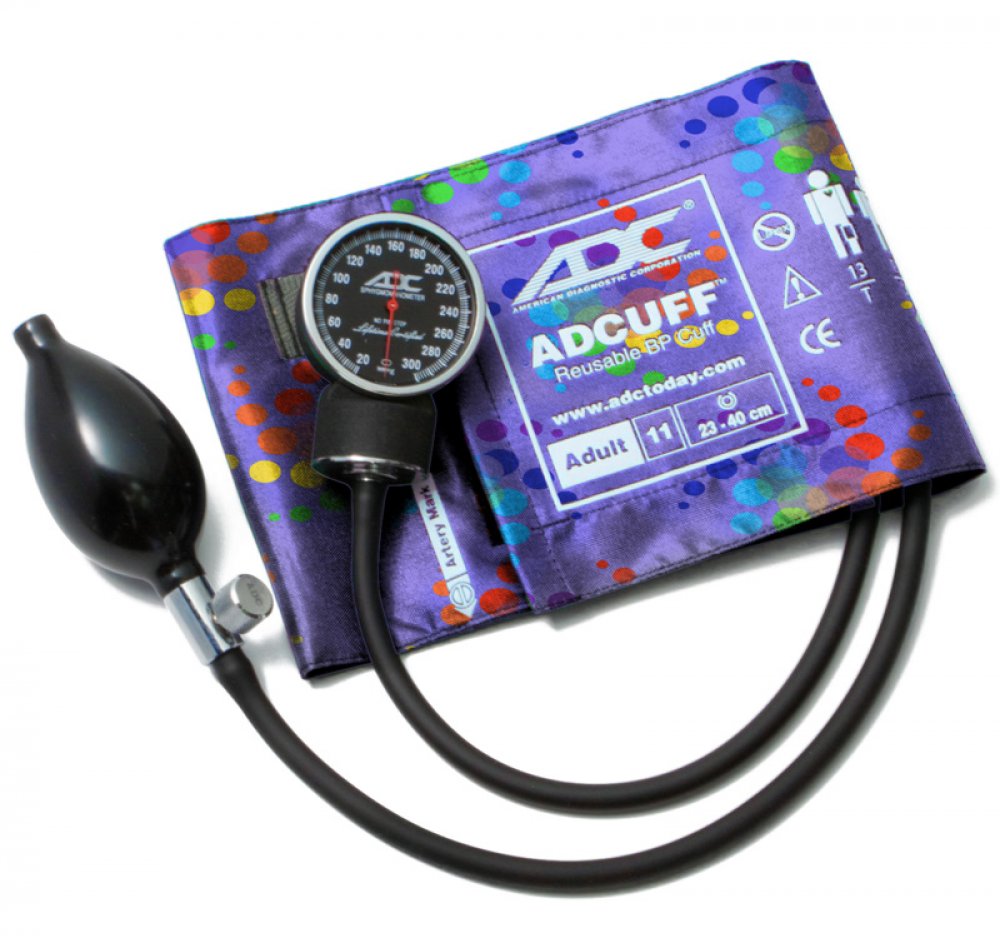

• 720-11APBS
• 720-11APP
• 720-11AR

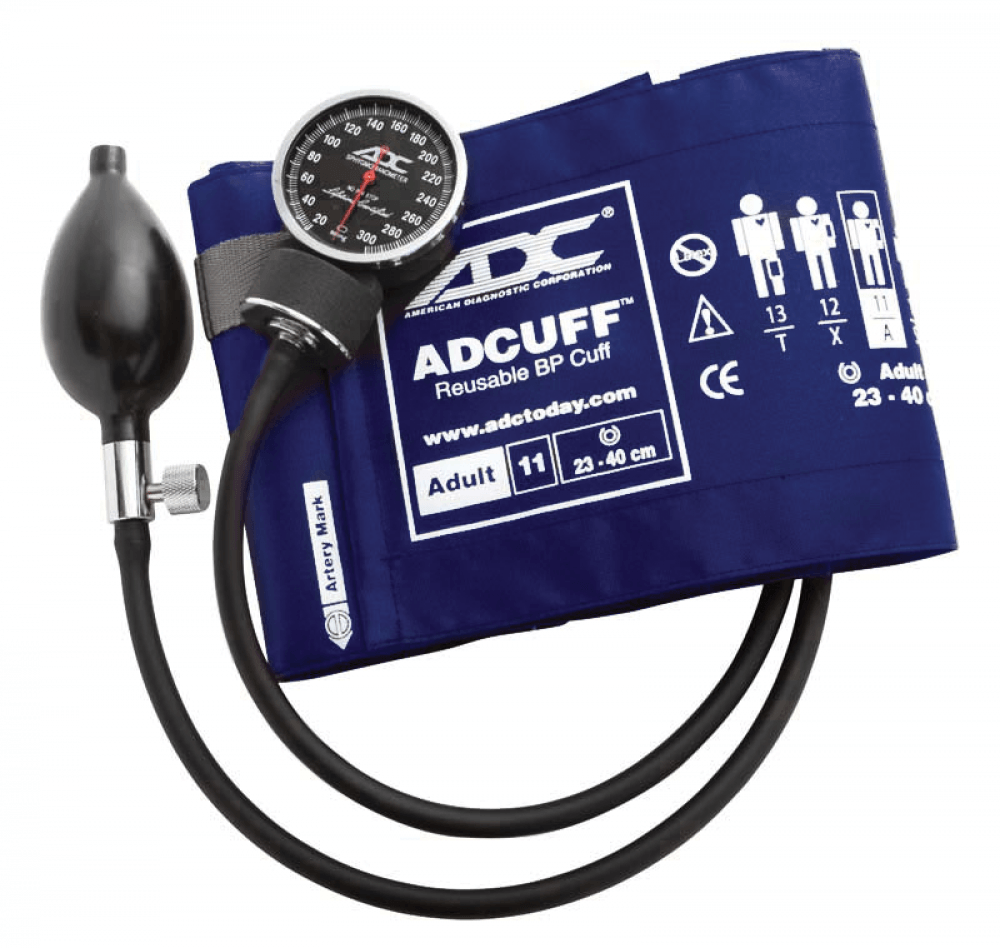

• 720-11ARB
• 720-11ARBQ
• 720-11ARQ

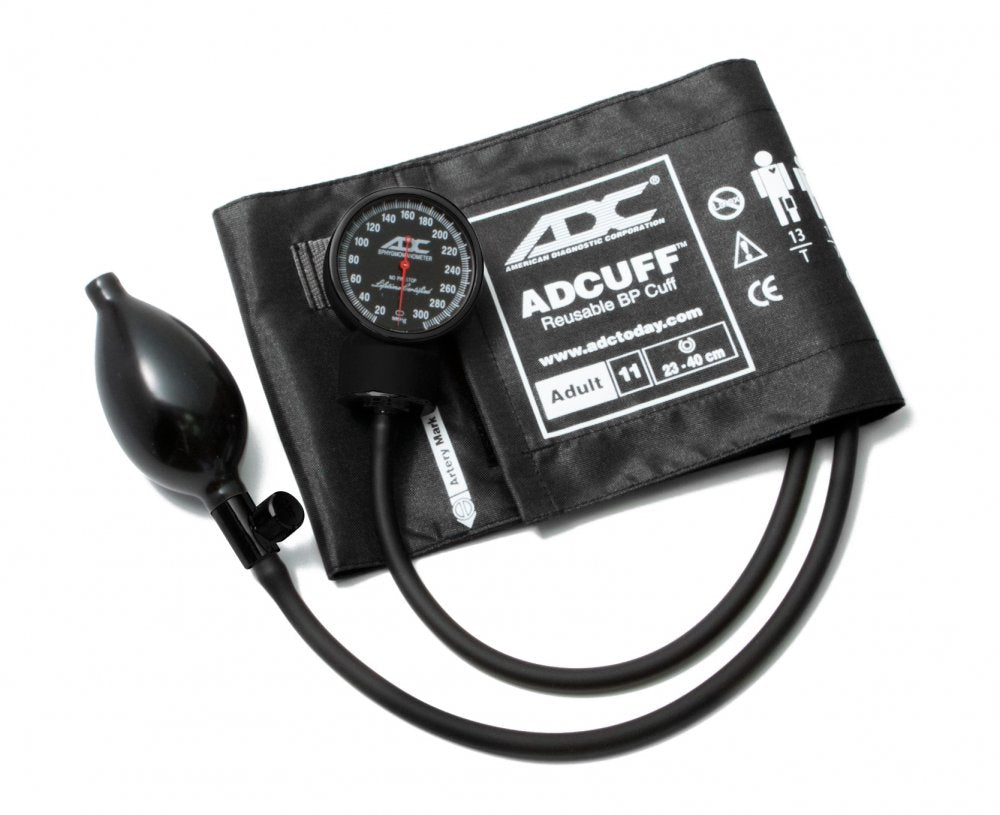

• 720-11AST

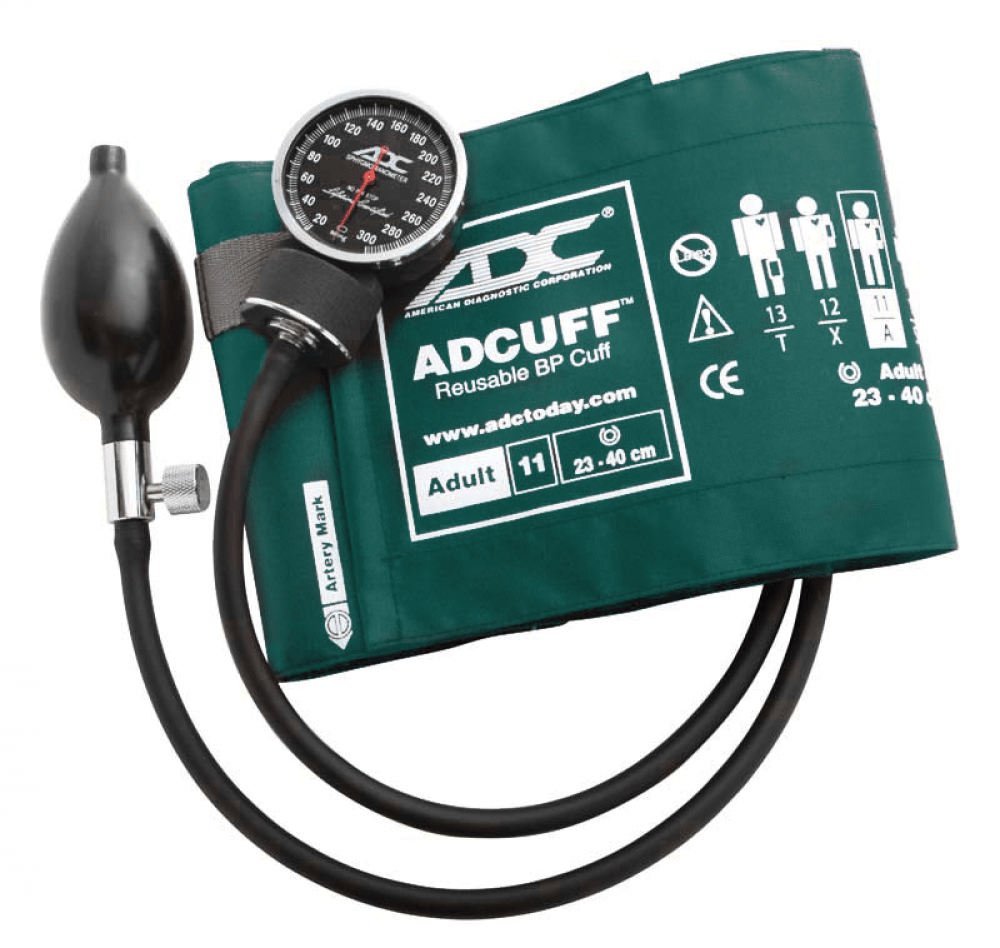

• 720-11ATL
• 720-11ATLQ
• 720-11AV
• 720-11AVQ

Data Sheets

ADC® Sphygmomanometer Accessories - Instructions for use

Diagnostix Sphygs - Instructions for use
