ADC General Practice Multicuff Kit

Features

• Rugged gauge features precision crafted Japanese engineered movement tested to 50,000 cycles.
• Ambidextrous trigger release air valve.
• Quick release luer slip connectors for rapid selection of appropriate cuff.
• Four section smoke gray plexiglass tray features a small 14” x 3.5” footprint.
• Not made with natural rubber latex.
• Assembled, inspected, and packaged in the U.S.A. from foreign components.
• Meets or exceeds ANSI/AAMI/ISO 81060-1.

Specifications

• Sphyg Type: Multicuff.
• Gauge Product Number: #804N.
• Gauge Warranty: Lifetime.
• Sphyg Accuracy: +/-3 mm Hg at 50º F (10º C) - 104º F (40º C).
• Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50º F (10º C) and > 104º F (40º C).
• Storage Temp: -4º F (-20º C) - 131º F (55º C).
• Valve Type: Integral.
• Number of Tubes: 1.
• Cuff Type: ADCUFF.
• Cuff Sizes and Ranges: Small Adult: 7.48" - 10.63" (19 cm - 27 cm). Adult: 9.06" - 15.75" (23 cm - 40 cm). Large Adult: 13.39" - 19.69" (34 cm - 50 cm).
• Inflation Warranty: 3 Years.

Configurations

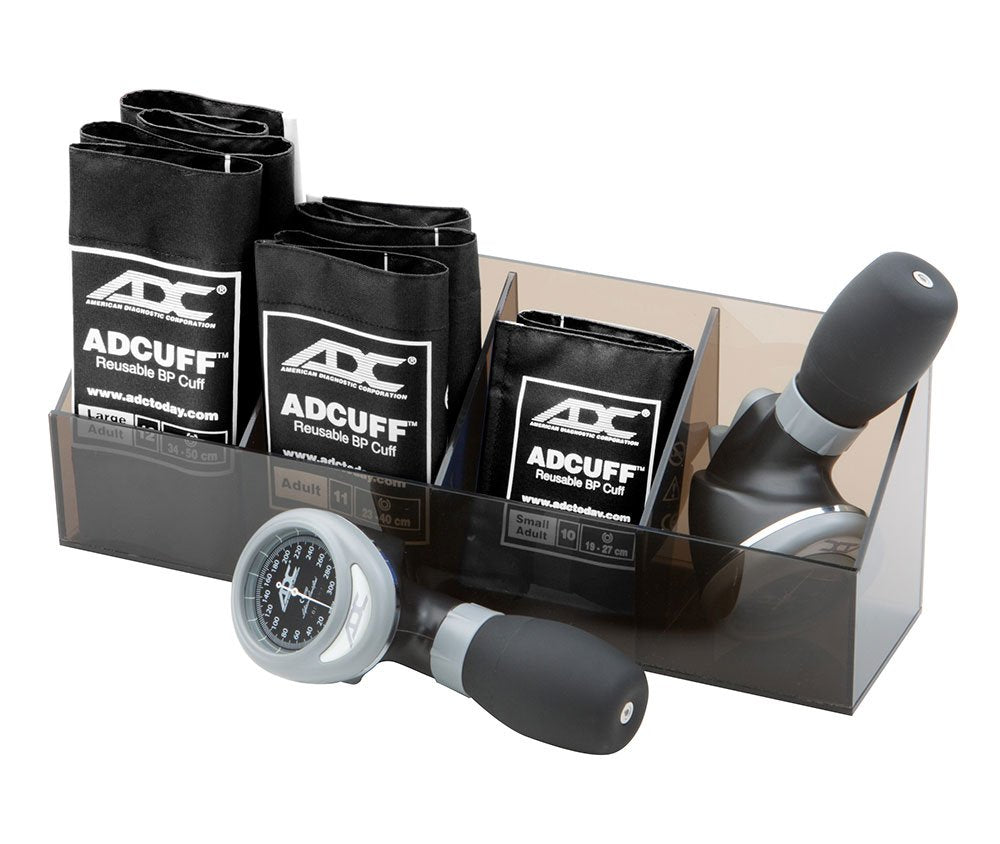

• 705GPK-BK
• 705GPK-MCC

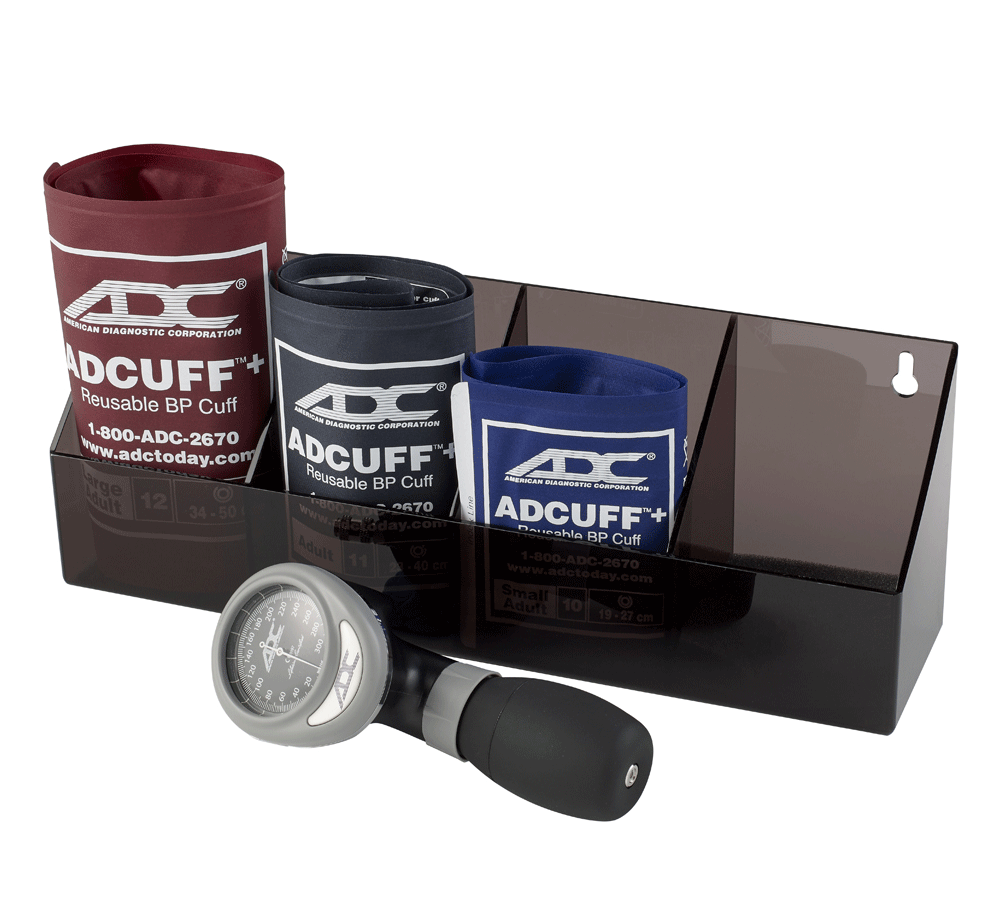

• 705GPK-MCC1

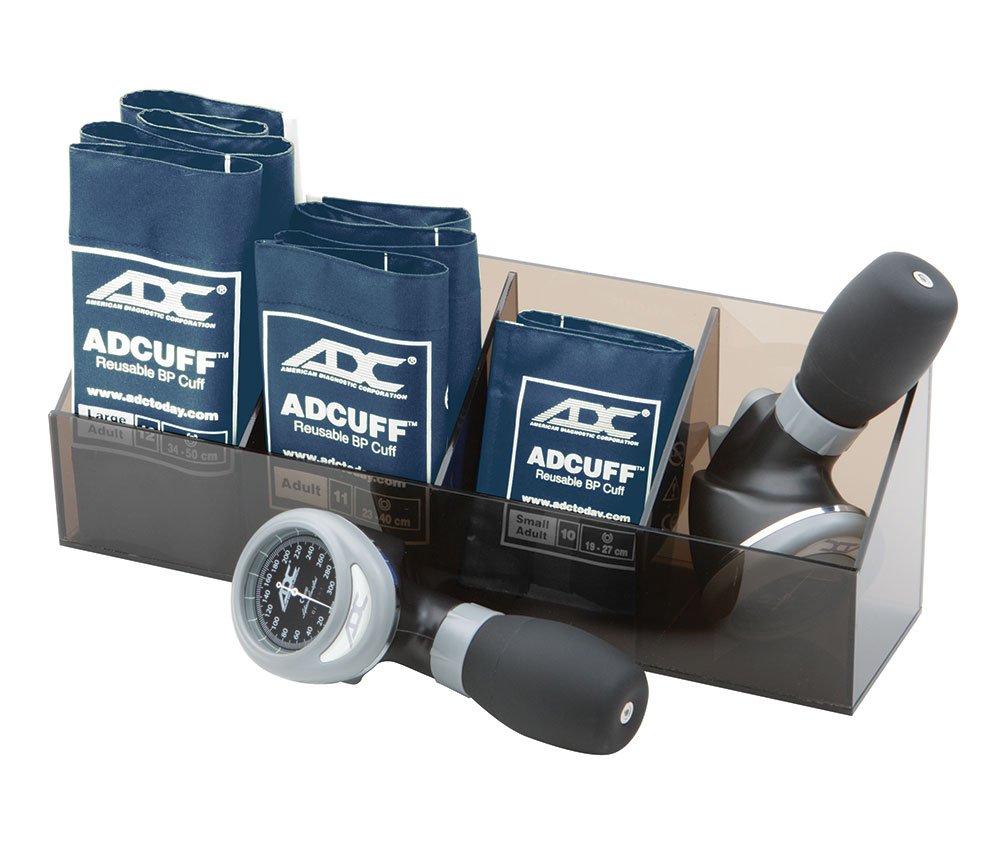

• 705GPK-N
