ADC System5 Portable5 Cuff Sphygmomanometer Multicuff Kit

Features

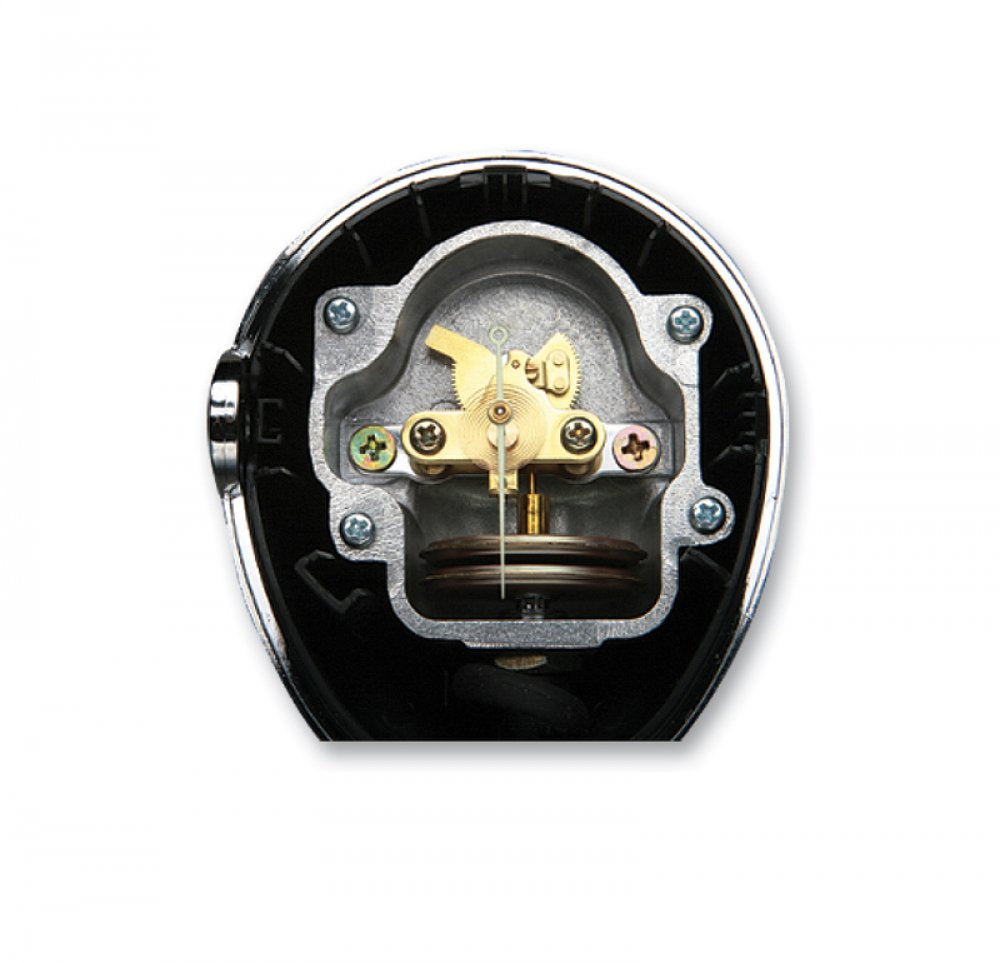

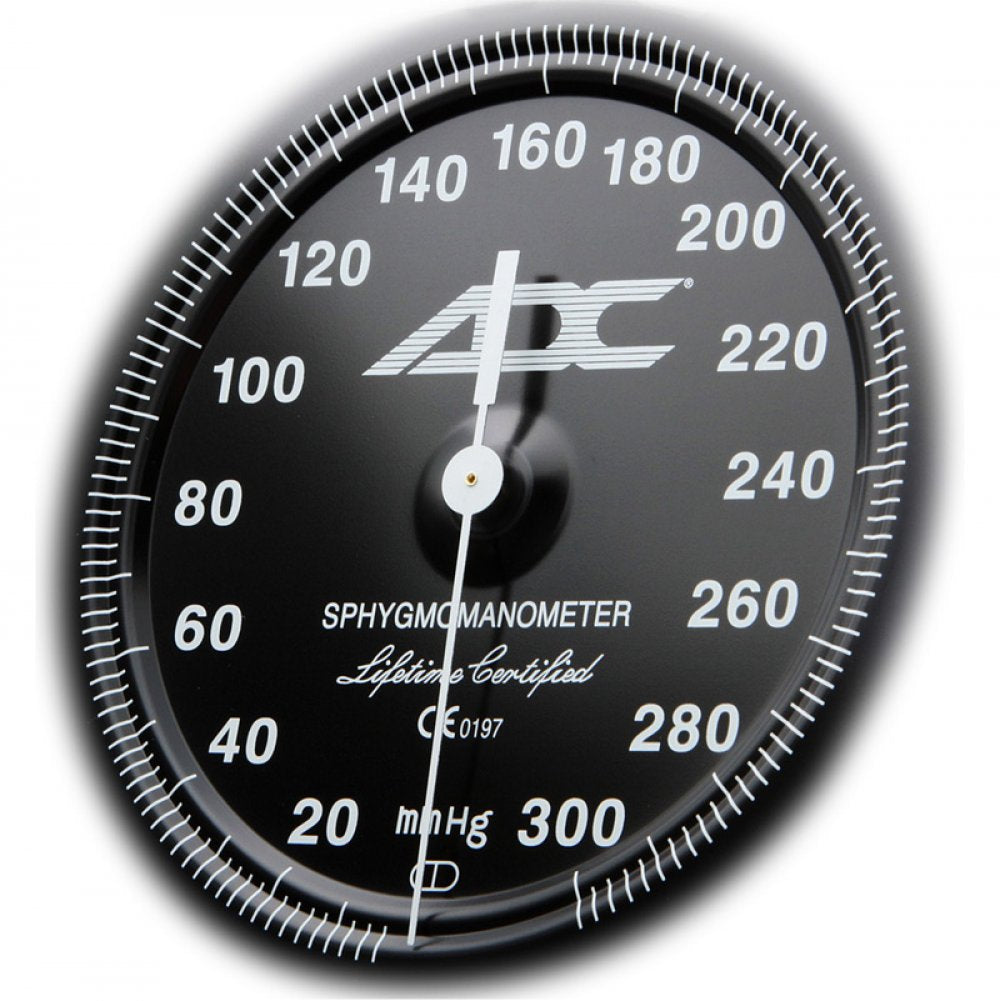

• Revolutionary Diagnostix #804 palm style manometer with precision Japanese engineered movement rated to 50,000 cycles.
• Quick release luer slip connector to permit rapid selection of the appropriate cuff.

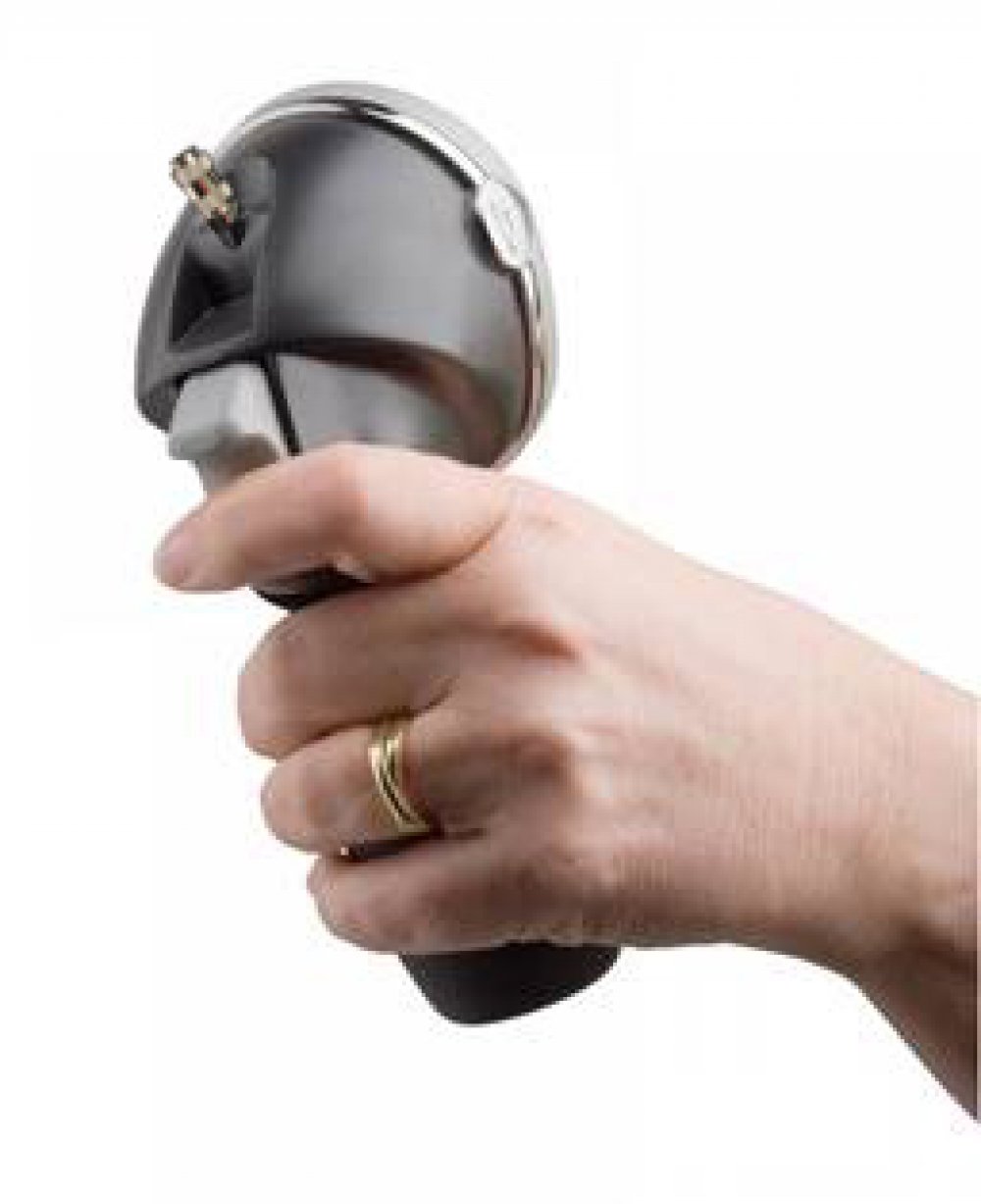

• Ambidextrous trigger release air valve.

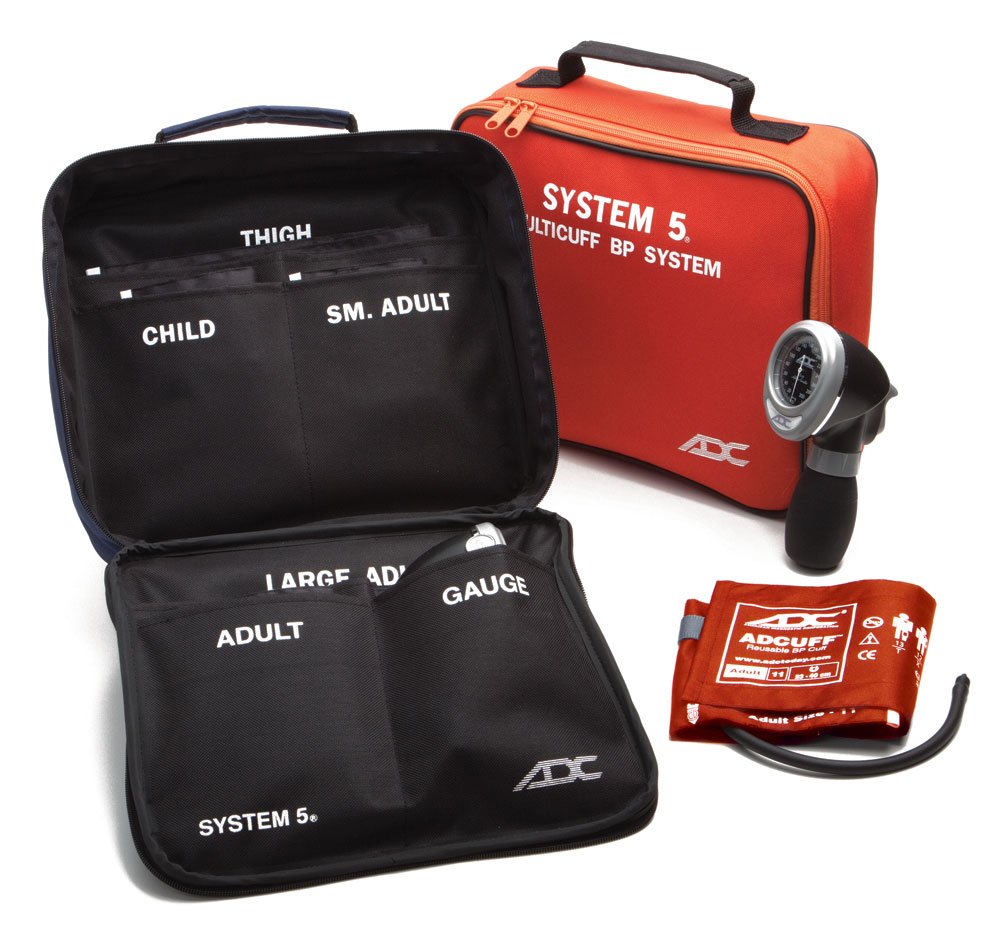

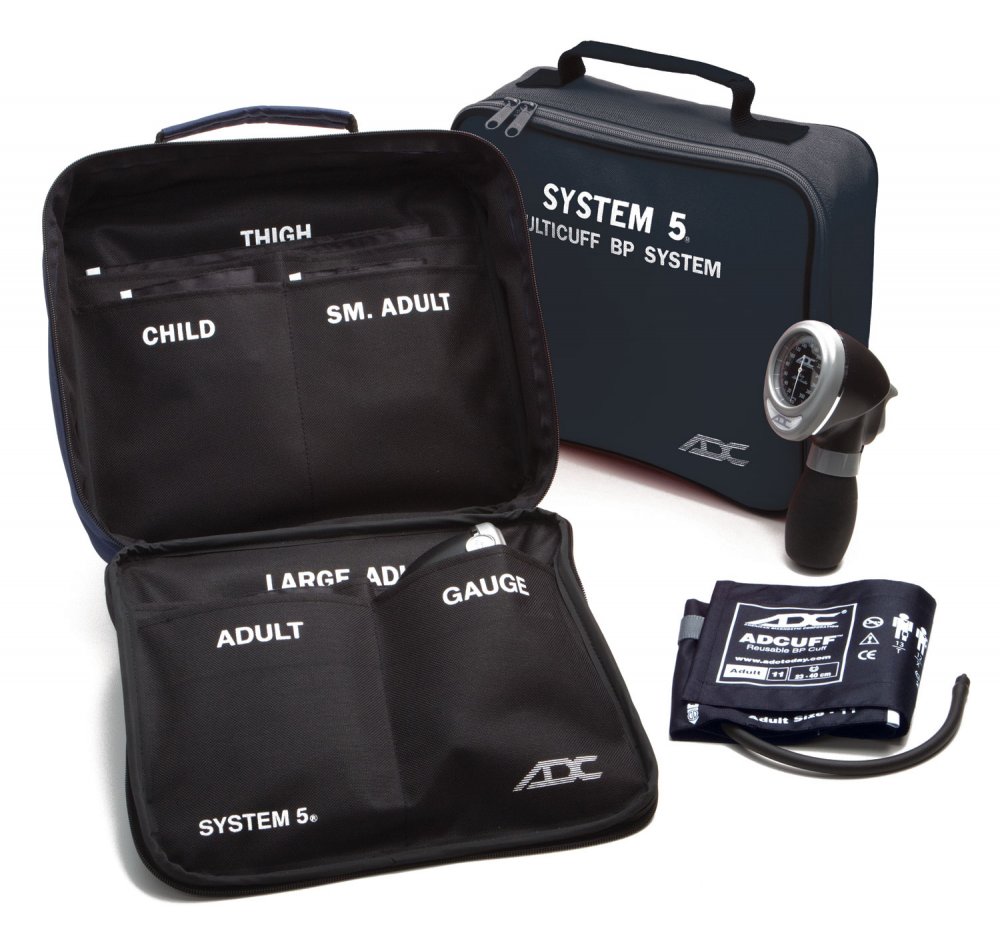

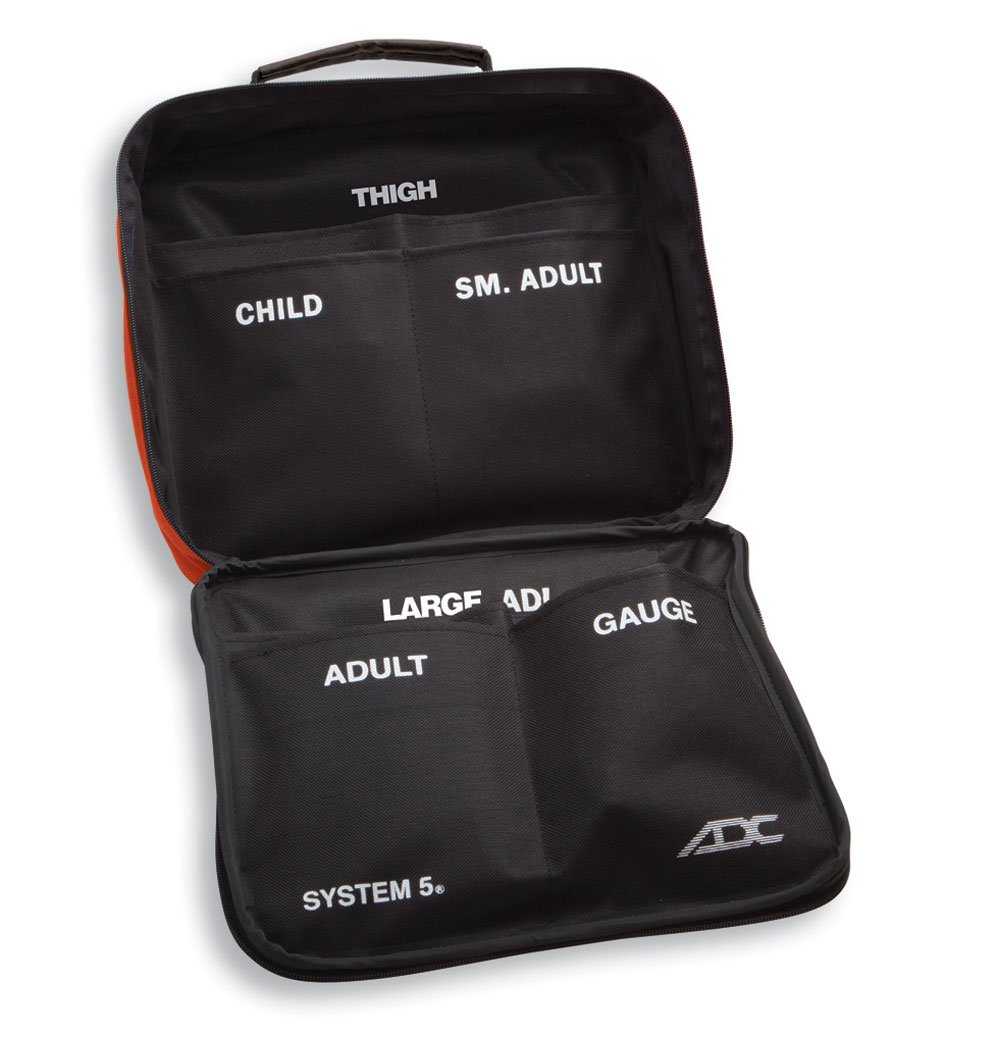

• Dual zipper closure permits rapid access, and protects against the elements.
• Compact enough to fit in most emergency bags or trauma boxes.
• Reinforced carry handle allows for wall mounting in the open position.
• Adcuff nylon cuff features the Size Guide marking system.
• Not made with natural rubber latex.
• Assembled, inspected, and packaged in the U.S.A. from foreign components.
• Meets or exceeds ANSI/AAMI/ISO 81060-1.

Specifications

• Sphyg Type: Multicuff.
• Gauge Product Number: #804N.
• Gauge Warranty: Lifetime.
• Sphyg Accuracy: +/-3 mm Hg at 50º F (10º C) - 104º F (40º C).
• Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50º F (10º C) and > 104º F (40º C).
• Storage Temp: -4º F (-20º C) - 131º F (55º C).
• Valve Type: Integral.
• Number of Tubes: 1.
• Cuff Type: ADCUFF.
• Inflation Warranty: 3 Years. Storage Case Dimensions (Closed): 10" x 9" x 4" (25.4 cm 22.86 cm 10.16 cm).
• Storage Case with Sphyg and Cuffs Weight: 2.5 lbs (1.13 kg).
• Cuff Sizes: Child: 5.12" - 7.68" (13 cm - 19.5 cm). Small Adult: 7.48" - 10.63" (19 cm - 27 cm). Adult: 9.06" - 15.75" (23 cm - 40 cm). Large Adult: 13.39" - 19.69" (34 cm - 50 cm). Thigh: 15.75" - 25.98" (40 cm - 66 cm).

Configurations

• 740-MCC
• 740-MCC1
• 740-N
• 740-OR
