Baxter ELI 380 Resting ECG

Welch Allyn By Hillrom

SKU: Welch Allyn/Hillrom-ELI380-DCX11

SKU: Welch Allyn/Hillrom-ELI380-DCX11
Condition: Brand New
Manufacturer Warranty: 2 Years
MPN: ELI380-DCX11
Est. Delivery: 14 to 18 Days
Shipping: Calculated at Checkout
Country Of Origin: USA

MPN: ELI380-DCX11

Est. Delivery Date: Sep 23 to Oct 03

Details: Description| Features| Specifications| Configurations| Data Sheets

select a configuration: Welch Allyn/Hillrom-ELI380-DCX11 Baxter ELI 380 Resting ECG,ERGO Screen, WAM Wireless Acquisition Module; AHA 10 wire, 12- lead lead set with banana plugs(Each)

Variante

Precio:

$20,359.33 $20,989.00

Gastos de envío calculados en la caja

Stock:

Disponible

Cantidad:

Comparte este producto

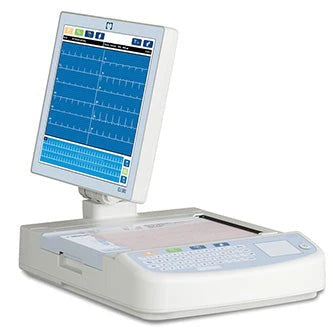

Baxter ELI 380 Resting ECG

The Baxter ELI 380 Resting ECG includes the following items:

English keyboard.
AC or Lithium Ion Battery operation.
One starter pack paper (Smart Paper 8.3" x 11").
ECG Clip Adapters (Set of 10) and Tab Electrodes (Pouch of 100).
Current software.
Adult and Pediatric Interpretation.
Advanced Connectivity includes WLAN, LAN, USB, DICOM, and Enterprise.
North American power cord.
The Baxter ELI 380 is designed to make the total ECG experience more efficient - from decreasing the time required to perform the procedure, to increasing the accuracy and security of the data acquired, to the overall patient care experience.

Baxter offers the choice of either a 17" Capacitive Color Touchscreen or a 17" Color LCD Screen. Both screens feature the ability to tilt up to 120°, while the ERGO touchscreen also includes a swivel of as much as 180°, allowing you to remain by the patient's side. The 380's glass keyboard and display enable more thorough disinfection than electrocardiographs utilizing traditional keyboards. Simplified disinfection assists facilities in complying with infection prevention and control programs.

Features

Simplified workflow decreases exam time and helps prevent manual entry mistakes.
Chemically strengthened glass capacitive touchscreen is calibration-free, glare-free, and cannot be pierced or punctured.
Delivers a unique set of display capabilities to enhance the interaction with patients while in any position, including swivel and tilt functionality.
Glass surfaces on capacitive touch keyboard and ERGO display simplify cleaning and enable more thorough disinfection than electrocardiographs utilizing traditional keyboards.
Streamlined barcode workflow eliminates steps and reduces manual entry.
Follows ACC, AHA, and HRS recommendations for baseline filtering (0.05 Hz).
SECUR-it feature promotes safeguarding of patient health information (PHI).
Exceeds ACC, AHA, and HRS upper frequency cutoff (300 Hz) for adults and children.
Barcode based workflow: a scan of the patient's ID bracelet automatically initiates a search for the patient's ECG order. If no order has been placed, the device searches for the patient's demographics via HLT ADT.

Specifications

Instrument Type: Multi-lead resting electrocardiograph.
Input Channel: Simultaneous acquisition of all 12 or 15 leads.
Standard Leads Acquired: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6.
12-Lead Alternate Lead Groups: Up to three additional groups can be labeled using any combination of 6 precordial leads with V1, V2, V3, V4, V5, V6, V7, V8, V9, V3R, V4R, V5R, V6R, and V7R lead labels.
15-Lead Groups: Three lead groups are available and can be labeled using any combination of 3 leads with V1, V2, V3, V4, V5, V6, V7, V8, V9, V3R, V4R, V5R, V6R, and V7R lead labels.
Waveform Display:
ERGO: Backlit, 17" color touchscreen display, 180° rotation and 120° tilt.
Standard: Backlit, 17" Color LCD with 1280 x 1024 resolution, 120° tilt.

Configurations

#ELI380-ACX11: Standard Screen, WAM Wireless Acquisition Module; AHA 10 wire, 12-lead lead set with banana plugs.
#ELI380-ACX21: Standard Screen, AM12 Wired Acquisition Module; AHA 10 wire, 12-lead lead set with banana plugs.
#ELI380-DCX11: ERGO Screen, WAM Wireless Acquisition Module; AHA 10 wire, 12- lead lead set with banana plugs.
#ELI380-DCX21: ERGO Screen, AM12 Wired Acquisition Module; AHA 10 wire, 12- lead lead set with banana plugs.
#ELI380-ACS11: Standard Screen, Security, WAM Wireless Acquisition Module; AHA 10 wire, 12-lead lead set with banana plugs.
#ELI380-ACS21: Standard Screen, Security, AM12 Wired Acquisition Module; AHA 10 wire, 12-lead lead set with banana plugs.
#ELI380-DCS11: ERGO Screen, Security, WAM Wireless Acquisition Module; AHA 10 wire, 12-lead lead set with banana plugs.
#ELI380-DCS21: ERGO Screen, Security, AM12 Wired Acquisition Module; AHA 10 wire, 12-lead lead set with banana plugs.
#ELI380-DCS43: ERGO Screen, Security, AM15E patient cable; AHA 13 wire, 15- lead lead set with banana plugs.

Data sheets

Welch Allyn ELI 380 Resting Electrocardiograph User Manual

Welch Allyn ELI 380 Resting Electrocardiograph Service Manual
