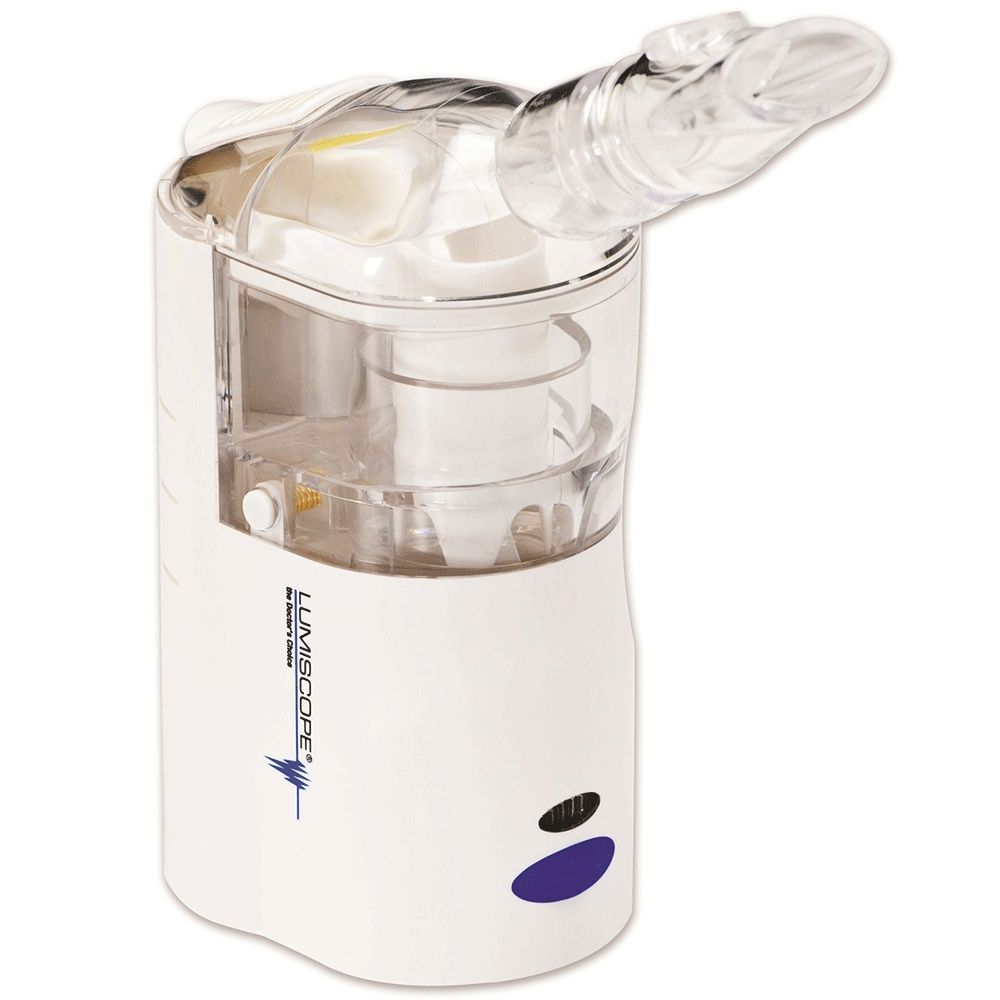

An adult or pediatric patient designs Graham-Field Lumiscope Portable Ultrasonic Nebulizer to produce medicated aerosols for inhalation therapy. Features a two-valve system that ensures maximum efficiency of inhalation, thus reducing medication waste. The mouthpiece expiration valve opens during expiration, allowing the patient's exhaled air to pass to the atmosphere, avoiding contamination of the device. The valve closes during inspiration, maximizing the inhalation amount.

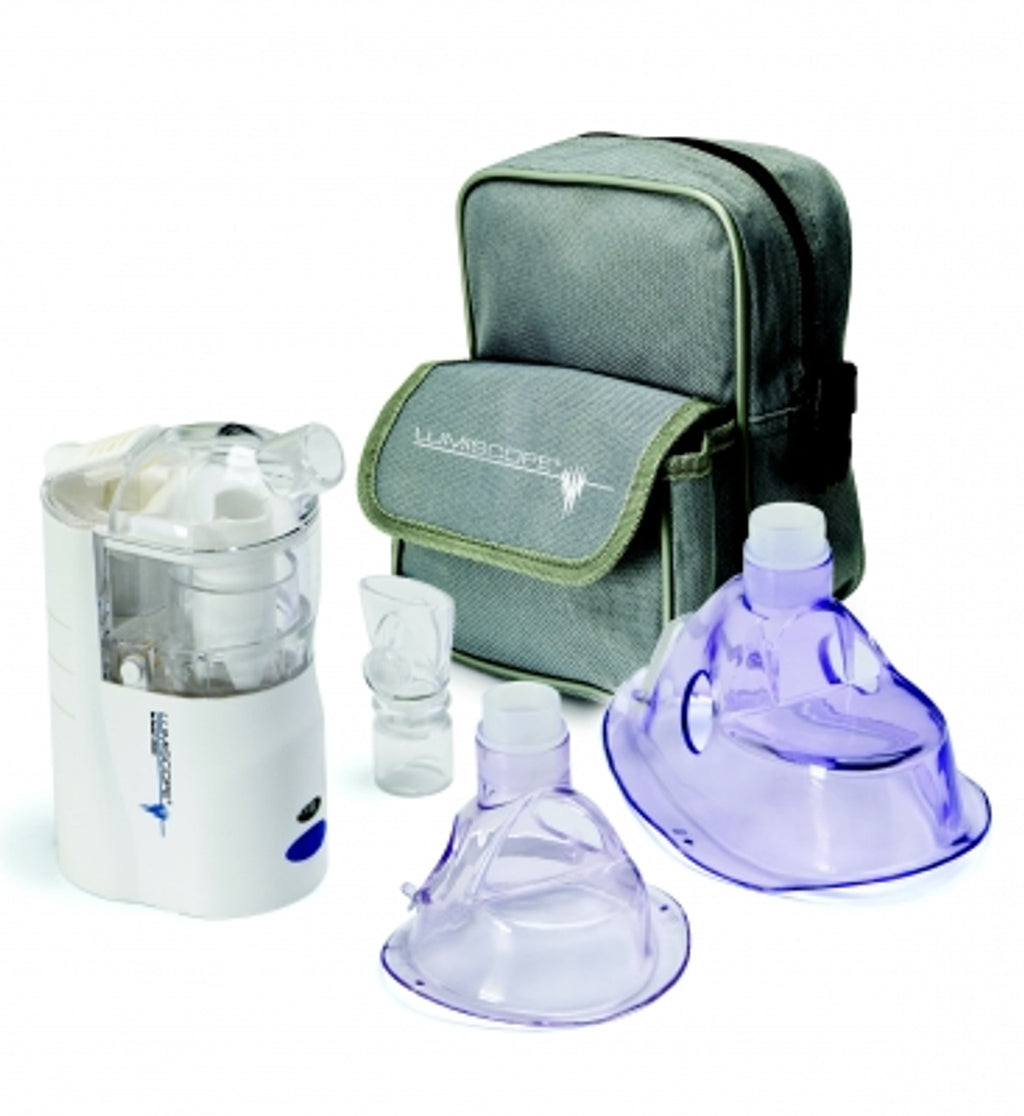

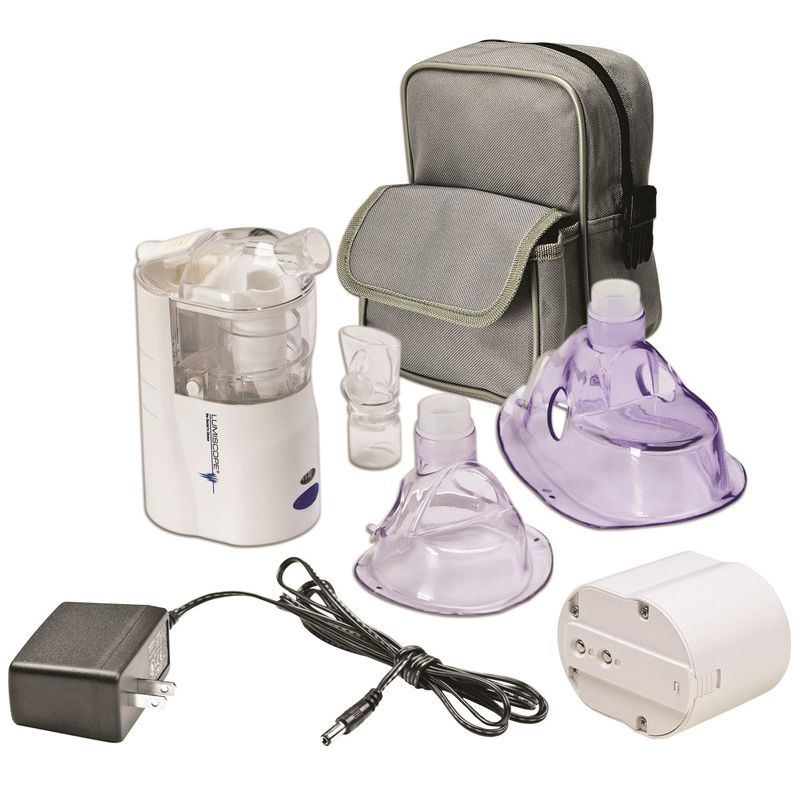

What does Graham Field Lumiscope Ultrasonic Nebulizer Kit Includes?
- 1 Carrying Bag

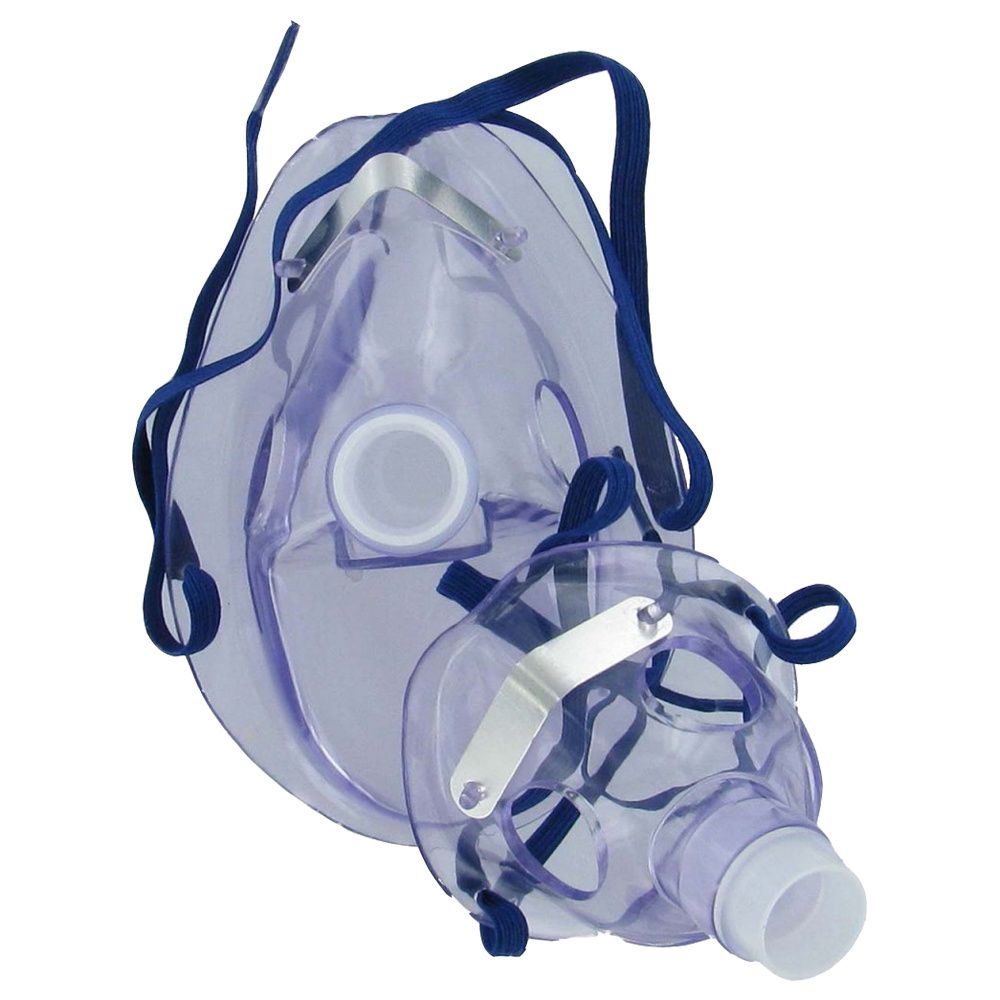

- 1 Adult Mask
- 1 Pediatric Mask
- 20 Medication Cups
- 5 Replacement Filters
- 1 AC/DC Adapter
- 1 Mouthpiece
Graham Field Lumiscope Portable Nebulizer Features
- Adjustable flow volume and fast flow rate of up to 0.7 ml/min
- Extremely quiet operation
- Noise level below 40 dBA
- 3-4 microns particle size increases absorption of medication into the lungs
- Safe Low battery indicator
- Overheat protection
- Portable ultrasonic nebulizer is lightweight - weighs only 7 oz
Specification
| Particulars |
Specifications |
| Power Supply |
AC/DC Adapter (240V, 50Hz; 12VDC 800mA) |
| Power Consumption |
12W (12V/1A) |
| Sound Level |
< 40dB |
| Frequency |
2.8 Mhz |
| Particle Range |
0.5~4.0 microns |
| Medication Cup Capacity |
5 ml maximum |
| Average Rate |
0.7 ml/min. maximum (NaCl0.9% Normal Saline) |
| Intermittent Use |
45 min. on/ 45 min. off |
| Operation Conditions |
50°F - 104°F (10°C), RH 10% - 95% |
| Storage Conditions |
-13°F - 140°F (25°C - 60°C), RH 10% - 95% |
| Dimensions |
5.1" x 3.3" x 2.2" |
| Weight without batteries |
0.44 lb |
