Características de Carina 350

• Elevación segura y estable para usuarios de hasta 165 kg/350 lbs
• Cómodo transporte y almacenamiento con un diseño fácilmente plegable.
• Amplio rango de elevación para elevaciones bajas y altas.
• Rodaje suave
• El diseño ergonómico previene lesiones laborales.

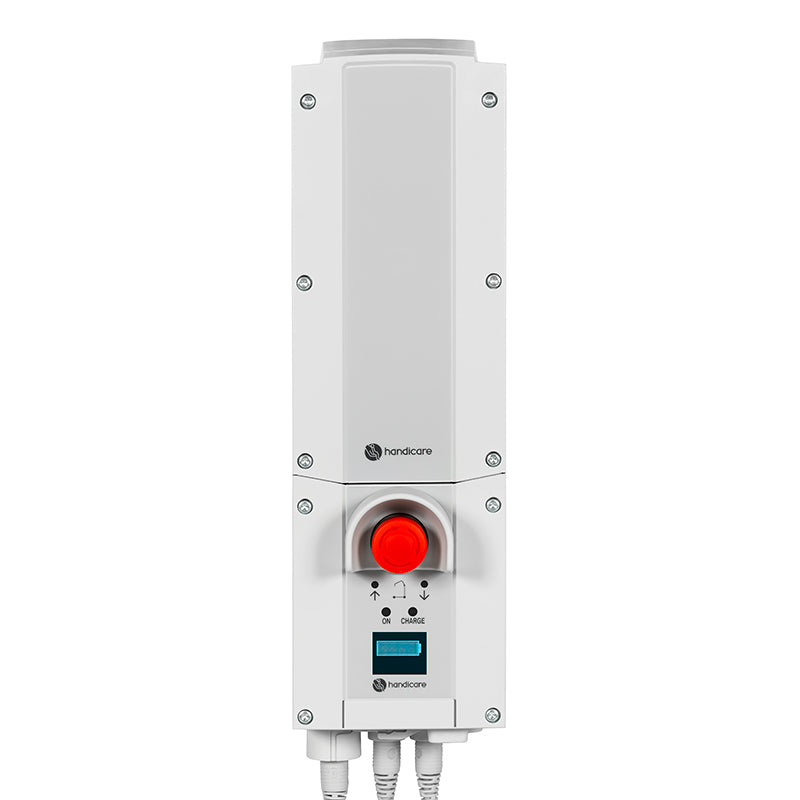

• Guía rápida y botón de parada de emergencia en la caja de control
• Opciones de descenso de emergencia manual y eléctrico
• Batería de alta capacidad y larga duración con carga incorporada.
• Accesorios para un levantamiento seguro, fácil e individualizado
• Mecanismo de elevación automatizado que se puede operar con el mínimo esfuerzo.
• Fácil de usar con controles intuitivos e indicadores de seguridad claros.
• Altamente seguro con arneses de seguridad incorporados.
• Construcción estable para máxima comodidad del paciente.
• Configuraciones de altura ajustables y confiables para un levantamiento sencillo.

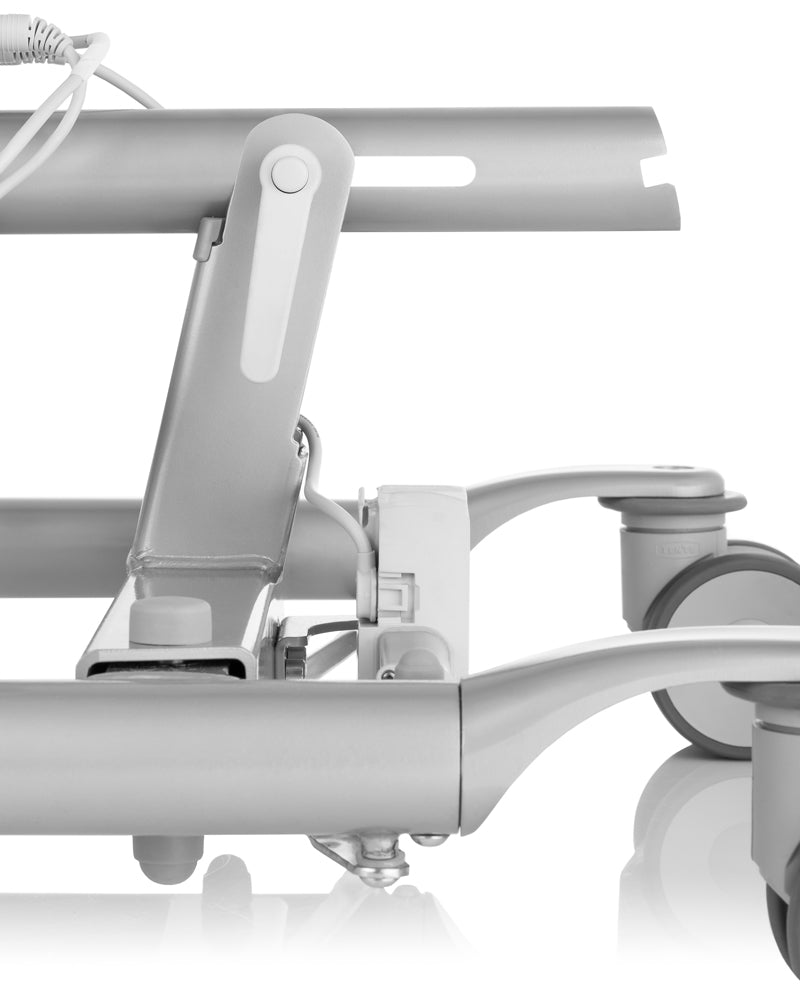

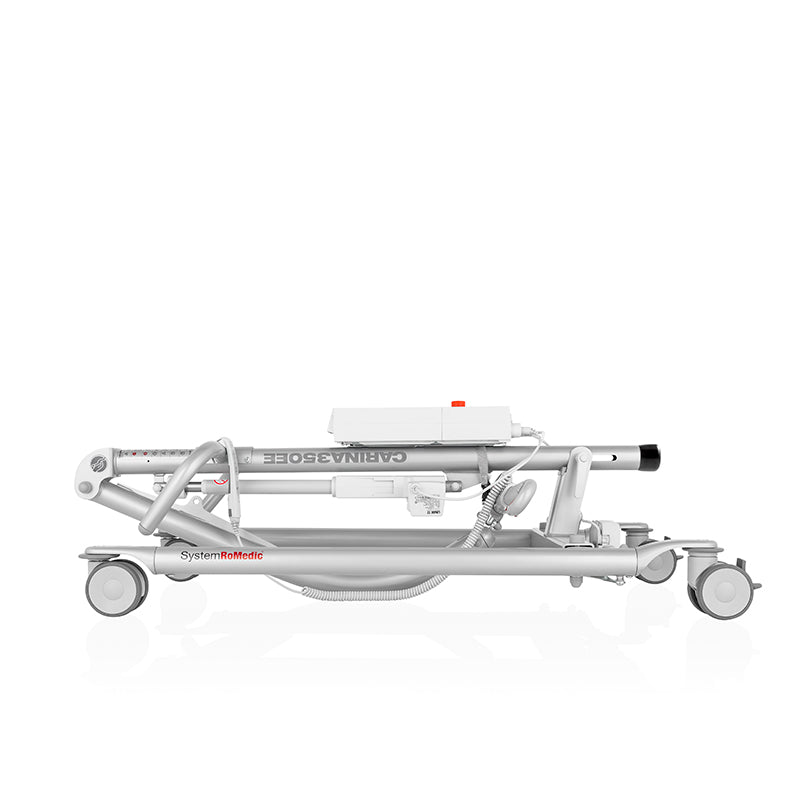

How the Carina 350 Folds for Storage and Transport

The Carina 350 folds to 14.5 × 25.3 × 49.2 inches using three tool-free steps, making it the most compact foldable patient lift in its class for home caregivers who need storage between transfers. No loose parts detach during folding. The lift sets back up just as quickly.

Steps to fold the Carina 350:

1. Lower the boom fully using the hand control
2. Collapse the mast by releasing the locking lever
3. Fold the base legs inward to their narrowest position

The folded lift fits in a standard vehicle trunk for transport between care locations. It stores upright in a closet or under a standard staircase. This portable patient lift, with tool-free setup and folding storage, offers caregivers the flexibility that fixed ceiling lifts cannot match.

Why the Carina 350 Fits Under Furniture?

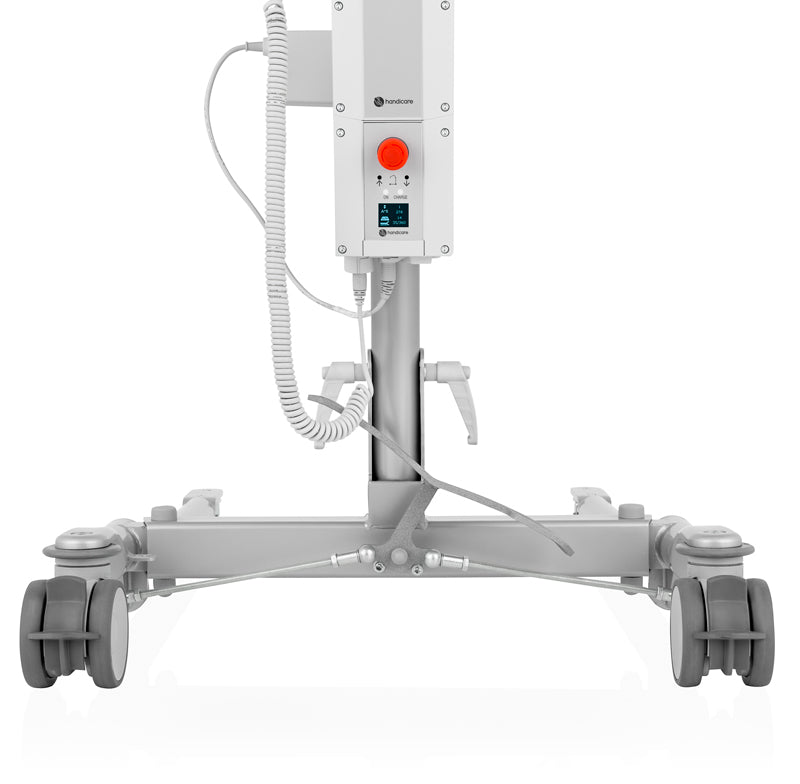

The Carina 350 base slides under most beds, sofas, and recliners because its outer base width collapses to 25.3 inches, and its 3.9-inch casters keep the total base height below 4 inches, dimensions specifically engineered to make it a foldable patient lift that fits under furniture. Competitor lifts with larger caster diameters or wider collapsed bases cannot achieve this clearance.

This matters because most patient transfers start with the lift needing to reach the patient at the edge of a bed or recliner. When the lift cannot slide close enough, the caregiver uses body force to compensate, increasing the risk of injury. The Carina 350 eliminates that gap.

Emergency Lowering Mechanism-Caregiver Safety Feature

The Carina 350 includes both manual and electrical emergency lowering systems, ensuring a patient can be safely lowered to a surface even during a battery failure or system fault-a feature absent from many comparable patient lifts in the 350 lb capacity range. The manual override requires no tools and activates in seconds.

Caregiver confidence depends on knowing what happens when something goes wrong. The patient lift with emergency lowering mechanism, designed to handle 350 lbs, means the caregiver never faces a situation where the patient is suspended without a recovery option. This dual-redundancy system meets the requirements of the Medical Devices Directive Class 1 (93/42/EEC).

What Comes Included with the Carina 350

Every Carina 350 ships complete and ready to use - no extra purchases required for basic operation. The package includes:

• Carina 350 lift unit (EM or EE model)

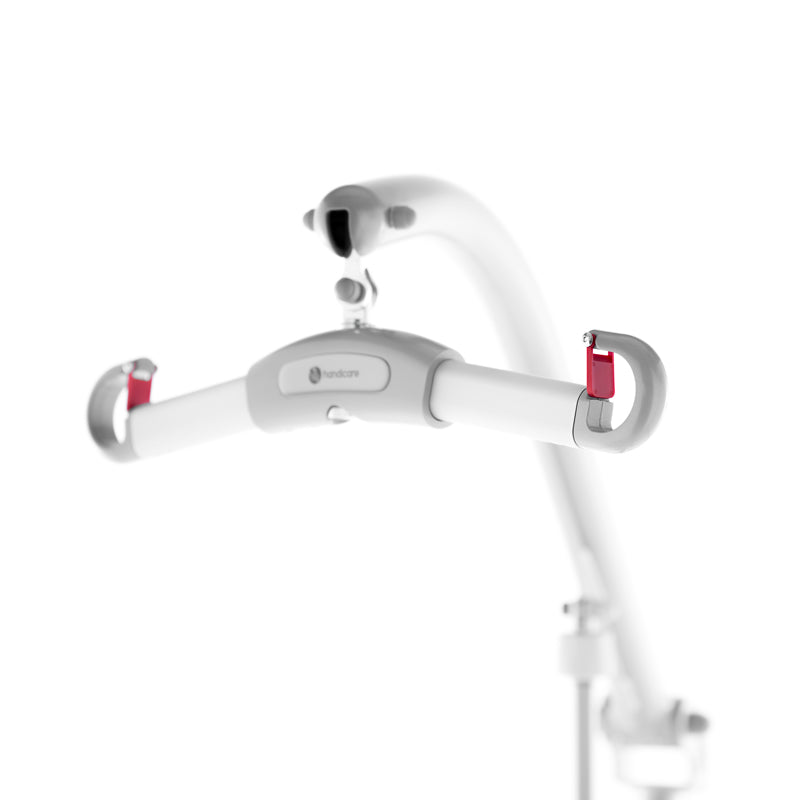

• SlingBar M-two-point aluminum sling bar with safety latches

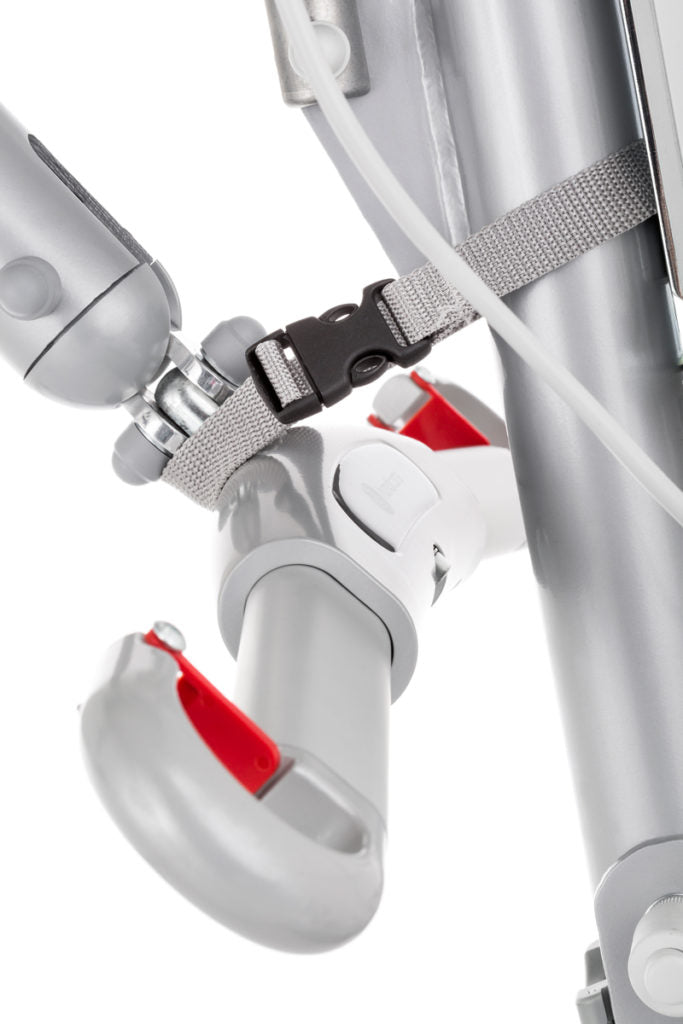

• SwiftHook-an accessory for quick sling bar connect/disconnect

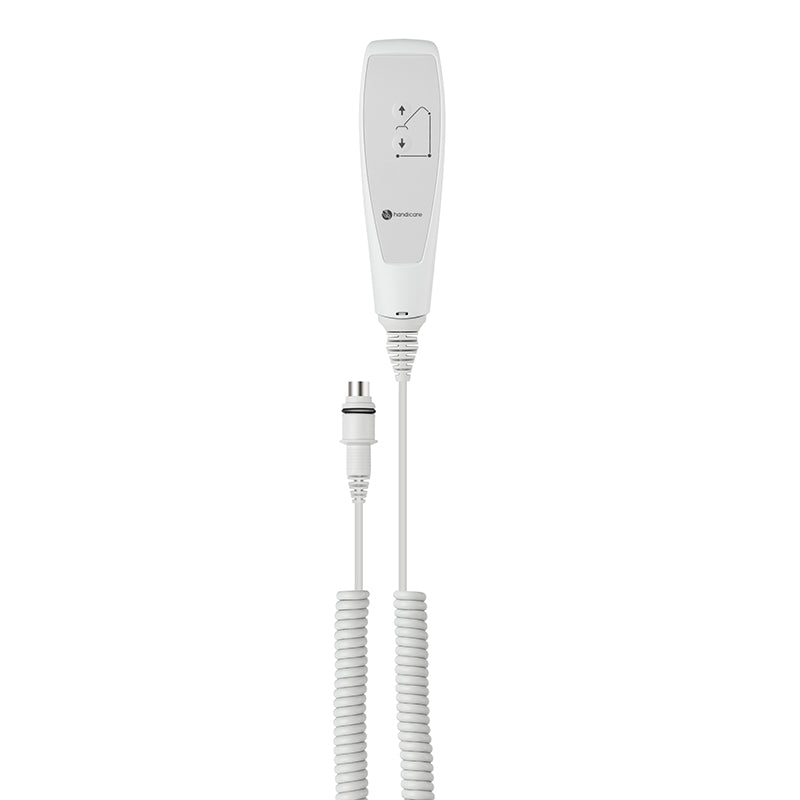

• Hand control with integrated battery charger cable
• Quick-start guide

The Handicare Carina 350 patient lift with sling bar included eliminates the common frustration of receiving a lift without compatible lifting accessories. The SlingBar M supports a safe working load of 660 lbs (300 kg)-nearly double the patient capacity, providing a wide safety margin.

Compatible Slings and Accessories (SystemRoMedic™)

The Carina 350 connects directly to Handicare's SystemRoMedic™ sling range. Caregivers can add the SlingBarSpreader M to open the sling wider for patients who need a more reclined position. Additional compatible accessories include:

• Positioning slings (seated, supine, standing)
• Padded head support slings for neurological patients
• Hygiene slings for bathing and toileting transfers
• Scale attachment for weight monitoring during lifts

Have Questions In Mind? Read Our Important FAQs

What is the weight capacity of the Handicare Carina 350 patient lift?

The Handicare Carina 350 supports a maximum weight of 350 lbs (165 kg). Both the 350EM manual model and the 350EE electric base widening model share this capacity. The included SlingBar M carries a safe working load of 660 lbs, giving a strong safety margin above the patient limit.

What is the difference between the Carina 350EM and the Carina 350EE?

The 350EM uses a manual foot pedal to widen the base legs. The 350EE uses an electric motor controlled by the hand control. Both models share the same weight capacity, lifting range, and frame. The 350EE adds 2 lbs and costs more, but eliminates physical effort during base adjustment, making it better for high-frequency use.

Does the Handicare Carina 350 fold for storage and transport?

Yes. The Carina 350 folds to 14.5 × 25.3 × 49.2 inches using three tool-free steps. No loose parts detach during folding. The collapsed unit fits in a standard car trunk and can be stored in a closet or under a staircase. Setup reverses in under two minutes.

What is the low-leg variant of the Carina 350, and when should I choose it?

The low leg variant lowers the base closer to the floor, allowing the lift to slide under beds with clearances as low as 5.5 inches. Choose it when your patient uses a low-profile bed, floor sleeping mat, or bariatric low-platform bed. Both the 350EM and 350EE are available in the low leg configuration.

Does the Carina 350 come with a sling?

The Carina 350 ships with a SlingBar M (two-point aluminum sling bar) and a SwiftHook accessory. A patient sling is not included with every purchase. Check current promotions, as some retailers offer a free sling with purchase. The lift is compatible with all SystemRoMedic™ slings from Handicare.

Can one person operate the Handicare Carina 350 patient lift?

Yes. Handicare designed the Carina 350 for single-caregiver operation. The ergonomic handlebars, hand control, and easy-roll casters let one person complete a full transfer safely. Having a second person present improves safety for first-time users or patients with unpredictable movement.

What happens if the battery fails during a lift?

The Carina 350 includes both manual and electrical emergency lowering systems. If the battery fails mid-lift, the caregiver activates the manual override (no tools required) and lowers the patient safely to a surface. This dual redundancy meets Class 1 Medical Device requirements under EU directive 93/42/EEC.

How long does the Carina 350 battery last on a single charge?

Handicare does not publish a per-charge lift count, but the 2.9 Ah built-in battery supports a full day of normal home care use on a single charge. The charger connects directly to the unit, so overnight charging between uses is standard practice. Battery replacement is available through authorized Handicare dealers.

Does a warranty cover the Handicare Carina 350?

Yes. Handicare provides a 2-year limited warranty on the Carina 350 covering product defects. Batteries carry a separate 3-month warranty. The warranty applies to the original purchaser and requires purchase from an authorized dealer, such as Vigour Med Store.

What is the lifting range of the Carina 350 patient lift?

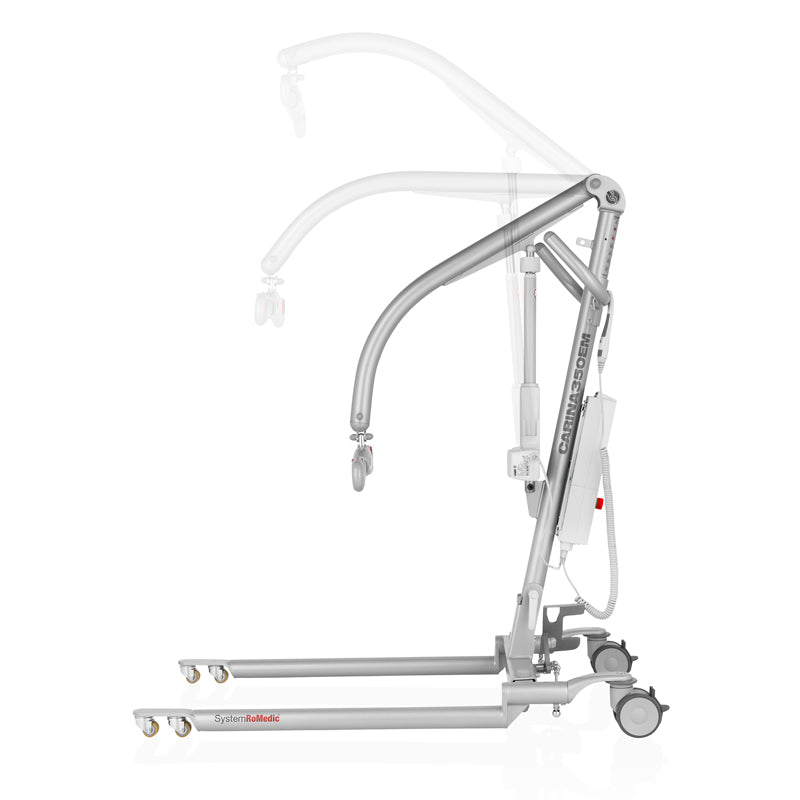

The Carina 350 lifts from 22.8 inches (580 mm) at its lowest point to 66.1 inches (1,680 mm) at maximum height. This wide range covers floor recovery, bed-to-chair transfers, seated transfers, and near-standing lifts, making the unit suitable for virtually every common patient transfer scenario.
