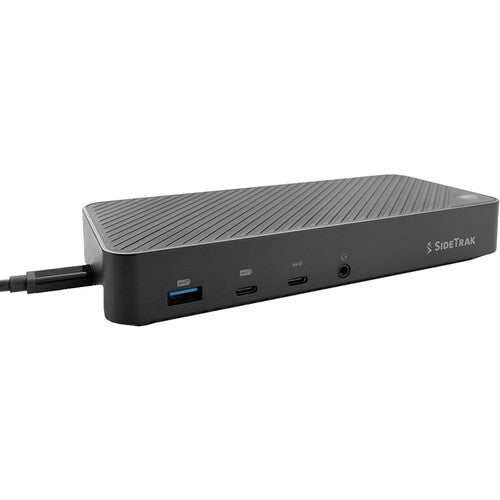

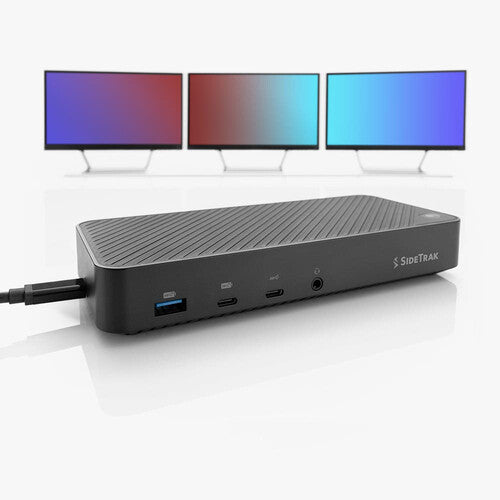

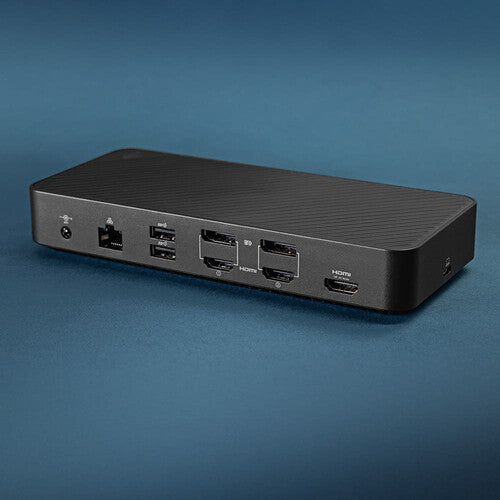

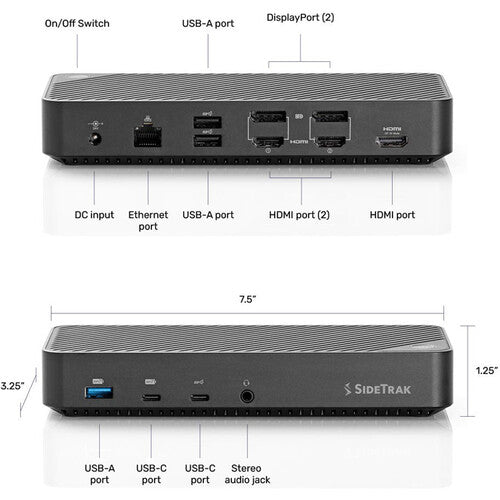

Transform your workspace with the SideTrak Multi-Port Triple 4K Display Docking Station from Luxor. Support up to three monitors at 4K (3840 x 2160) at 60 Hz, or dual monitors at 60 Hz, with the two DisplayPort 1.4 ports and two HDMI 2.0 ports. The docking station has a USB-C host connection that supports up to 100W power delivery as well as a USB-C 3.1 Gen 2 port and USB-C 3.0 port. One USB-A 3.1 Gen 2 and one USB-A 3.0 port are available for more connections to peripherals and devices. Connect speakers or headphones using the 3.5mm TRRS audio port and access stable wired internet through the RJ45 GbE port. The SideTrak is compatible with Kensington locks for added security.

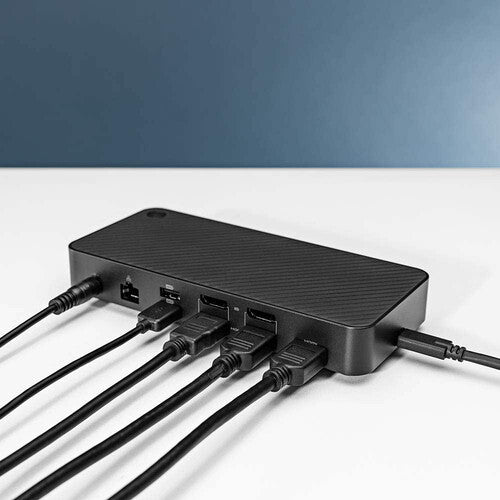

| Video I/O |
2x DisplayPort
3x HDMI
|
| Max Resolution |
3 Displays Supported:
3840 x 2160 at 30 Hz (Single)
1920 x 1080 (Dual)
|
| Audio I/O |
1/8" / 3.5 mm Headphone/Microphone Combo Jack
|
| Network I/O |
1x RJ45 (10/100/1000 Mb/s)
|
| Media Card Reader |
No
|
| Host Connection |
USB-C 3.1/3.2 Gen 2 Supporting USB Power Delivery up to 100 W via Detachable Cable
|
| Power Source |

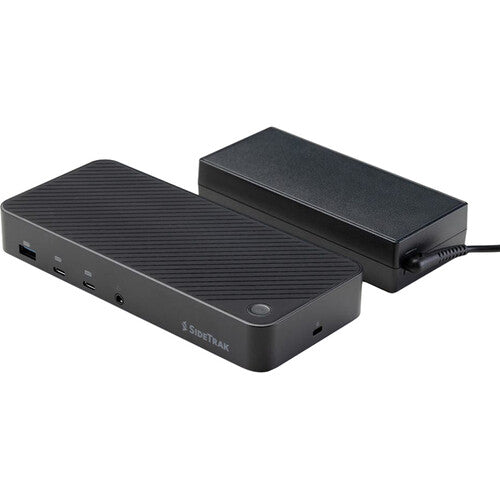

Included AC Adapter: 20 VDC (130 W)
|
| Wireless Charging |
No
|
| OS Compatibility |
Windows / macOS / Chrome OS
|
| Enclosure Material |
ABS, Plastic
|
| Lock Slot |
No
|
| Dimensions |
7.51 x 3.34 x 1.29" / 19.08 x 8.48 x 3.28 cm
|
| Weight |
1.83 lb / 0.83 kg
|
