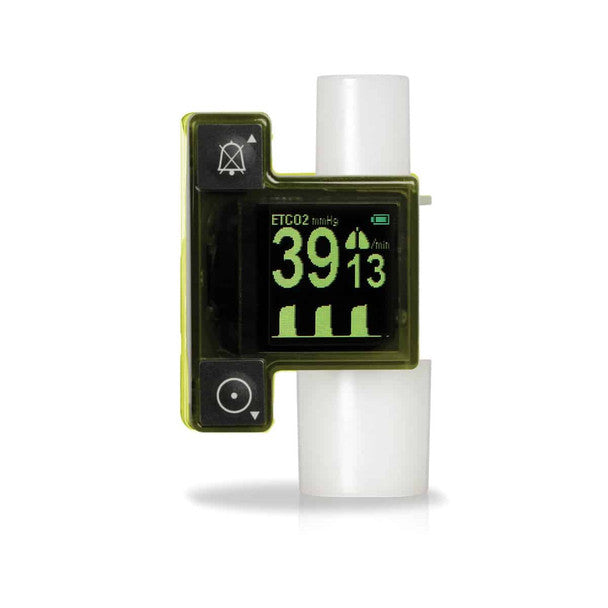

Safeguard Medical-25-600 Emma (MmHg) Capnograph Device

The EMMA is a portable, real-time capnography device that measures end-tidal carbon dioxide and respiration rate. Designed to fit easily onto a breathing circuit, EMMA can be utilized at multiple points-of-care, including pre-hospital, emergency medicine, operating room, intensive unit, and long-term acute care.

The EMMA's components are easy to maintain with no calibration required and it has a rugged design that makes it reliable for operation in challenging environments.

EMMA is a trademark. Rights to this and other brand identifiers may differ by country.

Battery life up to 10 hours
Audible and visible alarm system
No calibration required
14.4-second sweep of CO2 values

PACKAGED	5.3 x 3.8 x 3.8cm
WEIGHT	2.1 oz

Features

Provides accurate measurement of EtCO₂ and RR within seconds of powering on, supporting rapid clinical decision-making.
Small enough to fit in your palm, with a durable body ideal for both field and bedside use.
Shows numeric EtCO₂ and RR values along with a waveform (capnogram) for easy interpretation in low-light or high-stress conditions.
Suitable for adult, pediatric, and neonatal patients when used with the appropriate disposable airway adapter.
Operates on two AAA batteries for up to 10 hours of continuous use. Includes automatic shut-off and low battery alerts to ensure readiness.
Intuitive interface for rapid deployment and ease of use, even while wearing gloves.
Ready to use out of the box with minimal maintenance, reducing operational downtime.
Alerts for apnea, disconnection, high/low EtCO₂, low battery, and other critical conditions.
Designed to perform reliably in a range of environments, from controlled clinical settings to austere field conditions.
Requires a disposable airway adapter (sold separately) to connect to the patient circuit. Options available for adult/pediatric and infant use.

Specifications

Model / SKU: 25-600
NSN: 6515-01-626-8691
Measurement Parameters: End-tidal CO₂ (EtCO₂), Respiratory Rate (RR)
Technology: Mainstream infrared capnometry
Measurement Range (EtCO₂): 0–99 mmHg
Respiratory Rate Range: 0–150 breaths per minute
Accuracy (EtCO₂): ± 2 mmHg (0–40 mmHg), ± 5% of reading (41–99 mmHg)
Accuracy (RR): ± 1 breath per minute
Warm-up Time: < 15 seconds
Display: Real-time numeric display of EtCO₂ (mmHg) and RR
Power Supply: 2 × AAA batteries (included)
Battery Life: Approximately 10–12 hours of continuous use
Size (approx.): 3.5 × 2.0 × 1.5 inches (8.9 × 5.1 × 3.8 cm)
Weight: ~ 4 oz (113 g) with batteries
Alarms: Audible/visual alarms for high/low EtCO₂ and apnea detection
Operating Environments: Pre-hospital, emergency, operating room, ICU, and long-term care
Included Accessories: Carrying pouch, lanyard, 2 × AAA batteries
