Descripción

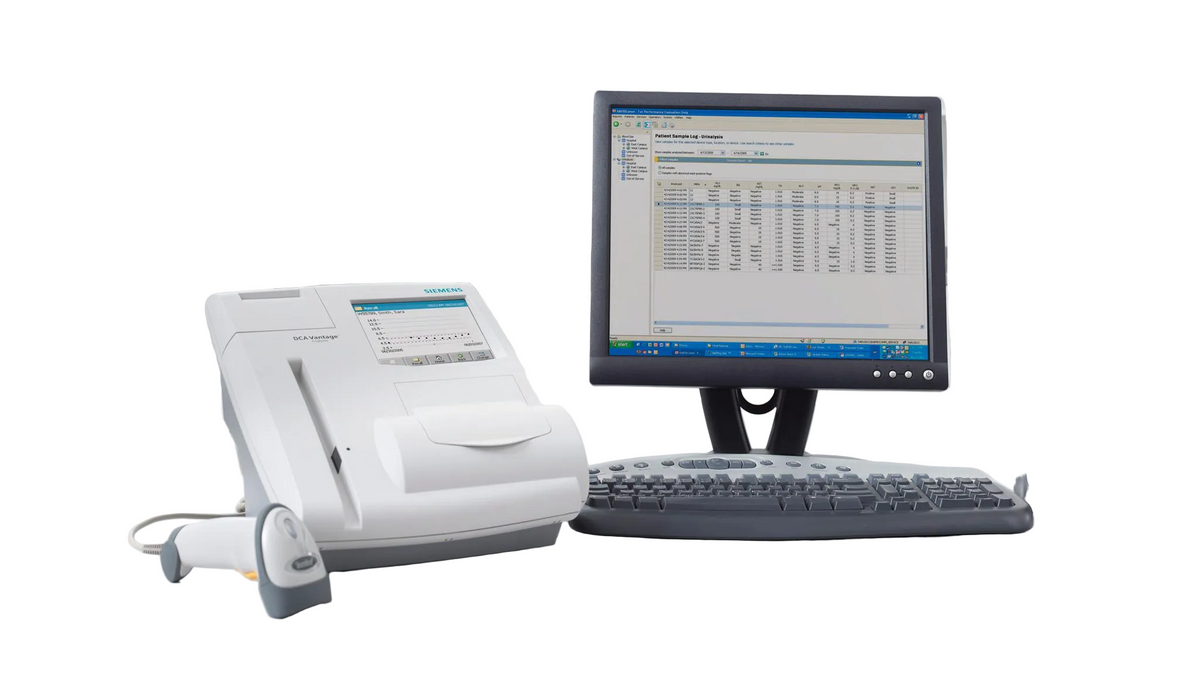

The Siemens Healthineers DCA Vantage® Analyzer Program is a complete, reagent-bundled point-of-care solution designed to empower clinics and physician practices with rapid, quantitative HbA1c testing for diabetes management. Utilizing advanced immunoassay technology, the DCA Vantage Analyzer delivers lab-accurate results in minutes from a simple whole blood fingerstick sample. This comprehensive program SKU packages the analyzer alongside four HbA1c reagent kits, a dedicated control kit, and a 36-month warranty, providing a turnkey operational framework for immediate clinical deployment and ongoing quality control compliance.
|
Overview |
|
|
System Description |
Point-of-care immunoassay analyzer |
|
Quantitative Tests |
Hemoglobin A1c (whole blood): Range: 2.5% to 14% (4mmol/mol to 130 mmol/mol) Microalbumin/Creatinine (urine): Single test reports all three results for: Albumin: 5 to 300 mg/L; Creatinine: 15 to 500 mg/dL (1.3 to 44.2 mmol/L); Albumin-to Creatinine Ratio: 1 to 2000 mg/g (0.11 to 226 mg/mmol) |
|
Test Format |
Self-contained immunoassay cartridges |
|
Test Measurement |
Automatic, optional transmission |
|
Test Method |
HbA1c: monoclonal antibody agglutination reaction |
|
Time to Test Results |
HbA1c - 6 minutes |
|
|
A:C Ratio - 7 minutes |
|
Test Handling |
|
|
Sample Volume |
HbA1c - 1µL whole blood |
|
Sample Preparation |
No pretreatment; no pipetting required |
|
Sample ID/Operator ID Entry |
Optional; via touch screen or bar code reader |
|
Calibration |
|
|
Calibration |
Lot-specific calibration card provides automatic calibration with every cartridge Traceable to International Federation of Clinical Chemistry (IFCC) reference materials and test methods for measurement of HbA1c |
|
Onboard Computer |
|
|
Storage Capacity/Memory |
4000 patient and/or control records |
|
Display |
Color touch screen with 1/4 VGA resolution |
|
Data Export |
Via USB flash drive to PC or direct to LIS/HIS or data manager, if interfaced |
|
Quality Control/Compliance |
|
|
Flexible QC Scheduling |
None, Automatic Reminders or Required |
|
QC Testing |
Optional lockout if schedule not followed or QC fails |
|
User/Operator Access |
Restricted, if desired, to protect patient and QC data and prevent unauthorized use |
|
Matching Lab Results/ |
Adjustable correlation to reference methods |
|
Reference Ranges |
User-definable reference ranges available for HbA1c |
|
Computer/Peripheral Interfaces |
|
|
Serial Port |
RS232, ASTM |
|
Ethernet Connection |
ASTM or POCT1-A2 |
|
Bi-Directional Capabilities |
ASTM: Remote computer can be set up to lock out patient tests |
|
USB-Port |
Standard USB 2.0 |
|
External Bar Code Reader (optional) |
Serial (9 pin) |
|
Onboard Printer |
54 mm (2 in) width, thermal/label stock |
|
External Printer |
Supports standard PCL printer interface via USB port |
|
General |
|
|
Dimensions |
9.0 (h) x 11.5 (w) x 10.5 (d) inches 25.4 (h) x 28.7 (w) x 27.7 (d) cm
|
|
Weight |
3.88 kg (9.0 lb)
|
|
Power Requirements |
100 to 240 VAC; 50/60 Hz
|
|
Line Leakage Current |
<0.3 mA in normal condition<0.5 mA in single fault condition |
|
Maximum Power Input |
70 VA; 30 watts
|
|
Ambient Operating Temperature |
18°C to 30°C (64°F to 86°F) (Albumin)
15°C to 32°C (61°F to 88°F) (HbA1c) |
|
Operating Temperature
|
5°C to 40°C (41°F to 104°F);
15% to 90% relative humidity |
|
Safety |
TUV SUD with CB Scheme, CSA-C22.2,
EN60601, IEC 60601, UL60601 |
|
EMC Emissions/Immunity |
FCC 47: Part 15 (Class B),
EN60601-1-2 (Class B) |
Important Product Information
-
This product is available only to licensed healthcare professionals or authorized entities, and license verification may be required. All sales are final and non-returnable item.
- This is a special-order item and may ship separately with a longer lead time. Expedited shipping may be available and please contact at 800-202-6207 before placing your order.
Note: Shipping, liftgate, inside delivery, and white glove services are not included. Standard delivery is curbside only. Please provide your ZIP code so we can quote the exact shipping cost. For any questions, please contact us at our Toll-Free number: 800-202-6207.
Features
- Rapid HbA1c: Quantitative results in minutes.
- Turnkey Bundle: Analyzer, reagents, and controls included.
- Extended Warranty: 36-month operational reliability.
- Data Traceability: Touch screen, barcode, and LIS.
- Clinical Support: Streamlines patient consultation decisions.
Specifications
- Product Type: Point-of-Care HbA1c Analyzer Program & Reagent Bundle
- System Compatibility: Siemens DCA Vantage® Reagent Kits and Controls
- Sample Requirements: Whole Blood (Venous or Capillary / Fingerstick)
- Regulatory Status: CLIA-Waived / In Vitro Diagnostic (IVD) Medical Device
- Operating Environment: Indoor clinical laboratory or point-of-care facility (18°C to 30°C)
- Packaging: 1 kit assembly per package (1 EA)
- Weight: Approximately 9.0 lbs (4.08 kg) for the complete analyzer program assembly
Configurations
- Siemens Diagnostic-4DCAPLACE3: DCA Vantage Analyzer Program with 4 HbA1c Reagent Kits, Control Kit & 36-Month Warranty, 1 EA
