Descripción

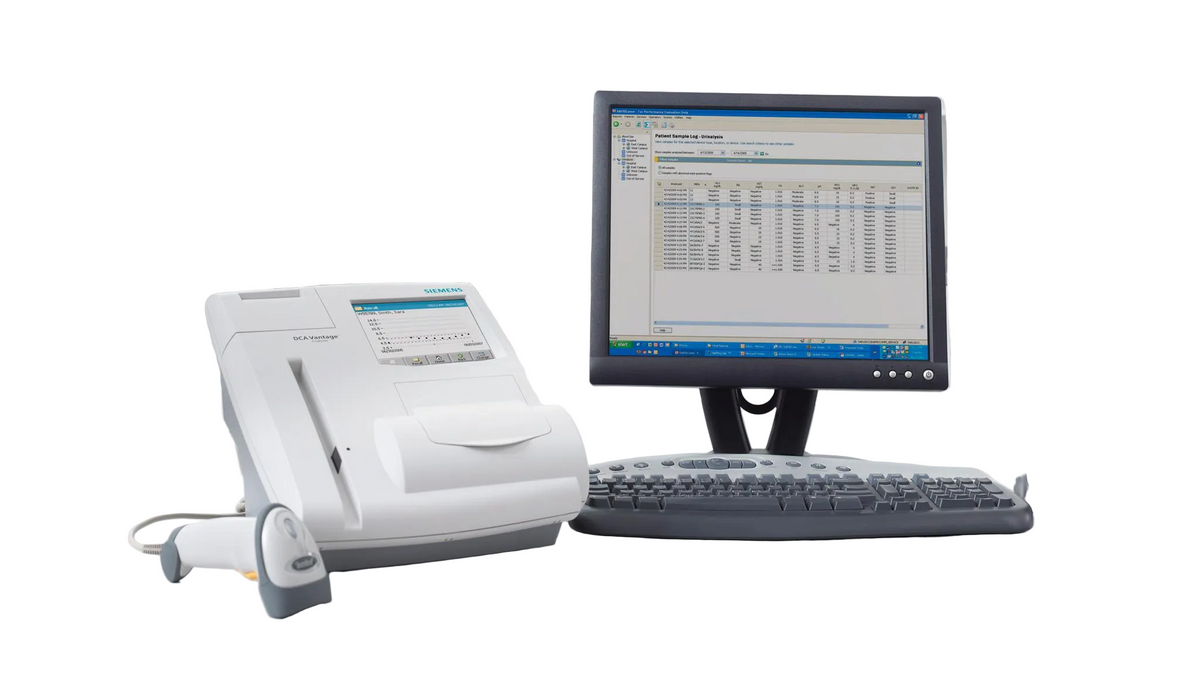

The Siemens Healthineers DCA Vantage® Analyzer is a multi-parameter, point-of-care testing system engineered for rapid, quantitative measurement of glycated hemoglobin (HbA1c) in whole blood and urine albumin-to-creatinine ratios for early kidney disease detection. Designed for physician offices, outpatient clinics, and hospital laboratories, this CLIA-waived instrument utilizes advanced immunoassay technology to deliver lab-accurate results from a minimal 1 $\mu L$ sample in just minutes. Equipped with an intuitive color touch screen, a built-in barcode scanner, and robust data management capabilities, the analyzer streamlines workflow compliance and patient record tracking without requiring sample or reagent preparation.
|
Overview |
|
|
System Description |
Point-of-care immunoassay analyzer |
|
Quantitative Tests |
Hemoglobin A1c (whole blood): Range: 2.5% to 14% (4mmol/mol to 130 mmol/mol) Microalbumin/Creatinine (urine): Single test reports all three results for: Albumin: 5 to 300 mg/L; Creatinine: 15 to 500 mg/dL (1.3 to 44.2 mmol/L); Albumin-to Creatinine Ratio: 1 to 2000 mg/g (0.11 to 226 mg/mmol) |
|
Test Format |
Self-contained immunoassay cartridges |
|
Test Measurement |
Automatic, optional transmission |
|
Test Method |
HbA1c: monoclonal antibody agglutination reaction |
|
Time to Test Results |
HbA1c - 6 minutes |
|
|
A:C Ratio - 7 minutes |
|
Test Handling |
|
|
Sample Volume |
HbA1c - 1µL whole blood |
|
Sample Preparation |
No pretreatment; no pipetting required |
|
Sample ID/Operator ID Entry |
Optional; via touch screen or bar code reader |
|
Calibration |
|
|
Calibration |
Lot-specific calibration card provides automatic calibration with every cartridge Traceable to International Federation of Clinical Chemistry (IFCC) reference materials and test methods for measurement of HbA1c |
|
Onboard Computer |
|
|
Storage Capacity/Memory |
4000 patient and/or control records |
|
Display |

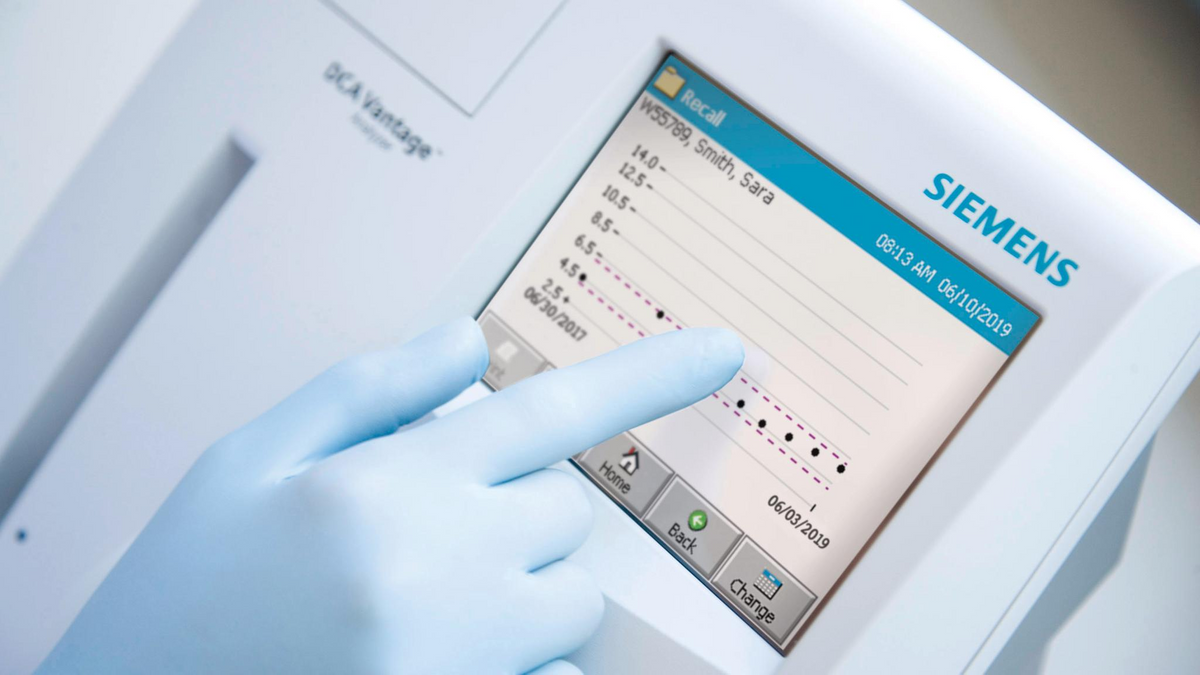

Color touch screen with 1/4 VGA resolution |
|
Data Export |
Via USB flash drive to PC or direct to LIS/HIS or data manager, if interfaced |
|
Quality Control/Compliance |
|
|
Flexible QC Scheduling |
None, Automatic Reminders or Required |
|
QC Testing |
Optional lockout if schedule not followed or QC fails |
|
User/Operator Access |
Restricted, if desired, to protect patient and QC data and prevent unauthorized use |
|
Matching Lab Results/ |
Adjustable correlation to reference methods |
|
Reference Ranges |
User-definable reference ranges available for HbA1c |
|
Computer/Peripheral Interfaces |
|
|
Serial Port |
RS232, ASTM |
|
Ethernet Connection |
ASTM or POCT1-A2 |
|
Bi-Directional Capabilities |
ASTM: Remote computer can be set up to lock out patient tests |
|
USB-Port |
Standard USB 2.0 |
|
External Bar Code Reader (optional) |
Serial (9 pin) |
|
Onboard Printer |

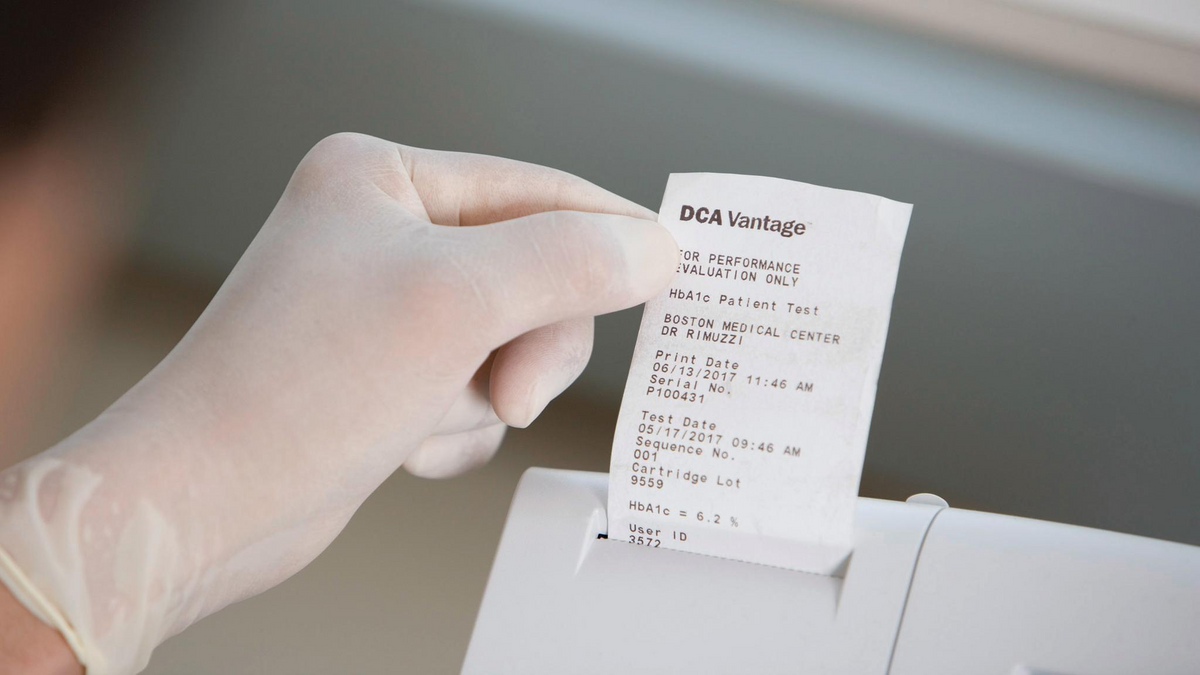

54 mm (2 in) width, thermal/label stock |
|
External Printer |
Supports standard PCL printer interface via USB port |
|
General |
|
|
Dimensions |
9.0 (h) x 11.5 (w) x 10.5 (d) inches 25.4 (h) x 28.7 (w) x 27.7 (d) cm
|
|
Weight |
3.88 kg (9.0 lb)
|
|
Power Requirements |
100 to 240 VAC; 50/60 Hz
|
|
Line Leakage Current |
<0.3 mA in normal condition<0.5 mA in single fault condition |
|
Maximum Power Input |
70 VA; 30 watts
|
|
Ambient Operating Temperature |
18°C to 30°C (64°F to 86°F) (Albumin)
15°C to 32°C (61°F to 88°F) (HbA1c) |
|
Operating Temperature
|
5°C to 40°C (41°F to 104°F);
15% to 90% relative humidity |
|
Safety |
TUV SUD with CB Scheme, CSA-C22.2,
EN60601, IEC 60601, UL60601 |
|
EMC Emissions/Immunity |
FCC 47: Part 15 (Class B),
EN60601-1-2 (Class B) |
Important Product Information
-
This product is available only to licensed healthcare professionals or authorized entities, and license verification may be required. All sales are final and non-returnable item.
- This is a special-order item and may ship separately with a longer lead time. Expedited shipping may be available and please contact at 800-202-6207 before placing your order.
Note: Shipping, liftgate, inside delivery, and white glove services are not included. Standard delivery is curbside only. Please provide your ZIP code so we can quote the exact shipping cost. For any questions, please contact us at our Toll-Free number: 800-202-6207.
Features
- Rapid Results: HbA1c in 6 min; ACR in 7 min.
- CLIA-Waived: Easy point-of-care clinic deployment.
- Low Sample Use: Requires 1 $\mu L$ whole blood.
- Data Management: Stores 4,000 records with LIS/EMR link.
- No Prep: Ready-to-use without manual reagent mixing.
Specifications
- Product Type: Point-of-Care HbA1c & Kidney Function Analyzer
- System Compatibility: Siemens DCA Vantage® Reagent Kits, Multistix, and Controls
- Sample Types: Whole Blood (Capillary/Fingerstick or Venous) and Urine Specimens
- Regulatory Status: CLIA-Waived / In Vitro Diagnostic (IVD) Medical Device
- Operating Environment: Indoor clinical laboratory or point-of-care facility
- Packaging: 1 unit per assembly (1 EA)
- Weight: Approximately 9.0 lbs (4.08 kg) for the analyzer assembly
Configurations
- Siemens Diagnostic-5075US: DCA Vantage HbA1c Analyzer, CLIA Waived, 1 EA
