Descripción
The Siemens Healthineers Coagulation portfolio comprises high-performance automated hemostasis analyzers (such as the Sysmex CS-5100, CS-2500, and CA-660), specialized in vitro diagnostic reagents (including Innovance D-Dimer, Heparin, Anti-Xa, Free Protein S, and Apixaban assays), calibration materials, multi-level controls, and dedicated system maintenance accessories. Designed for high-throughput clinical reference laboratories, this comprehensive line includes halogen lamps, measuring rotors, sample cups, minicups, printer ribbons, thermal paper, piercing kits, filter assemblies, and heavy-duty analyzer replacement hardware. Related products with differing box counts or packaging configurations are structured below to streamline clinical procurement and inventory tracking.

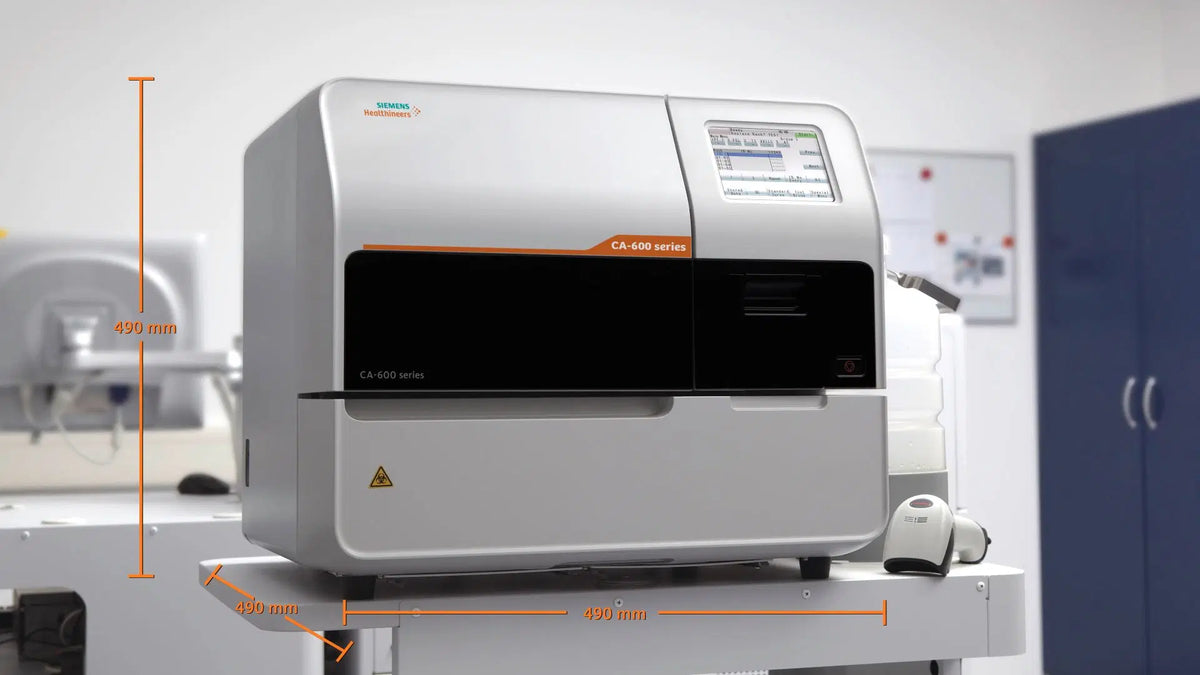

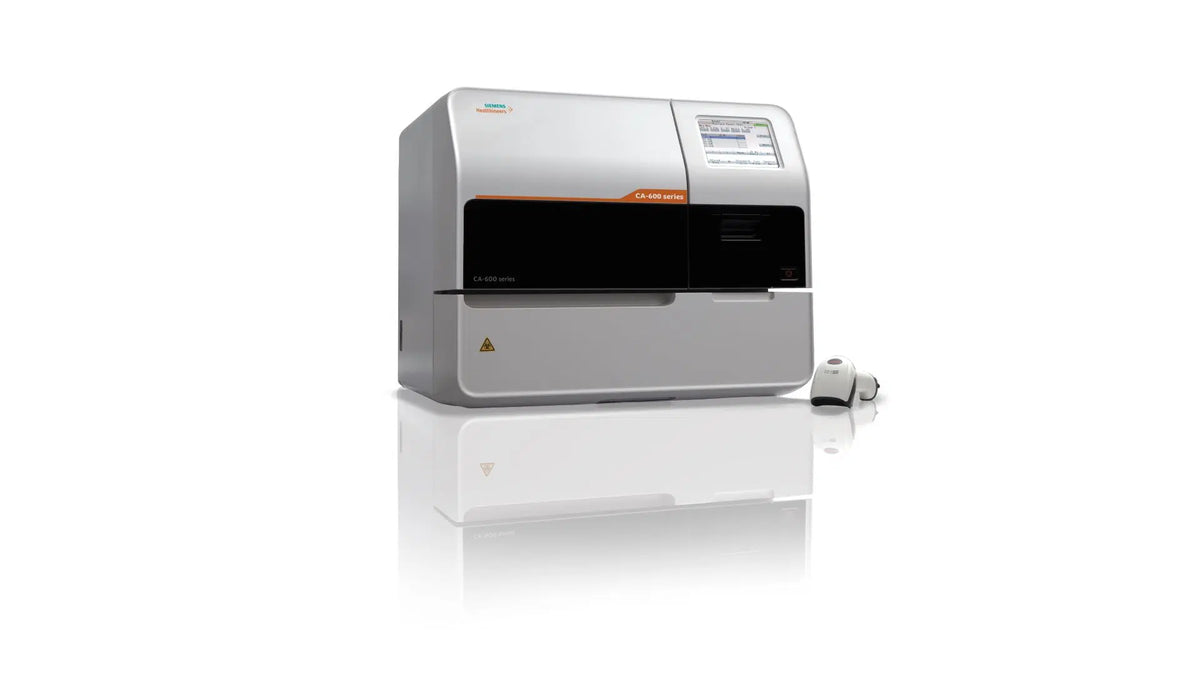

Dimensions
|
System dimensions |
566 x 490 x 490 mm (W x D x H) 22.5 x 19.5 x 19.5 in. Approx. 43 kg/94.6 lb.0.4 (H) in. |
|
|

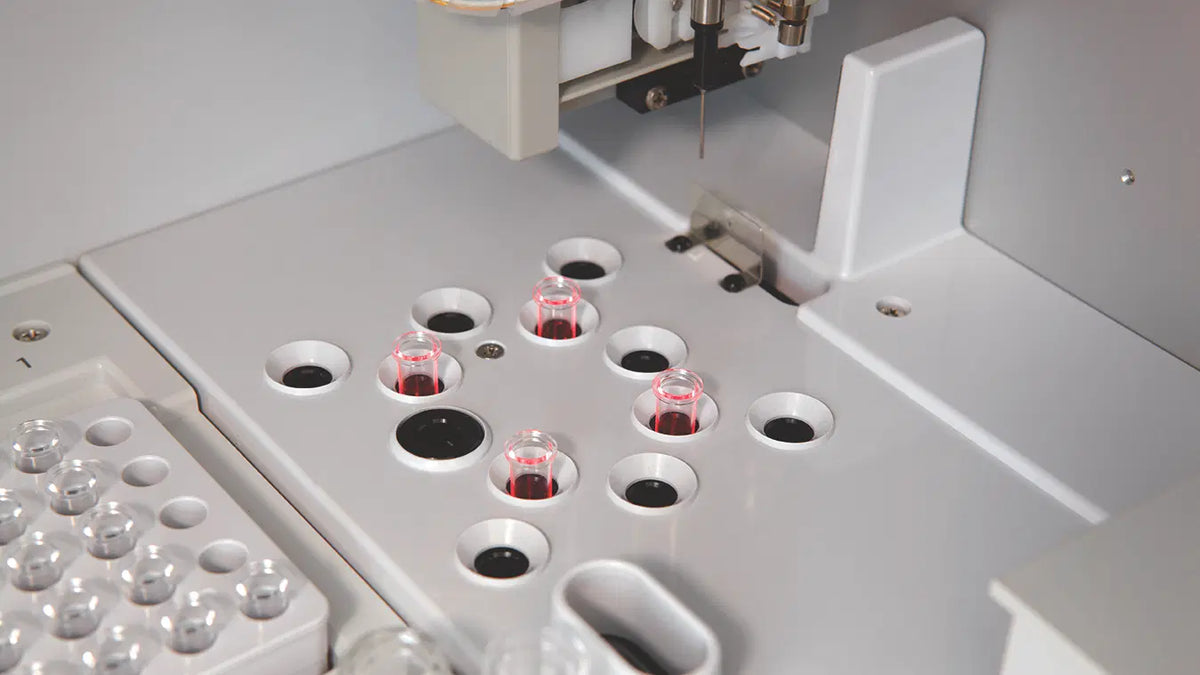

Measurement channels
|
Principle |
Photo-optical, continuous, sequential based on change in the |
|
|
Method/channels |
CA-620 System Clotting/4 |
CA-660 System Clotting/4 Chromogenic Immunologic |
|
Source lamp |
CA-620 System 4 LEDs with 660 nm/wavelength |
CA-660 System 4 LEDs with 660 nm/wavelength
1 LED with 405 nm/wavelength 1 LED with 575 nm/wavelength |
Sample capacity
|
Type of sample |
Primary tubes and/or sample cups |
|
Sampling mechanism |
Automated sample and standard predilution
|
|

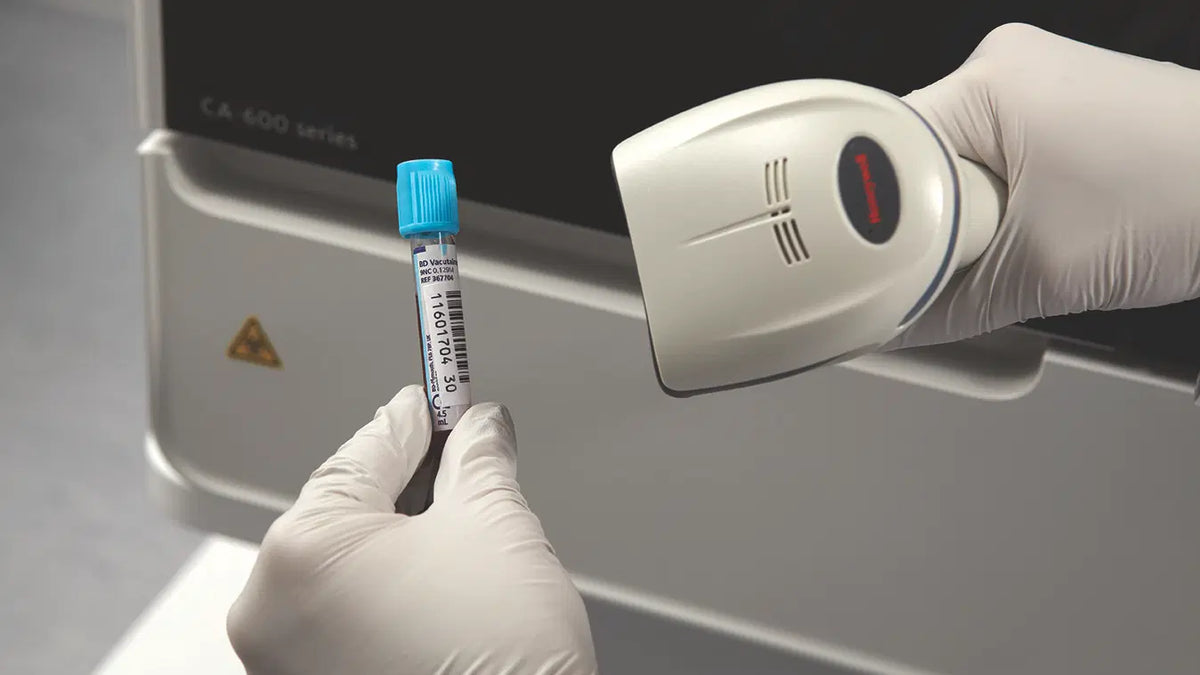

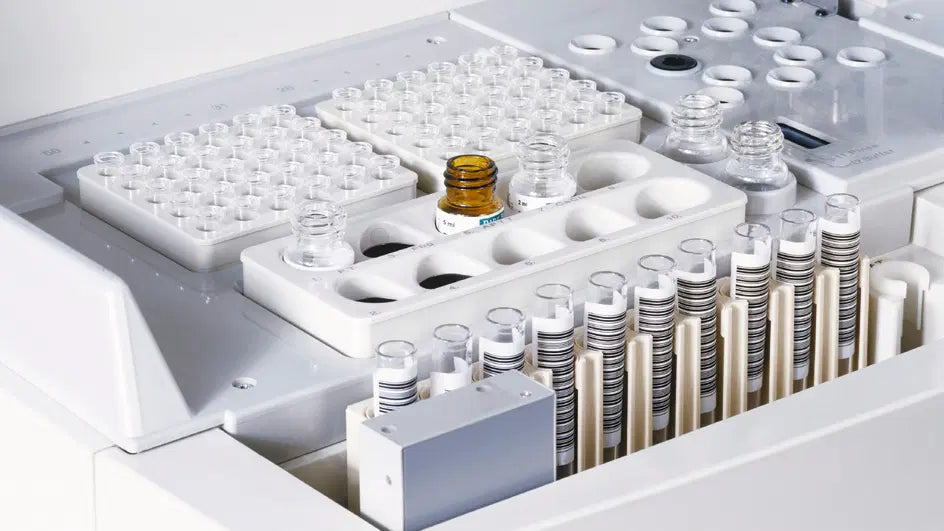

Bar-code identification |

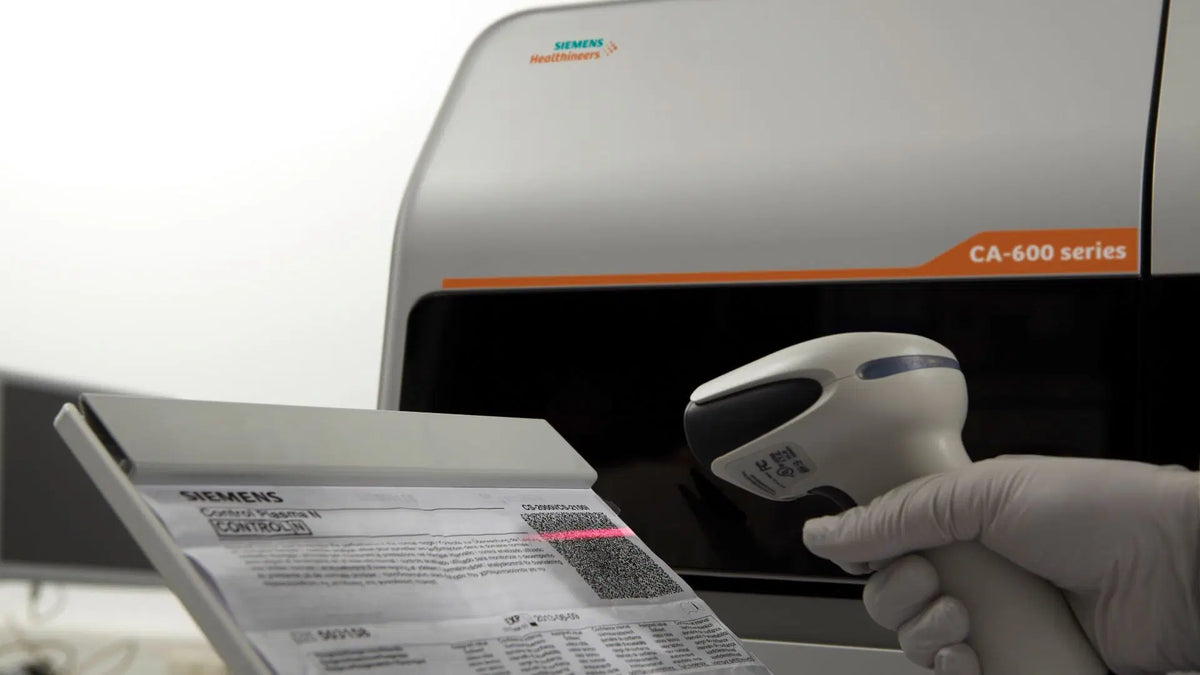

Automatic positive sample identification, optional 2D hand-held barcode reader |
|
Carrier system |
Continuous-access sample racks
|
|
Maximum load |
10 sample tubes |
Throuput
(approximate)
|
PT |
60 tests/hour |
|
D-Dimer |
16 tests/hour |
|
PT/APTT/Fibrinogen
|
48 simultaneous tests/hour |
|
PT/APTT/Fibrinogen/AT
|
40 tests/hour
|
|
PT/APTT/Fib/D-Dimer |
32 tests/hour |
Operation
|
Access Mode |
Continous random-access (reaction tubes) |
|

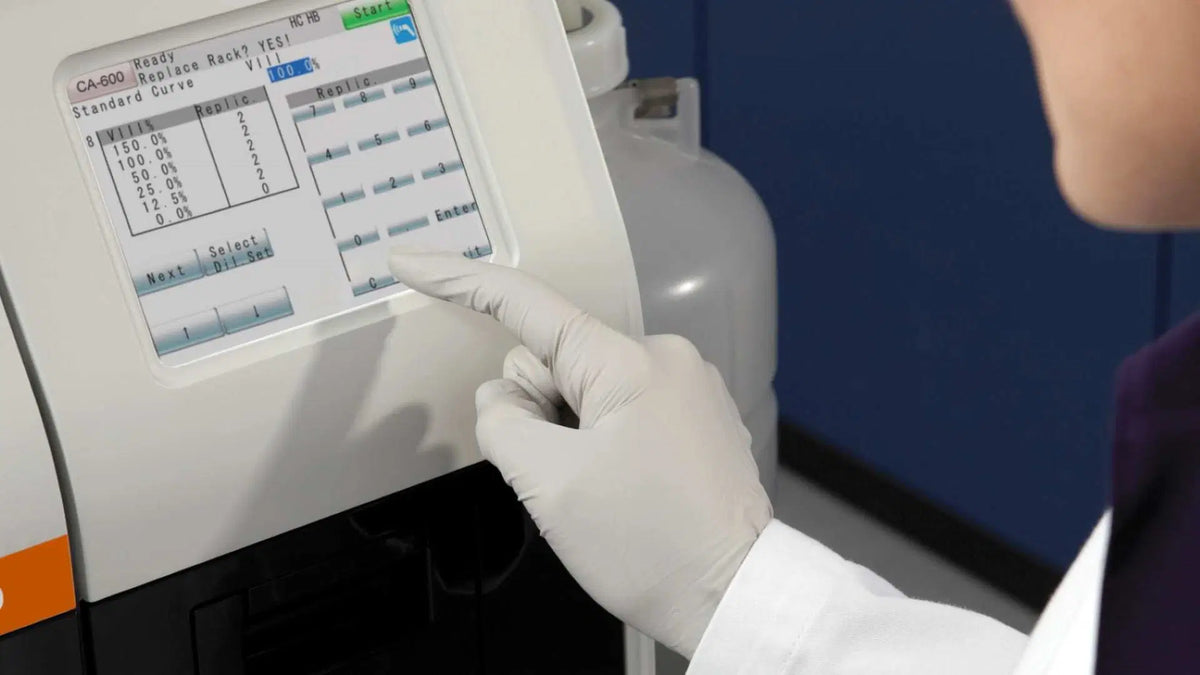

Calibration |
Automatic predefined calibration |
|
STAT |
1 priority position |
Reaction tubes
|
Type |
Single reaction tubes |
|
Loading |
Automatic continuous-access; 60 reaction tubes onboard |

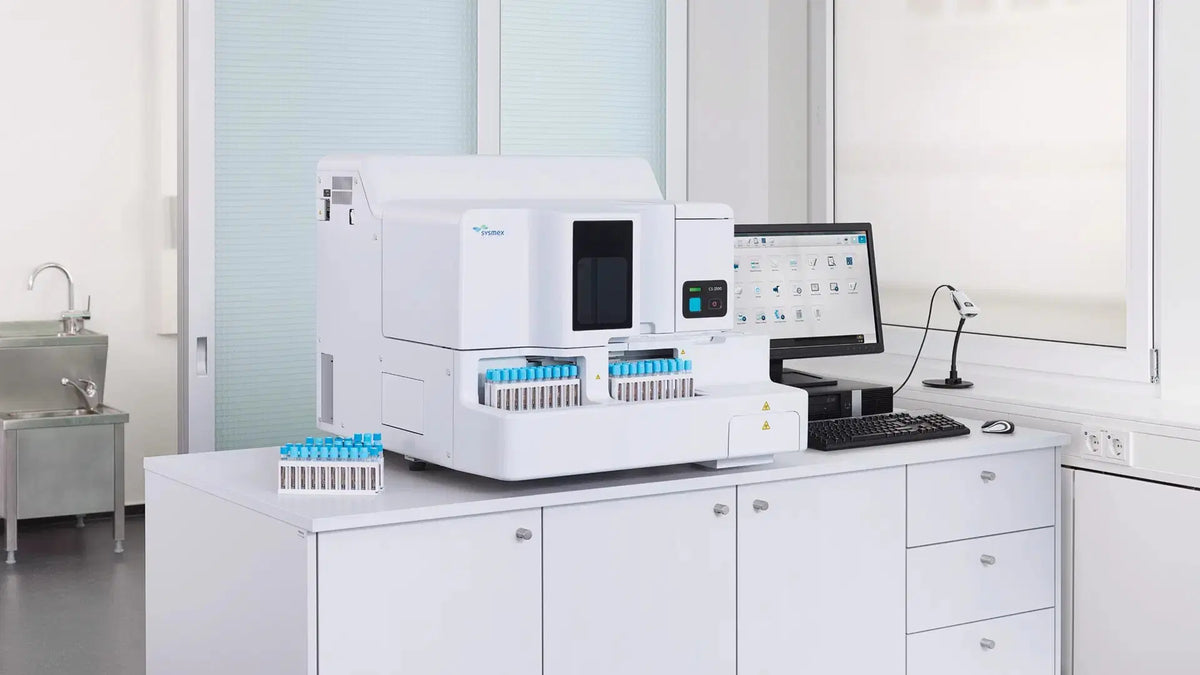

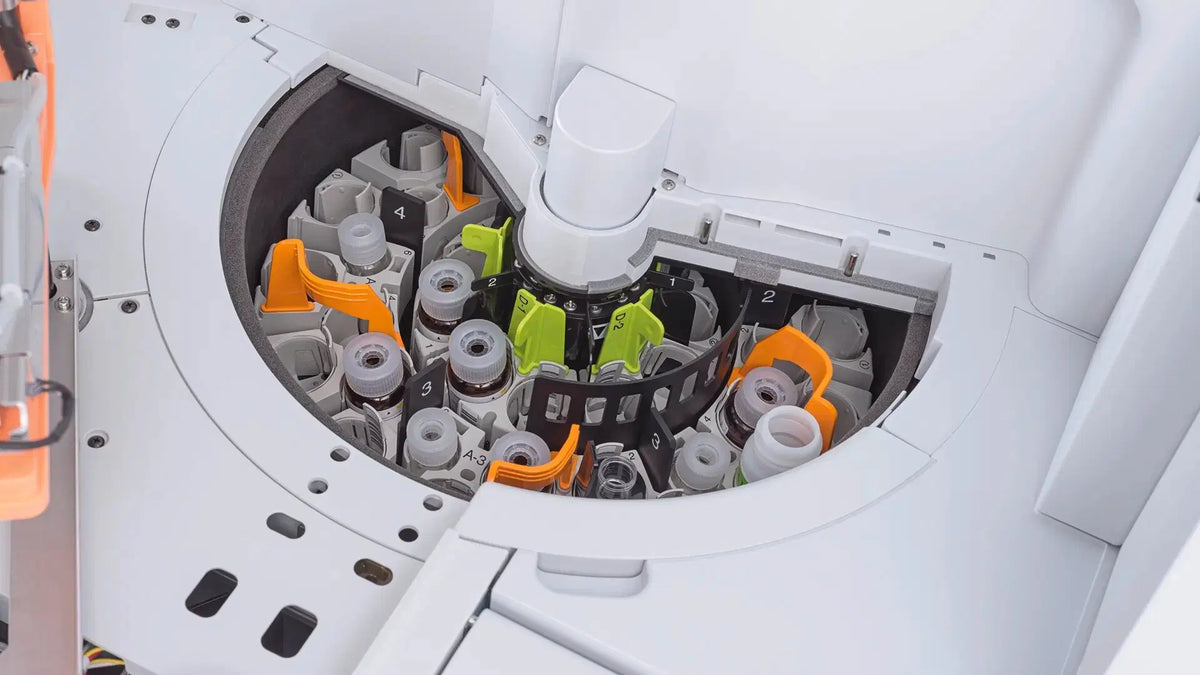

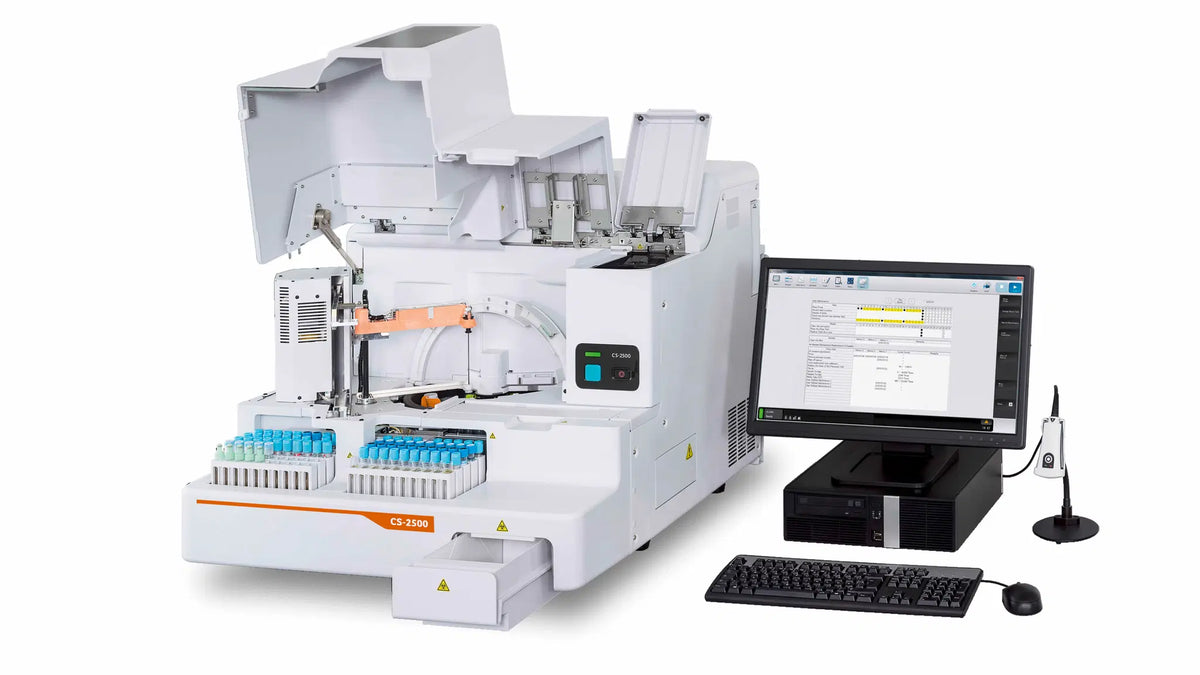

CS-2500 System by the numbers
Dimensions
|
Main unit |
Approx. 775 (W) × 895 (D) × 685 (H) mm |
|
Pneumatic unit |
Approx. 280 (W) x 355 (D) x 400 (H) mm |
|
Terminal (PC): |
Approx. 338 (W) x 381 (D) x 100 (H) mm |
|
Terminal (monitor): |
Approx. 556 (W) x 122.5 (D) x 403.5 (H) mm |
Measurement channels
|
Method channels |
10 single channels for clotting, chromogenic, immunoassay, and aggregation methods |
|
|
Measurement channels |
10 wells (mixing function using stir bars possible for 4 wells) |
|
|
Principle |

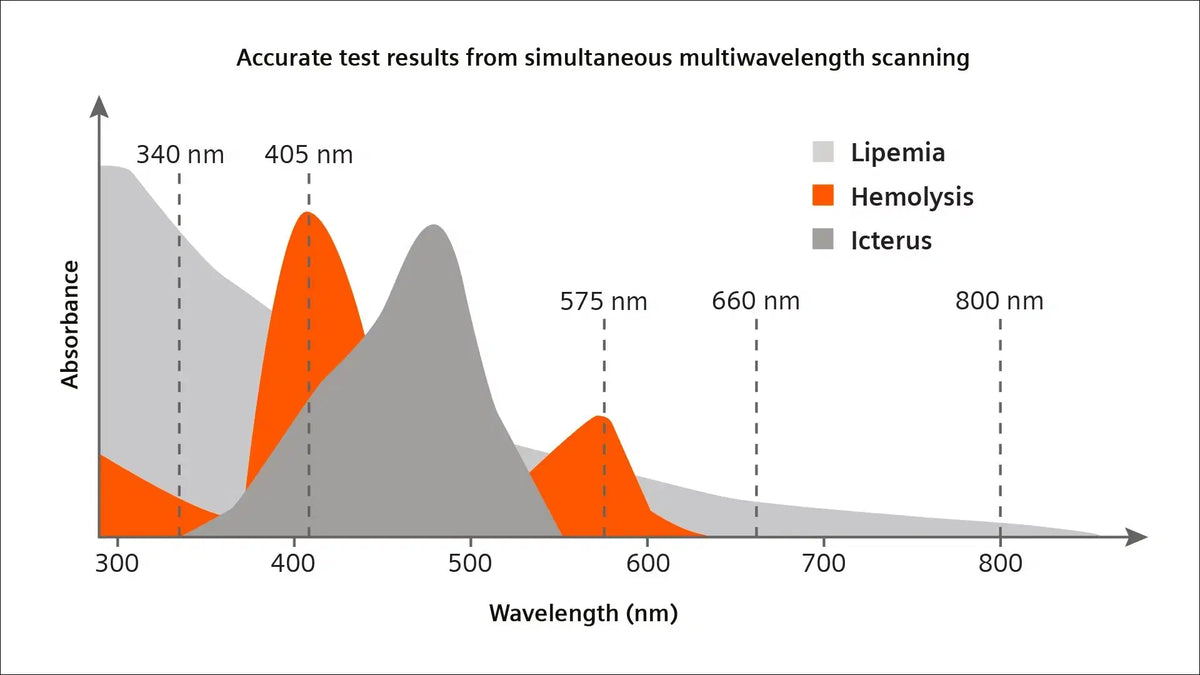

Simultaneous five-wavelength photometry in all detector channels (340, 405, 575, 660, and 800 nm wavelengths) |
|
Sample Capacity
|
Maximum load |
50 samples; five racks with 10 samples per rack |
|
Throughput (tests/hour, approx.)
|
|
Throughput (tests/hour)8 |
|
|
PT APTT |
Approx. 180 Approx. 180 |
|
|
PT/APTT PT/APTT/AT/DD |
Approx. 180 simultaneous Approx. 95 simultaneous (results for normal-mode processing) |
|
Operation
|
Access mode |
Continuous reagent-, consumable-, and sample-loading capability |
|
|
STAT samples |
Five priority positions |
|
|
View calibration |
Graphical display of calibration curves from up to 10 different reagent lots/parameters |
|
|
Auto calibration/auto QC |
User-defined time interval or with new reagent vial |
|
Reaction tubes
|
Type |
Single reaction tubes |
|
|
Loading |
Automatic continuous access, 500 reaction tubes onboard |
|

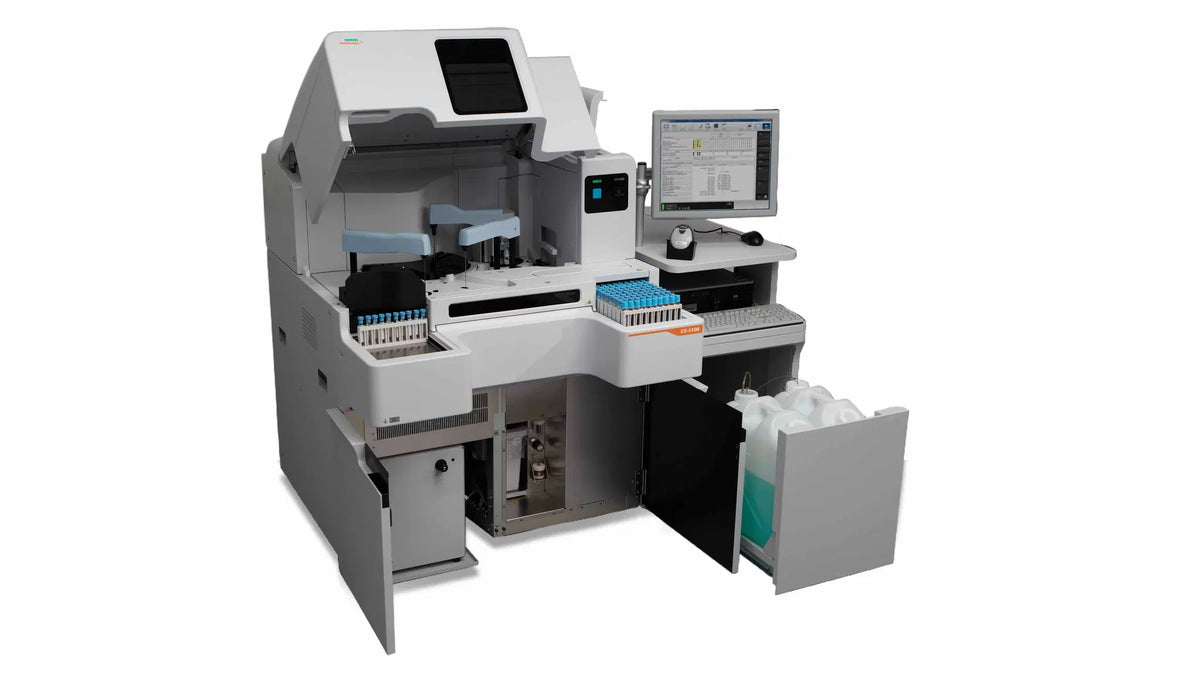

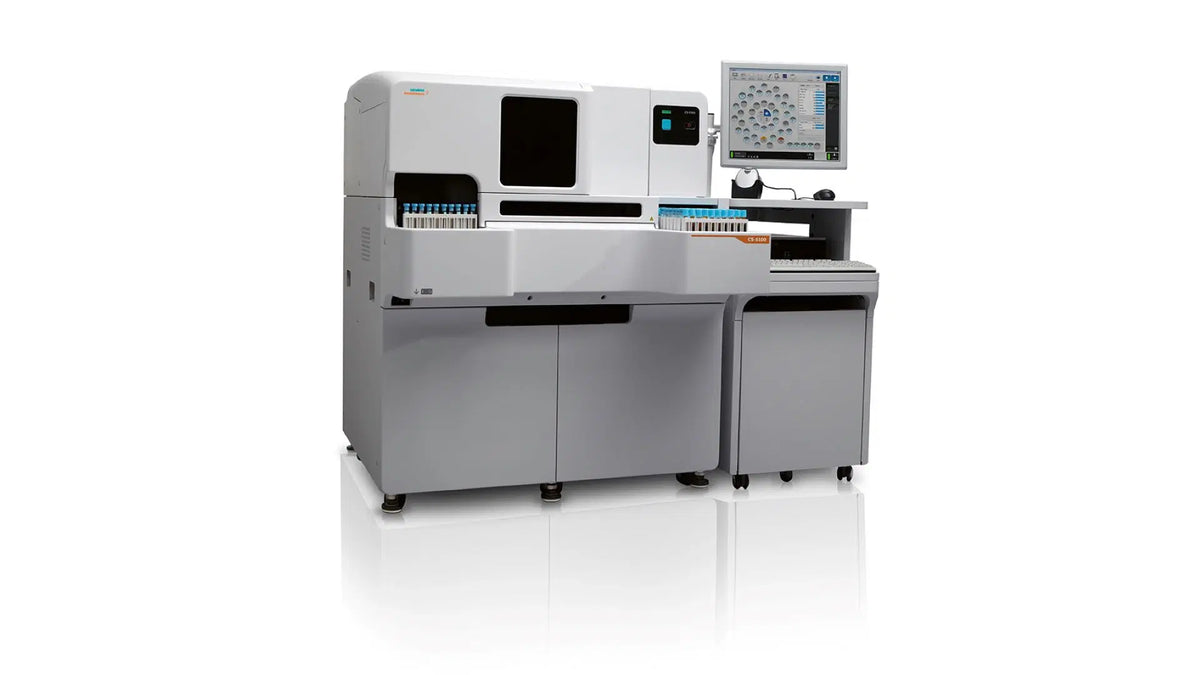

CS-5100 System by the numbers
Dimensions
|
Main unit and cabinet |
Approx. 1030 (W) x 1150 (D) x 1280 (H) mm |
|
Pneumatic unit |
Approx. 280 (W) x 355 (D) x 400 (H) mm |
|
Information processing unit (IPU) Cart |
Approx. 546 (W) x 891 (D) x 1195 (H) mm |
Measurement channels
|
Method channels |
20 single channels for chromogenic, immunoassay, and aggregation methods |
|
Measurement channels |
20 wells (mixing using stir bars available for 8 wells) |
|
Principle |
Simultaneous 5-wavelength photometry in all detector channels (340, 405, 575, 660, and 800 nm wavelengths) |
|
Sample capacity |
100 samples: 10 racks with 10 samples per rack (maximum load) |
Throughput (tests/hour, approx.)
|
PT APTT |
Approx. 400 PT tests/hour3 Approx. 400 APTT tests/hour3 |
|
PT/APTT PT/APTT/AT/DD |
Approx. 400 simultaneous PT/APTT tests/hour3 Approx. 282 simultaneous PT/APTT/AT/DD (results for normal mode processing)7 |
Operation
|
Access mode |
Simultaneous random-access (samples, reaction tubes) |
|
STAT samples |
5 priority positions |
Reaction tubes
|
Type |
Single reaction tubes |
|
Loading |
Automatic continuous-access |
Data storage
|
Storage capacity |
Approx. 10,000 samples with a maximum of 60 results per sample |
Important Product Information
-
This product is available only to licensed healthcare professionals or authorized entities, and license verification may be required. All sales are final and non-returnable item.
- This is a special-order item and may ship separately with a longer lead time. Expedited shipping may be available and please contact at 800-202-6207 before placing your order.
Note: Shipping, liftgate, inside delivery, and white glove services are not included. Standard delivery is curbside only. Please provide your ZIP code so we can quote the exact shipping cost. For any questions, please contact us at our Toll-Free number: 800-202-6207.
Features

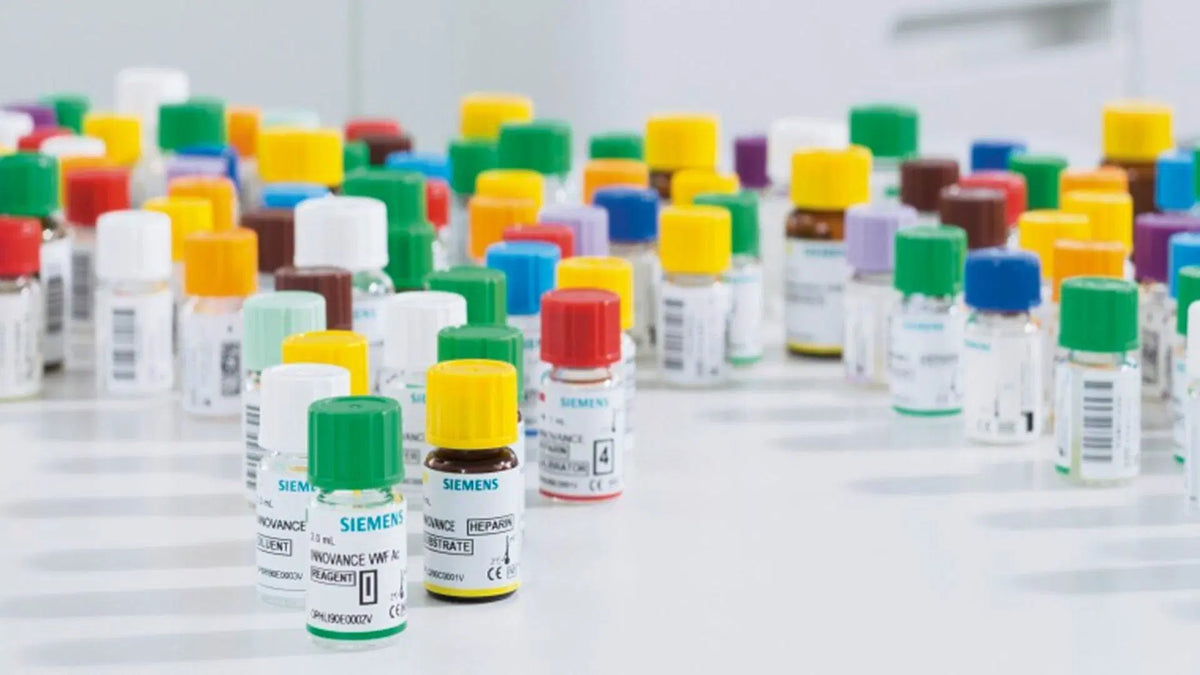

- Coagulation: Assays support Anti-Xa, DOACs, and D-Dimer.
- Hardware: Piercers, lamps, filters for CS/CA/BCS.
- Platelet Testing: Cartridges, tools, cups for PFA systems.
- Automation: Integrates Aptio, CentraLink, printers, UPS.
- Full Ecosystem: Supplies OEM reagents, controls, calibrators, hardware.
Specifications
- Product Type: Automated Coagulation Analyzers, Hemostasis Reagents, Calibrators, Controls, Hardware & Consumables
- System Compatibility: Sysmex CS-5100, CS-2500, CA-660, CA-620, CA-560, BCS / BCS XP, Behring Fibrintimer II, & PFA-100/200 Platforms
- Regulatory Status: In Vitro Diagnostic (IVD) Laboratory Reagents, Quality Control Materials, Medical Devices & Analyzer Hardware
- Storage & Stability: Reagents, calibrators, controls, and validation kits require refrigeration (2°C to 8°C); hardware accessories, cuvettes, and consumables stored at room temperature
- Sterility: Non-Sterile Biological Derived Reagents & Laboratory Hardware (Handle with Universal Precautions)
- Packaging: Varying box and kit configurations (ranging from individual analyzers and mobile tables to 2,520-count measuring rotors and 500-count sample cups)
- Weight: Ranges from approximately 0.2 lbs for small reagent vials and filters to over 100 lbs for automated analyzer units and mobile tables
Configurations
- Siemens Diagnostic-10712814: Exterior Indicator Light, CS-5100 System
- Siemens Diagnostic-10446148: Fibrinogen Calibrator Kit 1 ml (6/Box)
- Siemens Diagnostic-10710881: Filter Assembly for CA-600 System
- Siemens Diagnostic-11240038: Filter Kit, BCS XP Systems
- Siemens Diagnostic-10446232: General Chemistry Reagent, Calcium Chloride 15 ml (10/Box)
- Siemens Diagnostic-10483322: Halogen Lamp for CS-2 Analyzers
- Siemens Diagnostic-10726155: Halogen Lamp for CS-5 Analyzers
- Siemens Diagnostic-10622932: Halogen Lamp, CA-560, 6V, 10W
- Siemens Diagnostic-10913565: Handheld Battery Kit (MC3190Z)
- Siemens Diagnostic-10873681: Innovance Anti-Xa In-Vitro Diagnostic Automated Assay 3.2 ml (5/Box)
- Siemens Diagnostic-10873674: Innovance Apixaban Controls (10/Box)
- Siemens Diagnostic-10873675: Innovance Apixaban Standards (4/Box)
- Siemens Diagnostic-10709521: Innovance™ Antithrombin Kit, Medium, 4 x 2.7 ml
- Siemens Diagnostic-10446006: Innovance™ Coagulation Control, D-Dimer, 2 x 5 x 1 ml
- Siemens Diagnostic-10445981 - 10445982: Innovance™ Coagulation Reagent, D-Dimer, Dimension Vista System 150 Tests (3 x 4 ml / 6 x 2 ml) and 300 Tests (6 x 4 ml)
- Siemens Diagnostic-10873530: Innovance® Calibrator Heparin (5/Box)
- Siemens Diagnostic-10873533 - 10873534: Innovance® Coagulation Control, Heparin, LMW High Level and Low Level, 1 ml (5/Box)
- Siemens Diagnostic-10873532 - 10873531: Innovance® Coagulation Control, Heparin, UF High Level and Low Level, 1 ml (5/Box)
- Siemens Diagnostic-10873535: Innovance® Coagulation Reagent, Heparin, BCS XP / Sysmex CS-2500 / Sysmex CS-5100 / Sysmex CA-660, 3 ml (5/Box)
- Siemens Diagnostic-10873458: Innovance® Free Protein S Antigen Kit, 4 x 3.4 ml
- Siemens Diagnostic-11239256: Instrument Kit #1, Sysmex CS-5100
- Siemens Diagnostic-10713577: IPU Holder Assembly for CS-5100
- Siemens Diagnostic-10283274: Lab Automation Kit
- Siemens Diagnostic-10873570 - 10873569: Lupus Anticoagulant (LA) Control High Level and Low Level, 1 ml (6/Box)
- Siemens Diagnostic-11254643: Magnetic Stirrer for BCS XP Systems
- Siemens Diagnostic-10446524: Measuring Rotor for BCS / BCS XP System (2520 Cuvettes/Box)
- Siemens Diagnostic-11471223: Mobile Lab Table, 36" x 60"
- Siemens Diagnostic-10336447: Mobile Table for Advia® Centaur CP System
- Siemens Diagnostic-10459387: O-Ring Tool for PFA-100
- Siemens Diagnostic-10459388: O-Rings for PFA-100 (2/Box)
- Siemens Diagnostic-11239241: PC Monitor Arm Assembly, No. 160
- Siemens Diagnostic-10459383: PFA Cassette (5/Box)
- Siemens Diagnostic-10459298: PFA-100 Platelet Function Analyzer
- Siemens Diagnostic-10716785: Piercer Replacement Kit for CS-5100
- Siemens Diagnostic-10454435: Piercer Replacement Kit, No. 20
- Siemens Diagnostic-10446472: Plasma Control P, 1 ml (10/Box)
- Siemens Diagnostic-10446235: Plasma Control, Normal, 1 ml (10/Box)
- Siemens Diagnostic-11222937: Power Cord, 1.8m, North America
- Siemens Diagnostic-10445702: Priming Cartridge for Dade® PFA (10/Box)
- Siemens Diagnostic-11353526: Printer Ribbon
- Siemens Diagnostic-10793425: Printer Ribbon Kit, AIN
- Siemens Diagnostic-10459385: Printer Ribbon for PFA-100
- Siemens Diagnostic-10730798: Printer, CL4NX, WW, AIN
- Siemens Diagnostic-10446097: ProC® Plasma Control, 1 ml (6/Box)
- Siemens Diagnostic-10470110: Push Vial (10/Box)
- Siemens Diagnostic-10455286: Replacement Cap Kit for CA-1500 / 7000
- Siemens Diagnostic-11353512: RFID Label Roll
- Siemens Diagnostic-10446526: Sample Cup for Behring Coagulation System (500 Cups/Box)
- Siemens Diagnostic-10445691: Sample Plate for Sysmex™ CA-1500 (50/Box)
- Siemens Diagnostic-10481762: SBC Tool Set
- Siemens Diagnostic-10793512: Seismic UPS Bracket
- Siemens Diagnostic-10874012: SLD Mini-Cup for CS System (500/Box)
- Siemens Diagnostic-11171799: Slot for Interface Module DxH 800
- Siemens Diagnostic-11171771: Slot-spur Connect for Immunocap 1000
- Siemens Diagnostic-10816420: SRS on CentraLink® Installation Kit
- Siemens Diagnostic-10482200: Stirrer Bar
- Siemens Diagnostic-10874007: Stirrer Bar Cuvette for CS System (144/Box)
- Siemens Diagnostic-11694253: Supply Parts Kit for Sysmex® CA-600 Series Analyzers
- Siemens Diagnostic-11694250: Supply Parts Kit for Sysmex® CS-2500
- Siemens Diagnostic-10801883: Syngo Seismic UPS Kit Assembly
- Siemens Diagnostic-11419152: Sysmex® Aptio Automation Slot
- Siemens Diagnostic-11694252: Sysmex® CA-660 Coagulation Analyzer, CLIA Non-Waived
- Siemens Diagnostic-10449436: Sysmex® Conical Cup, 4 ml, for Coagulation Analyzer (100/Box)
- Siemens Diagnostic-11239262 - 11694248: Sysmex® CS-2500 Coagulation Analyzer CLIA Non-Waived Complete System and Main Unit
- Siemens Diagnostic-11694245: Sysmex® CS-5100 Coagulation Analyzer, CLIA Non-Waived
- Siemens Diagnostic-10455314: Sysmex® Water Autofill Accessory
- Siemens Diagnostic-10484323: Terminal Hybrid MultiPort Server 100-2
- Siemens Diagnostic-11353915: Thermal Barcode Printer, Sato, CL4NX, Plus Bluetooth Compatibility
- Siemens Diagnostic-10873682: Thermal Paper for CA-620 Systems (10/Box)
- Siemens Diagnostic-10446532: Thermal Printer Paper Roll for Behring Fibrintimer II (BFT II Analyzer) (10 Rolls/Box)
- Siemens Diagnostic-11171800: Track Head with Double Motor
- Siemens Diagnostic-10874013: Trash Bags for CS-5100 System (50/Box)
- Siemens Diagnostic-10874009: Trash Box Liner for CS-2
- Siemens Diagnostic-10874014: Trash Box Liner for Sysmex CA-6 Series Analyzers
- Siemens Diagnostic-11240037: Tube Filter Fitting Kit for BCS XP Systems
- Siemens Diagnostic-10445703: Vacuum Test Cup for Dade® PFA-100 and Innovance® PFA-200 (35/Box)
- Siemens Diagnostic-10446125: Validation Kit for BCS / BCS XP Systems
- Siemens Diagnostic-10446684: Washing Solution for Coagulation Analyzers, 15 ml (10/Box)
