We kept versatility in mind when designing our UroMAX series urology c-arm tables. You can customize your purchase to fit your needs.
- Choose your model: Choose between the 5 UroMAX models below. (The UroMAX-4 is our most popular option!)
- Choose your side rails: We offer a “split” side rail option which many choose when performing lithotomy procedures. You can also choose side rails which run the length of the table

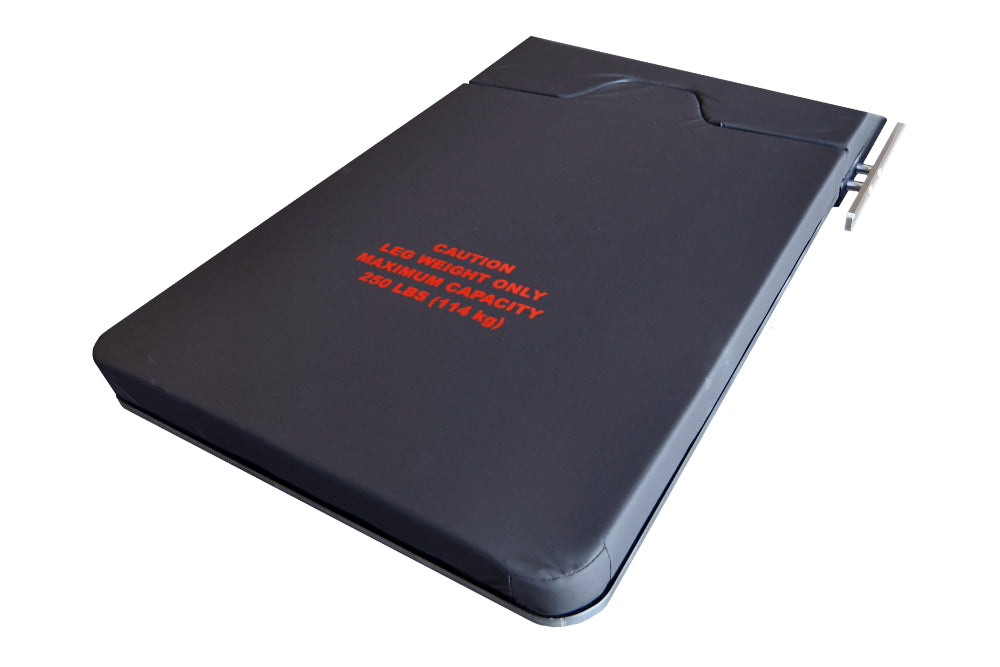

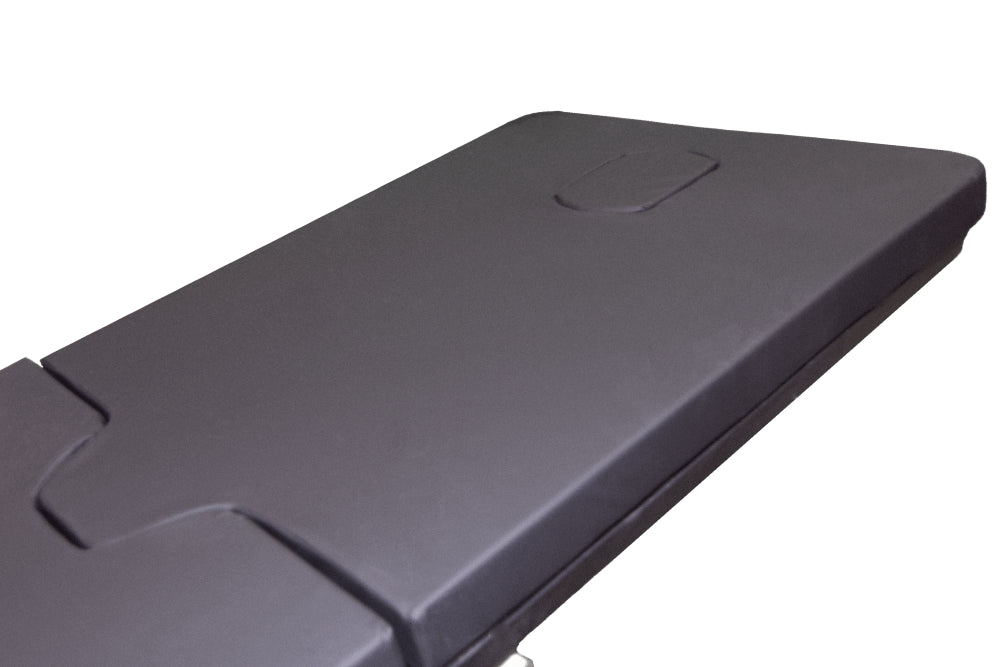

- Add on your extension: Just doing Urology procedures? You may only need our leg extension which holds up to 250 lbs. Sharing your table? We also offer an upper body extension which holds up to 500 lbs and has a facial cutout allowing the user to perform prone procedures.

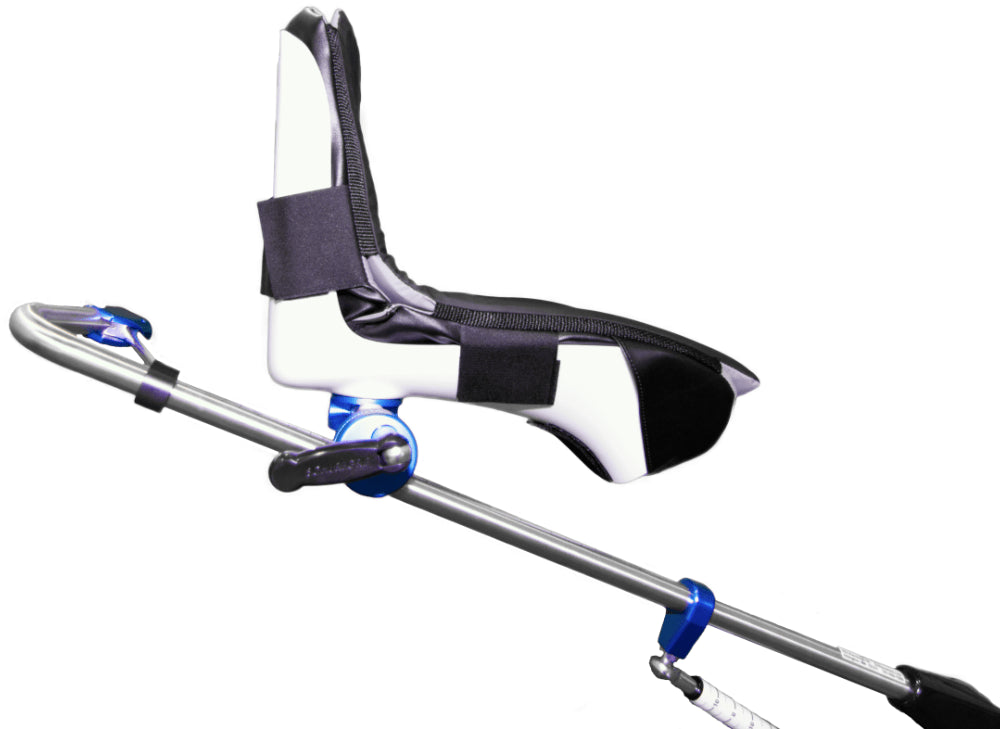

- Choose your optional accessories. Our siderails are a standard size and fit most accessories. We also offer a package containing stirrups, a drain loop, and 10 drain bags. You may also opt for some armboards. See our accessories section for more accessories.
Our UroMAX urology c-arm tables offer flexibility and reliability.
They feature a cantilevered carbon fiber radiolucent top allowing for full fluoroscopic visualization and unobstructed c-arm positioning. Also, with the addition of the upper body extension, the UroMAX can be used for pain management, GI and other c-arm guided procedures.
| Control |
Height motion hand control and foot control |
| Tabletop and Mattress Attenuation |
1.6mm Al.(+/-0.2mm tolerance) |
| Tabletop Material |
Carbon fiber skin/foam core |
| Radiolucent Area |
27" L x 24" W unobstructed |
| Tabletop |
55" L x 24" W x 1.62" T |
| Table Dimensions |
55" L x 26" W |
| Mattress |
2" thick |
| Patient Straps |
2 |
| Castors |
5", full swivel & wheel lock |
| Base |
H-Shaped Steel Base with Epoxy Finish - 51" L x 26" W |
| AC Voltage |
120V |
| Frequency |
60 Hz |
| AC Current |
2.5A, for Move 4,5 its 6.5A
|
| Electric Shock Protection |
Class I |
| Applied Part Rating |
Type B |
| Mode of Operation |
10% Duty Cycle - 1 min on / 9 minutes off |
Please Note:

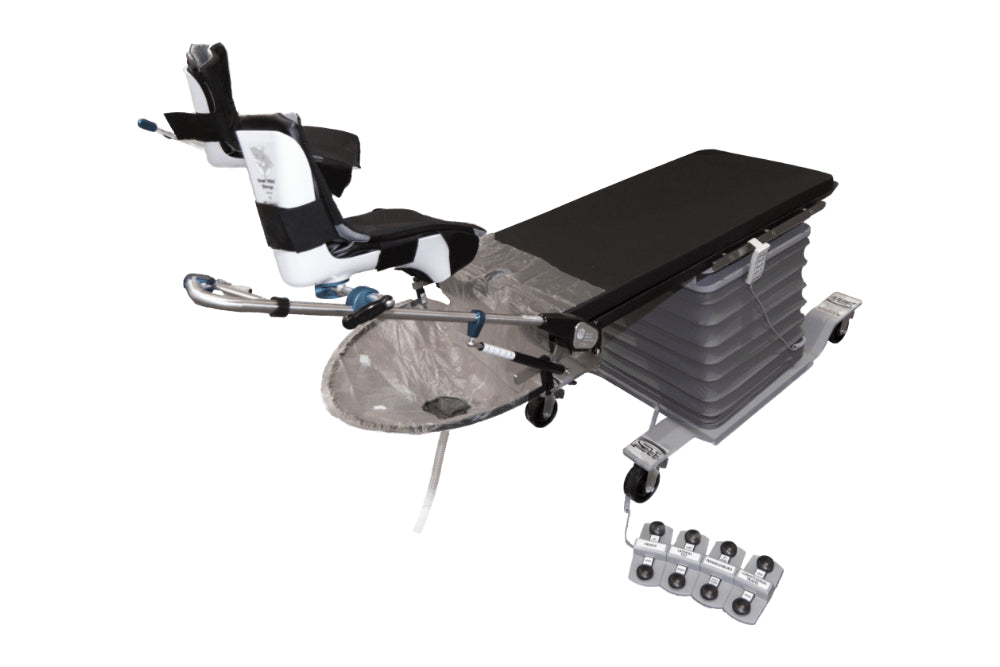

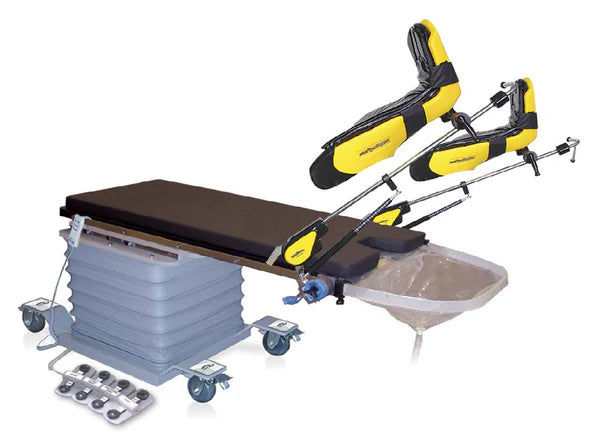

- The UroMAX Urology/Lithotomy C-Arm Imaging Table, 4 Motion model UROMAX-4, is shown in the first image. The photo depicts an optional accessory package that includes Stirrups, Clamps, and a Drain Loop Bag, which is sold separately.

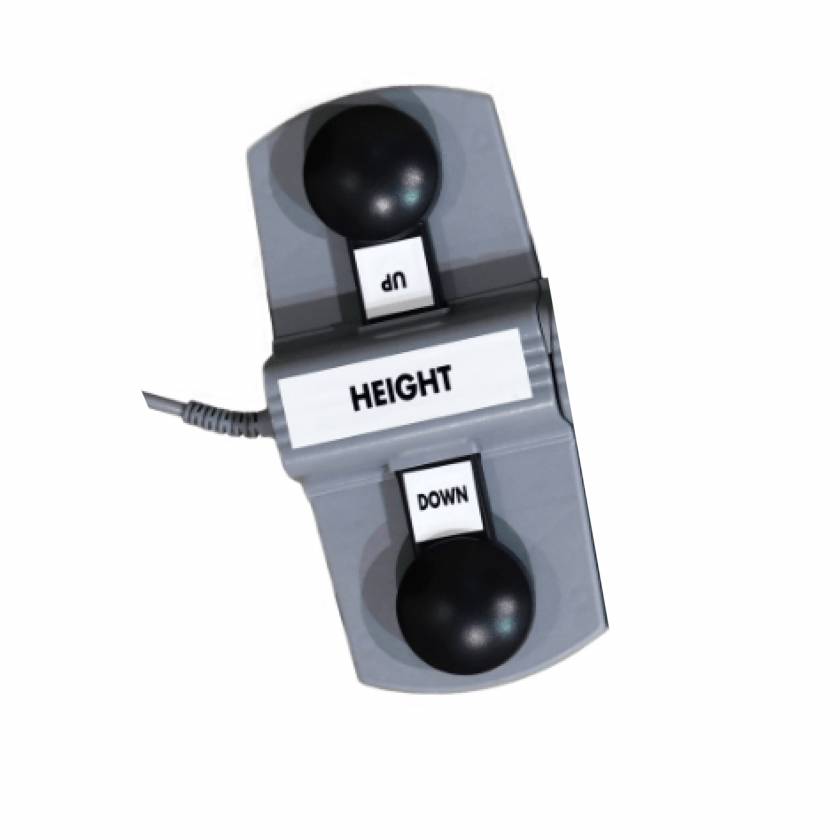

- This table has 1 Motion Foot Control, as shown in the second image.
Note: Shipping, liftgate, inside delivery, and white glove services are not included. Standard delivery is curbside only. Please provide your ZIP code so we can quote the exact shipping cost. For any questions, please contact us at our Toll-Free number: 800-202-6207.
