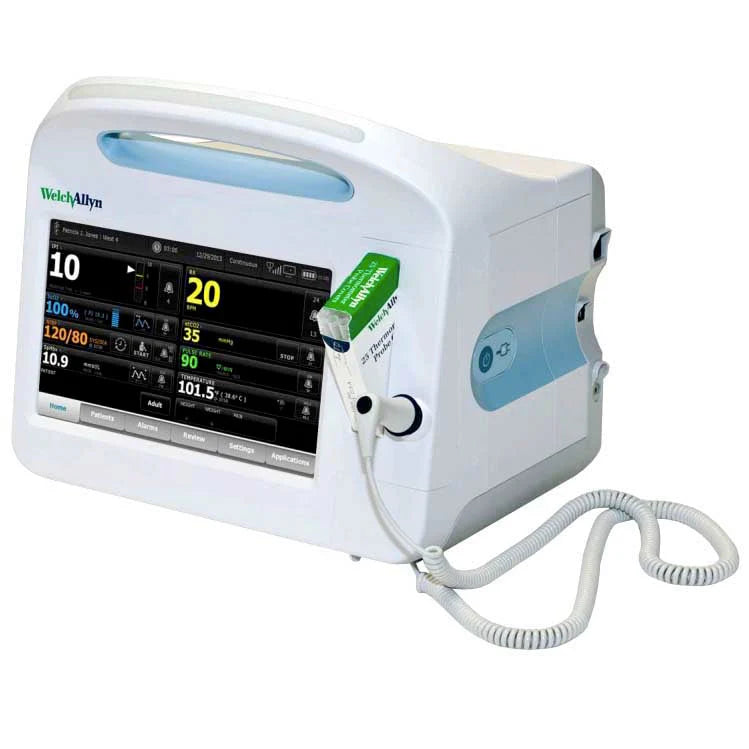

Welch Allyn Connex 6800 Vital Signs Monitor
The Welch Allyn 6800 VSM 6000 LCD Bezel (#103565) is designed for use with the 8.9" LCD display of the VSM 6000 system. It provides a secure and reliable housing for the display, ensuring both protection and optimal visibility during clinical use.
This bezel is fully compatible with the Welch Allyn Connex Vital Signs Monitor, maintaining seamless integration with the device while supporting dependable performance in demanding healthcare environments.
Specifications
| Specification | Details |
|---|---|
| Physical Dimensions | 10" x 11" x 6" (25.4 cm x 27.9 cm x 15.2 cm) |
| Weight (including battery) | 9.5 lb (4.3 kg) |
| Display Area | 8" x 4" (20.3 cm x 10.2 cm) |
| Resolution | 1024 x 600 pixels |
| Blood Pressure Determination Time (Typical) | 15 seconds (SureBP) |
| Blood Pressure Accuracy | Meets or exceeds ANSI/AAMI SP10:2002 standards |
| SureTemp Temperature Range | 80°F to 110°F (26.7°C to 43.3°C) |
| Braun Temperature Range | 68°F to 108°F (20°C to 42.2°C) |
| SpO₂ Performance Measurement Range | 1 to 100% |
| Operating Temperature | 50°F to 104°F (10°C to 40°C) |
| Storage Temperature | -4°F to 122°F (-20°C to 42.2°C) |
| Operating Altitude | -557 to 10,000 ft (-170 m to 3,048 m) |
| Operating Humidity | 15% to 95% non-condensing |
| Storage Humidity | 15% to 95% non-condensing |
| Wireless Network Interface | IEEE 802.11 a/b/g/n |
| Frequency | 2.4 GHz – 2.483 GHz; 5.15–5.35 GHz; 5.725–5.825 GHz |
| Authentication / Encryption | WEP (RC4), WPA, WPA2 (802.11i); TKIP; AES (Rijndael); Static keys (40-bit/128-bit); PSK; EAP-FAST, EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, PEAP-TLS |
| Device Data Security Features | FIPS-approved encryption; Server authentication; Digitally signed software images and encryption files |
Key Features of the Welch Allyn Connex 6800
- The Connex 6800 brings multiple vital-sign measurements together in one easy device. It captures non-invasive blood pressure, pulse rate, SpO₂, and temperature, and can be expanded with advanced options like ECG, capnography (EtCO₂), and respiration monitoring when needed.
- It also gives fast measures of blood pressure. Its SureBP technology lets you get correct pulse and blood pressure readings in about 15 seconds, which helps speed up the process of figuring out what's wrong with a patient.
- The monitor fits into almost any workflow. Whether you need spot-checks, scheduled interval readings, or continuous monitoring for critical patients, the device adapts without slowing you down.
- It integrates smoothly with hospital systems, too. Built-in WiFi, Ethernet, and USB let you send vitals straight to your EMR, reducing manual data entry and keeping records accurate.
- The 8-inch HD touchscreen helps easily to read and use, giving you quick access to patient data and alerts.
- Portability is another important feature. The device runs on AC power or a rechargeable lithium-ion battery, so it stays reliable during patient transport or in areas with unstable power.
- You can customize alarms and early-warning indicators to match your patient’s needs. This makes it easier to catch changes in a patient’s condition early, especially for issues like breathing troubles or sudden BP shifts.
- The Connex 6800 also works across different age groups—adult, pediatric, and neonatal—making it a flexible option for facilities that treat varied patient populations.
- Its modular design means you can add ECG modules, capnography, continuous SpO₂, respiratory monitoring, or even connect external scales as your workflow evolves. It’s a system that grows with your facility.
Where the Connex 6800 Works Best
The Connex 6800 is useful in many hospital and clinic environments:
- General wards and outpatient clinics: Ideal for routine vitals during checkups, triage, or periodic assessments.
- Emergency departments: Great for fast spot-checks when patients arrive with urgent symptoms.
- Pre-op and post-op units: Helps track patient stability before surgery and throughout recovery.
- Critical care and step-down units: Optional continuous monitoring supports close observation of high-risk patients.
- Patient transport: Battery operation keeps monitoring uninterrupted during transfers inside the hospital or between facilities.
- Digital-health and EMR-integrated hospitals: Automated data transfer improves efficiency and accuracy.
- Pediatric and neonatal care: Adjustable settings and compatible ranges make it safe and reliable for smaller or younger patients.
Configurations
- #68MCTX-B: Masimo SpO2, Covidien Capnography, SureTemp Plus Thermometry.
- #68NCTX-B: Nellcor SpO2, Covidien Capnography, SureTemp Plus Thermometry.
- #68NCTP-B: Nellcor SpO2, Covidien Capnography, SureTemp Plus Thermometry, Internal Printer.
Why Health Professionals & Clinicians Prefer Welch Allyn Connex 6800
The Connex 6800 replaces multiple separate devices, making it a great all-in-one solution for clinics and small hospitals.
Its fast, reliable readings help in high-pressure environments like ERs and busy outpatient centers.
Hospitals that rely on digital workflows benefit from its strong EMR connectivity, making it easy to promote as a “smart hospital”-ready solution.
Its scalability and modular options appeal to facilities of all sizes—from small practices to advanced critical-care units.
/
