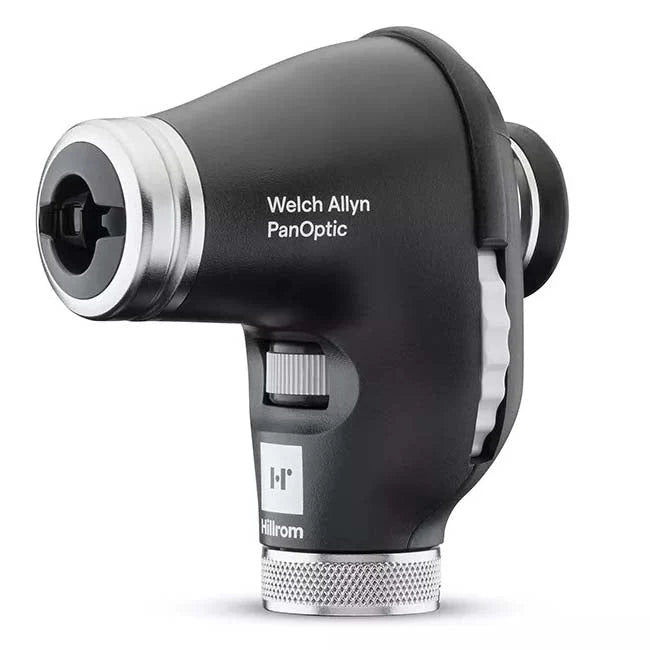

Features

• QuickEye™ Alignment Technology: Features two LED lights on the patient side that act as a focal point, helping the patient's eye align with the clinician for faster optic disc location.
• SureColor™ LED: Advanced LED technology that provides a bright, cool light to ensure accurate tissue color representation while being highly energy efficient.
• 20x Larger Viewing Area: Offers a significantly wider field of vision compared to traditional ophthalmoscopes, allowing for a 25° view of the fundus.
• iExaminer Ready: Designed with a mounting interface for the iExaminer SmartBracket, allowing you to capture and share retinal images via smartphone.
• Long-Life Illumination: The integrated LED lamp is rated for up to 7 years of use, drastically reducing the frequency of bulb replacements and maintenance.
• Patient Comfort: The design allows for a greater working distance between the clinician and patient, improving the overall experience during eye exams.

Specifications

• Dimensions: 8 cm x 4.5 cm x 7.5 cm.
• Weight: 0.6 lb
• Apertures: Small, Large, Red Free, Slit, Fixation Target, Cobalt Blue.
• Diopter Range: -20 to +25 D.
• Diopter Steps: -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25.
• Lamp Type: SureColor LED.
• ColorRendering Index (CRI): 95 typical.
• R9: 85 typical.
• Lamp Life: 80+ years (typical).
• Field of View: 20 degree.
• Environmental Conditions:
• Operating Temperature: 59 degrees F (10 degrees C) to 104 degrees F (49 degrees C).
• Transport/Storage Temperature: -4 degrees F (-20 degrees C) to 120 degrees F (55 degrees C).
• Operating Humidity: 30% to 90%.
• Transport/Storage Humidity: 10% to 95%.
• Atmospheric Pressure Limitation: 500 hPa to 1060 hPa.
