Welch Allyn/Hillrom-71-PM2LXU-US 3.5V Diagnostic Set with Ophthalmoscope and Otoscope,PanOptic Basic LED Ophthalmoscope, MacroView Basic LED Otoscope, one Lithium Ion Plus Rechargeable Power Handle, and Hard Case(Each)

Features

• Re-designed ophthalmoscope with a familiar form and feel.
• Portable Lithium-Ion handle provide improved battery life and reduced charge time.
• MacroView Basic Otoscope offers focus-free design and 3x wider viewing area.
• PanOptic Basic Ophthalmoscope provides 20x larger viewing area than traditional ophthalmoscopes.

Specifications

• PanOptic Basic LED Ophthalmoscope:Dimensions: 3.14" H x 1.77" W x 2.95" D(8 cm x 4.5 cm x 7.5 cm).
• Weight: 130 g.
• Apertures: Small, Large, Red Free, Slit, Fixation target, Cobalt Blue.
• Diopter Range: -20 to +25 D.
• Diopter Steps: -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25.
• Crossed-Linear Polarizers: Yes.
• Lamp Type: SureColor LED.
• Lamp Warranty: 7 Years.
• Color: Color Rendering Index (CRI): 95 typical; R9: 85 typical; Color Temperature: 2700K - 3500K.
• Lamp Life: 80+ years (typical).
• Field of View: 20 degrees.

MacroView Basic LED Otoscope:

• Dimensions: 2.75" H x 1.77" W x 2.16" D (7 cm x 4.5 cm x 5.5 cm).
• Weight: 115 g.
• Sealed Pneumatic Otoscopy: Yes.
• Illumination Type: Ring Fiber Optics
• Lamp Type: SureColor LED.
• Lamp Life, Rated: 60+ years based on typical use.
• Field of View: ~3 times that of a single-lens otoscope, like the standard-style 250-2.
• Magnification: ~5X.
• Focus-Free Design: Extended focal length virtually eliminates the need to focus on wide-view otoscope.
• Total Light Output: 5200 lux; 2.5 times brighter than traditional halogen scopes.
• Color: Color rendering index (CRI): typical; R9: 90 typical; Color Temperature: 3400K - 4500K.
• PanOptic Plus LED Ophthalmoscope:
• Dimensions: 8 cm x 4.5 cm x 7.5 cm.Weight: 130 g.
• Apertures: Small, Large, Red Free, Slit, Fixation Target, Cobalt Blue.
• Diopter Range: -20 to +25 D.
• Diopter Steps: -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25.
• Lamp Type: SureColor LED.
• ColorRendering Index (CRI): 95 typical.
• R9: 85 typical.
• Lamp Life: 80+ years (typical).
• Field of View: 20 degree.

Environmental Conditions:

• Operating Temperature: 59 degrees F (10 degrees C) to 104 degrees F (49 degrees C).
• Transport/Storage Temperature: -4 degrees F (-20 degrees C) to 120 degrees F (55 degrees C).
• Operating Humidity: 30% to 90%.
• Transport/Storage Humidity: 10% to 95%.
• Atmospheric Pressure Limitation: 500 hPa to 1060 hPa.

Configurations

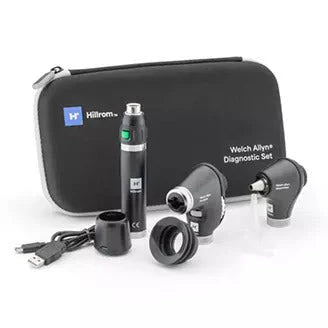

• #71-PM2LXU-US: PanOptic Basic LED Ophthalmoscope, MacroView Basic LED Otoscope, one Lithium Ion Plus Rechargeable Power Handle, and Hard Case.

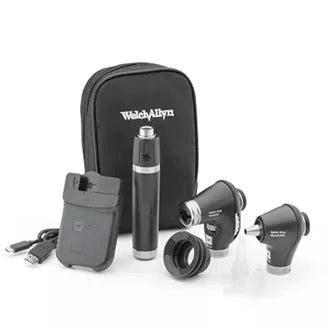

• #71-PM2LDX-US: PanOptic Basic LED Ophthalmoscope, MacroView Basic LED Otoscope, Universal Desk Charger, and two Lithium Ion Rechargeable Power Handles.
• #71-PM3LDE-US: PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope for iExaminer, Universal Desk Charger, and two Premium Lithium Ion Plus USB Rechargeable Power Handles.

Data Sheet

Welch Allyn PanOptic Ophthalmoscopes and Welch Allyn MacroView and LED Otoscopes 4th Edition EMC Tables
