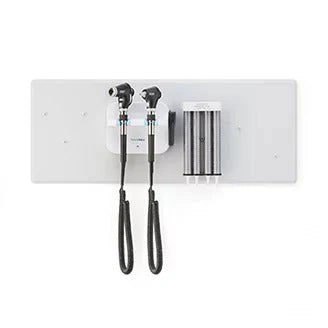

Welch Allyn/Hillrom-777-PM3WXX-US Green Series 777 Integrated Wall System with PanOptic Plus LED Ophthalmoscope and MacroView Plus LED Otoscope for iExaminer(Each)
Welch Allyn/Hillrom-777-PM3WXX-US Green Series 777 Integrated Wall System with PanOptic Plus LED Ophthalmoscope and MacroView Plus LED Otoscope for iExaminer(Each)
Pasa el cursor sobre la imagen para ampliarla. Clic en la imagen para aumentar
Welch Allyn/Hillrom-777-PM3WXX-US Green Series 777 Integrated Wall System with PanOptic Plus LED Ophthalmoscope and MacroView Plus LED Otoscope for iExaminer(Each)Welch Allyn/Hillrom-777-PM3WXX-US Green Series 777 Integrated Wall System with PanOptic Plus LED Ophthalmoscope and MacroView Plus LED Otoscope for iExaminer(Each)

Welch Allyn/Hillrom-777-PM3WXX-US Green Series 777 Integrated Wall System with PanOptic Plus LED Ophthalmoscope and MacroView Plus LED Otoscope for iExaminer(Each)

Welch Allyn By Hillrom
  • SKU: Welch Allyn/Hillrom-777-PM3WXX-US
  • SKU: Welch Allyn/Hillrom-777-PM3WXX-US
  • Condition: Brand New
  • Manufacturer Warranty: NA
  • MPN: 777-PM3WXX-US
  • Est. Delivery: 14 to 18 Days
  • Shipping: Calculated at Checkout
  • Country Of Origin: USA
  • MPN: 777-PM3WXX-US
  • Est. Delivery Date: Oct 16 to Oct 26
Details: Description| Features| Specifications| Configurations| Data Sheets
Precio:
$1,719.81 $1,774.50

Gastos de envío calculados en la caja

Stock:
Disponible

Descripción

Features

  • Works with all Welch Allyn otoscope, ophthalmoscope and retinoscope models.
  • Mix and match your device heads between wide-view and traditional Welch Allyn ophthalmoscopes, retinoscopes and otoscopes.
  • Help reduce facility cost with a more energy-efficient product.
  • No on/off switch helps with infection control.

Specifications

  • PanOptic Plus LED Ophthalmoscope:
  • QuickEye Alignment Technology: Yes.
  • Height x Width x Depth: 8 cm x 4.5 cm x 7.5 cm.
  • Weight: 130 grams.
  • Apertures: Small, Large, Red Free, Slit, Fixation target, Cobalt Blue.
  • Diopter Range: -20 to +25 D.
  • Diopter Steps: -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25.
  • Crossed-linear Polarizers: Yes.
  • Lamp Type: SureColor LED.
  • Lamp Warranty: 7 Years.
  • Color: Color Rendering Index (CRI): 95 typical; R0: 85 typical; Color temperature: 2700K - 3500K.
  • Lamp Life: 80+ years (typical).
  • Field of View: 20 degrees.

MacroView Plus Otoscope for iExaminer:

  • Height x Width x Depth: 7 cm x 4.5 cm x 5.5 cm.
  • Weight: 115 grams.
  • Sealed Pneumatic Otoscopy: Yes.
  • Illumination Type: Ring fiber optics.
  • Lamp Type: SureColor LED.
  • Lamp Life, Rated: 60+ years based on typical use.
  • Field of View: ~ 3 times that of a single-lens otoscope, like the standard-style 250-2.
  • Magnification: ~5X.
  • Focus-Free Design: Extend focal length virtually eliminates the need to focus on wie-view otoscope.
  • Total Light Output: 5200 lux; 2.5 times brighter than traditional halogen scopes.
  • Color: Color Rendering Index (CRI): typical; R9: 90 typical, Color Temperature: 3400K - 4500K.
  • Optimized for the 719-3 Li-Ion Handle: Stays bright over the life of a battery charge (unlike older designs that dim with use); no color change with dimming (unlike halogen).

Configurations

  • #777-PM3WXS-US: with PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope for iExaminer, Ear Specula Dispenser, and SureTemp Plus Thermometer.
  • #777-PM3WXX-US: with PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope for iExaminer, Ear Specula Dispenser.
  • #777-PM3WAX-US: with PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope for iExaminer, BP Aneroid, and Ear Specula Dispenser.
  • #777-PM3WAS-US: with PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope for iExaminer, BP Aneroid, Ear Specula Dispenser, and SureTemp Plus Thermometer.

Data Sheets

Welch Allyn GS 777 Wall Transformer User Manual

Welch Allyn Green Series 777 Integrated Wall System Brochure
