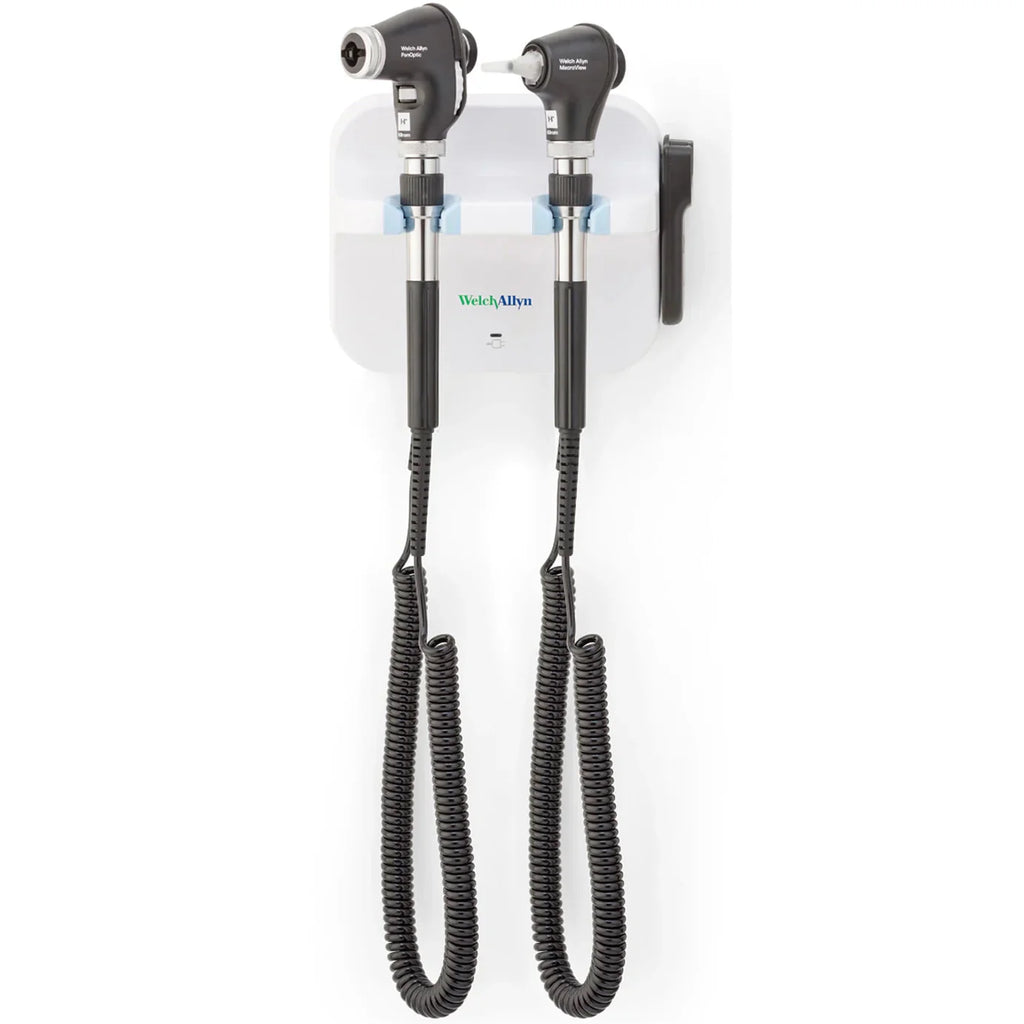

Welch Allyn/Hillrom-777-PM3XXX-US Green Series 777 Wall Transformer with Otoscope and Ophthalmoscope,Green Series 777 Wall Transformer with PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope for iExaminer, with iExaminer SmartBracket Accessory

Features

• Energy-efficiency helps reduce facility cost.
• Helps improve workflow with contoured handles that automatically turn on/off.
• No on/off switch helps reduce cross-contamination by reducing contact.
• Helps improve patient care and clinical decisions.
• Durable, easy-to-clean, high-impact ABS housing.

Specifications

• PanOptic Basic LED Ophthalmoscope:
• Dimensions: 3.14" H x 1.77" W x 2.95" D(8 cm x 4.5 cm x 7.5 cm).
• Weight: 130 g.
• Apertures: Small, Large, Red Free, Slit, Fixation target, Cobalt Blue.
• Diopter Range: -20 to +25 D.
• Diopter Steps: -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25.
• Crossed-Linear Polarizers: Yes.
• Lamp Type: SureColor LED.
• Lamp Warranty: 7 Years.
• Color: Color Rendering Index (CRI): 95 typical; R9: 85 typical; Color Temperature: 2700K - 3500K.
• Lamp Life: 80+ years (typical).
• Field of View: 20 degrees.
• MacroView Basic LED Otoscope:
• Dimensions: 2.75" H x 1.77" W x 2.16" D (7 cm x 4.5 cm x 5.5 cm).
• Weight: 115 g.
• Sealed Pneumatic Otoscopy: Yes.
• Illumination Type: Ring Fiber Optics.
• Lamp Type: SureColor LED.
• Lamp Life, Rated: 60+ years based on typical use.
• Field of View: ~3 times that of a single-lens otoscope, like the standard-style 250-2.
• Magnification: ~5X.
• Focus-Free Design: Extended focal length virtually eliminates the need to focus on wide-view otoscope.
• Total Light Output: 5200 lux; 2.5 times brighter than traditional halogen scopes.
• Color: Color rendering index (CRI): typical; R9: 90 typical; Color Temperature: 3400K - 4500K.

PanOptic Plus LED Ophthalmoscope:

• Dimensions: 8 cm x 4.5 cm x 7.5 cm.
• Weight: 130 g.
• Apertures: Small, Large, Red Free, Slit, Fixation Target, Cobalt Blue.
• Diopter Range: -20 to +25 D.
• Diopter Steps: -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25.
• Lamp Type: SureColor LED.
• ColorRendering Index (CRI): 95 typical.
• R9: 85 typical.
• Lamp Life: 80+ years (typical).
• Field of View: 20 degree.

Environmental Conditions:

• Operating Temperature: 59 degrees F (10 degrees C) to 104 degrees F (49 degrees C).
• Transport/Storage Temperature: -4 degrees F (-20 degrees C) to 120 degrees F (55 degrees C).
• Operating Humidity: 30% to 90%.
• Transport/Storage Humidity: 10% to 95%.
• Atmospheric Pressure Limitation: 500 hPa to 1060 hPa.

 Configurations

• #777-SM2XXX: Green Series 777 Wall Transformer with Coaxial LED Ophthalmoscope and MacroView Basic LED Otoscope.
• #777-PM2XXX-US: Green Series 777 Wall Transformer with PanOptic Basic LED Ophthalmoscope and MacroView Basic LED Otoscope.
• #777-PM2WAX-US: Green Series 777 Wall Transformer with PanOptic Basic LED Ophthalmoscope, Macro View Basic LED Otoscope, BP Aneroid, and Ear Specula Dispenser.
• #777-PM3XXX-US: Green Series 777 Wall Transformer with PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope for iExaminer, with iExaminer SmartBracket Accessory.
• #777-SM2WAS: Green Series 777 Wall Transformer with Coaxial LED Ophthalmoscope, MacroView Basic LED Otoscope, BP Aneroid, Ear Specula Dispenser, and SureTemp Plus Thermometer
