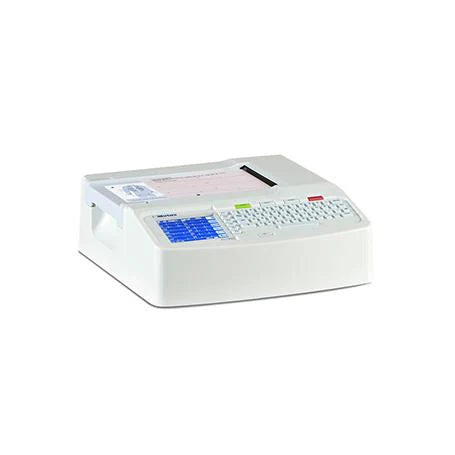

Welch Allyn/Hillrom-ELI150C-AAA-AACAD ELI 150c Resting Electrocardiograph, AM12 Wired Acquisition Module (Each)

Pasa el cursor sobre la imagen para ampliarla. Clic en la imagen para aumentar

Welch Allyn/Hillrom-ELI150C-AAA-AACAD ELI 150c Resting Electrocardiograph, AM12 Wired Acquisition Module (Each)

Welch Allyn By Hillrom

SKU: Welch Allyn/Hillrom-ELI150C-AAA-AACAD

SKU: Welch Allyn/Hillrom-ELI150C-AAA-AACAD
Condition: Brand New
Warranty: Manufacturer's Warranty
MPN: ELI150C-AAA-AACAD
Est. Delivery: 14 to 18 Days
Shipping: Calculated at Checkout
Country Of Origin: USA

MPN: ELI150C-AAA-AACAD

Est. Delivery Date: Oct 01 to Oct 25

Details: Description| Features| Specifications| Configurations| Data Sheets

Precio:

$8,351.81 $9,604.00

Gastos de envío calculados en la caja

Stock:

Disponible

Cantidad:

Comparte este producto

The Welch Allyn ELI 150c Resting Electrocardiograph includes 1 starter pack paper (Z-fold, 4.25" x 5.5"), current software, US/Canada power cord, AHA 10 wire, 12-lead lead set with banana plugs, Adult and Pediatric Interpretation, ECG clip adapters (set of 10) and tab electrodes (pouch of 100), Ethernet LAN + USBD, Standard storage (up to 40 ECGs), DICOM (Bidirectional communication with third party data management system).

The Welch Allyn ELI 150c Resting Electrocardiograph is a simple, yet capable system that offers real-time preview of 12-lead ECG to help ensure high-quality data acquisition at investigator sites. This ECG offers bidirectional communication via USB, USB memory stick, internal modem, LAN, wireless LAN, or GPRS mobile with E-scribe and Athena products, as well as third-party EMR, HIS, and PACS systems via XML, PDF, UNIPRO, and DICOM. Its widely recognized VERITAS algorithm uses gender-specific and adult and pediatric criteria to provide a silent second opinion for resting ECG interpretation.

Welch Allyn ELI 150c Resting Electrocardiograph Features

Selects cleanest 10 seconds of ECG data during patient connection.
Custom ID allows customized demographic data fields to be downloaded to the device from the E-Scribe ECG data management system for each study protocol.
Positive ID allows customized demographic data fields to be automatically populated by entering the subject's ID number, or from a subject's previously stored ECG, minimizing data entry at sites.
Buttons for ECG acquisition, rhythm printing, and ECG transmission/order retrieval.
Download demographic data fields for each study protocol.
Populate demographic data fields by entering subject's ID number or from memory.
Choice of wired or wireless acquisition.
40,000 Hz sampling rate used for 12-lead recording and analysis.
Compact and lightweight, providing comprehensive functionality in an ultra-portable device.

Welch Allyn ELI 150c Resting Electrocardiograph Specifications

Instrument Type: 12-lead electrocardiograph.
Input Channels: Simultaneous acquisition of all 12 leads.
Standard Leads Acquired: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6.
Waveform Display: Backlit, 1/4 VGA color LCD (320 x 240); 3, 4+4, or 6+6 lead presentation.
Digital Sampling Rate: 40,000 s/sec/channel for pacemaker spike detection; 1,000 s/sec/channel used for recording and analysis.
Paper: Perforated double Z-fold thermal paper; 108 mm (4") wide, 200 sheets.
Thermal Printer: Computer-controlled dot array; 8 dots/mm.
Thermal Printer Speeds: 5, 10, 25, or 50 mm/s.
Gain Settings: 5, 10, or 20 mm/mV.
Report Print Formats: Standard or Cabrera; 3, 3+1, 3+3, or 6 channel.
Rhythm Print Formats: 3 or 6 channel with configurable lead groups.
Keyboard: Elastomer keyboard with complete alphanumeric keys, soft-key menu, and dedicated function keys.
Frequency Response: 0.05 to 300 Hz.
Filters: High-performance baseline filter; AC interference filter 50/60 Hz; low-pass filters 40 Hz, 150 Hz, or 300 Hz.
A/D Conversion: 20 bits (1.17 microvolt LSB).
Device Classification: Class I, Type CF defibrillation-proof applied parts.
ECG Storage: Internal storage up to 40 ECGs; optional expansion up to 200 ECGs.
Weight: 7.2 lb (3.3 kg) including battery (without paper).
Dimensions: 11.25" x 11.5" x 3.75" (29.2 cm x 30.5 cm x 10.2 cm).
Power Requirements: Universal AC power supply (100 - 240 VAC at 50/60 Hz) 110 VA; internal rechargeable battery.

Features

VERITAS Interpretation: Is mein world-class VERITAS interpretation algorithm hai jo cardiac readings ka behtareen analysis faraham karta hai.
Color Display: High-resolution backlit color screen di gayi hai jis par ECG preview asani se dekha ja sakta hai.
Digital Connectivity: WAM (Wireless Acquisition Module) ya AM12 cable ke sath connectivity provide karta hai jo patient ki movement ko asan banati hai.
Full Keyboard: Is mein alphanumeric keyboard diya gaya hai taaky patient data ki entry fast aur error-free ho.
Internal Storage: Kafi zyada records save karne ki capacity rakhta hai jisay baad mein PDF ya XML format mein export kiya ja sakta hai.
Compact Design: Nihayat halka aur compact hai, jis se isay aik room se dusre room tak le jana asan hota hai.

Specifications

Device Type: 12-Lead Resting Electrocardiograph
Screen: Color LCD (Backlit)
Keyboard: Full Alphanumeric
Paper Type: Z-fold Thermal Paper
Power: AC/DC with Internal Battery
Connectivity: USB/Ethernet/Wireless
Weight: 12.20 lb

Configurations

ELI150C-AAA-AACAD:Factory New - AM12 Wired Acquisition Module.

Data Sheets

Welch Allyn ELI 150c 12-Lead Resting ECG Specifications Sheet
