Descripción
The purpose is to enhance or increase the ability in Critical Care Transport, Early Mobility, Point of Care and Emergency Backup. Extra Long Run Time for Safety Margins and Better Patient Safety. Device Run Time Examples:

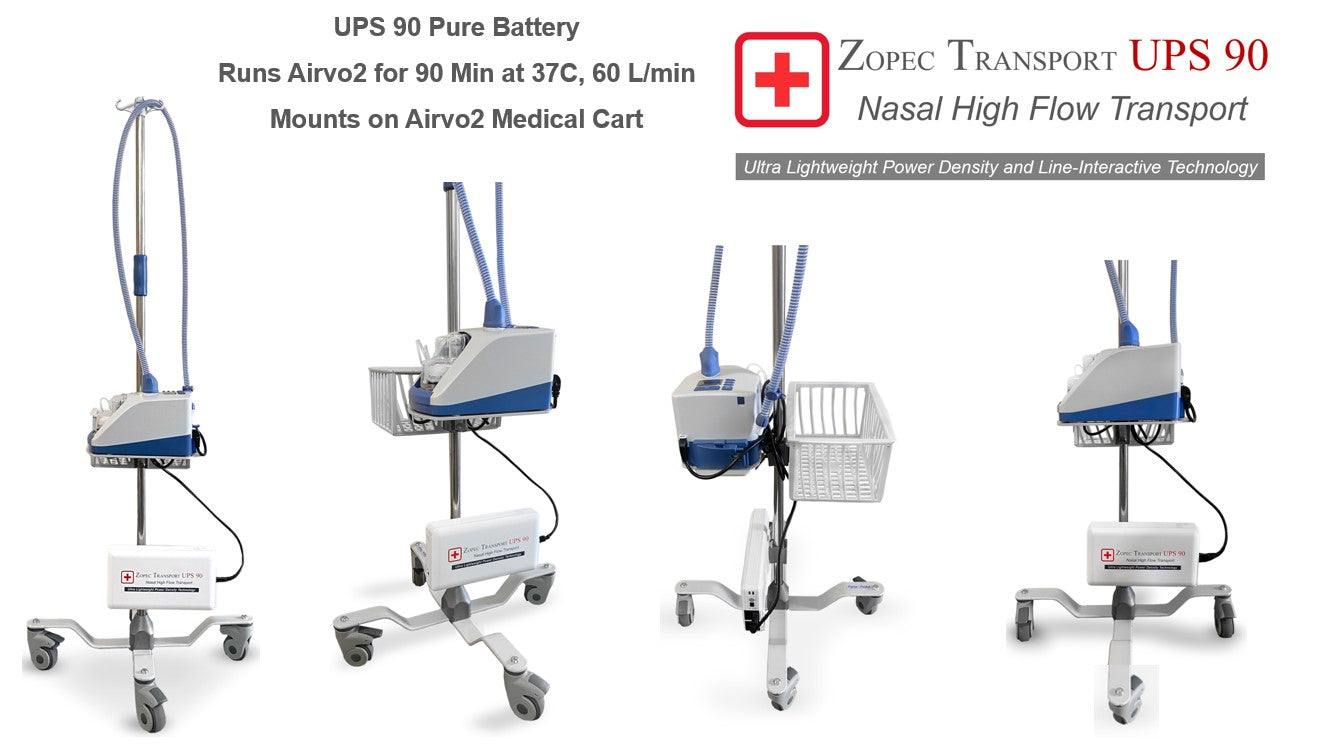

HFNC (F&P Airvo2 / Massimo softFlow): ~90 min at 37°C and 60 LPM

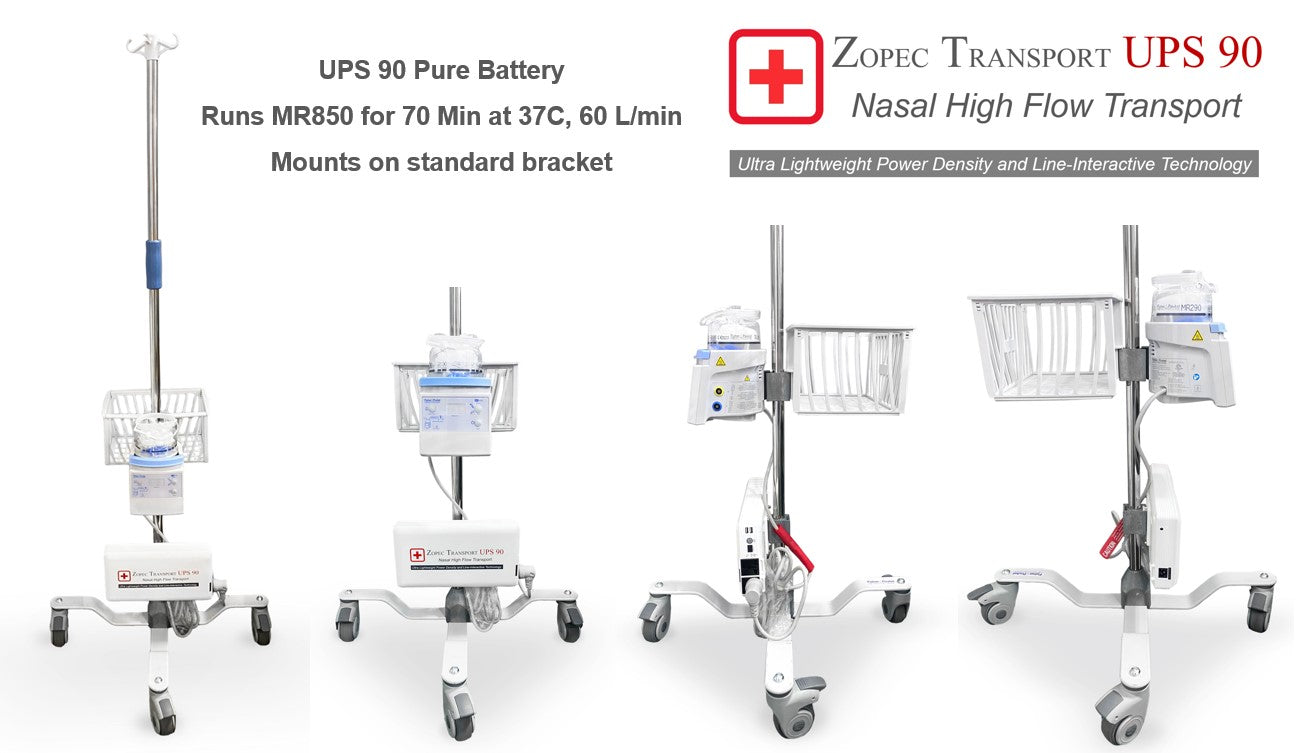

Heated Humidifiers (F&P 810/820/850/950, Hamilton H900, Neptune, Vapotherm I): ~70 min at 37°C and 60 LPM
HFOV Oscillator 3100A: ~120 min at average settings. Back up for power outage, generator maintenance or emergency transport.
Tecotherm NEO: ~4 hours at 33.5 °C
Blood Gas Analyzers: 2 - 3 hours
Air Medical Equip Backup: Airborne Isolette, Nitric Oxide, vents, ECMO pumps, monitors, etc.
Aerogen Nebulizer (AC or USB controller): Can use simultaneously. Does not impact run times.
Other Hospital/EMS/IT Applications (Contact Zopec for updates)
Features

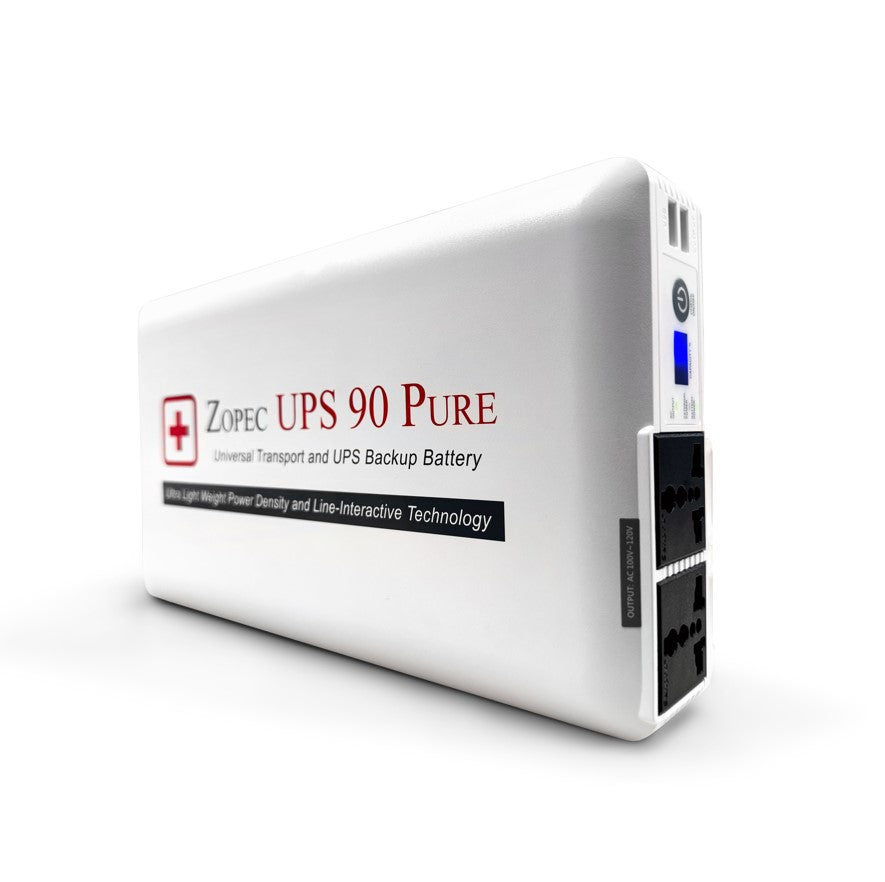

Models: HF110UPS90 Pure (Choose options: 100-120V, 220-240V or 90-110V)
Medical Grade: IEC 60601-1, IEC 62133-2, UL94 V0 compliant.
Pure Sine Wave: Compatible most biomedical equipment (i.e. heated humidifiers)
Super Lightweight: 5 lbs. (2.3 kg)
Small Size: 11.5” x 6.5” x 2.0” inches (29 cm x 16.5 cm x 5 cm)
Line-Interactive UPS: Runs the device while charging the battery. Most biomedical devices will not reset with power interruptions (i.e. F&P Airvo2 and Oscillator 3100A).
Integrated Mounting Adapter: Very easy to mount with the standard mounting adapter. (i.e. fits the F&P Airvo 2 cart built-in bracket. (Note: Locking bracket available for a separate purchase.)
Low Battery Alarms: 3-stages at 20%, 10%, and 5% (audibly different).

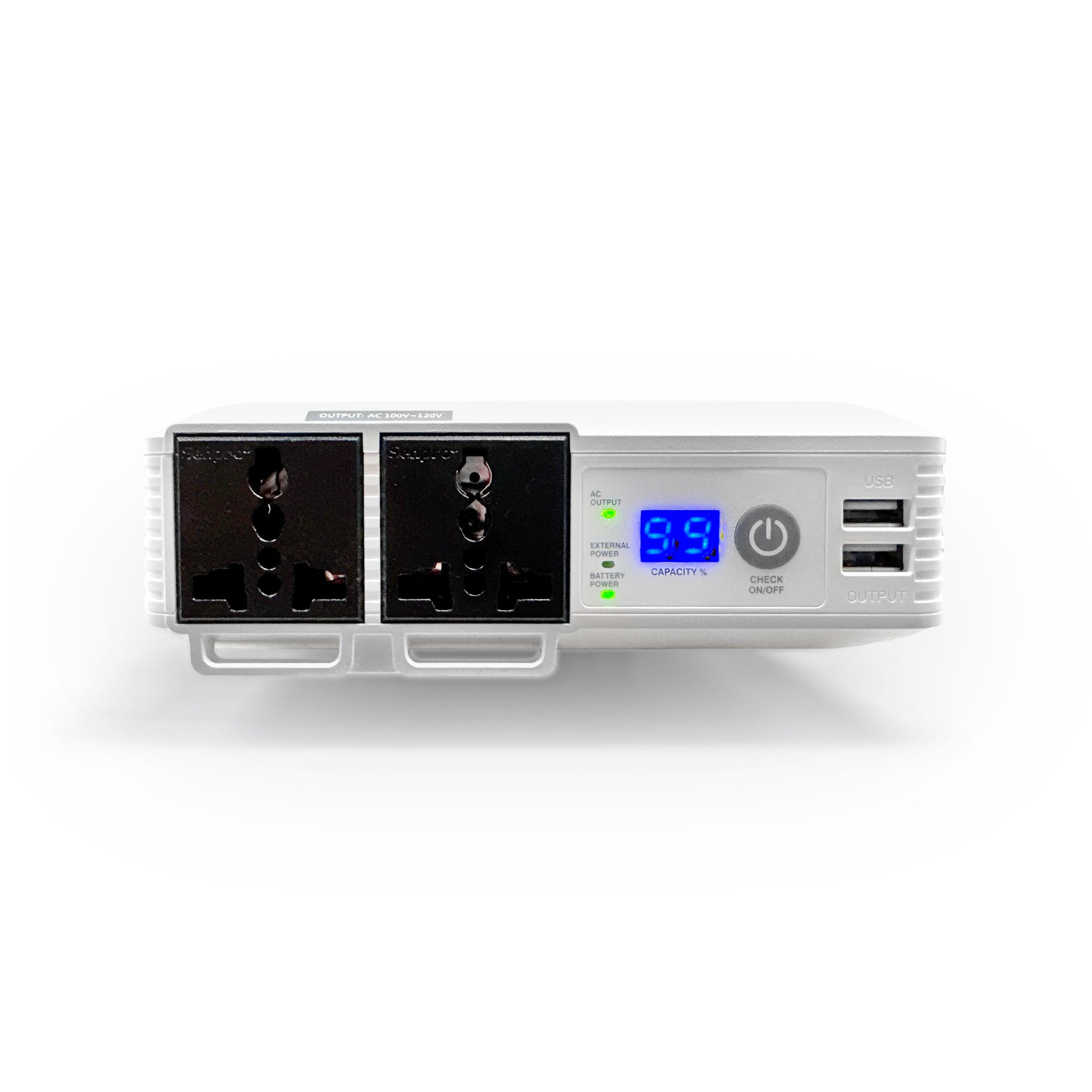

Digital Battery Capacity Display
Low Battery Warning Lights: Battery power LED light visible from 6 feet away (green >25%, yellow 11% to 25% and red ≤10%).
Unlimited Linking: Can connect batteries in series to get as much run time as needed.
Powers Aerogen Simultaneously: Extra AC outlet and USB-A ports for both types of controllers.
Prevents Unplugging: Secure plugs with locking loops using zip ties. Red reusable zip ties included.
Silent Operation: Solid state cooling with no fan noise and no fan vent opening to trap germs.
Starts F&P Airvo 2 without plugging in the wall
Silicone cover (IP22 rated): Protect from liquid, dust, bumping and dropping damages.
Easy Disinfection: Disinfect with hospital wet wipes.
Carry Bag: Available for a separate purchase
Maintenance Free: No preventative maintenance needed. Need to plug-in and charge battery when not in use.
Lifespan: 8 years
Warranty: 5 years (on purchases after 1/1/2025. Prior purchases are 2 year warranty)
Accessories
UPS 90 Pure Battery
Mounting Adapter
Silicone Cover
User Manual
Power Cord
Re-usable zip ties (10X, red color)
Velcro Straps (2X)
