Description

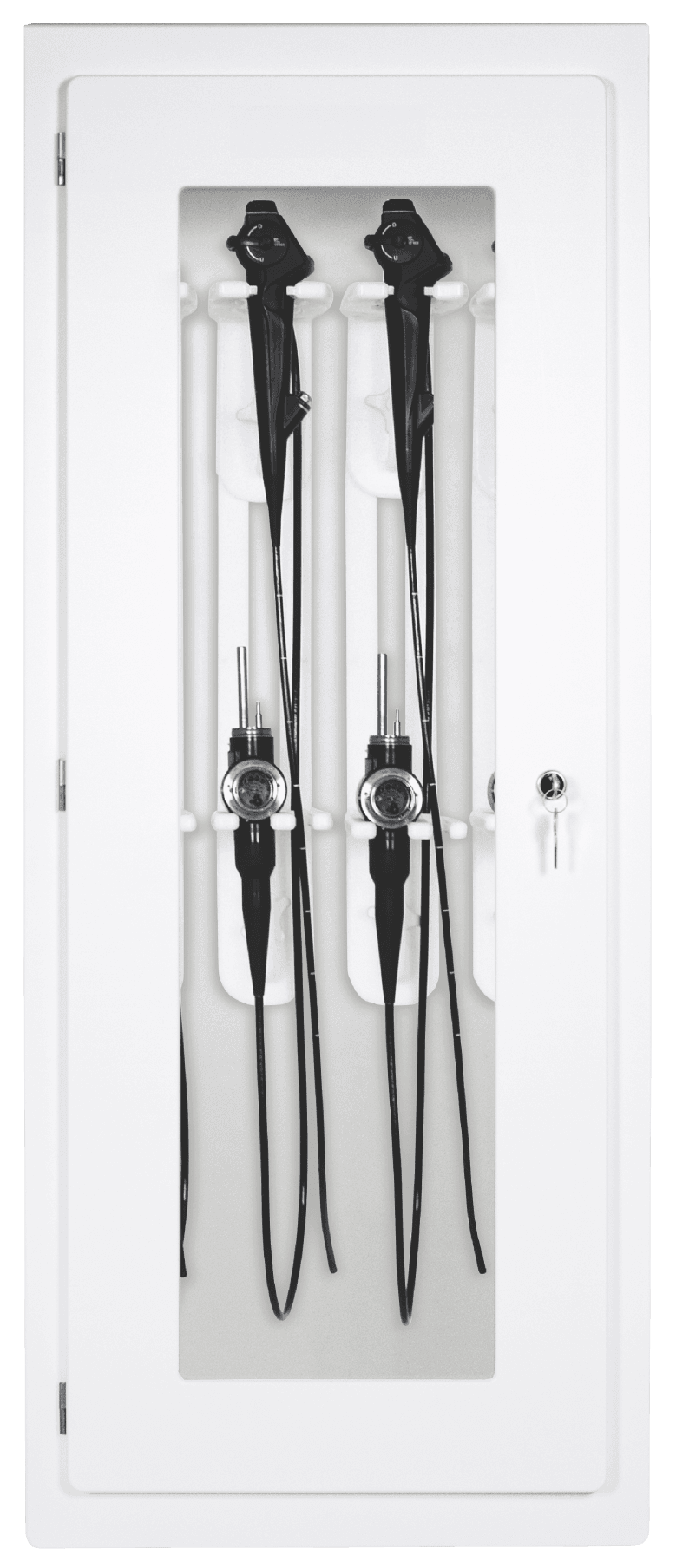

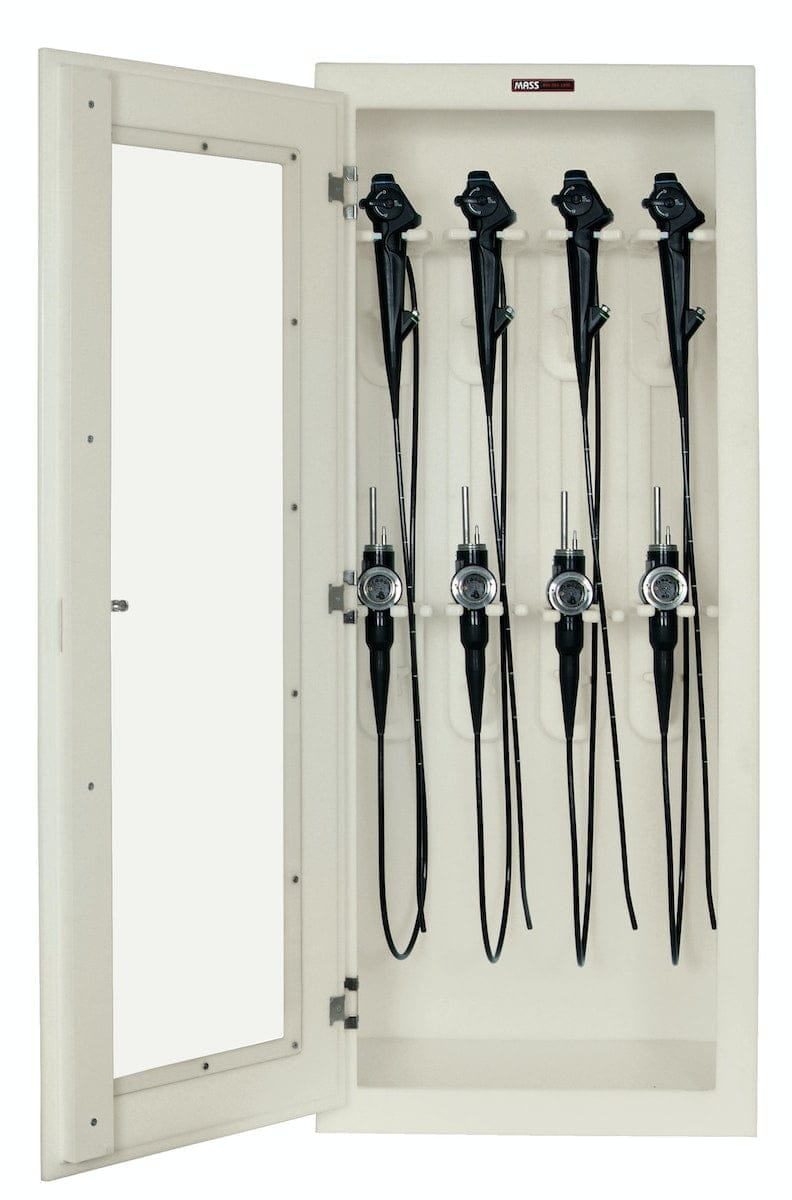

The Capsa Healthcare TruAir™ Scope Storage Wall Cabinet system provides a highly engineered, infection-controlled environment designed explicitly for the vertical drying and storage of flexible endoscopes. To minimize the risk of bacterial proliferation and cross-contamination following high-level disinfection (HLD), the TruAir system utilizes positive pressure forced air filtration driven by high-efficiency particulate air (HEPA) filters. This active airflow continuously purges internal channels and hanging surfaces of residual moisture. Available in multiple footprints—ranging from space-saving 5-scope wall-mounted models to high-capacity 18-scope configurations—the system features specialized connection ports, auxiliary water lines, and clear locking doors. This robust medical storefront configuration satisfies strict Joint Commission, AORN, and SGNA guidelines for secure, compliant endoscope management.
| SKU | Product | Key Technical Details |
| Capsa Healthcare-MU-TRUHEPA FILTER | TruAir HEPA Filter Replacement Kit (1 EA) | Medical-grade high-efficiency particulate air replacement filter module for TruAir forced-air systems |
| Capsa Healthcare-AUXWATERCON9OLYM | Scope Connection Cable, 9" Length (1 EA) | Auxiliary water port adapter link, 9-inch length, engineered for Olympus style endoscopes |
| Capsa Healthcare-DRY-TRUCONNECT-DUO1 | TruAir-Dry Connection Cable (1 EA) | Duo channel interface connector compatible with 1500-style endoscopy systems |
| Capsa Healthcare-SAS-18P-DRY | TruAir41 Powered Drying Cabinet (1 EA) | 18-Scope capacity configuration, left-hand glass door layout, equipped with active channel-drying infrastructure |
| Capsa Healthcare-SAS-4018 | TruAir41 Storage Cabinet (1 EA) | 18-Scope capacity configuration, left-hand glass door with secondary secure latching, integrated truHEPA filtration |
| Capsa Healthcare-M1201HG-HEPA | TruAir™ Small Diameter Wall Cabinet (1 EA) | Space-saving 5-scope capacity wall-mount frame, small diameter hanging hooks, left-hand glass door, integrated HEPA filtration |
Note: Shipping, liftgate, inside delivery, and white glove services are not included. Standard delivery is curbside only. Please provide your ZIP code so we can quote the exact shipping cost. For any questions, please contact us at our Toll-Free number: 800-202-6207.
Features
- HEPA Drying: Micro-filtered air eliminates moisture to protect scope interiors.
- Vertical Hanging: Hooks prevent coiling and facilitate channel drainage.
- Targeted Adapters: Links ensure leak-free coupling to Olympus and 1500-style channels.
- Compliance Alignment: Storage protocols meet SGNA, AAMI, and AORN guidelines.
- Visual Access: Tempered doors provide locked inventory tracking.
Specifications
- Outer Cabinet Dimensions: 36.0" H x 24.0" W x 12.0" D (Dimensions refer specifically to the 5-Scope M1201HG-HEPA wall unit; 18-scope floor-standing units measure up to 80.0" H x 41.0" W x 24.0" D)
- Total Unit Weight: 82.0 lbs (Empty base weight for 5-Scope wall locker; large 18-scope active drying models weigh up to 340.0 lbs empty)
- Filtration Efficiency Rating: truHEPA filtration certified to trap 99.97% of ambient airborne particles down to 0.3 microns
- Chassis Shell Composition: Heavy-duty, powder-coated steel framework with medical-grade antimicrobial outer finishes
- Storage Capacity Threshold: Configurations optimized to support either 5 small-diameter or up to 18 large-diameter surgical endoscopes
- Electrical System Requirements: 120V AC / 60Hz input for continuous active fan blower operation on automated drying models
Configurations
- Capsa Healthcare-MU-TRUHEPA FILTER: Factory certified replacement particulate filter cartridge for maintaining clean positive pressure air flow (1 EA)
- Capsa Healthcare-AUXWATERCON9OLYM: 9-inch flexible adapter hose for direct connection to auxiliary water ports on Olympus endoscopes (1 EA)
- Capsa Healthcare-DRY-TRUCONNECT-DUO1: Dual-channel quick-connect interface assembly matching 1500-style flexible scope channels (1 EA)
- Capsa Healthcare-SAS-18P-DRY: High-capacity TruAir41 system holding 18 scopes, features a left-hand glass door and fully integrated channel-drying manifolds (1 EA)
- Capsa Healthcare-SAS-4018: High-capacity TruAir41 system holding 18 scopes, features a left-hand glass door with secure latching and truHEPA positive-pressure filtration (1 EA)
- Capsa Healthcare-M1201HG-HEPA: Compact wall-mounting storage cabinet holding 5 small-diameter scopes, equipped with a left-hand glass door and independent HEPA blower (1 EA)
