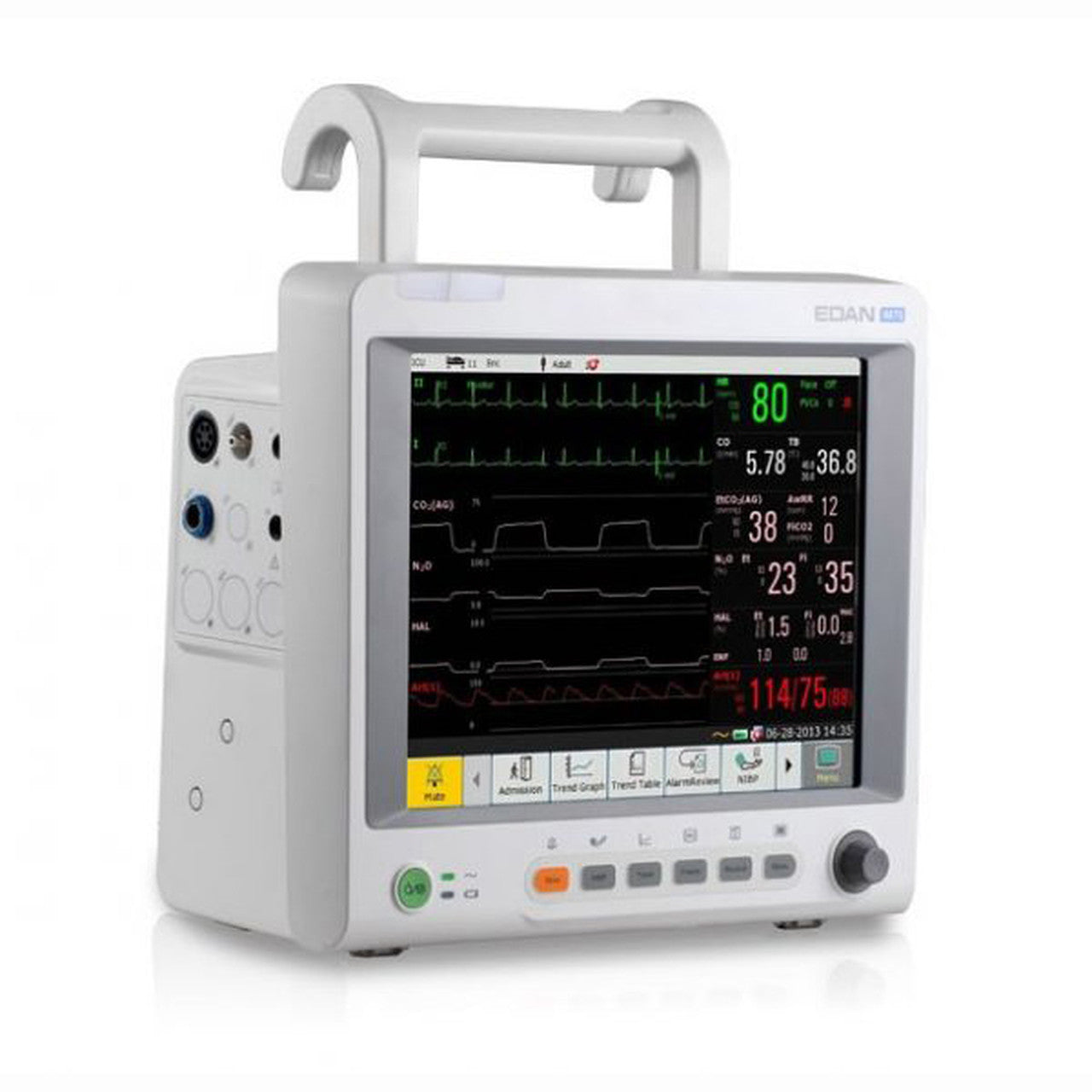

Edan Patient Monitor iM8 – Built for Accuracy & Everyday Use
The Edan iM8 Patient Monitor is a versatile, clinical-grade multi-parameter monitor that provides continuous bedside monitoring in intensive care units, emergency departments, operating rooms, and other progressive care departments.
With a high-resolution display for waveform and numeric data and a complete selection of measurements, this multi-parameter monitor provides the features you need and the patient visibility you want. Combining outstanding clinical performance with advanced clinical decision support tools, this portable system can meet the needs of the most demanding review and manage patient situations.
Technical Specifications
| Parameter | Specification |
| Display | 12.1″ color TFT LCD – 800 x 600 |
| Waveforms shown | Maximum 11 waveforms; Maximum 8 traces |
| Physical size | 320mm (L) × 150mm (W) × 265mm (H) |
| Weight | Approx. 5 kg (11.02 lb) — (the battery & recorder not included) |
| ECG | 3/5-lead selectable; HR range adult 15-300 bpm; ped/neonate to 350 bpm |
| SpO₂ accuracy | ±2% adult/pediatric, ±3% neonate (see spec sheet for details) |
| NIBP | Automated, manual, continuous modes; standard clinical ranges (see spec sheet) |
| Optional | Dual IBP, thermal recorder/printer, Wi-Fi/WLAN, EtCO₂ (Respironics or EDAN G2) |
| Connectivity | USB, LAN (MFM-CMS supported), optional Wi-Fi; wired, wireless HL7/EMR integration through CMS |
| Storage | Trend Log and Waveform Recall (hours of trend, based on configuration) |
| Certifications | CE / FDA (varies by market) -- please see local product labeling for the exact approvals |
| Warranty | 2 years (monitor) — accessories as provided by the manufacturer |
Why the Edan iM8 Vital Sign Monitor?
- ECG, SpO₂, NIBP, Respiration, Temperature, Optional CO₂ and Dual IBP, ICU-grade accuracy.
2. Sophisticated monitoring algorithms (arrhythmia/ST analysis, pacemaker detection, OxyCRG/neonate support) help you make fast, informed clinical decisions.
3. Modular design: select a base monitor or a pre-configured selection of monitors and printer (printer model iM8.P, CO₂ model iM8-G2, combos).
4. Reliable connectivity: Export USB, central station (MFM-CMS), and optional Wi-Fi/WLAN and HL7/EMR connections.
Comparison Snapshot – Edan iM8 vs Others
- Edan iM8 vs. Edan iM50/iM70: The iM8 falls between entry-level and premium. It has a larger display and greater modular customisation than the Edan iM50 patient Monitor, but it is better priced than the iM70 series.
- Edan iM8 vs Competitor brands (Philips / Mindray / GE) – iM8 Patient Monitor will most of the time be just as accurate for core monitoring lines and provide modular CO₂/IBP and printer add-ons for less, making it a great value choice for hospitals on a budget. (Recommend the specific spec comparison on the product page)
Note: Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively, an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise, a $195 labour fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to ensure your order includes a printer.
Edan iM8 Patient Monitor Features
- Large high-resolution 12.1″ TFT LCD (800×600) — precise waveforms and numeric data can be seen from long distances, and the numbers are large, clear, and easy to read.
- Basic parameters – 3/5-lead ECG, SpO₂, NIBP, respiration, 2-channel temperature, pulse rate.
- Optional modules — EtCO₂ (Respironics or Edan G2), dual IBP, thermal recorder/printer (iM8.P), multi-gas, and cardiac output.
- Advanced algorithms & safety - pacemaker detection, iSEAP arrhythmia/ST analysis, electrosurgical/defibrillation protection, pitch-tone pulse voice.
- Data management › Encrypted external USB export › Integration with Edan MFM-CMS (web viewer) › Power-off storage & long trend logs (up to 24 h of continuous waveform recall; up to 120 h of trends).
- Portability—small footprint, rechargeable battery to enable intra-hospital transport (battery runtime of model varies according to configuration/use).
Common Use Cases and Clinical Overview
- ICU & High Dependency Units -- continuous multi-parameter monitoring with trend memory and alarm handling.
- Emergency Department & Trauma — fast triage and accurate ECG/SpO₂ readings with Flora MT-1000 featuring pacemaker detection and defib protection.
- Operating Room & PACU — Optional CO₂ monitoring and anesthesia-compatible protections.
- Ward & Step-down Units – simple numerical & waveform format for routine roundings & handovers.
- Patient Transport — battery and portable design provides continuous monitoring during transport.
FAQs about Edan iM8 Vital Signs Monitor
Q: Can I use the Edan iM8 on neonates?
A: Yes – the iM8 is neonatal, pediatric, and adult capable, and it also has neonatal-friendly monitoring algorithms.
Q: Can I add CO2 monitoring or the IBP module later?
A: Yes – iM8 is modular; CO₂, IBP are optional modules (optional at purchase or can also be ordered through accessories).
Q: What is the battery life?
A: Battery life depends on configuration and usage (backlight, active modules). Typical clinical guidance shows a multi-hour operation. Add your unit’s proven estimate/field data to the product page and spec sheet.
Q: What are the available options for central monitoring connectivity?
A: The iM8 supports the Edan MFM-CMS central station via LAN and optional Wi-Fi/WLAN, and CMS is available for HL7/EMR integration.
Q: Is a printer required?
A: No—the printer is an option (iM8.P).
Configurations & Ordering Options
- Base iM8 (12.1″) – ECG, SpO₂, NIBP, Resp, Temp.
- iM8.P (thermal printer included) - perfect for immediate bedside hard-copy record. Tiger Medical
- iM8-G2 (with CO₂) — for OR/ventilator monitoring, (Respironics or Edan G2). EdanUSA
- BUNDLES – Include Dual IBP ports, WLAN kit, additional batteries, stands, and wall-mount kit.
