Welch Allyn Suretemp Plus 692 Electronic Thermometer

Features

• Weight: 3.00 lb
• Provides accurate results in approximately 4 to 6 seconds oral, 10 seconds pediatric axillary, 15 seconds adult axillary, and 10 seconds rectal
• Large backlit LCD display with location identification capability
• Mechanical and electronic security options to help prevent theft or loss
• Takes approximately 5,000 readings on three AA batteries

Specifications

• Calibration Accuracy: ± 0.2 °F (± 0.1 °C).
• Oral: Approximately 4 to 6 seconds.
• Adult Axillary (18 years and older): Approximately 15 seconds.
• Pediatric Axillary (17 years and younger): Approximately 10 seconds.
• Rectal: Approximately 10 seconds.
• Dimensions: 8.5" x 3.2" x 2.4" (2.15 cm x 0.8 cm x 0.6 cm).
• Weight: 12.6 oz (357 g).
• Ambient Temperature Range: 50 to 104 °F (10 to 40 °C).
• Ambient Temperature Range: 50 to 104 °F (10 to 40 °C).
• Patient Temperature Range: 80 to 110 °F (26.7 to 43.3 °C).
• Power Source: (3) 1.5 Vdc AA batteries.
• Battery Life: Approximately 5,000 temperatures.
• Shipping Weight: 2 lb (0.9 kg).
• Shipping Dimensions: 8.2" x 4.9" x 9.6" (20.9 cm x 12.5 cm x 24.4 cm).

Configurations

• #01692-200: With Wall Mount, Interchangeable Oral Probe with Oral Probe Well, and 4' (1.2 m) Cord.
• #01692-201: With Wall Mount, Interchangeable Rectal Probe with Rectal Probe Well, and 4' (1.2 m) Cord.
• #01692-300: With Wall Mount, Interchangeable Oral Probe with Oral Probe Well, and 9' (2.7 m) Cord.
• #01692-301: With Wall Mount, Interchangeable Rectal Probe with Rectal Probe Well, and 9' (2.7 m) Cord.

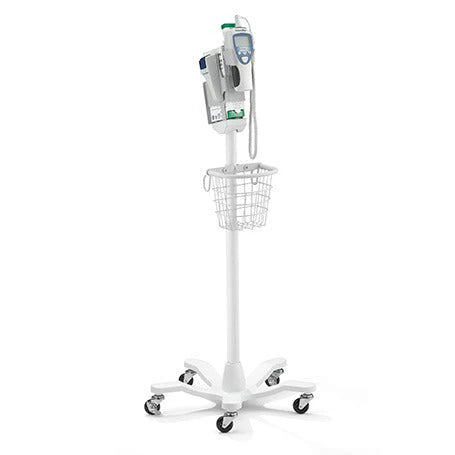

• #01692-700: With Wall Mount, Interchangeable Oral Probe with Oral Probe Well, 9' (2.7 m) Cord, and Mobile Stand.

Data Sheets

Welch Allyn SureTemp Plus Operation and Technique Guide

Welch Allyn Guide for Adult Axillary Temperatures with SureTemp PlusWelch Allyn

SureTemp Plus Wall Holder User Instructions

Welch Allyn SureTemp Plus 692 Thermometer Brochure
