| Abatement Technologies-RPM-RT1 |

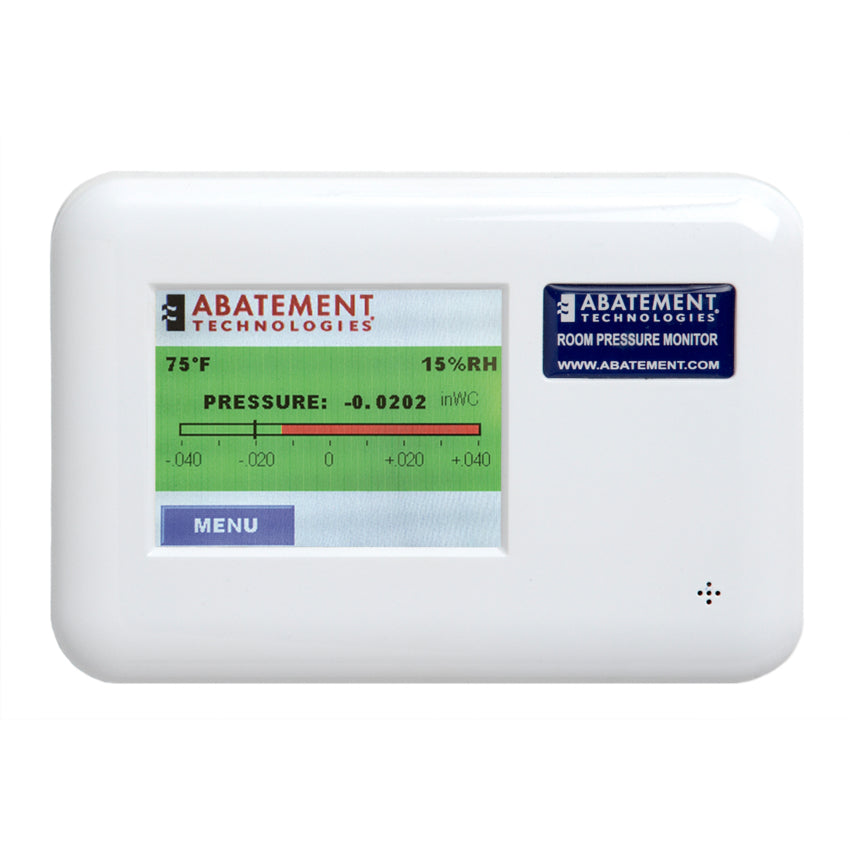

Pressure Monitor, 1 Room (1 Room) |
Single room differential pressure monitor with touch display |
Technically-Advanced Model
The RPM-RT1 model can monitor the pressure differential between any two rooms or areas.
Features a user-friendly, menu driven touch screen with intuitive software for quick set-up and ease of operation.
Feature-rich and easy-to-use, RPM Series Wall-Mounted Differential Pressure Monitors include:
- Differential Pressure Range: -0.10 in. water gauge (-25 Pa) to +0.10 in. water gauge (+25 Pa)
- Alarm Range: -.04 in. water gauge (-10 Pa) to +0.04 in. water gauge (+10 Pa)
- View readings history onscreen via internal storage or upload to a PC via a USB stick
- Color coded screen background (Green, Yellow or Red) designates alarm status
- Password protection feature (can be disabled)
- Visual & audible alarms with audio alarm delay & timed shutoff features
- BACNET & N2 network capability
Single Room Pressure Monitor RPM-RT1 Kit
The single room pressure monitor kit includes:
- 1 ea RPM-RT1 pressure monitor
- 1 ea HCPDPMTUBE (25ft Clear Tubing)
- 1 ea RPM-RTSENSOR (Temp/RH Sensor)
- 1 ea RPM-CABLE-025 (25ft Ethernet Cable)
