Features

• Provides systolic pressure, diastolic pressure, and pulse readings.
• Pair the unit with the free ADC@Home App to your smartphone or other hand-held device via bluetooth connectivity.
• Inflation measurements are more comfortable readings that are performed slightly faster.
• MAM Advantage mode automatically averages three readings for superior reporting accuracy.
• Irregular heartbeat detection warning signal appears at the occurrence of an irregular heartbeat.
• Traffic light indicator visualizes readings against the American Heart Association hypertension scale.
• Identifies AM and PM readings to help detect morning hypertension.
• Two-user memory with date and time stamp recalls the last 99 readings for each user.
• Soft, self-adjusting, wide-range D-bar cuff (Adult) fits arms ranging from 8.7'' to 16.5'' (22 cm to 42 cm).
• Auto-off function conserves battery life.

Specifications

• Cuff Range: 8.7" to 16.5" (22 to 42 cm).

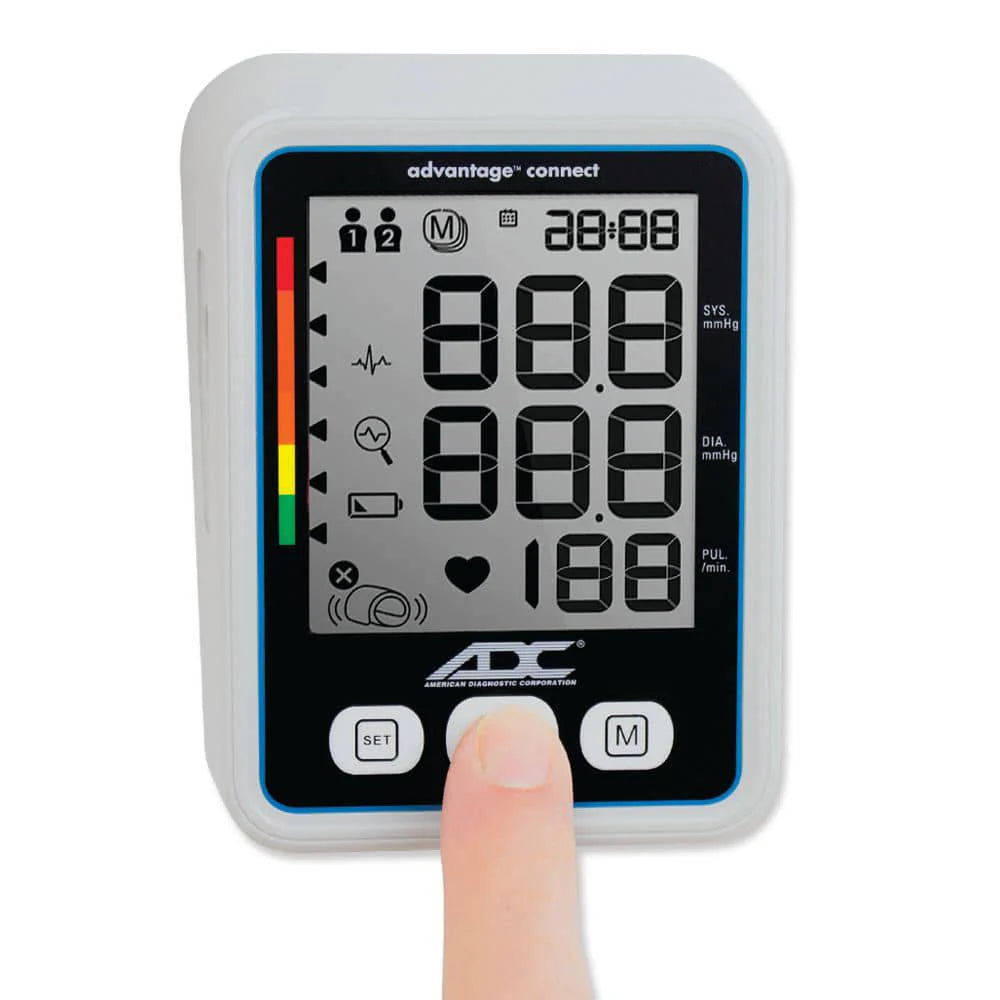

• Display: LCD.
• Measuring Method: Oscillometric.
• Pressure Sensor: Resistive pressure sensor.
• Systolic/Diastolic Range: 60-255 mmHg / 40-200 mmHg.
• Pulse Range: 40-199 BPM.
• Cuff Pressure Display Range: 0-299 mmHg.
• Memory: Last 99 Readings x2.
• Measuring Resolution: 1 mmHg.
• Pressure Accuracy: ±3 mmHg

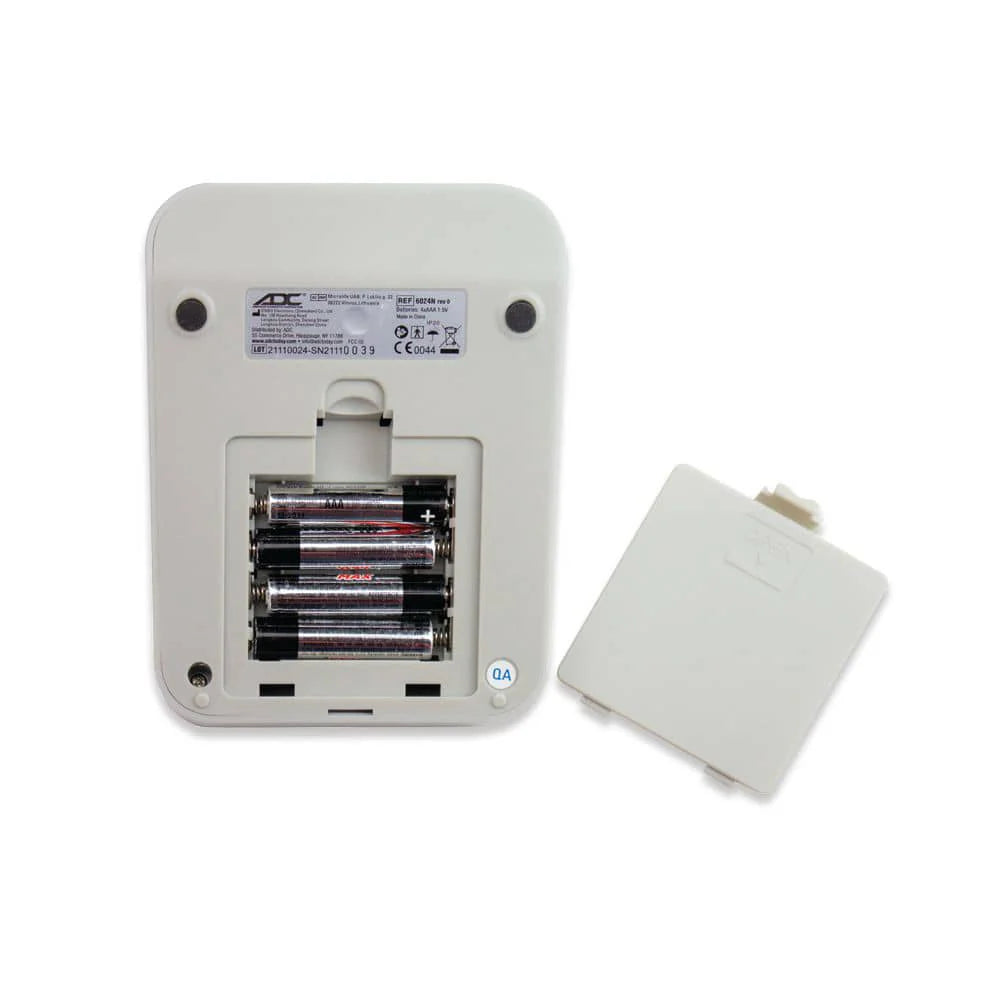

• Power Source: 4-AAA Alkaline batteries.
• Storage Temperature: -4° F to 131° F (-20° C to 55° C).
• Operating Temperature: 50° F to 104° F (10° C to 40° C).
• Humidity: 15 to 90% relative maximum humidity.
• Dimensions: 6.5" x 4.13" x 4.13" (165 x 105 x 105 mm).
• Weight: 1.07 lb (487 g).

Data Sheets

ADC Advantage Connect 6024N Upper-Arm Digital Home Blood Pressure Monitor Instructions for Use

ADC Advantage Connect 6024N Upper-Arm Digital Home Blood Pressure Monitor Quick Start Guide

ADC Advantage Connect 6024N Upper-Arm Digital Home Blood Pressure Monitor Sell Sheet
