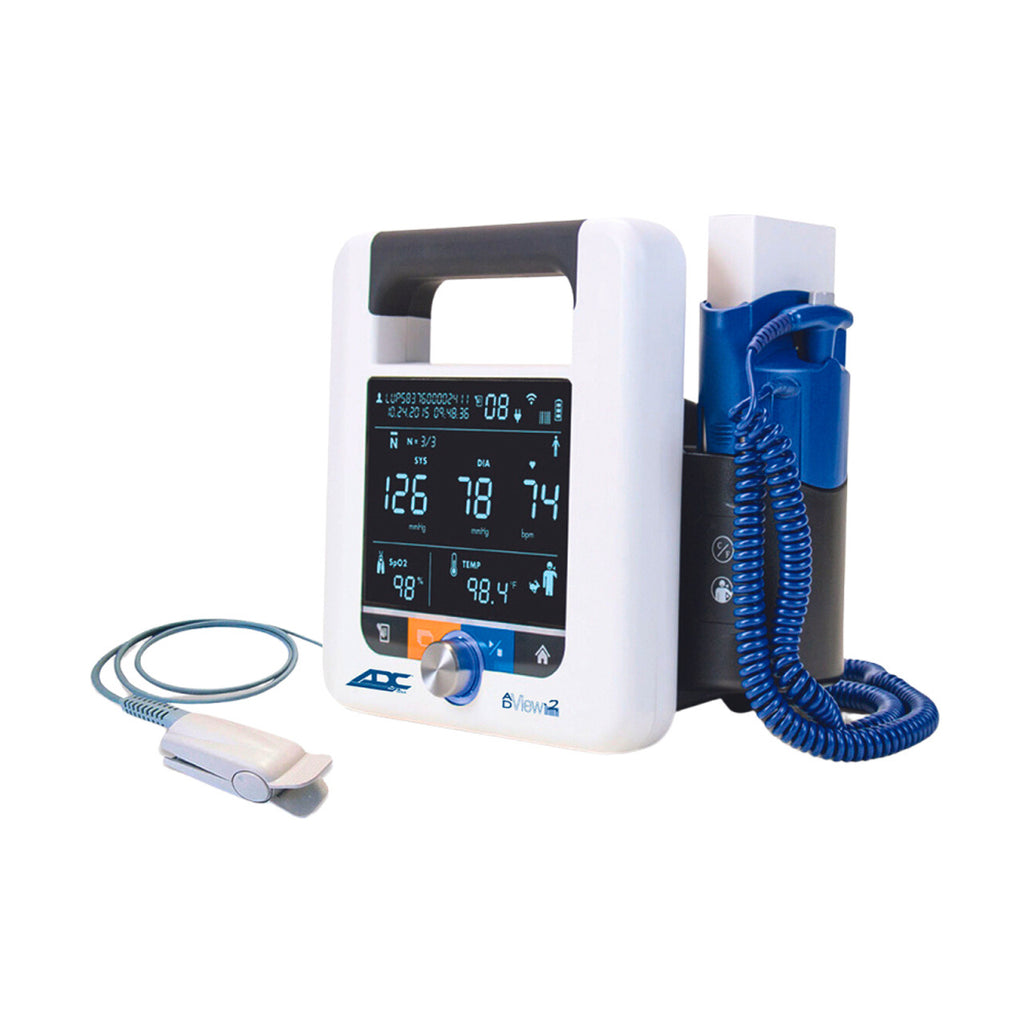

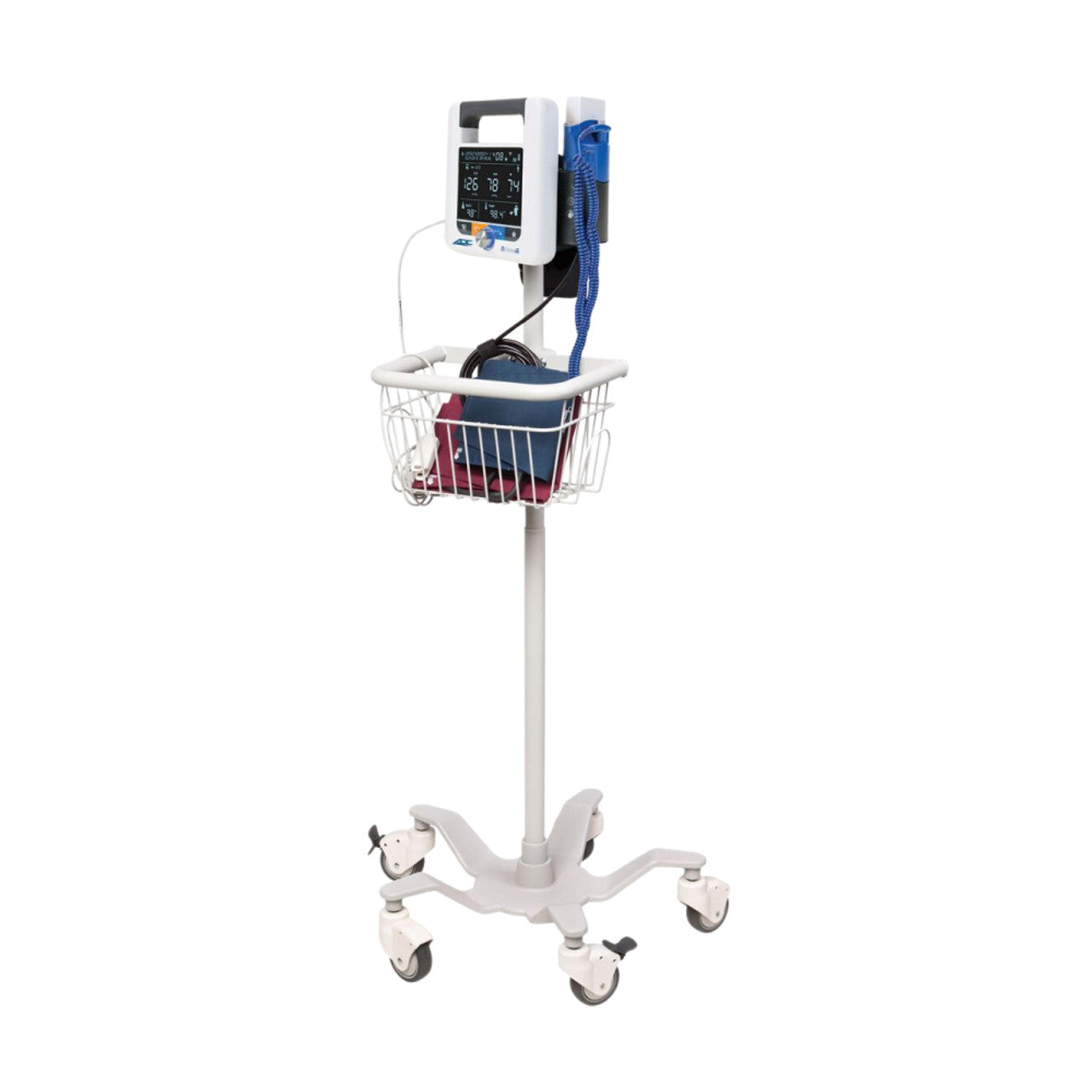

ADC ADView 2 Modular Diagnostic Station

Features

• Includes a rechargeable lithium-ion battery, U.S. power cord, 10-foot length of tubing, Adult Plus and Large Adult Plus cuffs, Mini-USB to USB cable, a Quick Start Guide, and a Quick Reference Guide
• The ADView 2 is still the only truly modular diagnostic station that grows with your needs
• Start with blood pressure and choose temperature or pulse oximetry options at the time of purchase; we’ll ship your ADView 2 fully configured and ready to go
• The ADC ADView 2 easily captures automated blood pressure measurements at the touch of a button

Specifications

• Power: Internal power supply.
• Input: 100-240 VAC @ 1.5A max, 50-60 Hz.
• Output: +9VDC @ 5A IEC 320 type input connector.

Battery:

• Type: 7.2v, 6600mAh Internal Lithium-Ion battery.
• Run Time (full charge): ~20 hrs* / 200 BP cycles.
• Charge Time: ~6 hrs @ 23deg Celsius +/- 2deg.

Temperature Module Specifications:

• Temperature Accuracy
• Quick Mode (Oral): +/- 0.3 degrees C.
• Std. Mode (Aux/Recta): +/- 0.1 degrees C.
• Direct Mode: +/- 0.1 degrees C.

SpO2 Module Specifications:

• Saturation Normal (no motion): 70-100%Arms +/- 2%.
• Saturation Motion: N/A.
• Low Perfusion: N/A.
• Pulse Heart Rate: 20-300 BPM: +/-3 BPM.
• Pulse Heart Rate w/motion: 20-300 BPM: +/-3 BPM.

Configurations

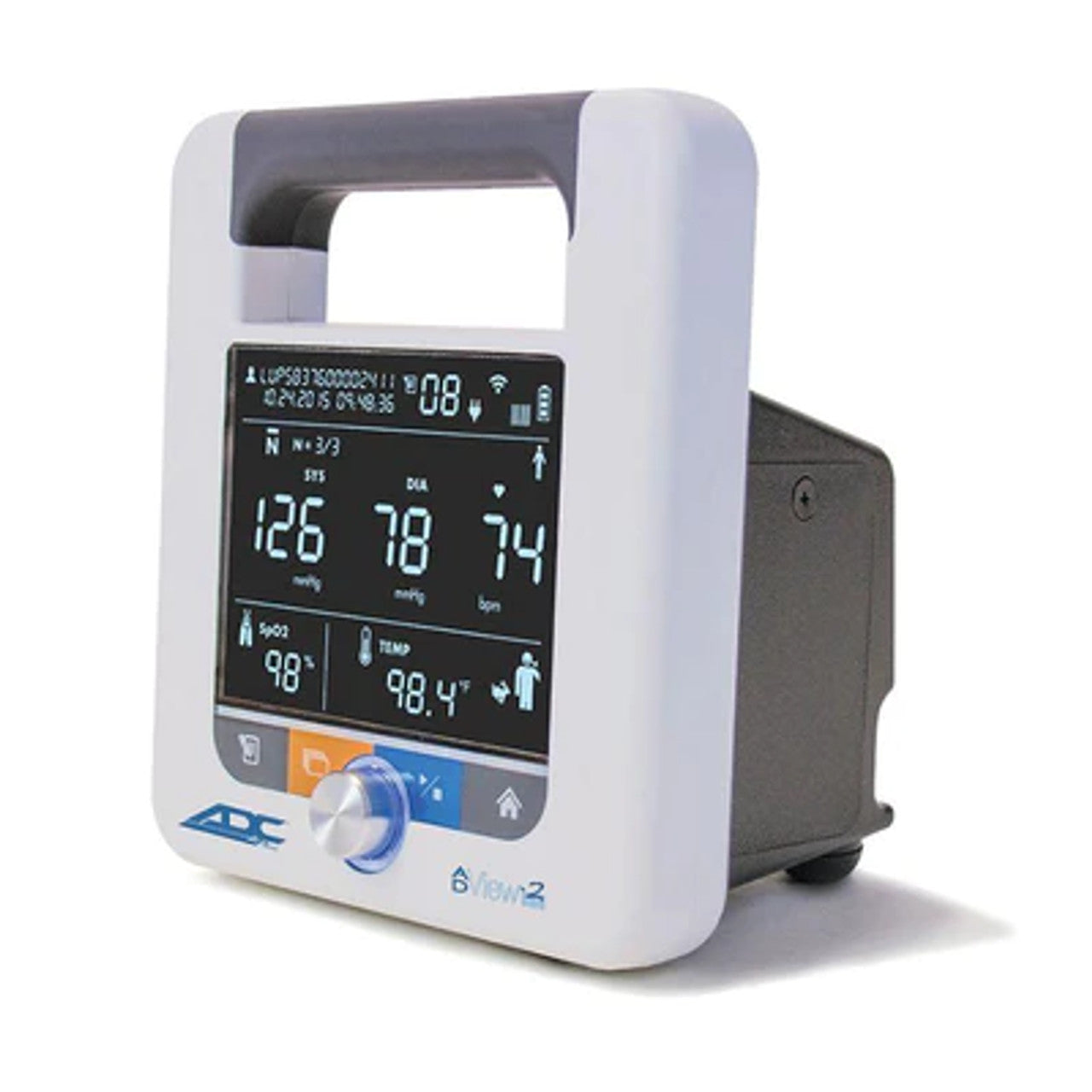

• ADView 2 Blood Pressure Base Unit (9005BP)
• ADView 2 Blood Pressure Base Unit with Temperature Module (9005BPTO)

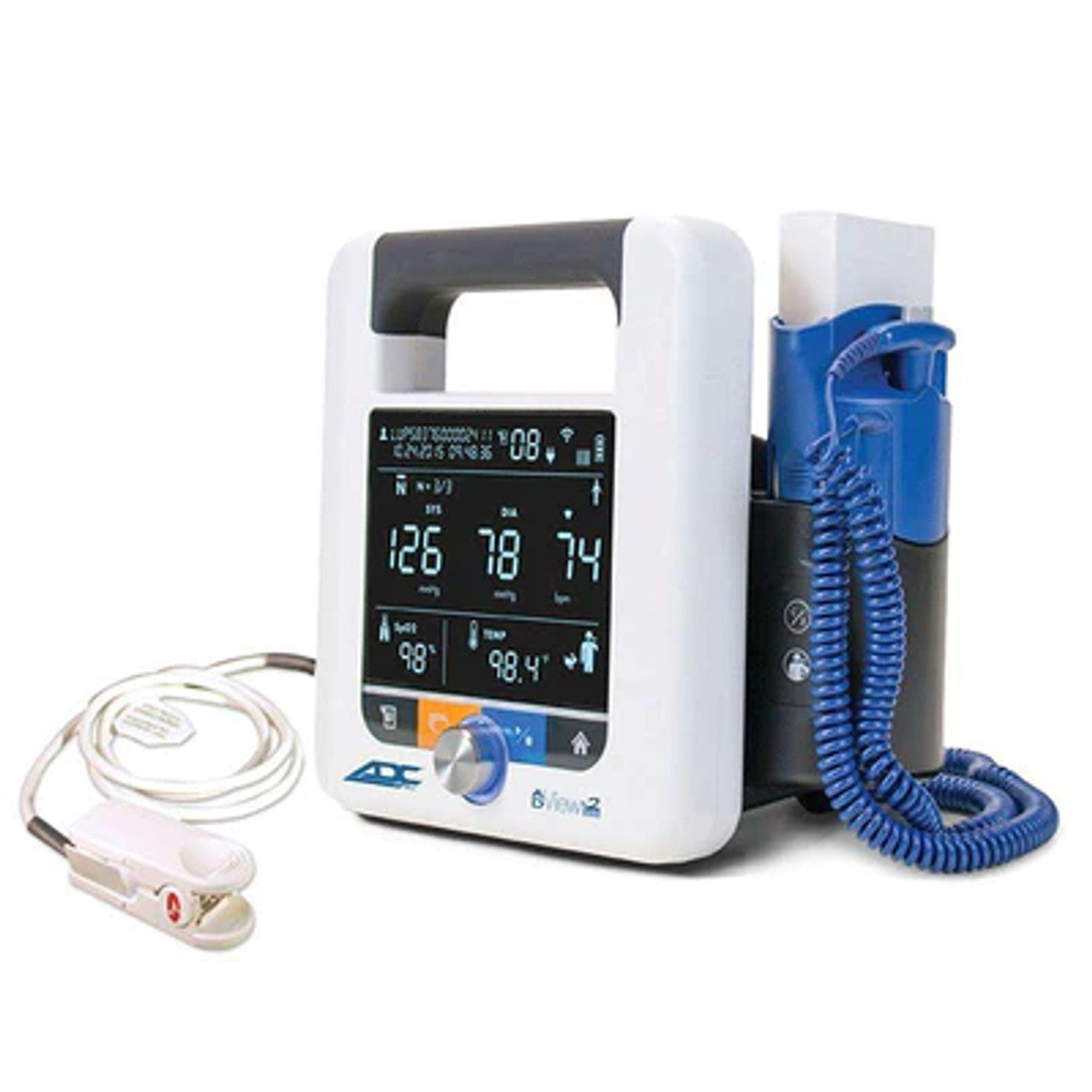

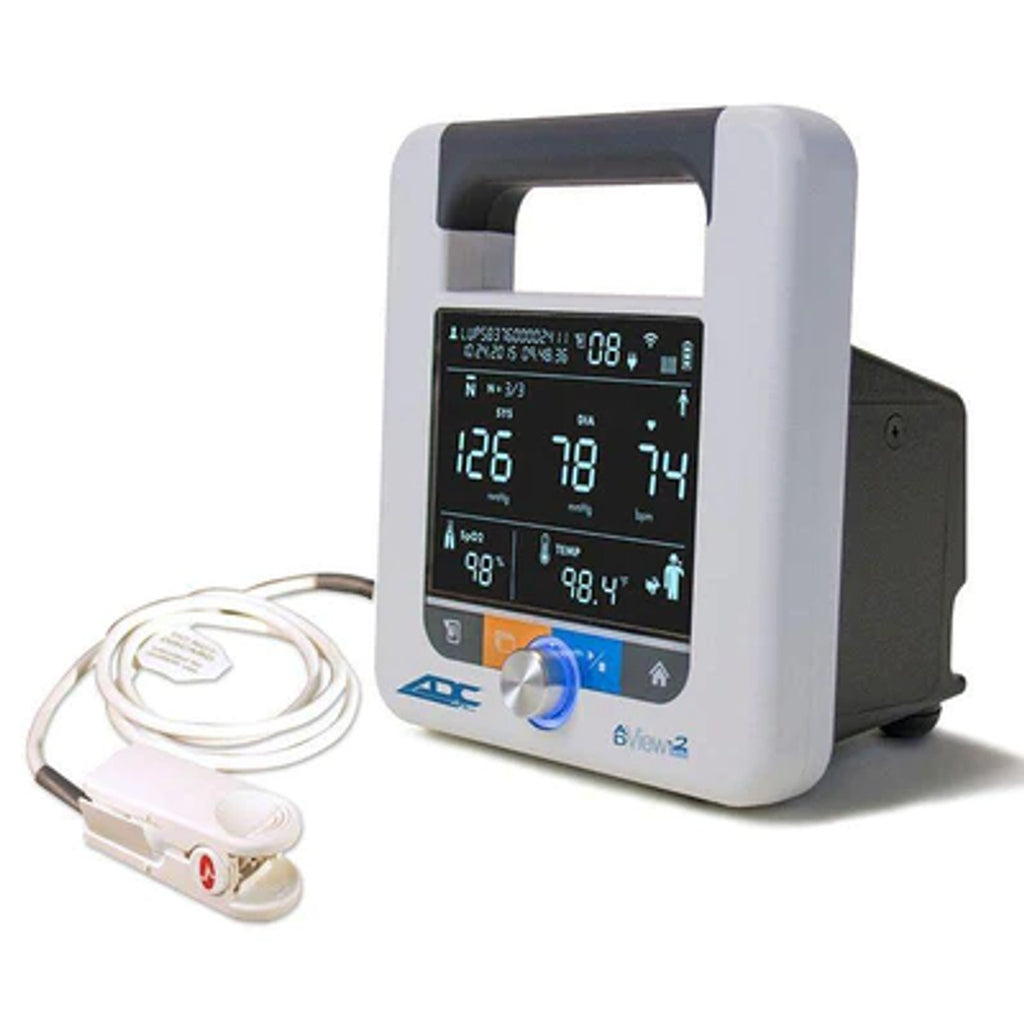

• ADView 2 Blood Pressure Base Unit with ChipOx Nellcor Compatible SpO2 Module (9005BPS)
• ADView 2 Blood Pressure Base Unit with ChipOx Nellcor Compatible SpO2 Module and Temperature Module (9005BPSTO)

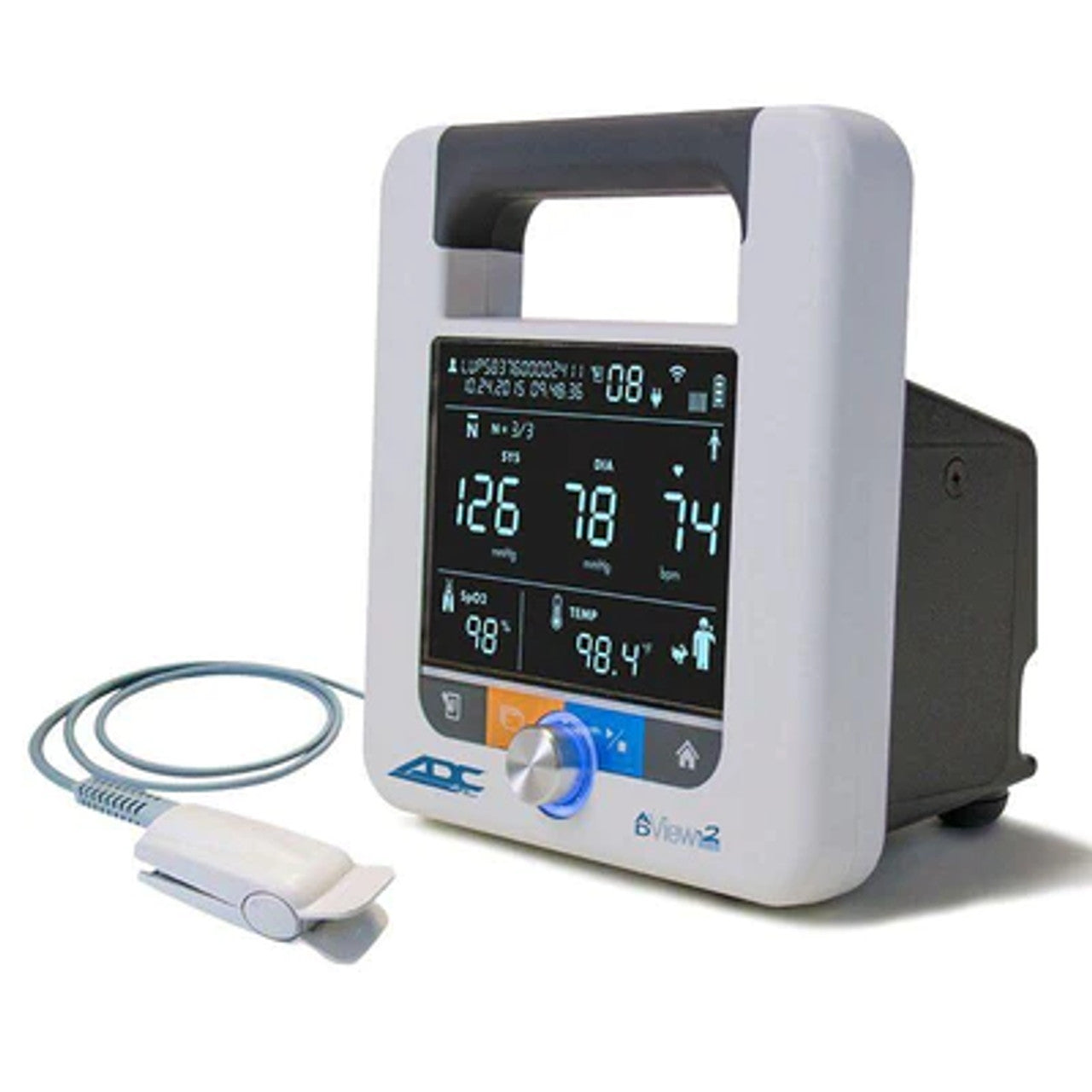

• ADView 2 Blood Pressure Base Unit with Masimo SET SpO2 Module (9005BPSM)

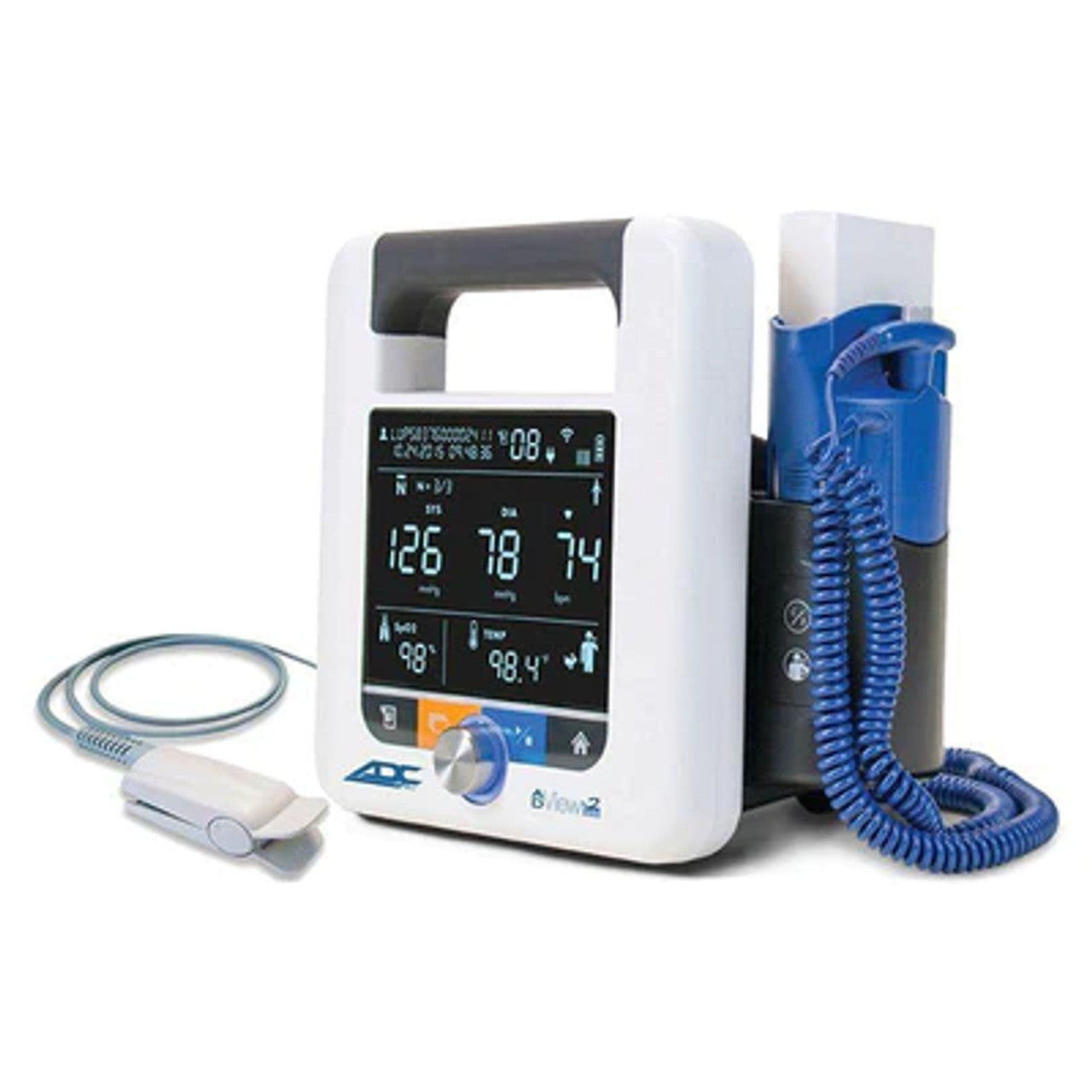

• ADView 2 Blood Pressure Base Unit with Masimo SET SpO2 Module and Temperature Module (9005BPSMTO)

Data sheets

ADC ADView 2 Modular Diagnostic Station Product Brochure

ADC ADView 2 Modular Diagnostic Station User Manual

ADC ADView 2 Modular Diagnostic Station Quick Reference Guide
