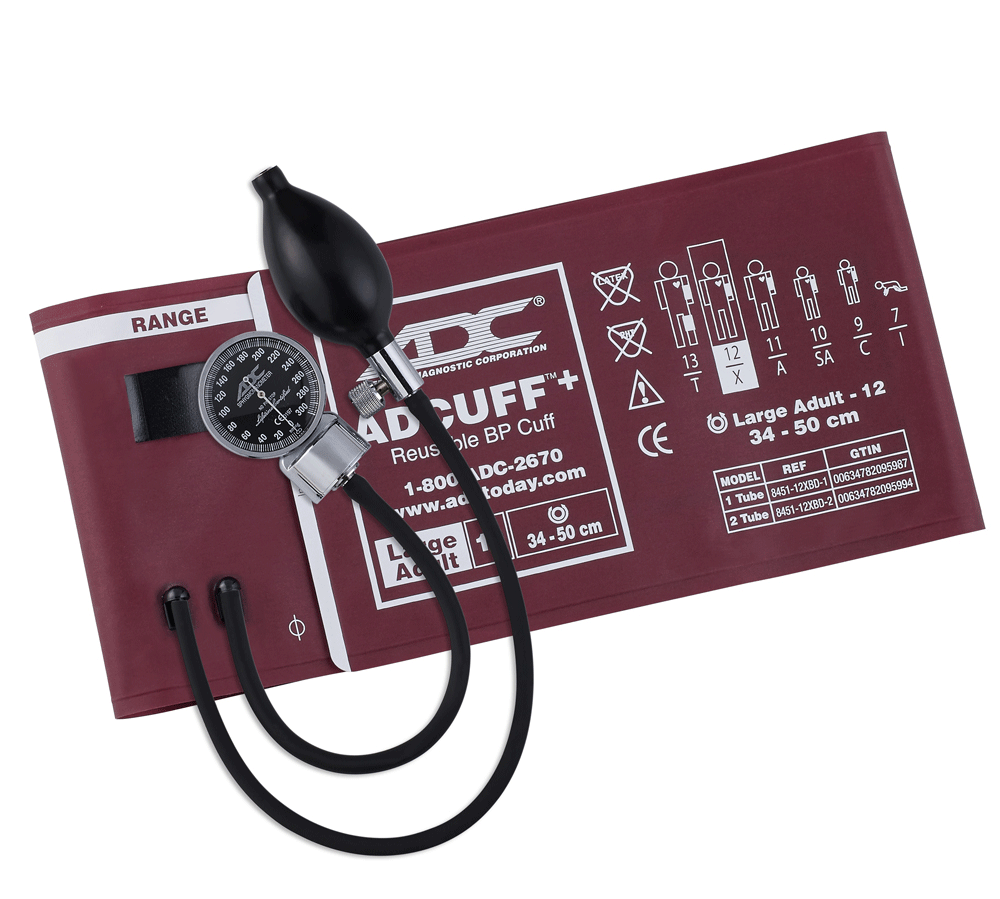

ADC Diagnostix 700 Pocket Aneroid Sphygmomanometer - Large Adult

Features

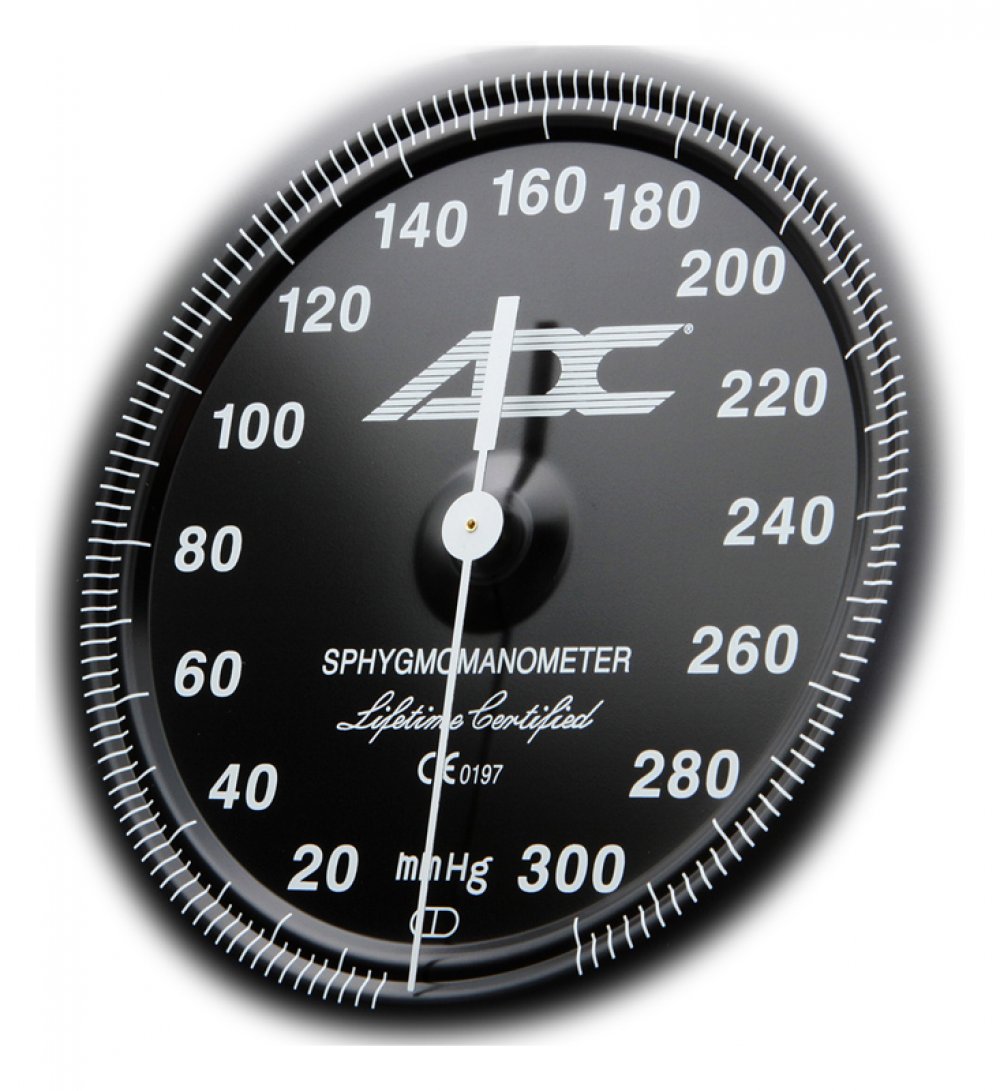

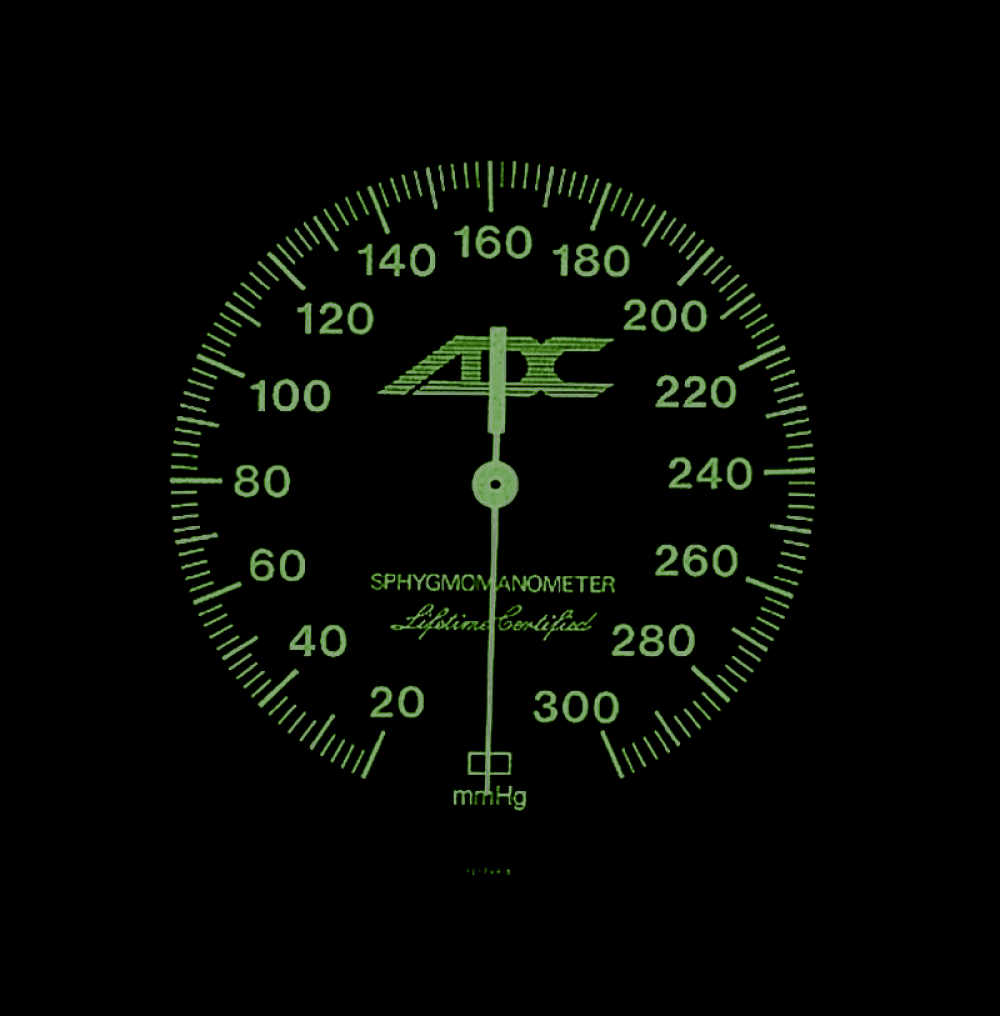

• Luminescent dial features bold numerals and extended graduation marks for easy reading in all light conditions and from virtually any angle.
• Adcuff Nylon Cuff with ADC’s proprietary Size Guide marking system prevents mis-cuffing.
• Adflow filter screen check and deflation valves reduce dust build-up.
• Adflow chrome-plated brass air release valve with micro-threads for precise deflation control.
• Assembled, inspected, and packaged in the U.S.A from foreign components.
• Meets or exceeds ANSI/AAMI/ISO 81060-1.

Specifications

• Sphyg Type: Pocket.

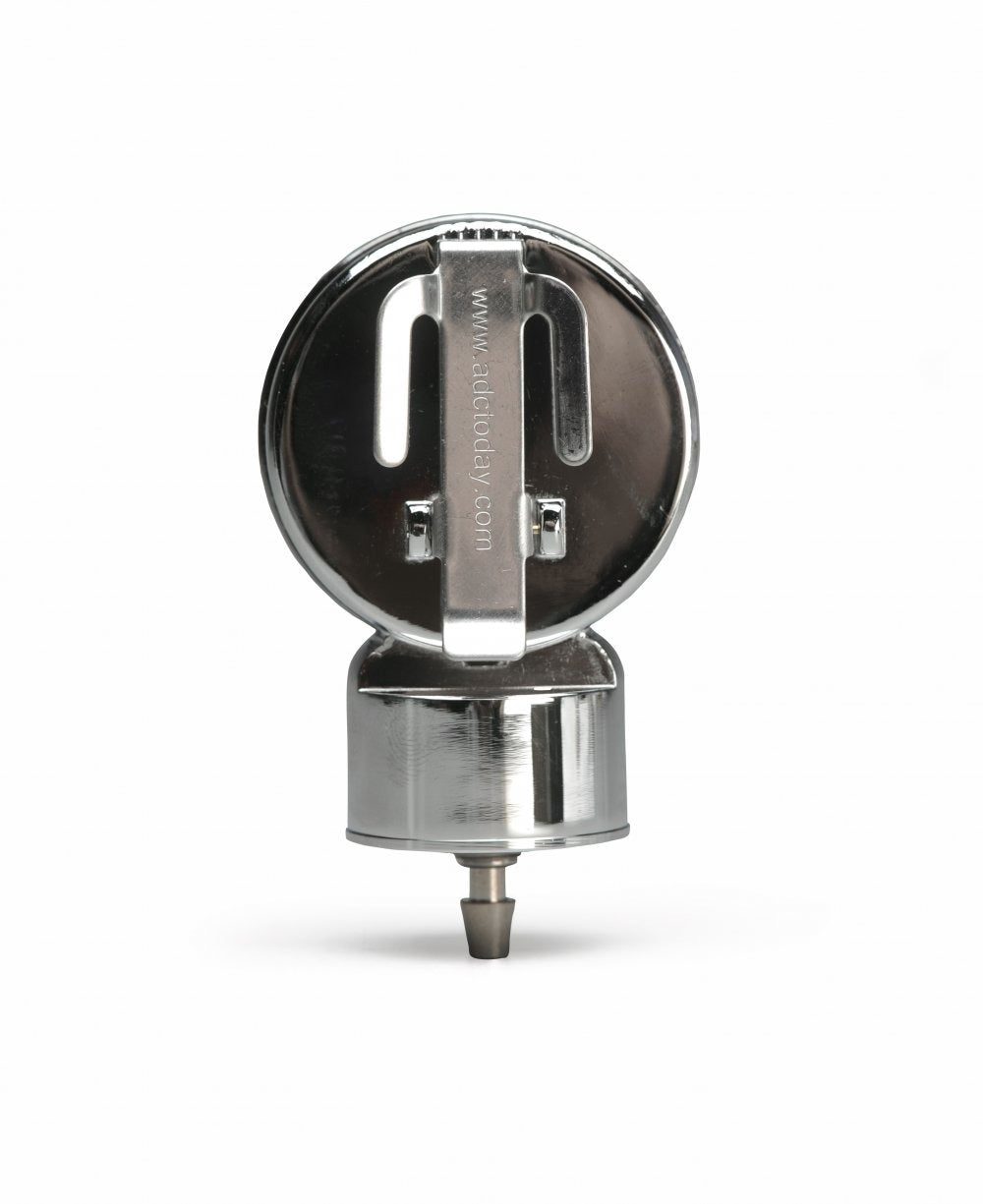

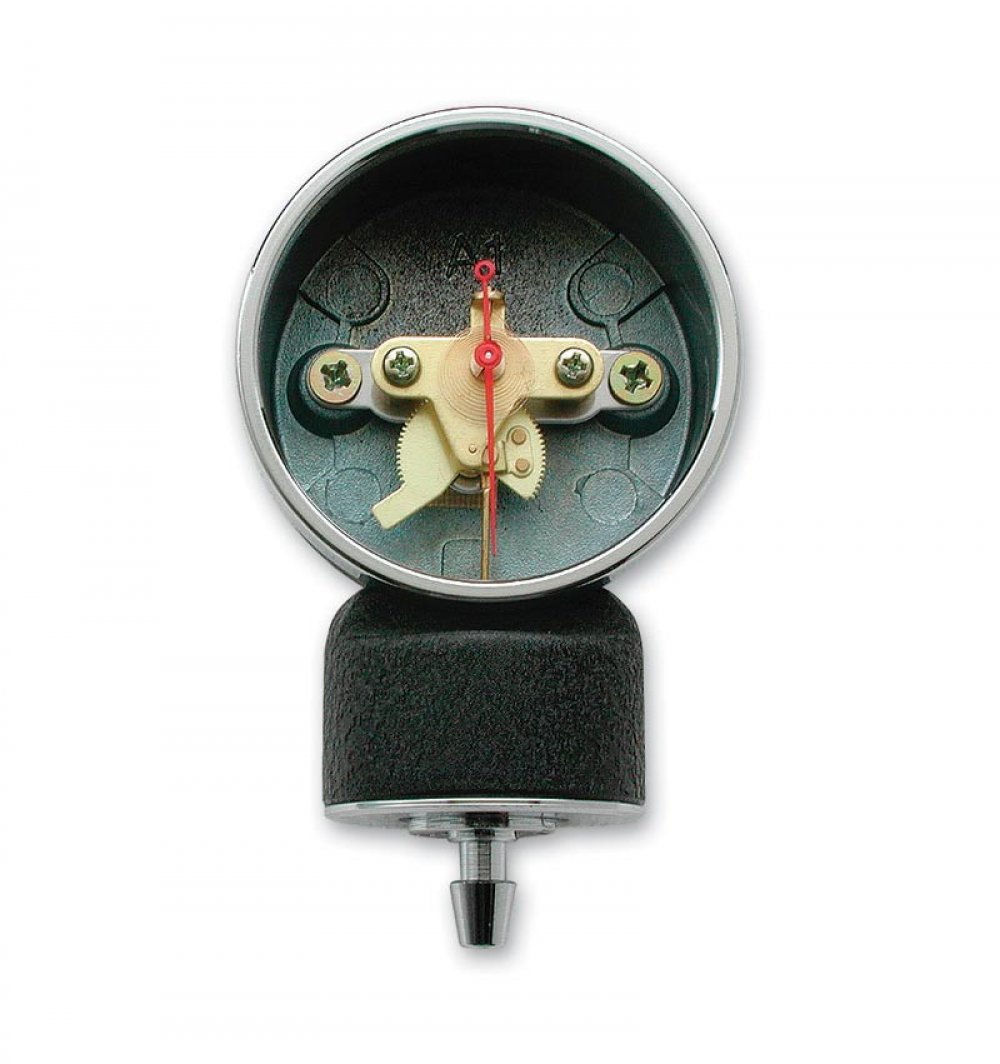

• Gauge Product Number: #800.
• Gauge Warranty: Lifetime.
• Sphyg Accuracy: +/-3 mm Hg at 50º F (10º C) - 104º F (40º C).
• Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50º F (10º C) and > 104º F (40º C).
• Storage Temp: -4º F (-20º C) - 131º F (55º C).
• Valve Type: ADFLOW.
• Number of Tubes: 2.
• Cuff Type: ADCUFF.
• Cuff Size: Large Adult.

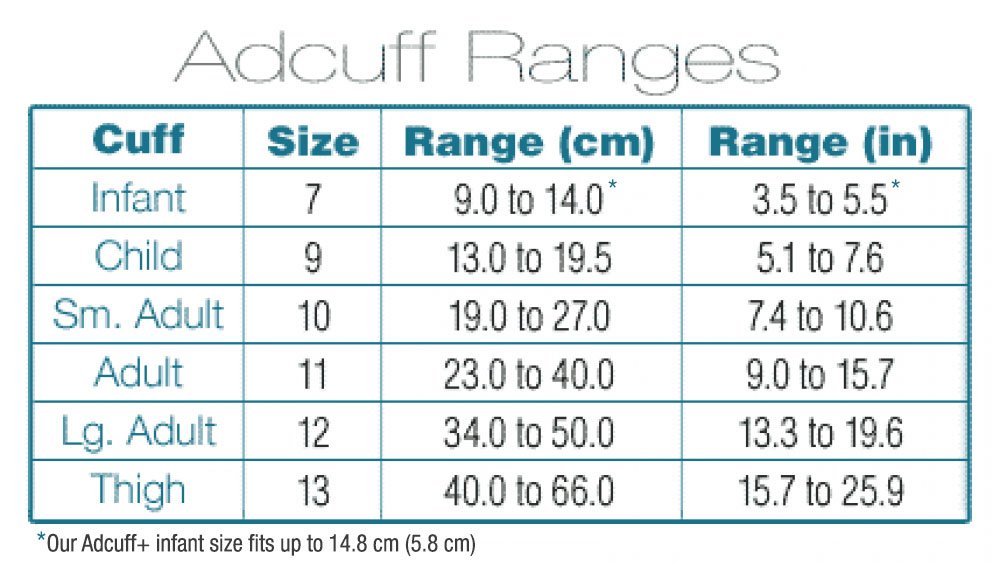

• Cuff Range: 13.3" - 19.6" (34 cm - 50 cm).

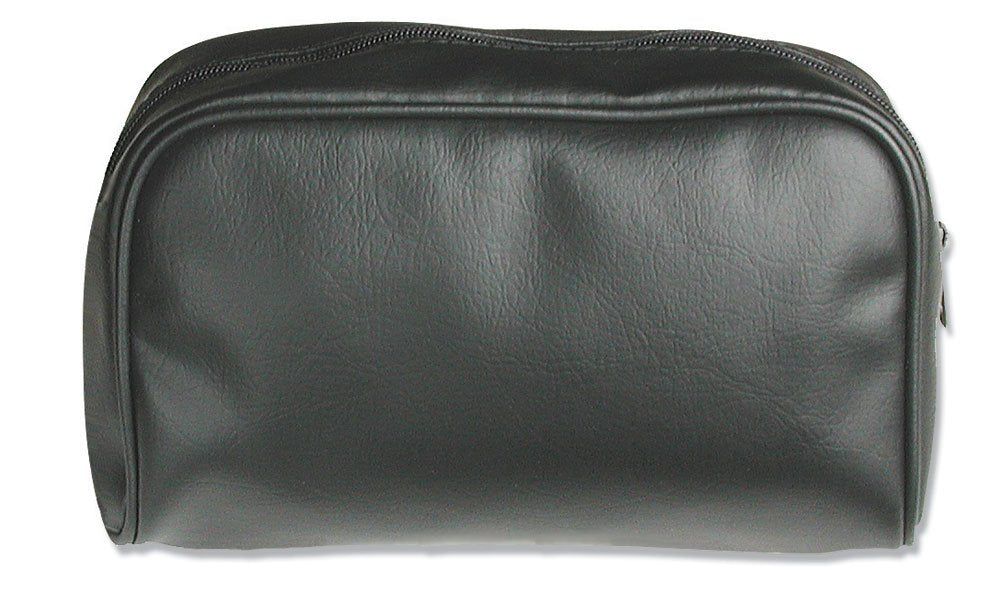

• Zipper Storage Case Product Number: #880.

Configurations

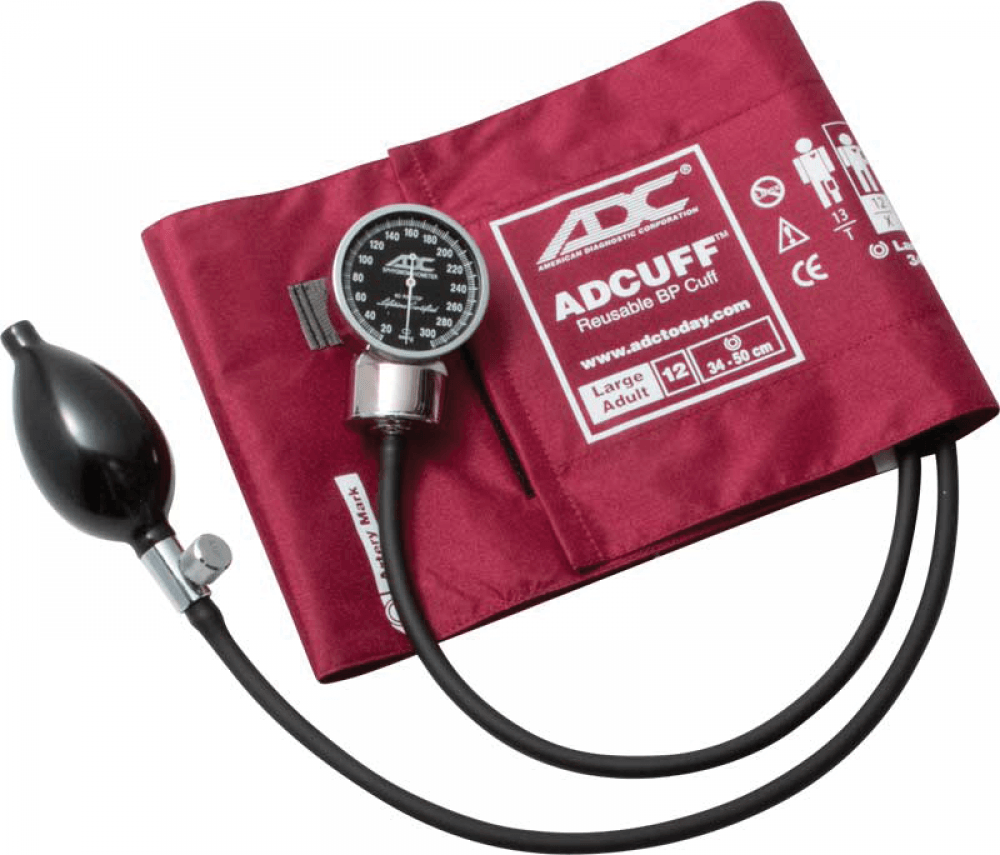

• 700-12XBD
• 700-12XBD

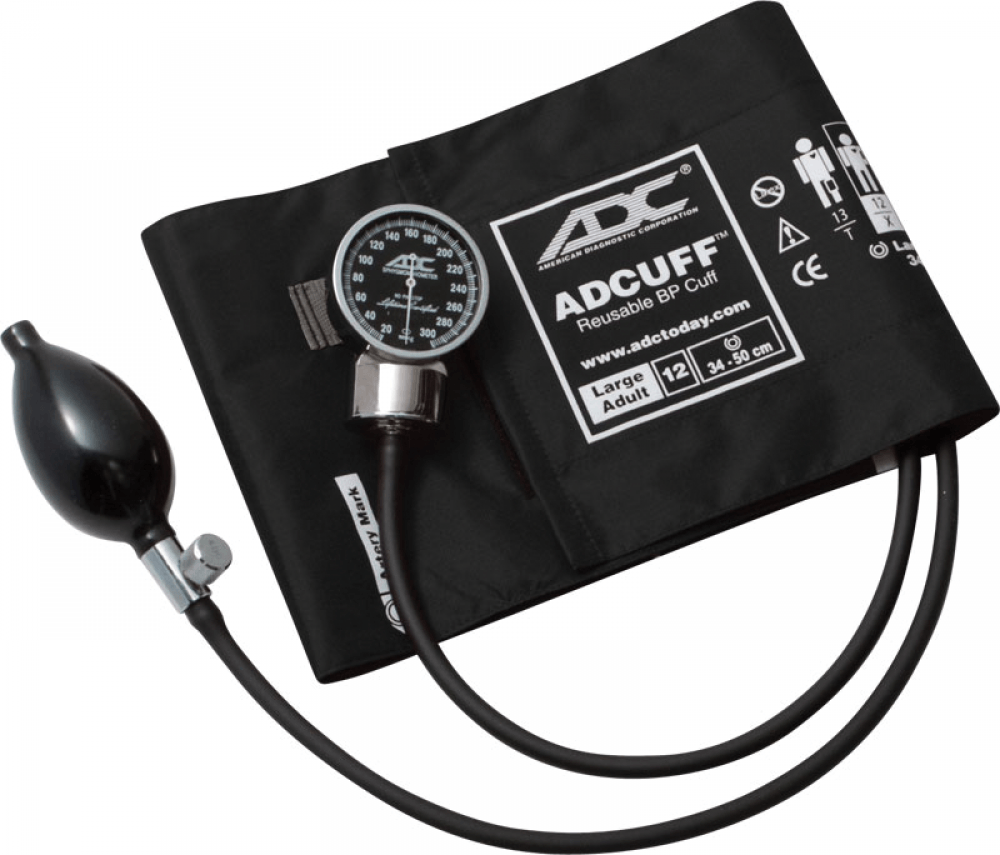

• 1700-12XBK

Data Sheets

ADC® Sphygmomanometer Accessories - Instructions for use

Diagnostix Sphygs - Instructions for use

ADC-2017 Product Catalog
