Description

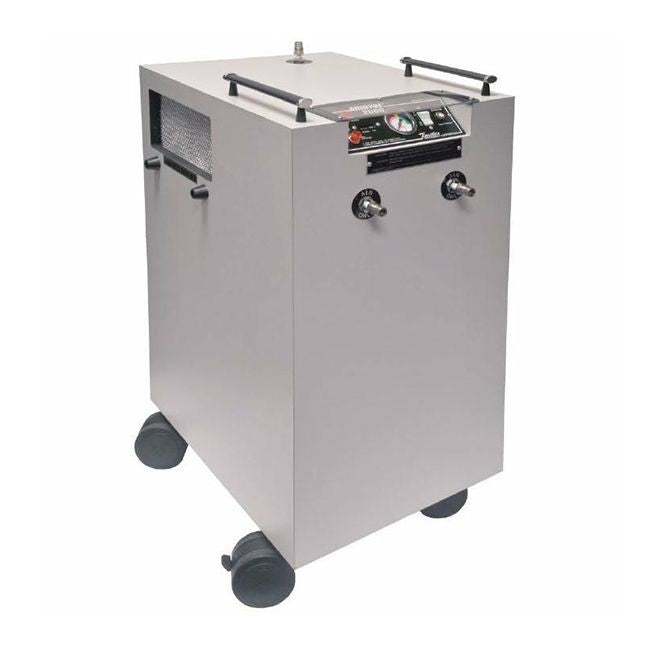

The Allied Healthcare Timeter Aridyne 2000 Medical Air Compressor is a convenient bedside air compressor system that is both mobile and can replace a piped medical air system. A circuit breaker, elapsed time indicator, and thermal overload protector are also included.
Warranty: 2 Year - Free from Material Defects in Material and Workmanship.
The Timeter Aridyne 2000 is one of the quietest air compressors available, thanks to a unique design that keeps the internal chambers and pumps suspended for less noise. It's a hospital-grade system that can be utilized in the home or hospital for drawing and filtering ambient air for patient needs. The air is transferred through DISS air check valves at a pressure of 50 psi, with flow rates available up to and over 42 lpm. When air is taken in, it's compressed to 80 psi and sent through cooling coils to condense the moisture. The condensation is trapped and drained away automatically, and the air that's left is raised to 50 psi to be delivered out to other attached medical devices.
The Aridyne 2000 has both visual and audible alarm systems that alert users to high temperatures or low pressure changes in the system. The air compressor can also be used continuously for 24 hours a day, 7 days a week.
Features
Allied Healthcare Timeter Aridyne 2000 Medical Air Compressor Features
- Automatically removes moisture from compressed air via the internal condensation trap.
- Air pump filter cleans air and maintains quiet operation.
- Contains audio and visual alarms in case of high temperature changes or low pressure.
- Three DISS medical air outlets.
Specifications
Allied Healthcare Timeter Aridyne 2000 Medical Air Compressor Specifications
- Continuous Flow: 56 lpm.
- Pressure: 50 psi.
- Dimensions: 17" (W) x 21.5" (D) x 34.5" (H) (43.2 cm x 54.6 cm x 87.6 cm).
Configurations
Allied Healthcare Timeter Aridyne 2000 Medical Air Compressor Configurations
- #TE20: 115 V / 60 Hz [157 lb (71.2 kg)].
- #TE69: 220 V / 50 Hz [161 lb (72.6 kg)].
- #T11604: 230 V / 60 Hz [161 lb (72.6 kg)].
Accessories
Allied Healthcare Timeter Aridyne 2000 Medical Air Compressor Accessories
The Timeter Aridyne 2000 Medical Air Compressor is typically purchased with the following items. Please note that these are NOT included with the Timeter Aridyne 2000. They are sold separately.
- #T901-405: Replacement Intake Air Filter - Foam.
- #12-80-3011: Oxygen Check Valve Outlet (DISS male and 1/8" NPT female).
- #12-80-3111: Air Check Valve Outlet (DISS Male and 1/8" NPT female).
Replacement Parts
The following are replacement parts for worn or broken components of the Aridyne 2000 system. These parts are sold separately.
- #TZ104: Allied Healthcare Timeter Aridyne 2000 Preventive Maintenance Kit.
- #T648-301: Allied Healthcare Timeter Aridyne 2000 Replacement Air Deflector.
- #T12149: Allied Healthcare Timeter Aridyne 2000 Replacement Blower Assembly.
- #T11286: Allied Healthcare Timeter Aridyne 2000 Replacement Bulkhead Adapter Assembly.
- #T12001: Allied Healthcare Timeter Aridyne 2000 Replacement Compressor Overhaul Kit.
- #T990-411: Allied Healthcare Timeter Aridyne 2000 Replacement Cylinder.
- #T990-427: Allied Healthcare Timeter Aridyne 2000 Replacement Fan Blade.
- #T990-428: Allied Healthcare Timeter Aridyne 2000 Replacement Fan Shroud.
- #T990-431: Allied Healthcare Timeter Aridyne 2000 Replacement Piston and Rod Assembly.
- #T510-502: Allied Healthcare Timeter Aridyne 2000 Replacement Power Switch.
- #T12156: Allied Healthcare Timeter Aridyne 2000 Replacement Pressure Gauge.
- #T990-434: Allied Healthcare Timeter Aridyne 2000 Replacement Pressure Relief Valve.
- #T580-501: Allied Healthcare Timeter Aridyne 2000 Replacement Pressure Switch.
- #T12152: Allied Healthcare Timeter Aridyne 2000 Replacement Pump Inlet Filter Assembly.
- #T613-005: Allied Healthcare Timeter Aridyne 2000 Replacement Shipping Carton.
- #T026-116: Allied Healthcare Timeter Aridyne 2000 Replacement Splash Shield.
- #T611-309: Allied Healthcare Timeter Aridyne 2000 Replacement Suspension Spring.
- #T586-501: Allied Healthcare Timeter Aridyne 2000 Replacement Thermostat.
- #T8134: Allied Healthcare Timeter Aridyne 2000 Replacement Time Elapsed Indicator.
- #T028-118: Allied HealthcareTimeter Aridyne 2000 Replacement Compressor with Suspension.
- #T326-201: Allied Healthcare Timeter Aridyne 2000 Replacement DC, 6-Volt Battery.
- Allied Healthcare Timeter Aridyne 2000 Replacement Sealing Sleeve.
Data Sheets
Allied Healthcare Timeter Aridyne 2000 Medical Air Compressor Literature
Allied Healthcare Timeter Aridyne Medical Air Compressor Brochure
