Features

• Pump Segment: Accurate infusion tracking.
• Needle-Free Port: Maintains closed sterility.
• Inline Filter: Traps air particulate.
• Back-Check Valve: Prevents retrograde flow.
• Biocompatible PVC: Enhances patient safety.

Specifications

• Manufacturer: Amsino International
• Product Line: AMSafe Vascular Access & Infusion Therapy

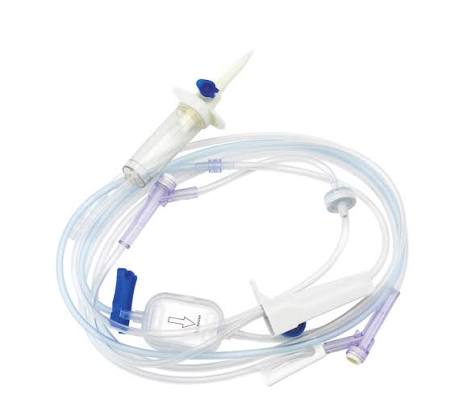

• Product Type: IV Volumetric Pump Administration Set
• Tubing Lengths: 92 Inches, 100 Inches, 106 Inches, 109 Inches
• Drop Rates: 10 Drops/mL (Macro) / 60 Drops/mL (Microdrip)
• Priming Volume Range: 14 mL to 22 mL
• Filter Options: 0.22 Micron Inline IV Filter (FP106FY2, FP100FY1)
• Packaging: 50 Each per Case (50/cs)
• Primary Application: Volumetric infusion pump medication delivery, continuous IV therapy, oncology infusions, and critical care fluid management

Configurations

• Filtered Sets (0.22 Micron Filter, 50/cs): FP100FY1 (100", 10 Drops/mL, 1 Port, 22 mL PV), FP106FY2 (106", 2 Ports, Backcheck Valve, 22 mL PV)
• Standard Macro Set (10 Drops/mL, 1 Port, 50/cs): FP092 (92", Roller & Slide Clamp, 14 mL PV), FP092Y1 (92", 1 Sure-Lok® Port, 14 mL PV)
• Primary Piggyback Sets (Backcheck Valve, 10 Drops/mL, 50/cs): FP100BI2 (100", Pre-Pierced Y-Sites, 16 mL PV), FP100BY2 (100", 2 Sure-Lok® Ports, 16 mL PV), FP109BY3 (109", 3 Sure-Lok® Ports, 18 mL PV)
• Microdrip Piggyback Set (60 Drops/mL, 50/cs): FP169BY3 (109", 3 Sure-Lok® Ports, Backcheck Valve, 18 mL PV)

Data Sheets

IV Pump Administration Sets
