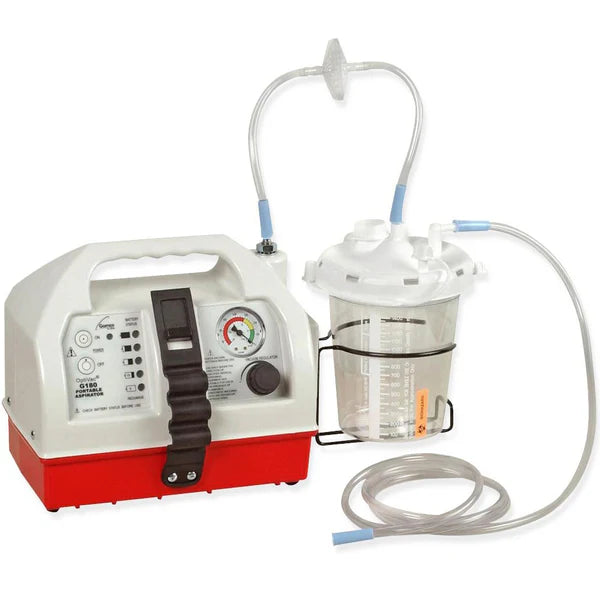

ALLIED-12-90-0017 ASPIRATOR DC 0-22"HG GOMCO
Roll over image to zoom in Click on image to zoom
ALLIED-12-90-0017 ASPIRATOR DC 0-22"HG GOMCO

ALLIED-12-90-0017 ASPIRATOR DC 0-22"HG GOMCO

Save $290.50
Allied
  • SKU: ALLIED-G180
  • SKU: ALLIED-G180
  • Condition: Brand New
  • Warranty: 2 Year
  • MPN: G180
  • Est. Delivery: 4 to 5 Weeks
  • Shipping: Calculated at Checkout
  • Disposable suction tubing and one Hydrophobic/Bacteria Filter included
  • Run time operation on fully-charged battery for approximately three hours at maximum vacuum
  • 25 - 550 mm Hg vacuum range, coupled with greater than 30 lpm flow, provides powerful suction for faster aspiration
  • Sound Level: Less than 60 dBA
  • MPN: G180
  • Est. Delivery Date: Jan 24 to Jan 31
No reviews
Details: Description| Features| Specifications| Accessories| Data Sheets
Price:
$1,004.85 $1,295.35

Shipping calculated at checkout

Stock:
In stock

Description

Features

Gomco OptiVac Portable Aspirator Features

  • Run time operation on fully-charged battery for approximately three hours at maximum vacuum.
  • 25 - 550 mm Hg vacuum range, coupled with greater than 30 lpm flow, provides powerful suction for faster aspiration.
  • Will run at full performance on AC power even with a depleted battery.
  • Will run for approximately one hour after charged for just two hours.
  • Long-life rechargeable battery eliminates the need for frequent replacement.
  • Sealed water-resistant unit is easy to clean, and minimizes potential contamination or damage to the compressor and battery.
  • Control panel at an angle for easy viewing.
  • Quality-engineered thermoplastic provides impact resistance and durability.
  • Tubing can be cut to the desired length and attached to the disposable hydrophobic bacteria filter.

Specifications

Gomco OptiVac Portable Aspirator Specifications

  • Vacuum Range: -25 to -550 mm Hg.
  • Flow Rate: Greater than 30 lpm at open flow.
  • Sound Level: Less than 60 dBA.
  • Pump Type: Oil-less diaphragm.
  • AC Operation: 110 - 230 volts, 50/60 Hz.
  • DC Operation: 12 volt DC battery.
  • Battery Type: Sealed lead acid.
  • Battery Life at Maximum Vacuum: Three hours at 550 mm Hg.
  • Battery Charge Time: Full charge in eight hours.
  • Battery Charge Status: Yes (five indicator lights).
  • Bad Battery Sensor: Yes (five red LEDs).
  • Battery Depleted: Unit automatically shuts off.
  • AC Charger: Internal charger.
  • Operation with Depleted Battery: Yes; charging circuit can run on AC if battery is depleted.
  • Operating Temperature: -4 to 120 °F.
  • Dimensions: 16.8" (W) x 7.5" (D) x 9.4" (H) (427 mm x 191 mm x 239 mm).
  • Weight: 11.4 lb (5.18 kg).
  • UL/ETL Listed: Yes.
  • Regulatory Approvals: FDA, CE, HC.

Accessories

Gomco OptiVac Portable Aspirator Accessories

The following accessories are compatible with the OptiVac Portable Aspirator:

  • #01-90-2000: Suction Tubing Kit - 18" and 72" lengths.
  • #01-90-3928: Disposable Hydrophobic/Bacteria Filter.
  • #L190-BAG: Portable Suction Unit Carrying Case with Shoulder Strap.
  • #S610100: Suction Tubing Kit - 15" and 6' lengths.
  • #S615473: Suction Tubing Kit - 15" length.
  • #S615725: Suction Tubing Kit - 72" length.
  • Disposable Suction Canister:

Data Sheets

Gomco OptiVac Portable Aspirator Literature

Allied Healthcare DC Portable Aspirator Operation/Service Manual

Gomco OptiVac AC/DC Portable Suction Unit Brochure
