Description

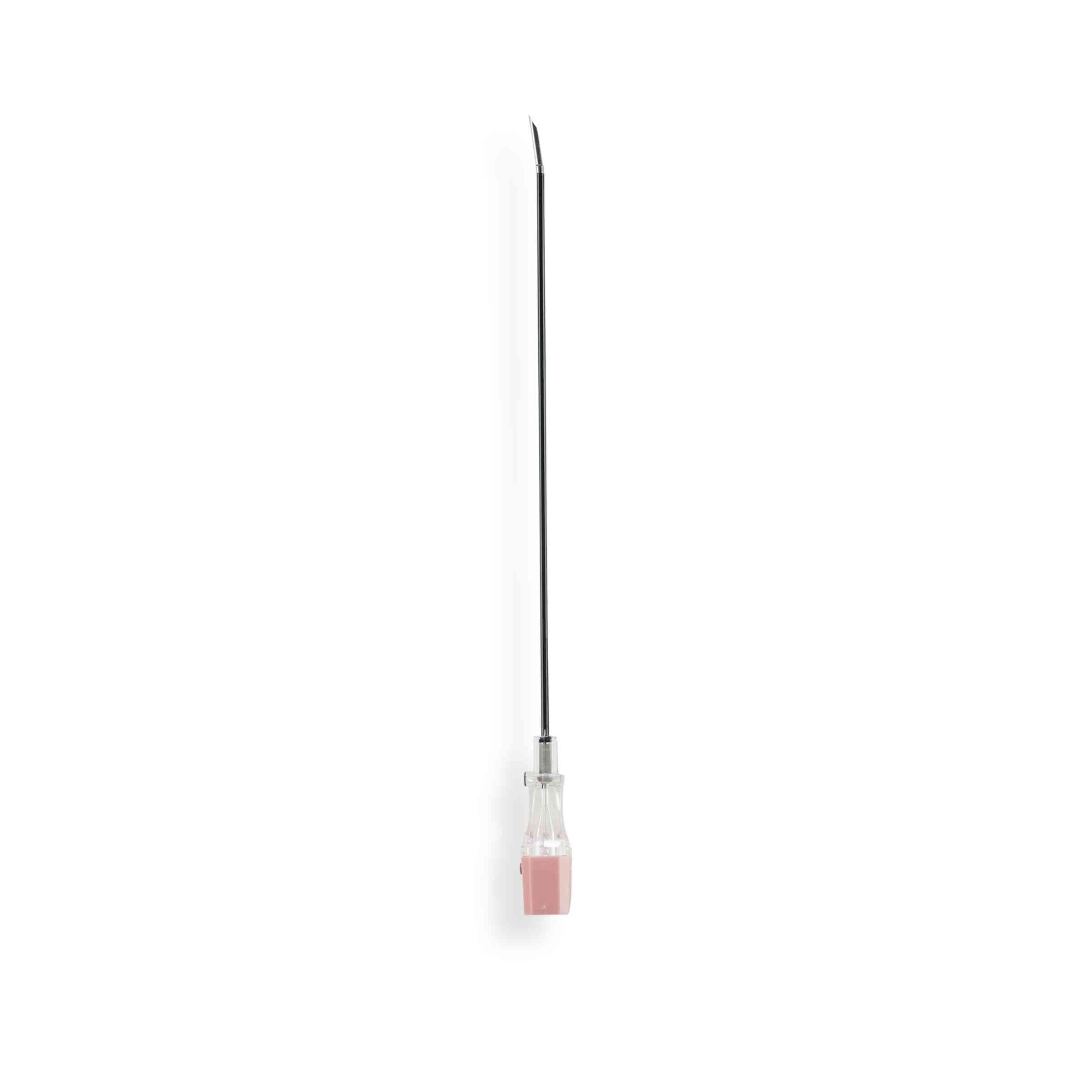

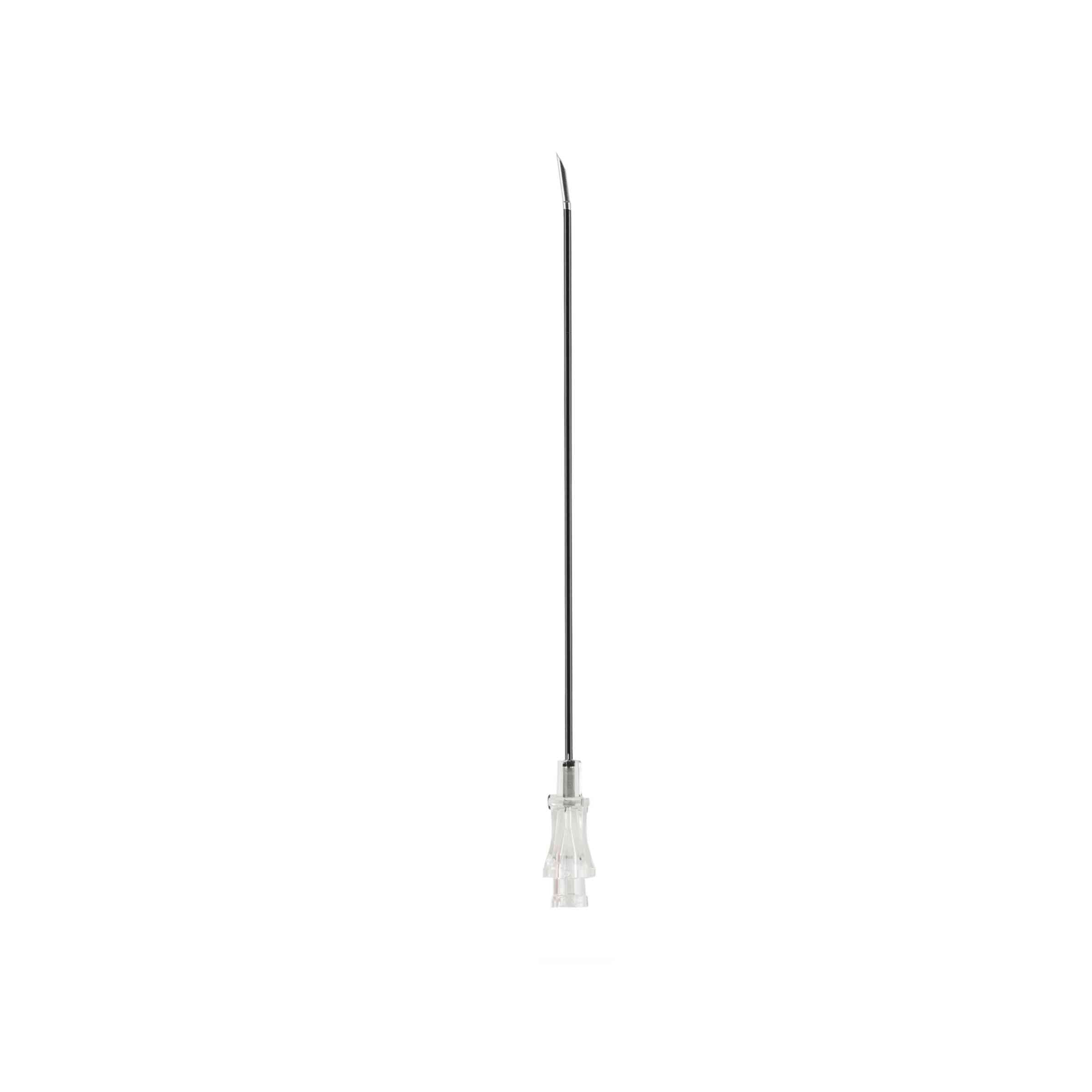

Designed for maximum precision during radiofrequency (RF) neurotomy and targeted chronic pain management procedures, Avanos Medical Radiofrequency Cannulas feature high-grade dielectric shaft insulation and exceptional fluoroscopic visibility. Engineered to guide RF probes accurately to target nerve tissue, these radiopaque cannulas concentrate energy delivery through an uninsulated active tip, creating predictable thermal lesions while shielding non-target tissue. Available in a comprehensive array of gauges (16G–22G), lengths (60mm–145mm), tip configurations (straight, curved, sharp, blunt), and active tip sizes (5mm, 10mm, 15mm), they accommodate varied patient anatomies and procedural approaches in facet joint, spinal, and peripheral ablation.
| SKU | Product | Key Technical Details |
| Avanos Medical-PMC16-100-10CS | RF Radiopaque Cannula (10/CS) | 16G x 100mm, curved sharp tip, 10mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC16-145-10CS | RF Radiopaque Cannula (10/CS) | 16G x 145mm, curved sharp tip, 10mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC18-100-10 | RF Radiopaque Cannula (10/CS) | 18G x 100mm, straight sharp tip, 10mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC18-100-10CS | RF Radiopaque Cannula (10/CS) | 18G x 100mm, curved sharp tip, 10mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC18-145-10 | RF Radiopaque Cannula (10/CS) | 18G x 145mm, straight sharp tip, 10mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC18-145-10CS | RF Radiopaque Cannula (10/CS) | 18G x 145mm, curved sharp tip, 10mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC18-60-10CS | RF Radiopaque Cannula (10/CS) | 18G x 60mm, curved sharp tip, 10mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC20-100-10 | RF Radiopaque Cannula (10/CS) | 20G x 100mm, straight sharp tip, 10mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC20-100-10CB | RF Radiopaque Cannula (10/CS) | 20G x 100mm, curved blunt tip, 10mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC20-100-10CS | RF Radiopaque Cannula (10/CS) | 20G x 100mm, curved sharp tip, 10mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC20-100-10B | RF Radiopaque Cannula (10/CS) | 20G x 100mm, straight blunt tip, 10mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC20-100-15CS | RF Radiopaque Cannula (10/CS) | 20G x 100mm, curved sharp tip, 15mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC20-100-5CS | RF Radiopaque Cannula (10/CS) | 20G x 100mm, curved sharp tip, 5mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC20-145-10 | RF Radiopaque Cannula (10/CS) | 20G x 145mm, straight sharp tip, 10mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC20-60-10CS | RF Radiopaque Cannula (10/CS) | 20G x 60mm, curved sharp tip, 10mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC21-100-5 | RF Radiopaque Cannula (10/CS) | 21G x 100mm, straight sharp tip, 5mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC22-100-10CS | RF Radiopaque Cannula (10/CS) | 22G x 100mm, curved sharp tip, 10mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC22-100-10 | RF Radiopaque Cannula (10/CS) | 22G x 100mm, straight sharp tip, 10mm active tip, insulated shaft, sterile |
| Avanos Medical-PMC22-100-5 | RF Radiopaque Cannula (10/CS) | 22G x 100mm, straight sharp tip, 5mm active tip, insulated shaft, sterile |
Features
- Controlled Lesioning: 5/10/15mm tips generate uniform lesions.
- Radiopaque Shaft: Clear X-ray view for accurate placement.
- Versatile Bevels: Straight/curved options navigate tricky pathways.
- Standard Luer Hub: Color-coded for fast ID and secure connection.
- Biocompatible Insulation: Protects surrounding tissue from thermal damage.
Specifications
- Product Type: Radiofrequency (RF) Ablation Cannula
- Gauge Options: 16G, 18G, 20G, 21G, 22G
- Shaft Length Options: 60 mm, 100 mm, 145 mm
- Active Tip Length Options: 5 mm, 10 mm, 15 mm
- Tip Geometries: Straight Sharp, Curved Sharp, Straight Blunt, Curved Blunt
- Visibility: Radiopaque
- Sterility: Sterile, single-use
- Prescription Status: Rx Required
- Product Weight: 0.38 lbs
- Packaging Unit: 10 cannulas per case
Configurations
- Avanos Medical-PMC16-100-10CS: RF Radiopaque Cannula, 16G x 100mm, 10mm Active Tip, Curved Sharp, Sterile (10/CS)
- Avanos Medical-PMC16-145-10CS: RF Radiopaque Cannula, 16G x 145mm, 10mm Active Tip, Curved Sharp, Sterile (10/CS)
- Avanos Medical-PMC18-100-10: RF Radiopaque Cannula, 18G x 100mm, 10mm Active Tip, Straight Sharp, Sterile (10/CS)
- Avanos Medical-PMC18-100-10CS: RF Radiopaque Cannula, 18G x 100mm, 10mm Active Tip, Curved Sharp, Sterile (10/CS)
- Avanos Medical-PMC18-145-10: RF Radiopaque Cannula, 18G x 145mm, 10mm Active Tip, Straight Sharp, Sterile (10/CS)
- Avanos Medical-PMC18-145-10CS: RF Radiopaque Cannula, 18G x 145mm, 10mm Active Tip, Curved Sharp, Sterile (10/CS)
- Avanos Medical-PMC18-60-10CS: RF Radiopaque Cannula, 18G x 60mm, 10mm Active Tip, Curved Sharp, Sterile (10/CS)
- Avanos Medical-PMC20-100-10: RF Radiopaque Cannula, 20G x 100mm, 10mm Active Tip, Straight Sharp, Sterile (10/CS)
- Avanos Medical-PMC20-100-10CB: RF Radiopaque Cannula, 20G x 100mm, 10mm Active Tip, Curved Blunt, Sterile (10/CS)
- Avanos Medical-PMC20-100-10CS: RF Radiopaque Cannula, 20G x 100mm, 10mm Active Tip, Curved Sharp, Sterile (10/CS)
- Avanos Medical-PMC20-100-10B: RF Radiopaque Cannula, 20G x 100mm, 10mm Active Tip, Straight Blunt, Sterile (10/CS)
- Avanos Medical-PMC20-100-15CS: RF Radiopaque Cannula, 20G x 100mm, 15mm Active Tip, Curved Sharp, Sterile (10/CS)
- Avanos Medical-PMC20-100-5CS: RF Radiopaque Cannula, 20G x 100mm, 5mm Active Tip, Curved Sharp, Sterile (10/CS)
- Avanos Medical-PMC20-145-10: RF Radiopaque Cannula, 20G x 145mm, 10mm Active Tip, Straight Sharp, Sterile (10/CS)
- Avanos Medical-PMC20-60-10CS: RF Radiopaque Cannula, 20G x 60mm, 10mm Active Tip, Curved Sharp, Sterile (10/CS)
- Avanos Medical-PMC21-100-5: RF Radiopaque Cannula, 21G x 100mm, 5mm Active Tip, Straight Sharp, Sterile (10/CS)
- Avanos Medical-PMC22-100-10CS: RF Radiopaque Cannula, 22G x 100mm, 10mm Active Tip, Curved Sharp, Sterile (10/CS)
- Avanos Medical-PMC22-100-10: RF Radiopaque Cannula, 22G x 100mm, 10mm Active Tip, Straight Sharp, Sterile (10/CS)
- Avanos Medical-PMC22-100-5: RF Radiopaque Cannula, 22G x 100mm, 5mm Active Tip, Straight Sharp, Sterile (10/CS)
