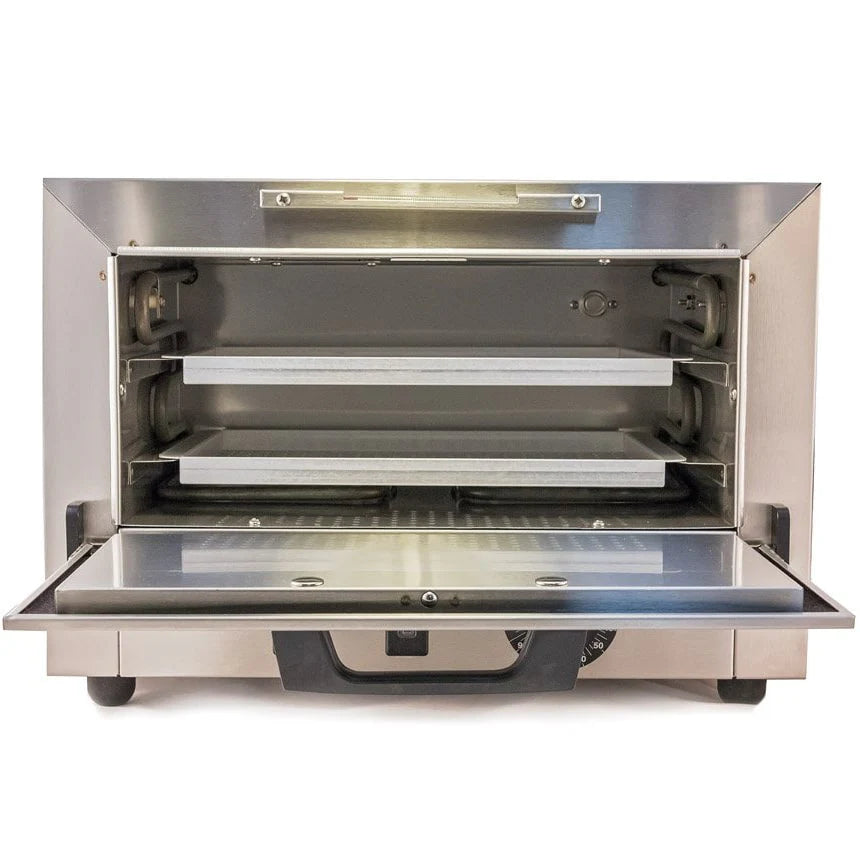

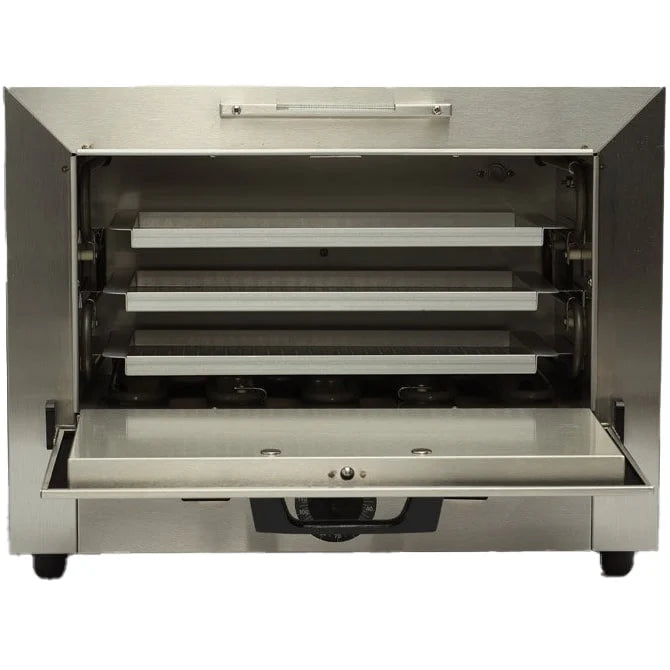

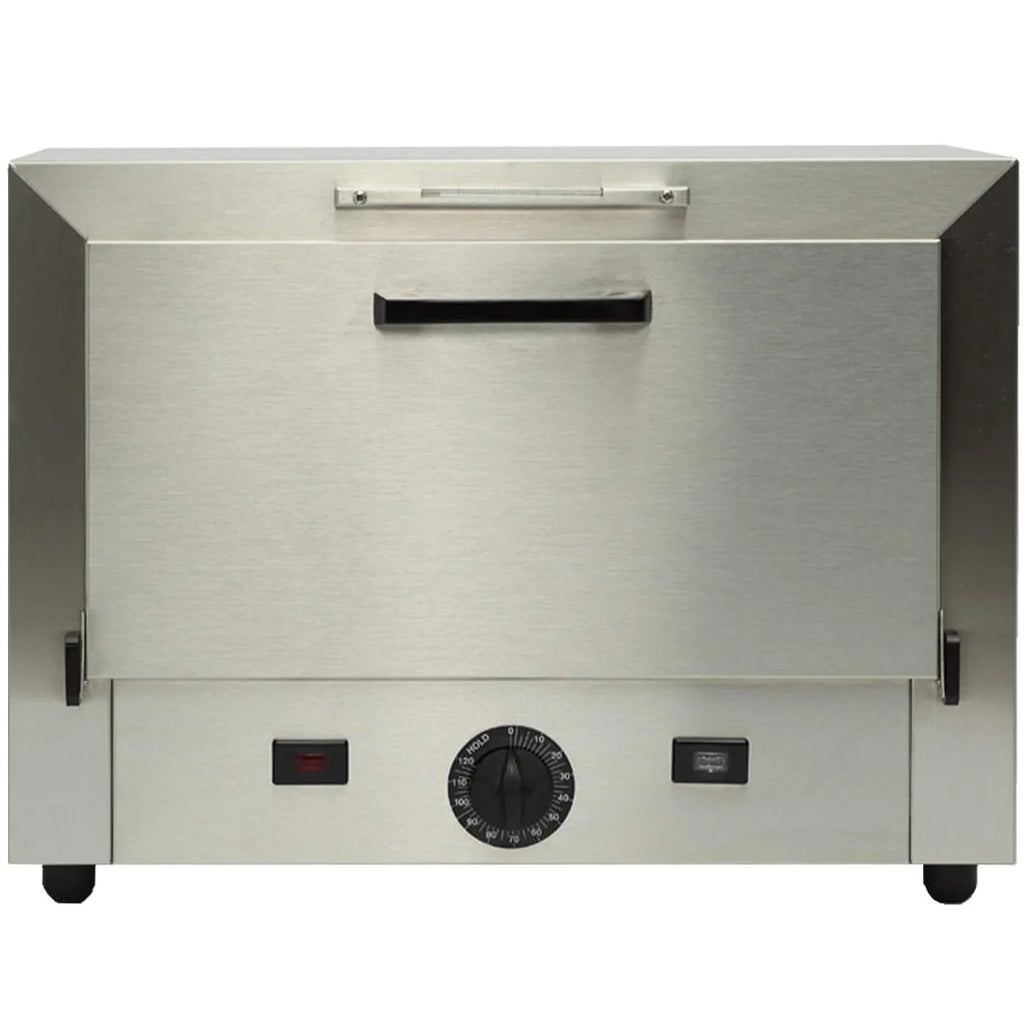

CPAC SteriDent Static Heat Sterilizer

Features

• Dry heat sterilization works without pressure, steam, or chemicals which increases safety.
• Does not require a dry cycle.
• Features a rapid-start heating element for fast operation.
• Thermal cutout protection prevents overheating.
• Kills bacteria and spores without moisture.
• Promotes longer instrument life.
• Does not corrode, pit, or dull instruments.
• Easily store sterilized instruments without the fear of contamination.
• Lower maintenance costs.
• No toxic residue nor effluent.
• Proudly made in the USA.
• FDA cleared.

Specifications

CPAC SteriDent Static Heat Sterilizer Specifications

• Dimensions:
• Model 200: 15.5" (W) x 9.5" (D) x 10.5" (H) (394 mm x 241 mm x 267 mm).
• Model 300: 19" (H) x 11" (D) x 14.5" (H) (483 mm x 279 mm x 368 mm).
• Chamber Size:
• Model 200: 11.25" (W) x 7.5" (D) x 4.75" (H) (286 mm x 190 mm x 121 mm).
• Model 300: 13.5" (W) x 8" (D) x 6.75" (H) (343 mm x 203 mm x 171 mm).
• Weight:
• Model 200: 13 lb (6 kg).
• Model 300: 20 lb (9 kg).
• Tray Size:
• Model 200 (2 Trays): 10" (W) x 6.25" (D) (254 mm x 159 mm).
• Model 300 (3 Trays): 11.75" (W) x 7.25" (D) (298 mm x 184 mm).
• Electrical: 110 to 120 V, 500 watts or 220 to 240 V, 750 watts.
• Sterilization Temperature: 320 °F (160 °C).
• Sterilization Time: 60 minutes.
• Approvals:
• ETL FDA 510(k) K771070.
• IEC Safety Standard 61010-2-040.
• UL 61010-1.
• Shipping Weight: Model 200: 16 lb.
• Model 300: 45 lb.
• Shipping Dimensions:
• Model 200: 20" x 16" x 14".
• Model 300: 22" x 18" x 18".

Configurations

CPAC SteriDent Static Heat Sterilizer Configurations

• #201000-SD: Model #200, 2 Instrument Trays, 120 VAC.
• #301000-SD: Model #300, 3 Instrument Trays, 120 VAC.
• #201000-SD-230V: Model #200, 2 Instrument Trays, 230 VAC.
• #301000-SD-230V: Model #300, 3 Instrument Trays, 230 VAC.

Data Sheets

CPAC SteriDent 200/300 Manual
