Description
The Defibtech Lifeline AUTO AED (#DDU-120) comes with one set of Adult Defibrillation Pads (#DDP-100), Quick Start Guide (#DAC-501), Operation Guide (#DAC-A581-EN), 5 or 7-year battery pack, and a 9 V lithium battery for readiness indicator.
Before Purchasing: The FDA requires a prescription for the purchase of an AED. If you have a prescription already you may select a non-Rx package. If not, you may get a prescription from your own physician, or purchase a package that includes a prescription coupon. This coupon will be shipped with your AED and must be completed and returned to Defibtech MD.
Warranty: 2 year / Until Use or Expiration (Single-Use Items) / 1 Year or Until Expiration (All Other Accessories).

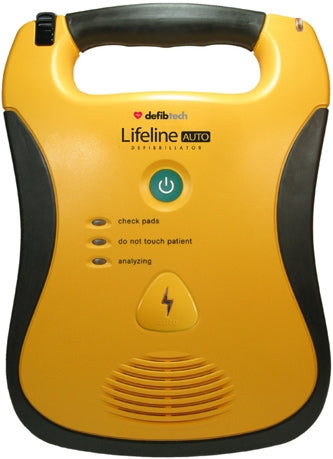

The Lifeline AUTO is a fully automatic defibrillator designed to analyze heart rhythm and automatically deliver a shock, without intervention, if needed. It includes all the mission critical features necessary to provide the most advanced treatment for Sudden Cardiac Arrest.
The Lifeline AUTO AED is so simple, anyone can use it. The unit only has one button and provides clear voice prompts to instruct rescuers. The unit is fully capable of analyzing a patient's heart rhythms and delivering a shock automatically. Brightly lit "progress lights" reinforce the voice prompts and provide visual text guidance for rescuers. The 5-year battery option will provide power for 125 shocks or eight hours of continuous use, and five years of standby, and the 7-year battery option will provide power for 300 shocks or 16 hours of continuous use, and seven years of standby. The unit's bright yellow color makes it highly visible and easy to locate in an emergency.
This AED is fully integrated, extremely durable, and has no lids or moving parts which could hinder a rescue. It has been manufactured to resist water and dust, and tested to military standards for shock and vibration, and for use on jet aircraft and helicopters. The large handle and rubberized surface make it easy to grip in an emergency, even with gloved hands. An "Active Status Indicator" clearly illuminates if the unit is ready for use. Using data cards, the unit can be upgraded as rescue protocols change, and data can be recorded and retrieved from the unit.
Features
Defibtech Lifeline AUTO AED Features
- Simple to use.
- Automatic heart rhythm analysis and shock delivery.
- Lightweight, ergonomic design.
- Voice prompts, visual text indicators, and audio CPR pacing for rescuers.
- Long battery life.
- Rugged, sealed construction, no moving parts.
- Dust and water resistant.
- Active Status Indicator ensures unit readiness.
- Highly-visible bright yellow exterior.
- Unit stores patient data and is upgradeable.
- CPR Pacing: Metronome.
- Indicators:
- Rescue Protocol: AHA/ERC (default); supports protocol updates.
Specifications
Defibtech Lifeline AUTO AED Specifications
- Waveform: Biphasic Truncated Exponential (Impedance compensated).
- Energy:
- Dimensions: 8.5" x 11.8" x 2.7" (22 cm x 30 cm x 7 cm).
- Weight: 4.2 lb (4.4 lb with with 7-Year Battery Pack).
- Battery Pack:
- Charge Time: 4 seconds or less (from shock advised).
- Operating Temperature: 32 to 122 °F (0 to 50 °C).
- Operating Humidity: 5 - 95% (non-condensing).
- Altitude Tolerance: -500 to 15,000 feet (-150 to 4500 meters).
- Shock/Drop Abuse Tolerance: 1 meter onto any edge, corner, or surface in standby mode.
- Vibration Tolerance: Rated to US military standards for helicopters and jet aircraft.
Configurations
Defibtech Lifeline AUTO AED Configurations
- #DCF-A120-EN: Standard 5-Year Battery (#DCF-200).
- #DCF-A130-EN: High-Capacity 7-Year Battery (#DCF-210).
- #DCF-A120RX-EN: Standard 5-Year Battery (#DCF-200) and Rx Prescription Activation Form.
- #DCF-A130RX-EN: High-Capacity 7-Year Battery (#DCF-210) and Rx Prescription Activation Form.
Accessories
Defibtech Lifeline AUTO AED Accessories
The following accessories are compatible and commonly purchased with the Lifeline AUTO AED:
- #DAC-100: AED Soft Carrying Case.
- #DAC-110: AED Hard Carrying Case - Black.
- #DAC-111: AED Deluxe Carrying Case.
- #DAC-112: AED Hard Carrying Case - Yellow.
- #DAC-200: Wall Mount Bracket.
- #DAC-210: Wall Mount Cabinet - Standard.
- #DAC-220: Wall Mount Cabinet - With Alarm.
- #DAC-230: 3-Way AED Wall Sign.
- #DAC-231: 2-Way AED Wall Sign.
- #DAC-232: AED Wall Sign - Left Arrow.
- #DAC-233: AED Wall Sign - Right Arrow.
- #DAC-234: AED Wall Sign.
- #DAC-410: 9 V Lithium Battery.
- #DAC-420: Rescue Pack.
- #DAC-501: Quick Start Card.
- #DAC-520-V1: "Unit Overview" DVD.
- #DAC-801: Inspection Tag.
- #DAC-802: Vehicle Sticker.
- #DAC-803: Facility Sticker.
- #DAC-804: "CPR-AED Trained" Decal - 2.25" Diameter.
- #DAC-805: "CPR-AED Trained" Decal - 4" Diameter.
- #DCF-200: Standard 5 Year Battery Pack with 9 V Lithium Battery.
- #DCF-210: High Capacity 7 Year Battery Pack with 9 V Lithium Battery.
- #DDC-100AE: Data Card - Large Capacity Audio Enabled.
- #DDC-12: Data Card - Large Capacity.
- #DDC-50AE: Data Card - Medium Capacity Audio Enabled.
- #DDC-6: Data Card - Medium Capacity.
- #DDP-100: Adult Defibrillation Pad Package (1 Set).
- #DDP-200P: Pediatric Defibrillation Pad Package (1 Set).
Data Sheets
Defibtech Lifeline AUTO AED Literature
Defibtech Lifeline AED Family Brochure
Defibtech Lifeline AEDs Marine Brochure
Defibtech Lifeline AEDs Scholastic Brochure
Defibtech Lifeline AEDs Workplace Brochure
Defibtech Lifeline Series Automated External Defibrillators Brochure
Defibtech Lifeline/ReviveR Automated External Defibrillator Operating Guide
Defibtech Lifeline/ReviveR Automated External Defibrillator User Manual
Defibtech Lifeline AUTO Fully-Automatic Defibrillator Specification Sheet
