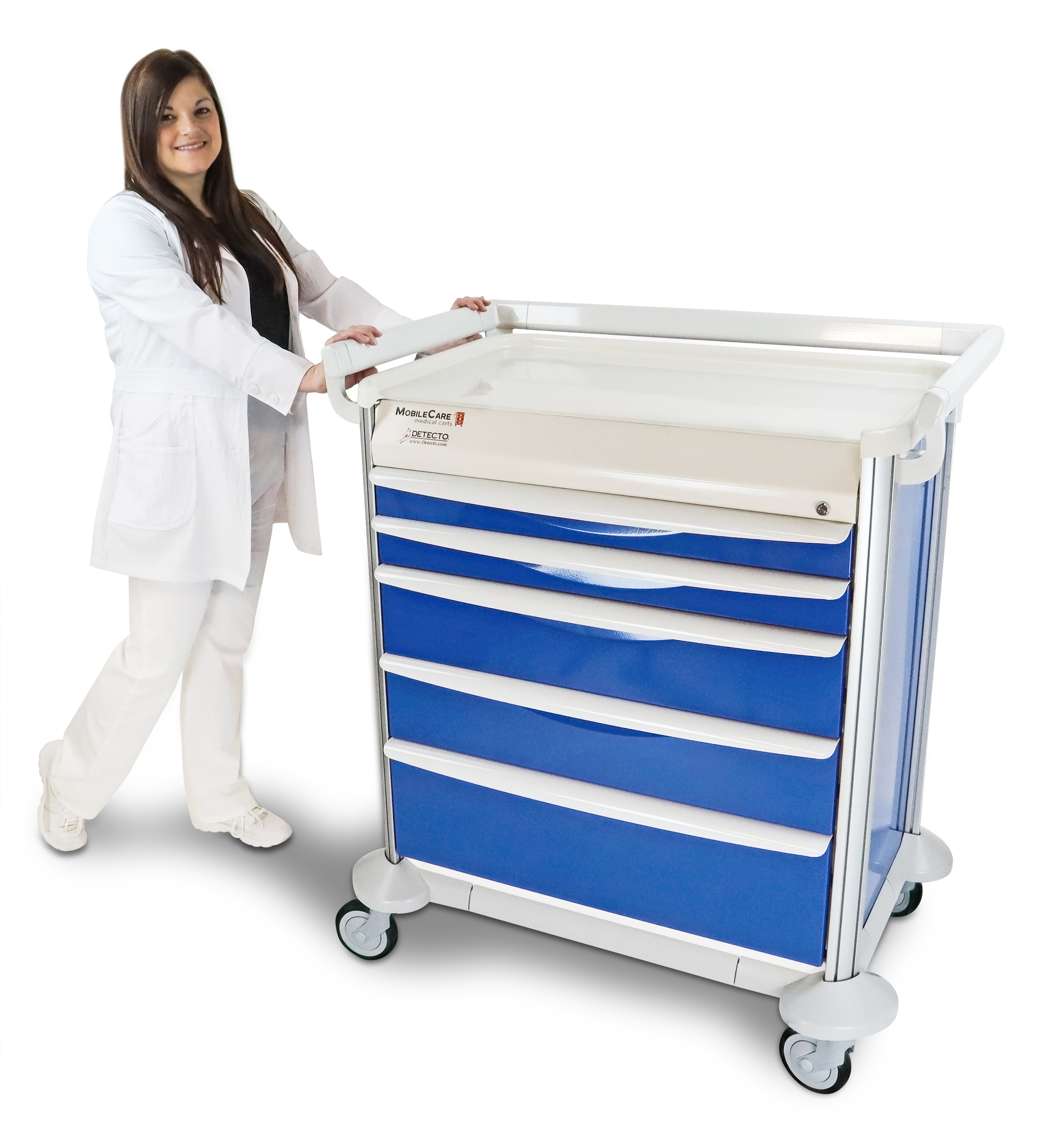

DETECTO’s innovative and highly customizable MobileCare medical carts offer the most advanced security level features available in the medical cart market. Nearly unlimited configuration possibilities are available. There are three lock types to choose from: electronic (RFID with 3 different frequencies available and full-color touchscreen pincode), quick release, and keyed. The included Windows software allows you to have one centralized point for all your employee cart access and security settings, pushed via secure Wi-Fi or Bluetooth for instant updates. The proprietary onboard and PC software has been developed by DETECTO. The innovative quick release unlocking can save lives when a patient codes, and the breakaway plastic tags and red/green flag can be reset easily by biomed techs.
MobileCare carts offer the most robust cart customization on the market to fit your needs. The electronic carts comes with your choice of unlocking methods: one lock and individual drawer sensors, individual drawer locks and individual drawer sensors, or simply one lock. The full-color touchscreen LCD features graphical menus for intuitive prompts and easy usability. Detailed employee audit tracking mitigates narcotics theft. User setup can be done at the cart or within the included Windows software. The electronic carts feature multiple alarms, both an audible alert (with timing settings) and e-mail/text notifications (with up to 3 admins each). Up to 5,000 users are available per cart. Dual authentication is available in the electronic carts: RFID and pin code touchscreen entry. The PC software allows you to update individual users, carts, locations/buildings, and departments. You can print, download, and export detail history reports and the software holds up to 50,000 records. History tracking is available to check accountability of individual drawer inventory.
There are 10 standard colors and unlimited Pantone and RAL color options. The ABS thermoplastic countertop with molded edges is is all one continuous piece for optimal hygienic clean-up. You can specify handrails on all three sides, two, one, or none. The seamless shell body is constructed without any exposed holes for flush clean lines and more aesthetically-pleasing appearance. Spacious soft-close drawers elegantly glide shut for added convenience. Two self-closing side extension trays are included standard for additional counter space. MobileCare carts are manufactured from an aluminum cart body, high-impact plastic bumpers, and ABS countertop. All four wheels are fully rotating caster-type wheels with two locking and two non-locking casters. The 5-in/13-cm diameter 1-wheel casters offer features such as anti-static, total lock, and bead chain for static dissipation which provide easy mobility for smooth transport and nimble maneuvering (2-wheel casters are optional). The carts come standard with full wrap-around high-impact bumper trim, which extends beyond the handrails for complete protection. Versatile corner extrusion mounting provides easy optional accessory attachment and customized locations. A full range of accessories are available, including IV poles, sharps container holders, defibrillator shelves, cardiac boards, oxygen tank holders, 12-bin organizers, catheter holders, waste bins, and many more. The carts are made in the USA of American and foreign components and TAA compliant.
Note: Shipping, liftgate and inside delivery service are not included. Please provide your ZIP code so we can quote the exact shipping cost. For any questions, you can reach us at our Toll-Free number: 800 202 6207.
Features
Most advanced security level features in the medical cart market
3 lock types available: electronic (touchless RFID and touchscreen keypad), quick release, and keyed

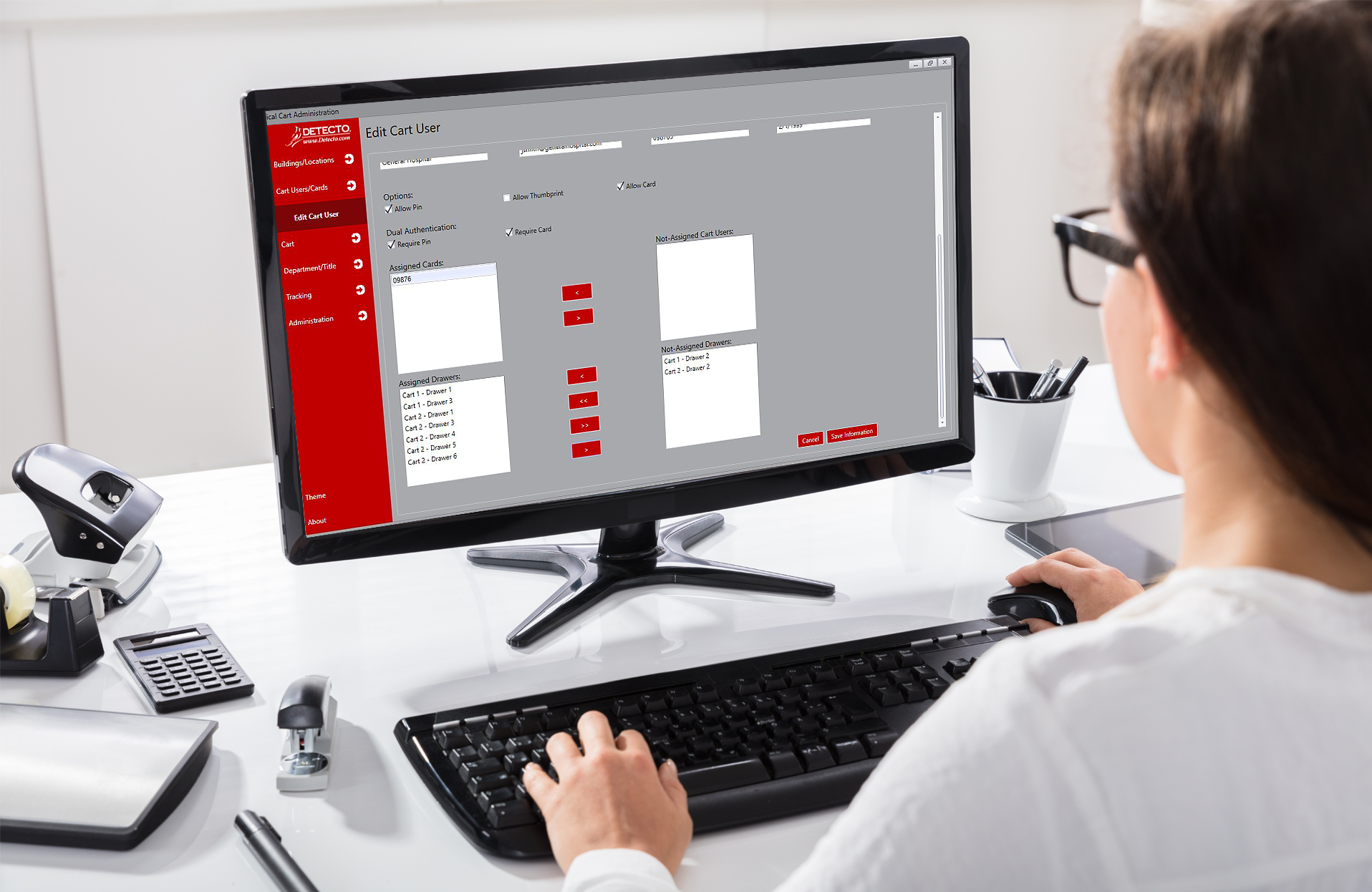

Powerful PC software included to manage your carts via secure Wi-Fi/Bluetooth
Detailed audit employee tracking to mitigate narcotics theft
One centralized point via the included PC software for all your employee access and updates
Nearly unlimited configuration possibilities available

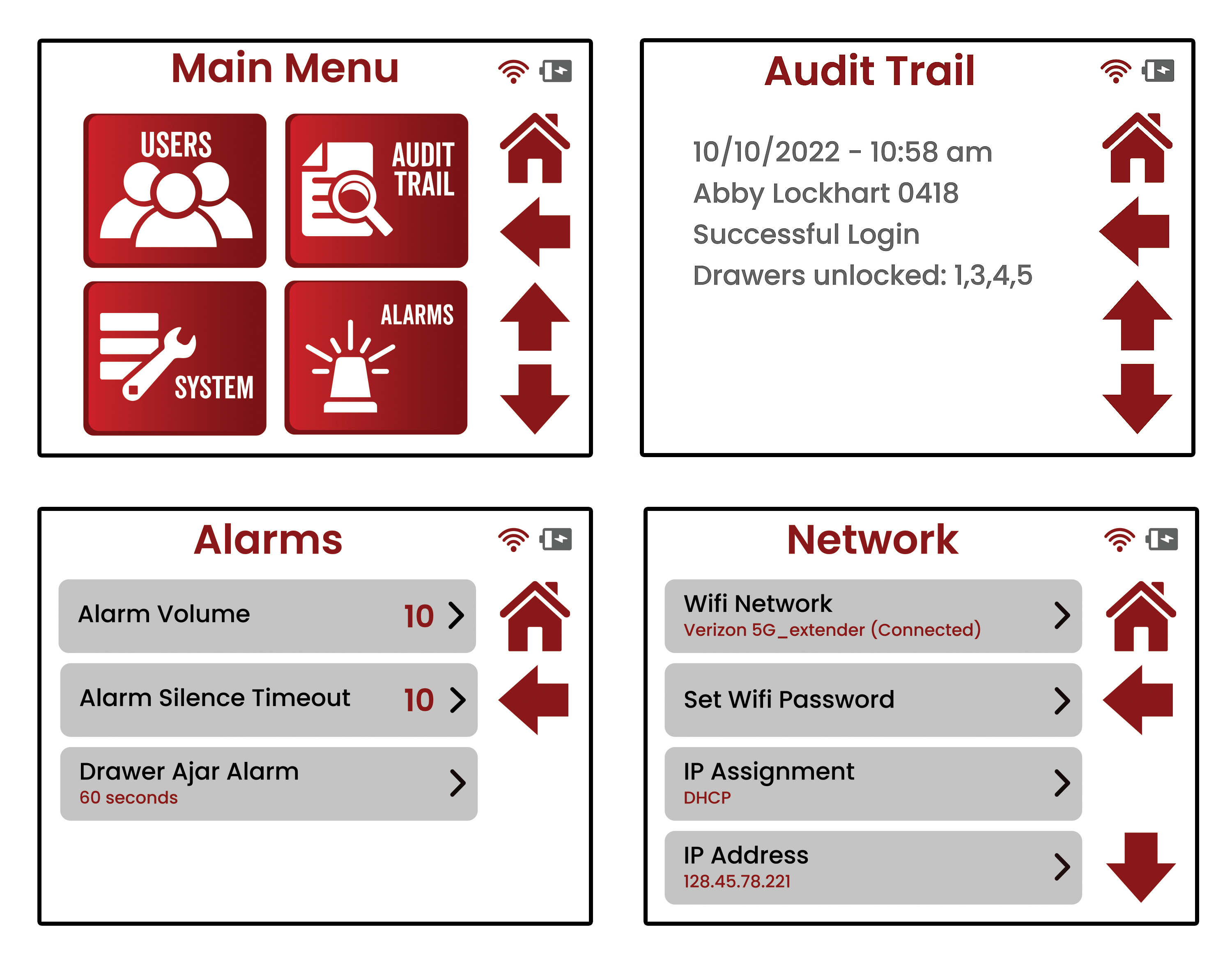

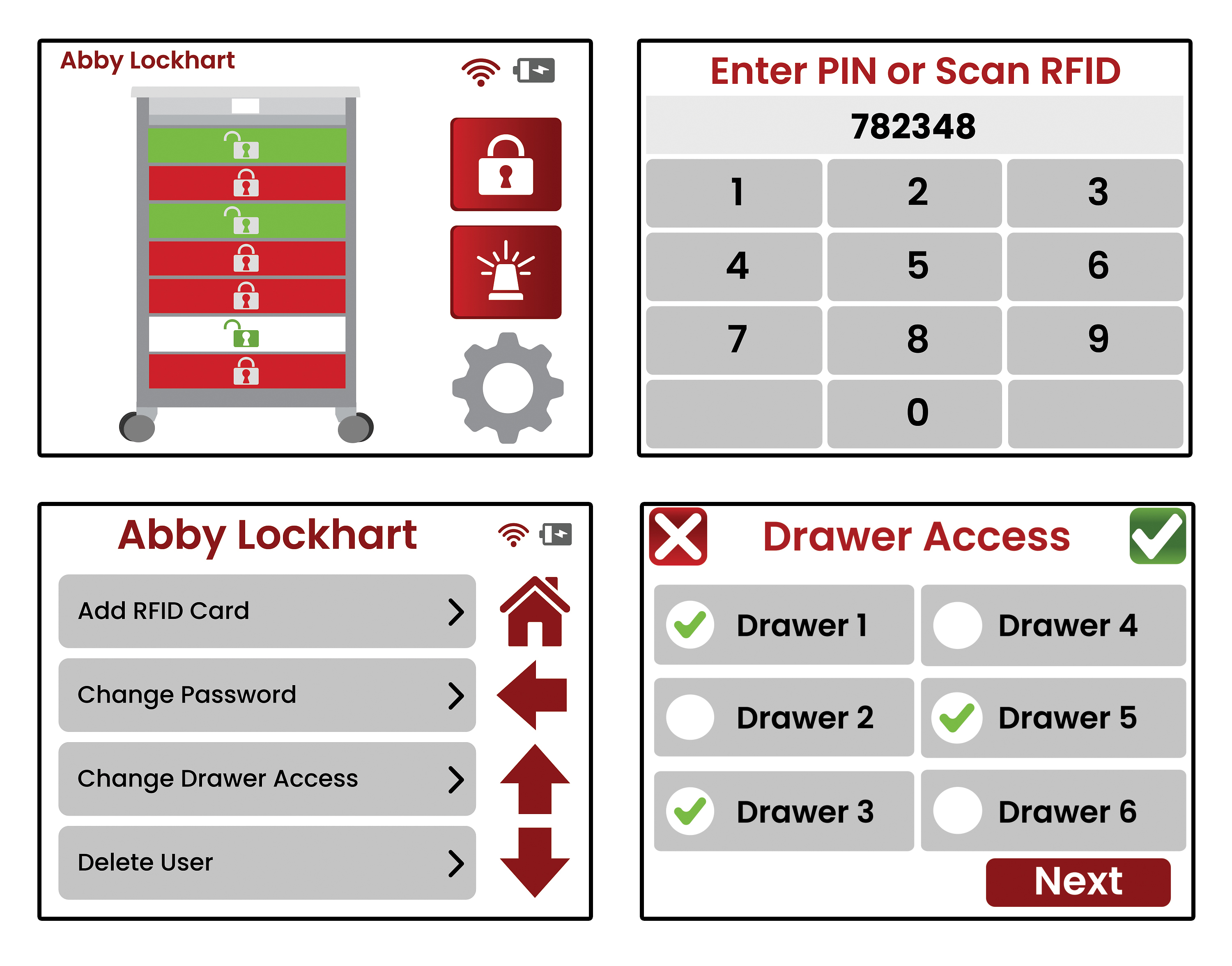

Full-color touchscreen LCD with graphical menus on electronic carts
Electronic cart alarms: audible alert (with timing settings) and e-mail/text notifications (up to 3 admins each)
3 different RFID frequencies available
Up to 5,000 users available per electronic cart
10 standard colors and unlimited Pantone and RAL color options
Unique quick release unlocking can save lives when a patient codes
Quick release plunger with breakaway plastic tags and red/green flag can be reset easily by biomed
Proprietary onboard and PC software developed by DETECTO
User setup at the cart or within Windows software

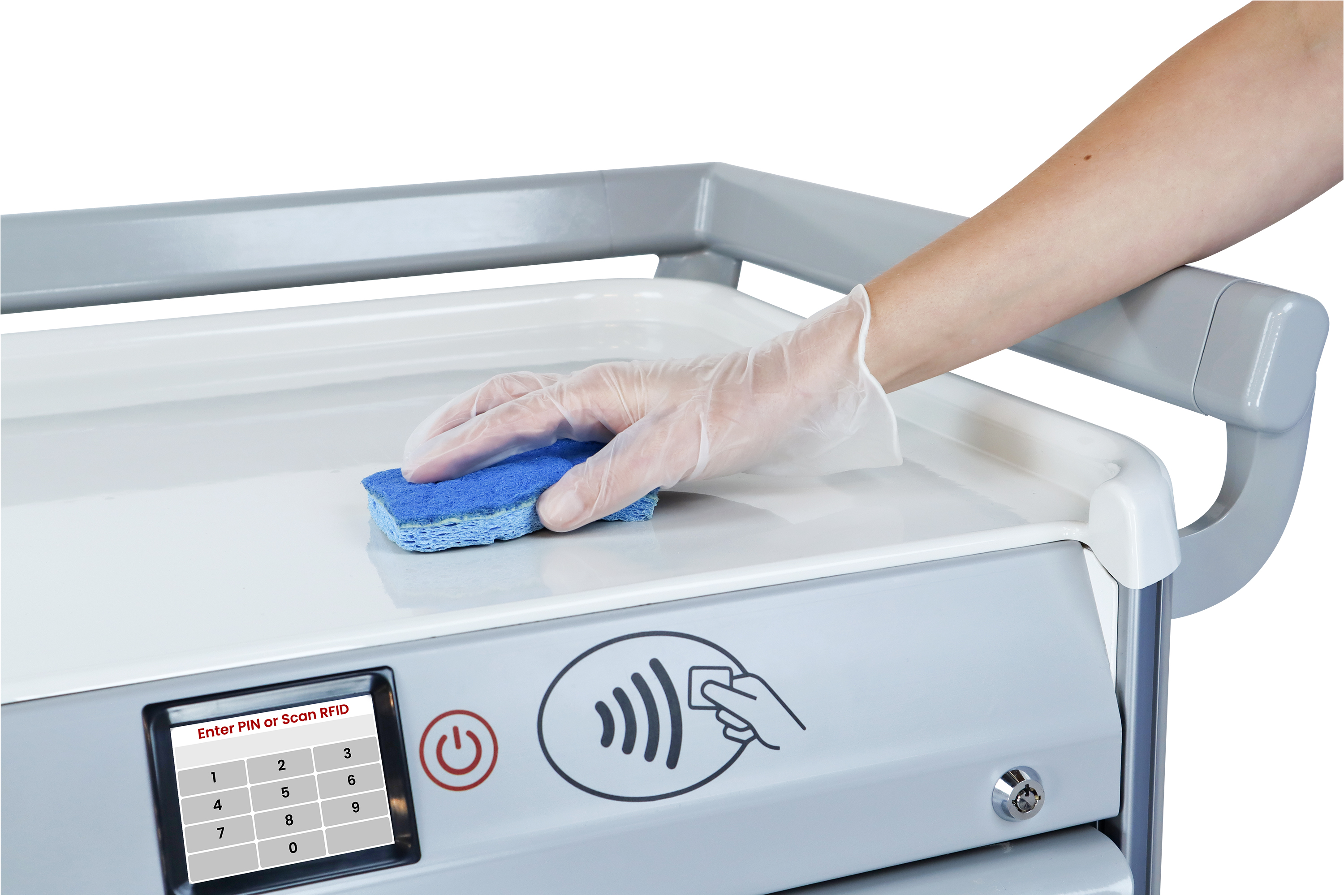

ABS thermoplastic countertop with molded edges that is all one continuous piece for optimal hygienic clean-up

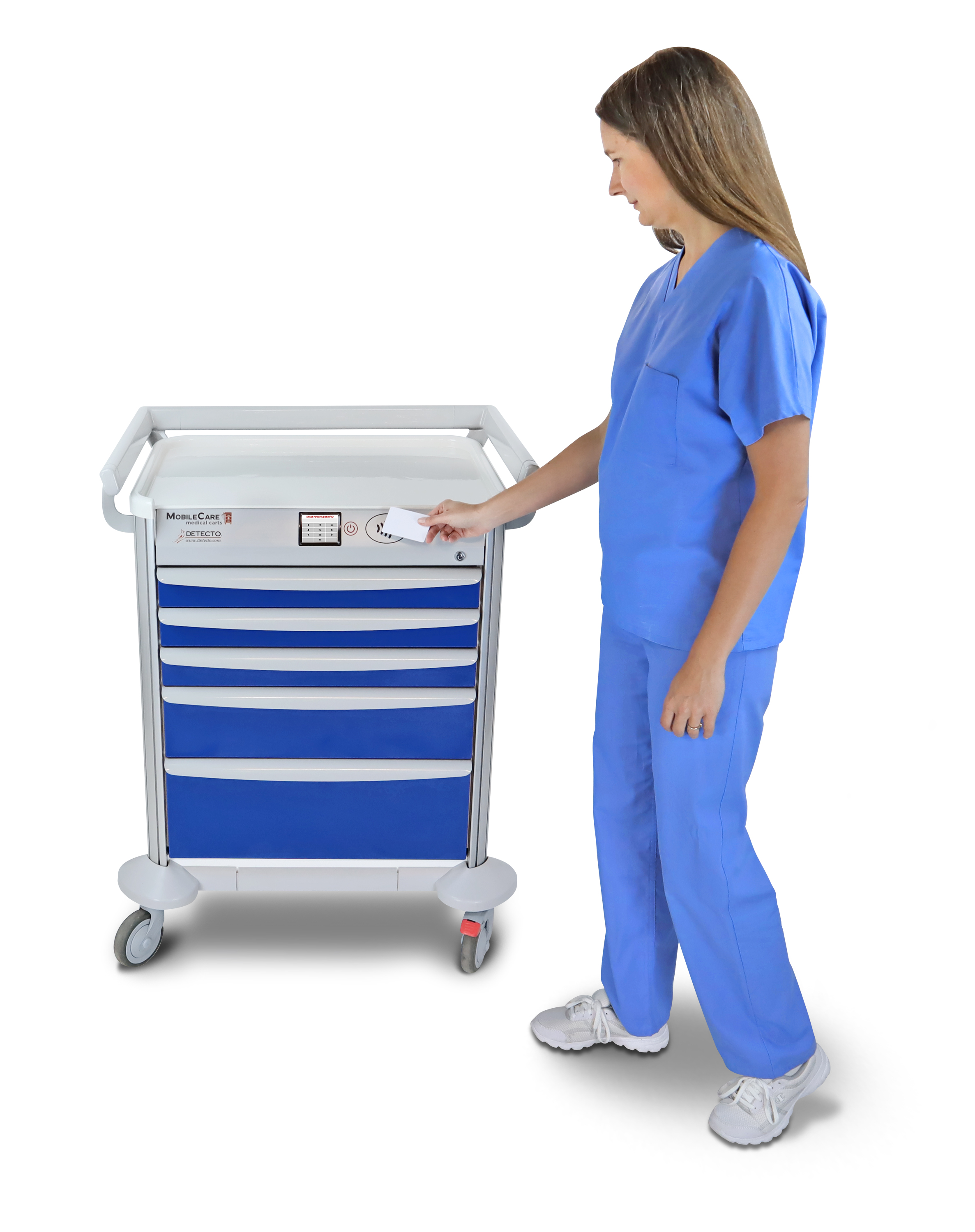

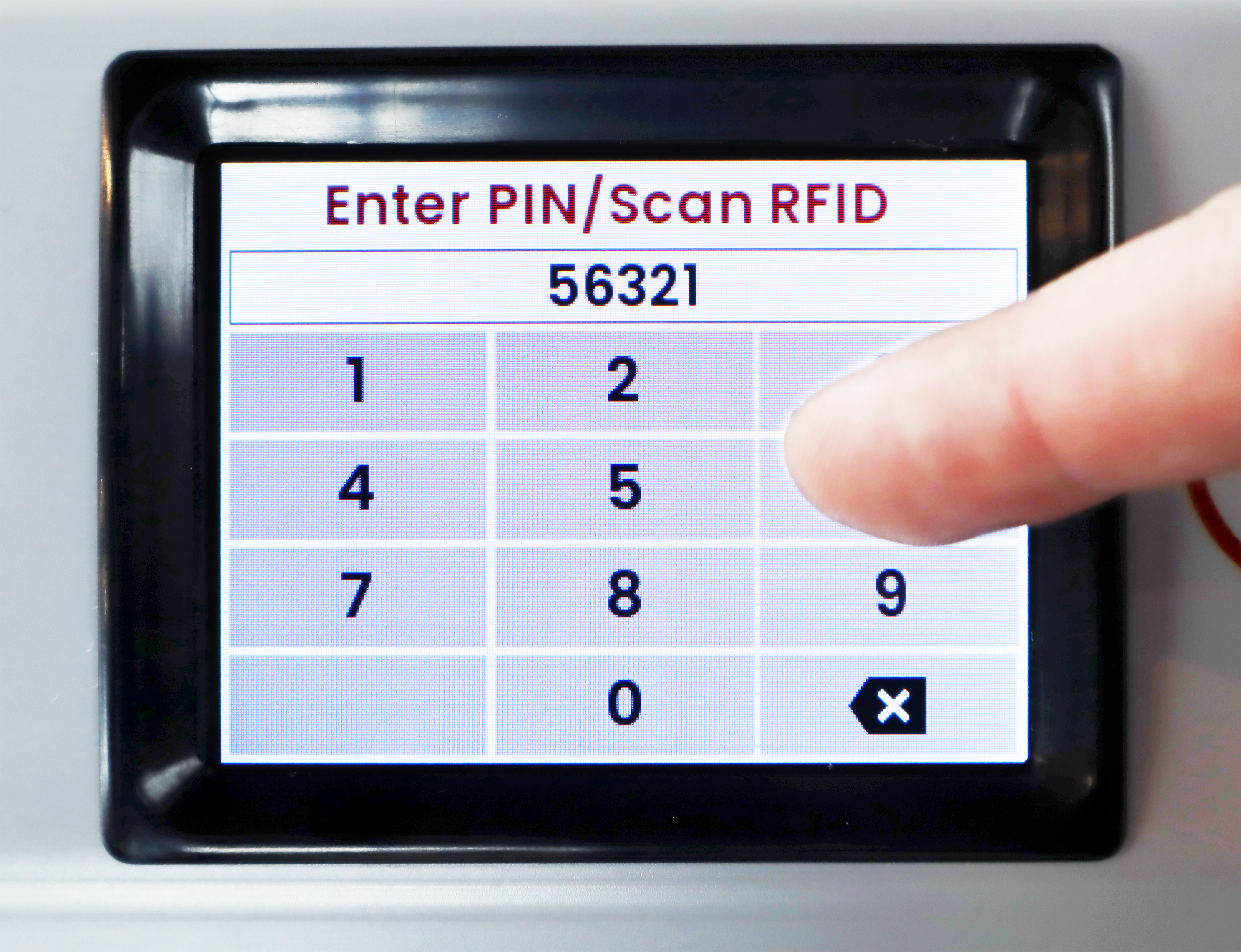

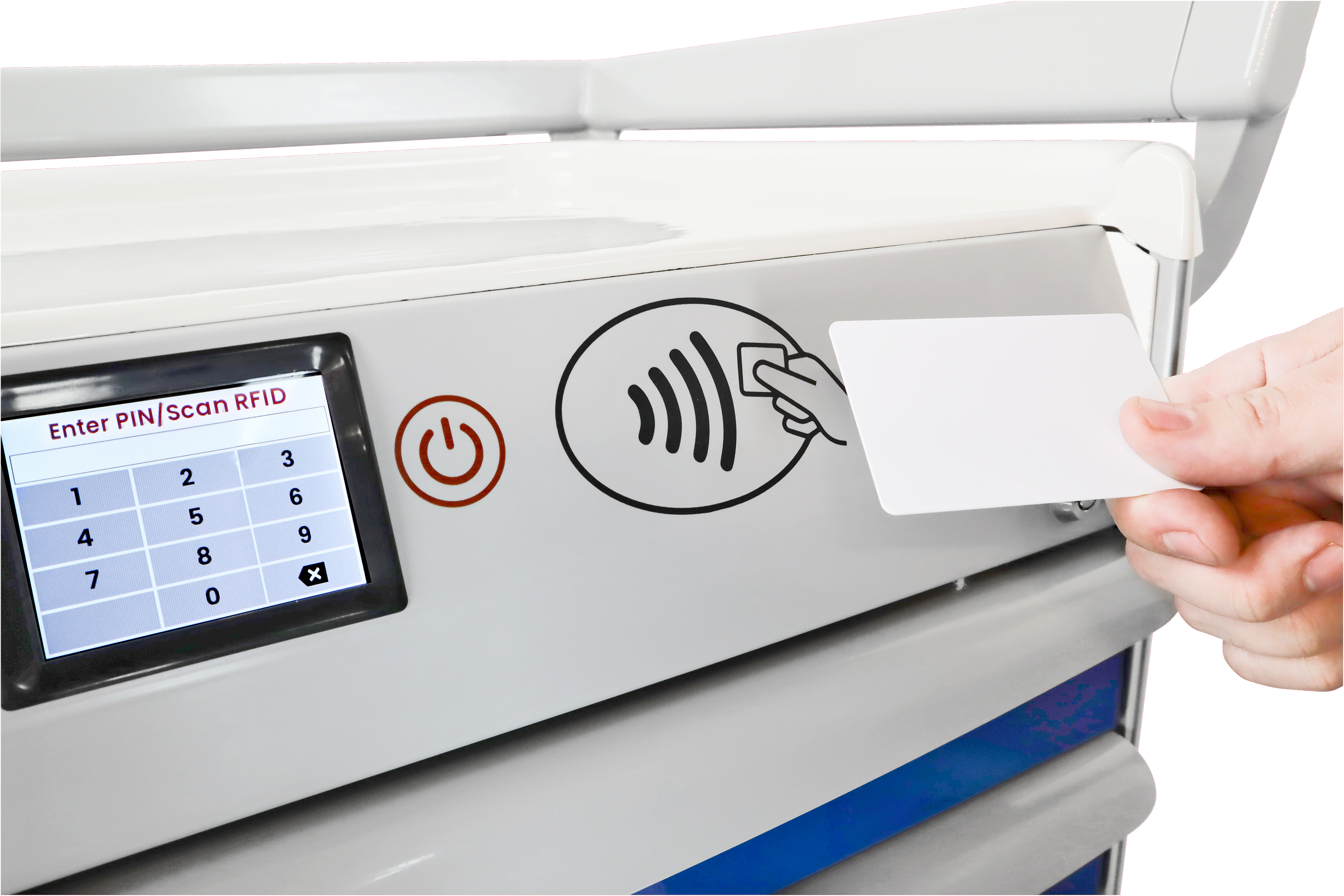

Dual authentication available in electronic carts: RFID and pin code touchscreen entry

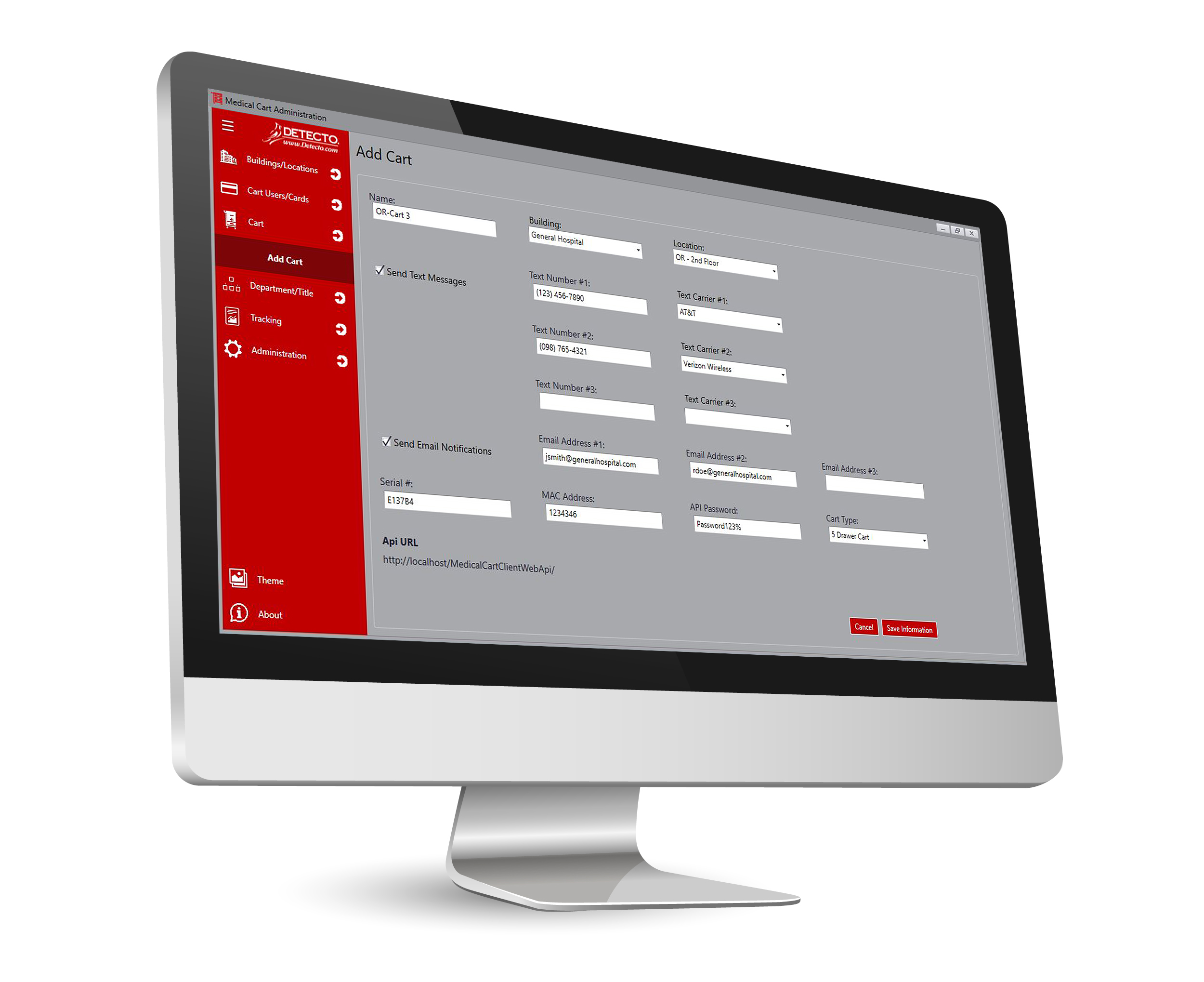

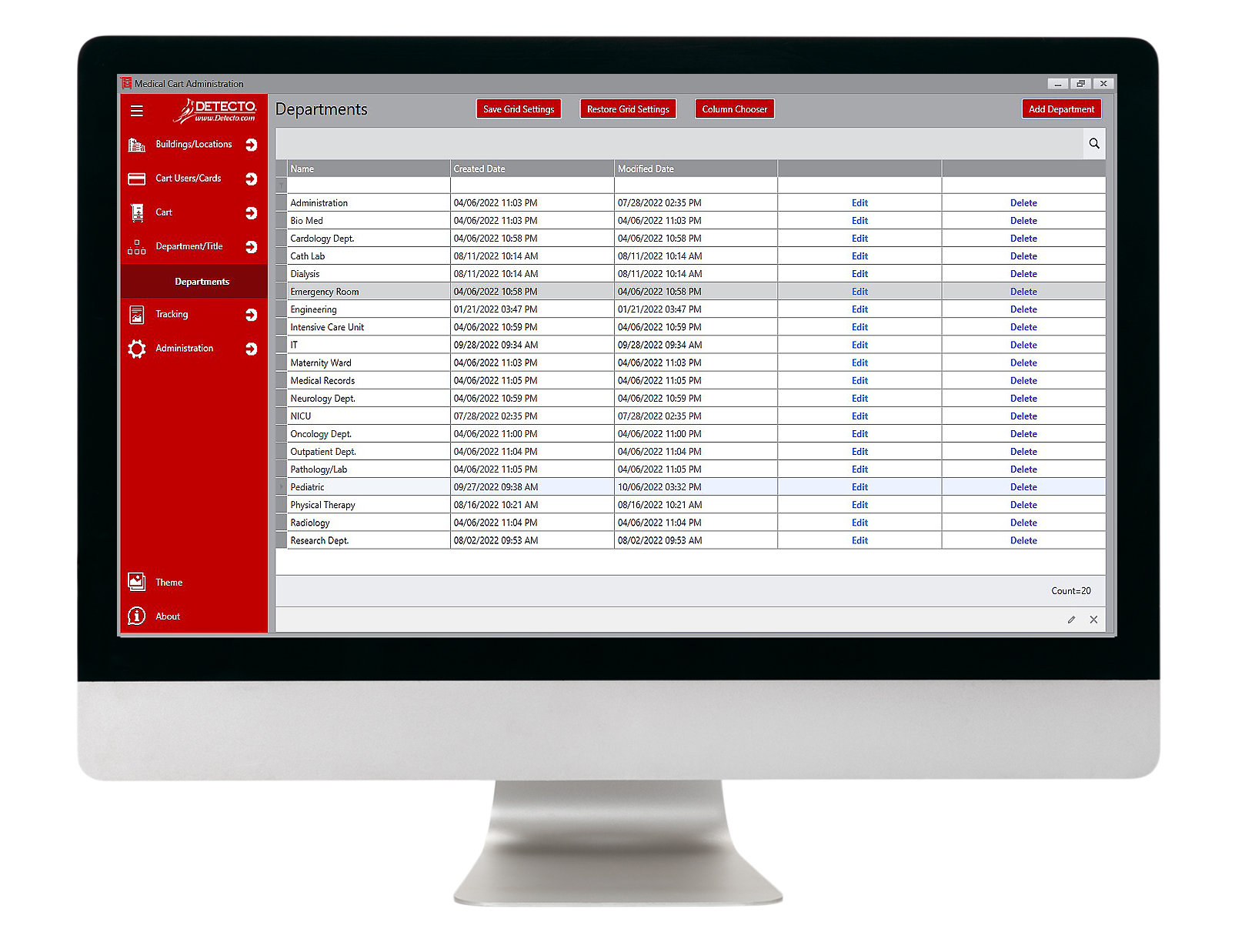

PC software allows you to update individual users, carts, locations/building, and departments

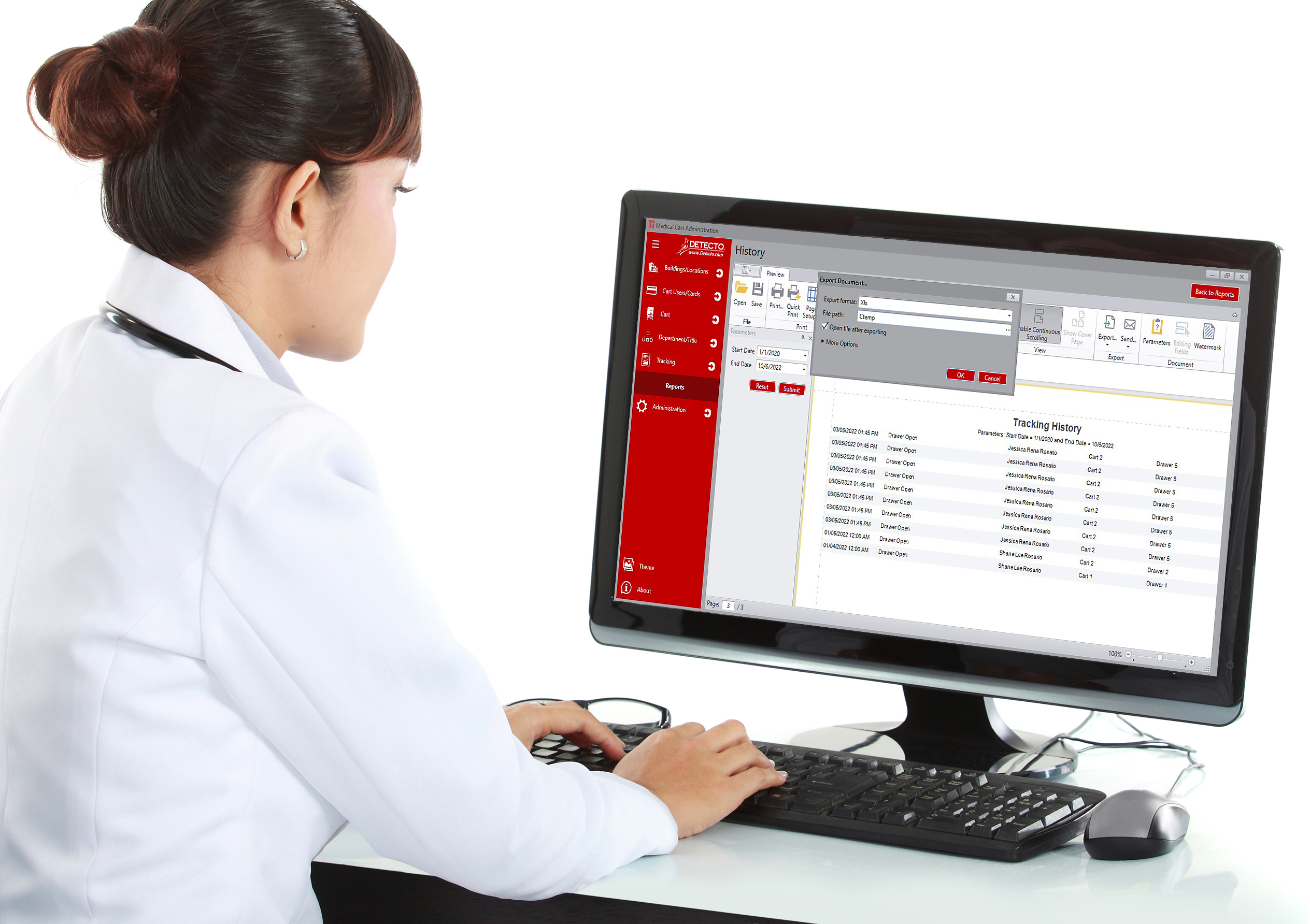

Included PC software allows you to print, download, and export detailed history reports (holds up to 50,000 records)
Tracking to check accountability of individual drawer inventory

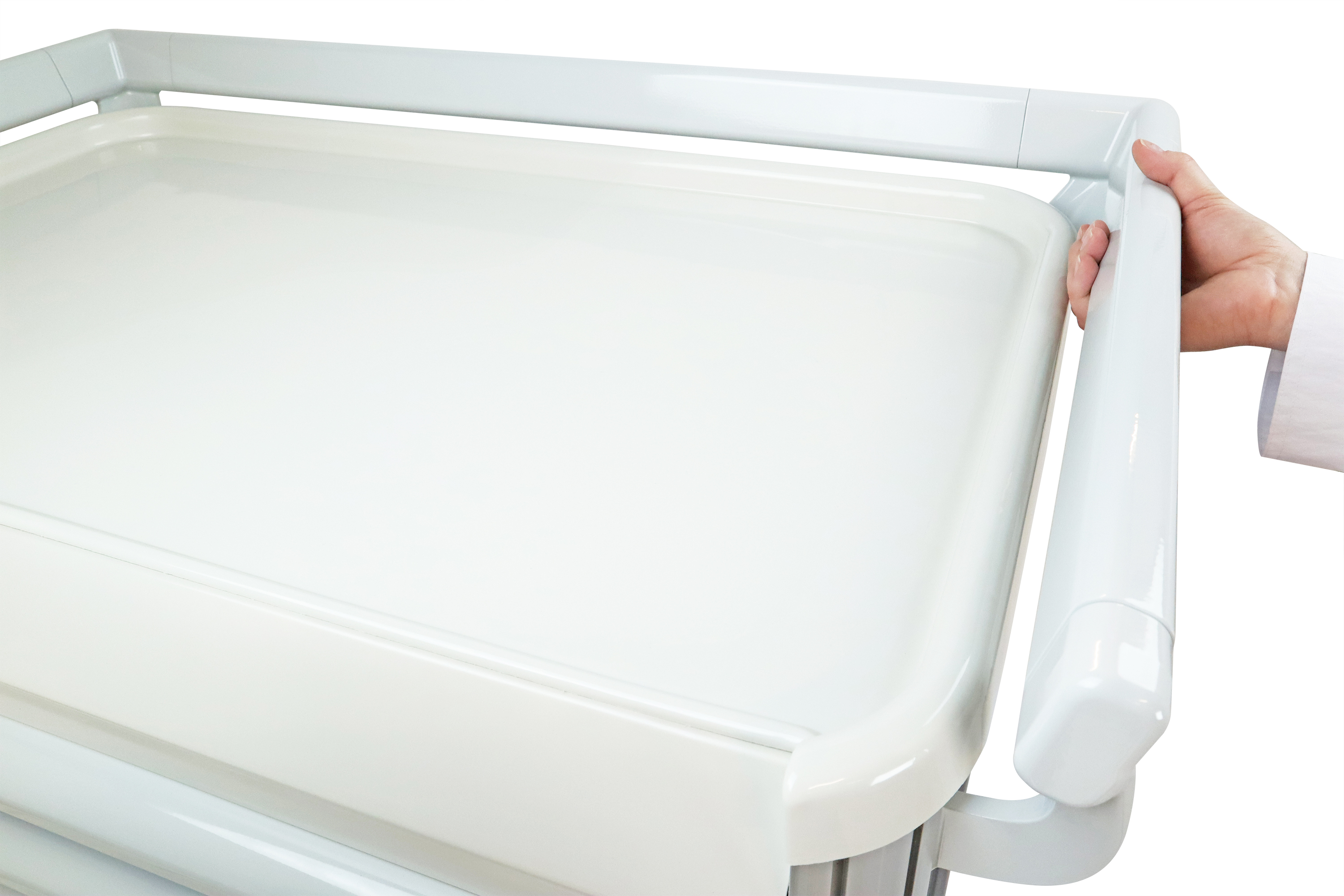

Multiple handrail configurations: all three sides, two, one, or none

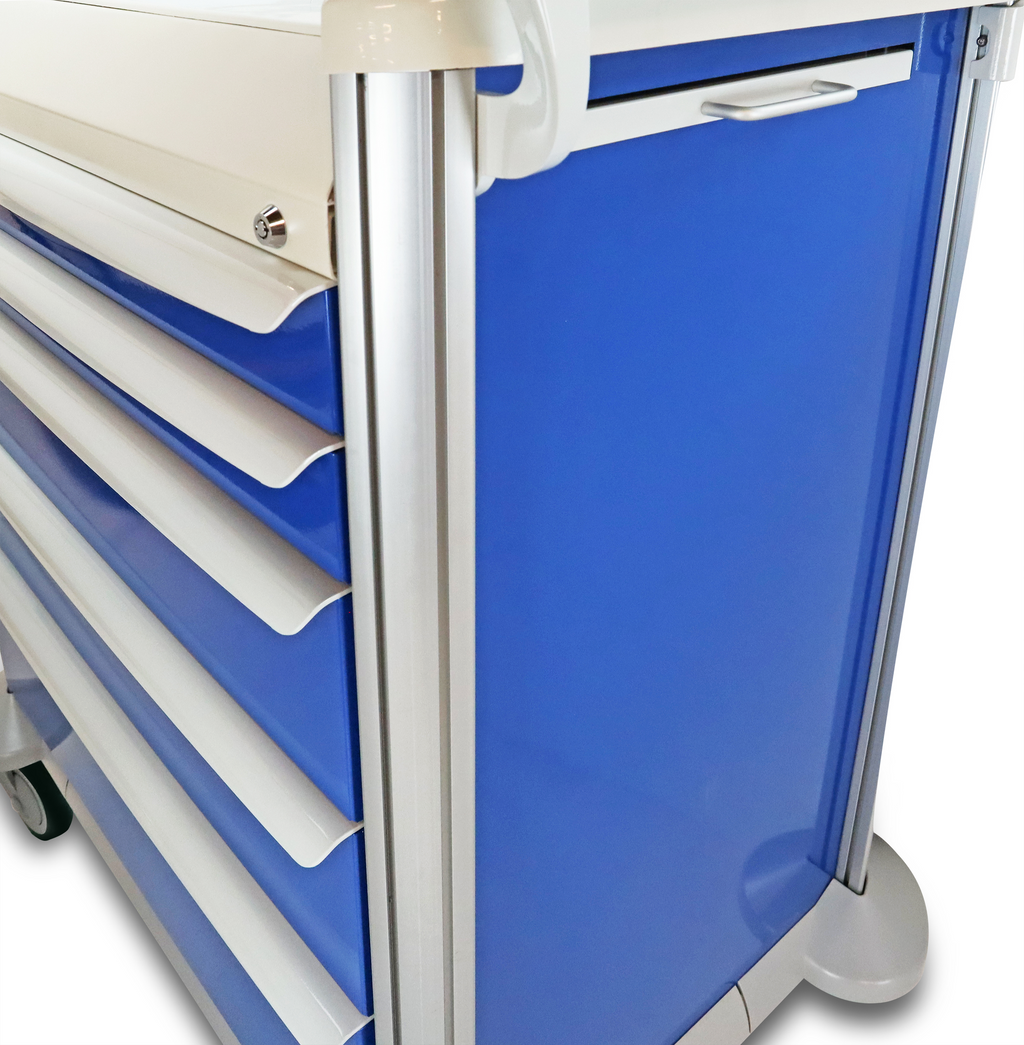

Seamless shell body without any exposed holes for flush clean lines and more aesthetically pleasing appearance

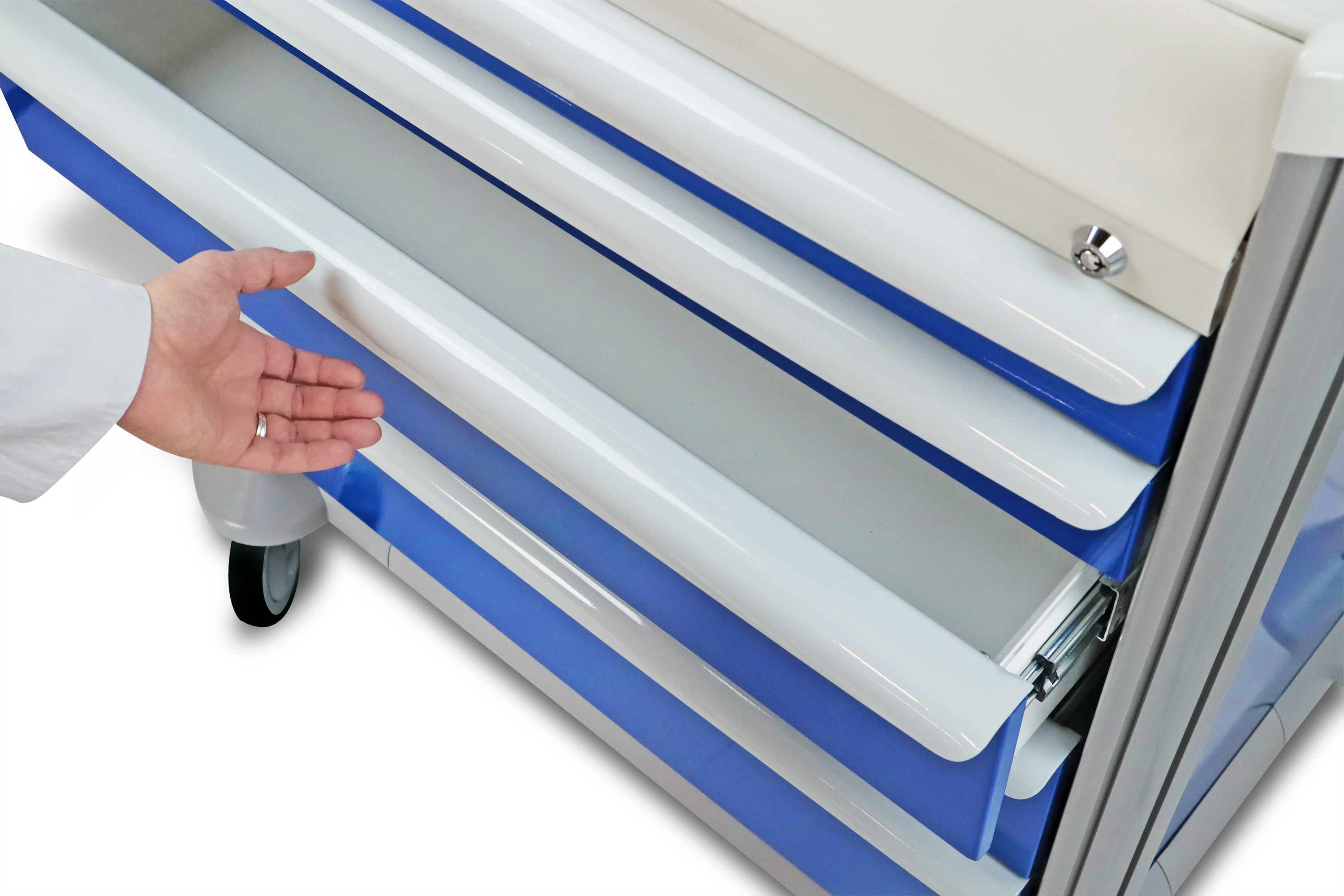

Spacious soft-close drawers elegantly glide shut for convenience
Aluminum cart body, high-impact plastic bumpers, and ABS countertop

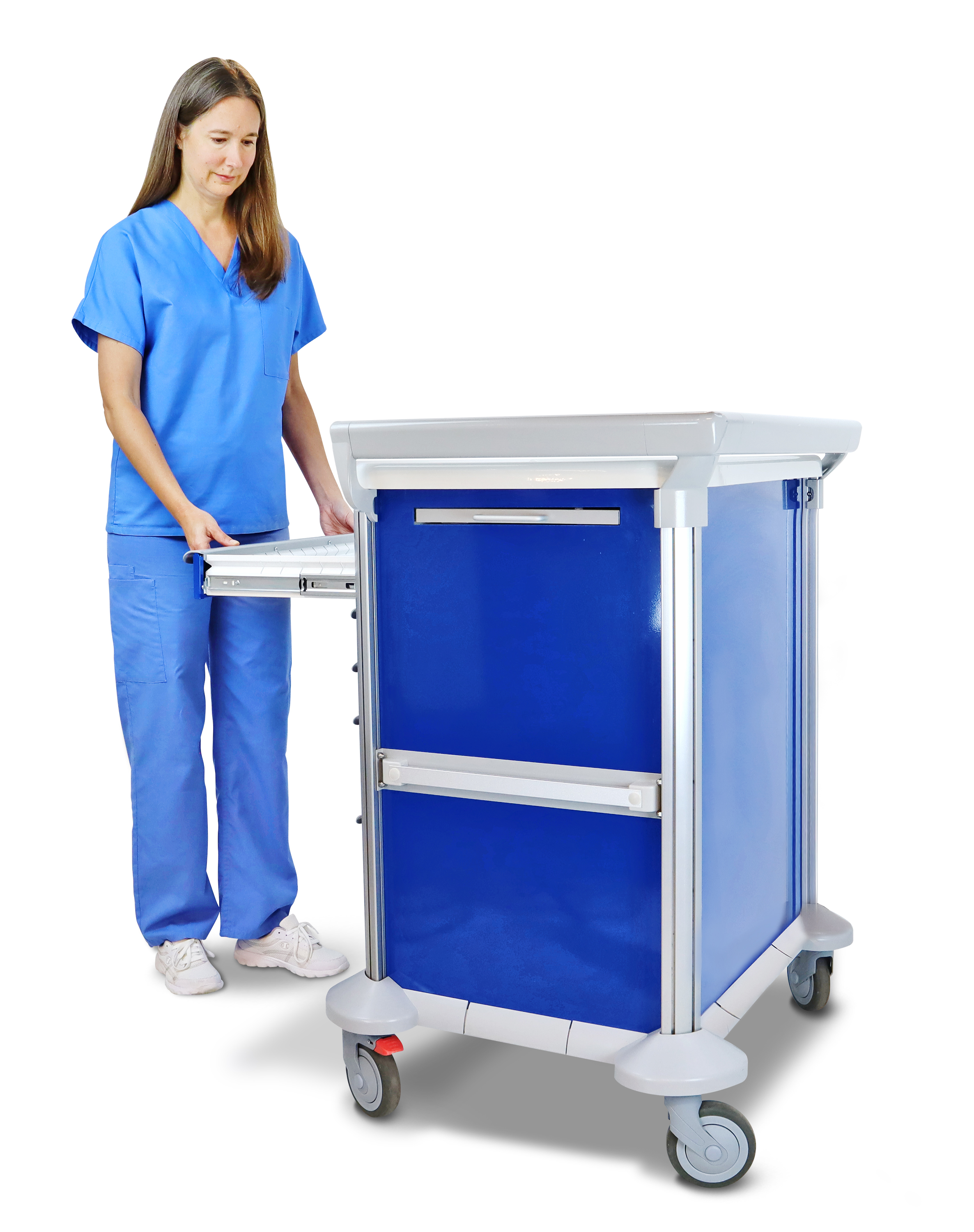

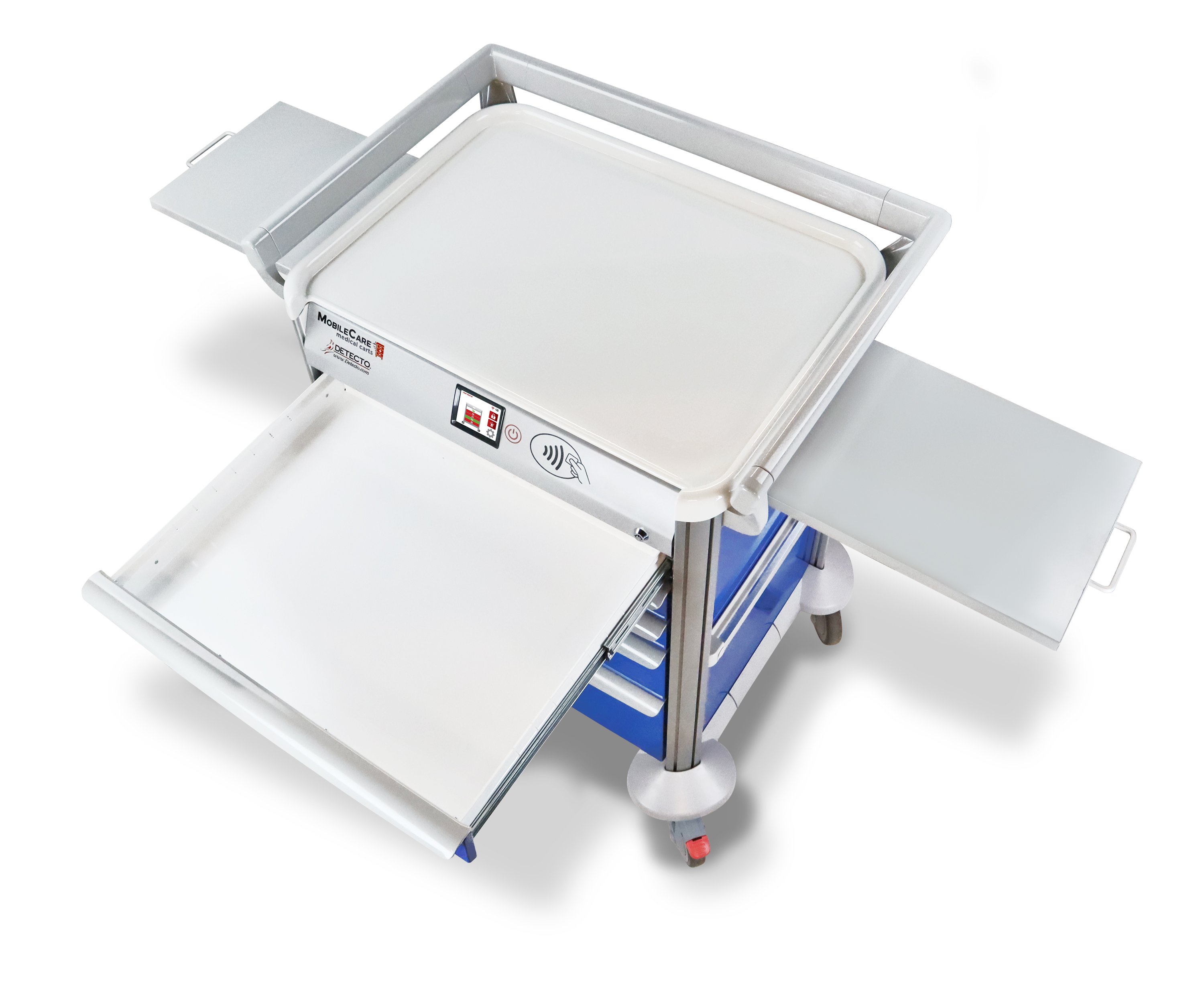

Two self-closing side extension trays included standard for additional counter space
Standard full wrap-around high-impact bumper trim

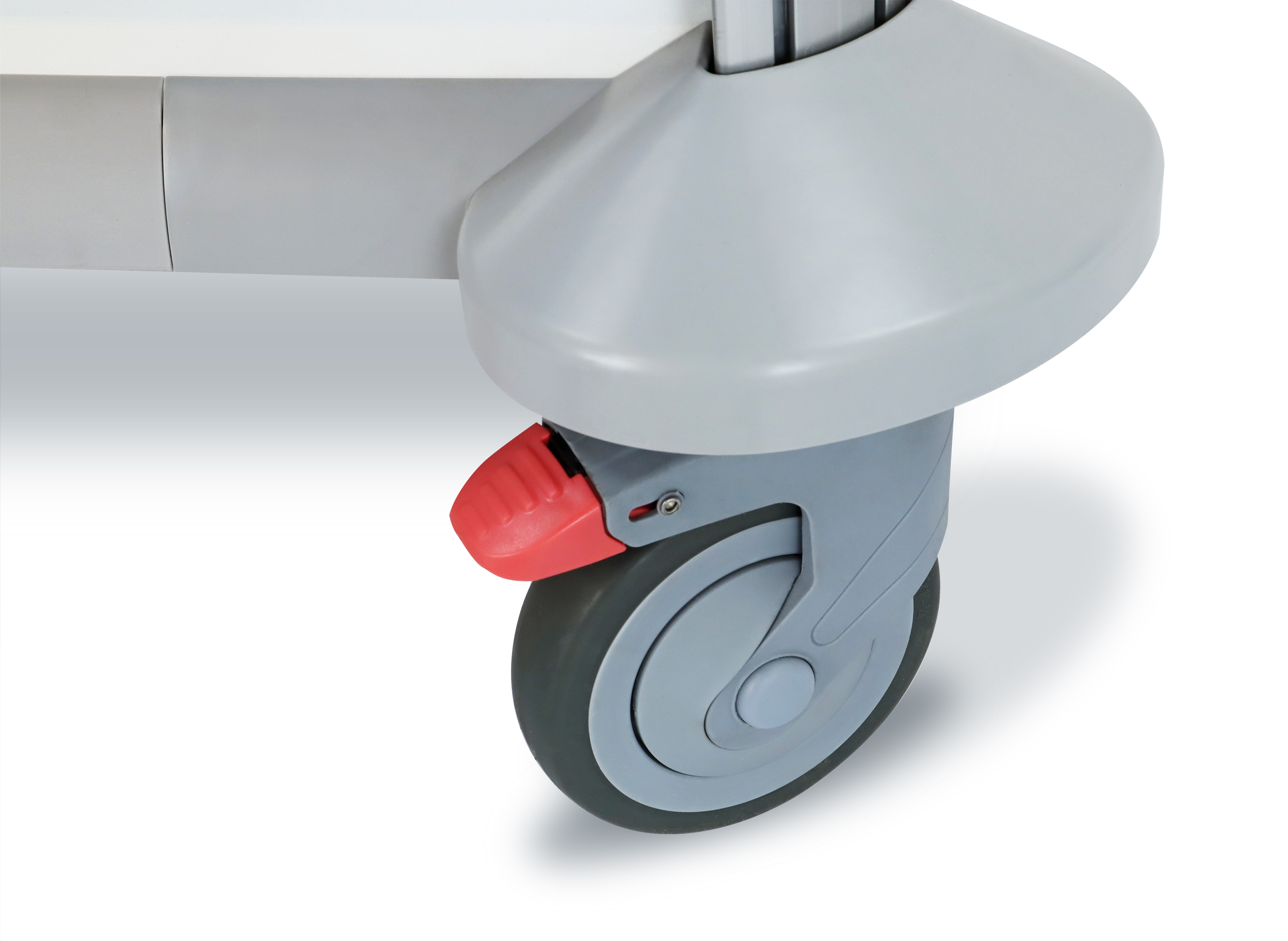

All four wheels are fully rotating caster-type wheels with two locking and two non-locking casters
5-in/13-cm diameter 1-wheel casters with features such as anti-static, total lock, and bead chain for static dissipation provide easy mobility for smooth transport and nimble maneuvering (2-wheel casters are optional)
Versatile corner extrusion mounting for easy optional accessory attachment with customized locations

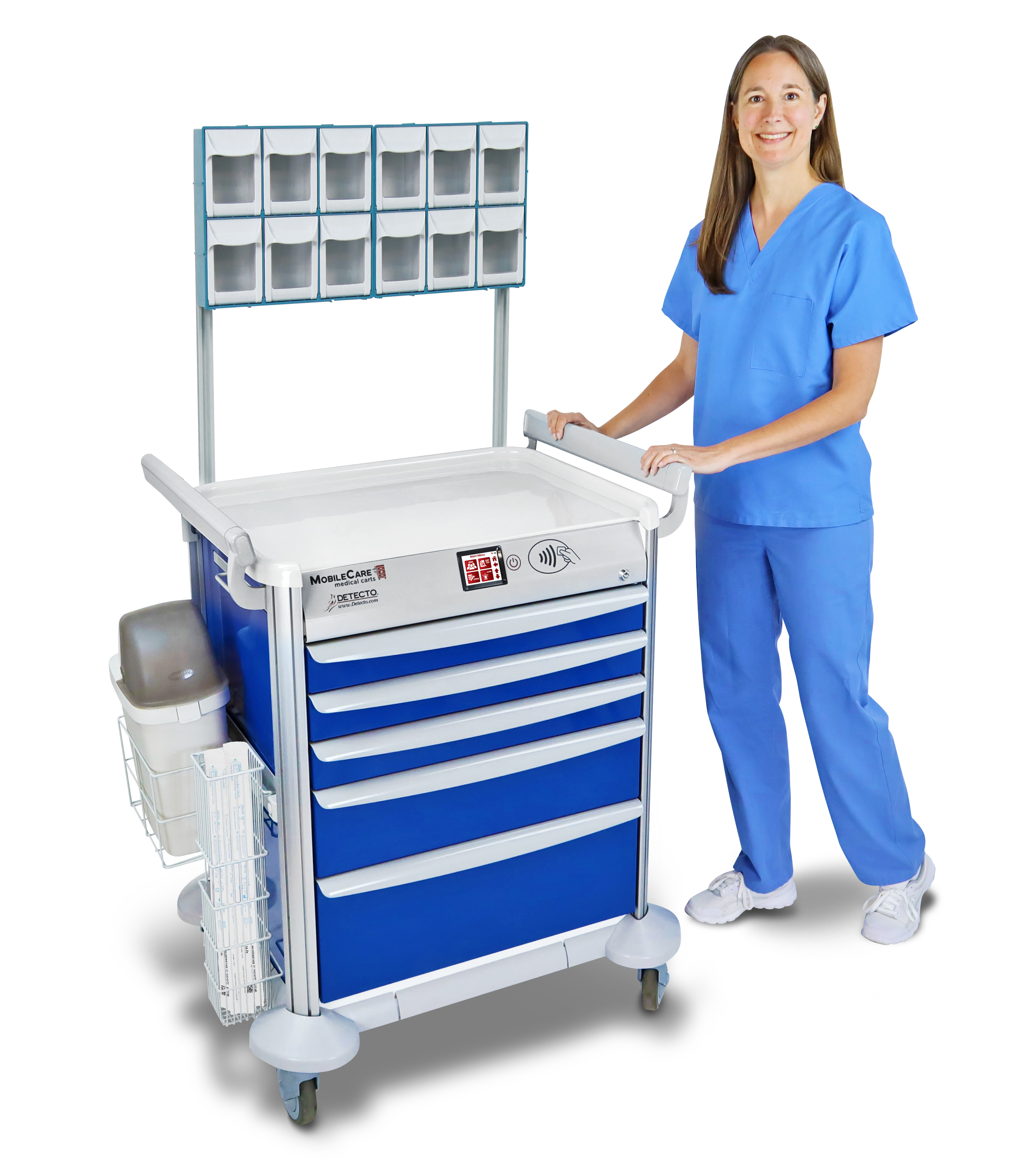

Full range of accessories available: IV pole, sharps container holder, defibrillator shelf, cardiac board, oxygen tank holder, 12-bin organizer, catheter holder, waste bin, and many more
Electronic cart unlocking with one lock and individual drawer sensors, individual drawer locks and individual drawer sensors, or simply one lock
12 Alkaline or rechargeable D batteries
Made in USA (of American and foreign components): TAA compliant
The most robust cart customization on the market to fit your needs
Specifications
Overall Dimensions (Height includes handrail; width & depth to edge of bumpers)
• 16.5 in drawers: 43.9 in H × 27.0 in W × 26.7 in D (111.5 cm × 68.6 cm × 67.8 cm)
• 23 in drawers: 43.9 in H × 33.5 in W × 26.7 in D (111.5 cm × 85.1 cm × 67.8 cm)
• 29 in drawers: 43.9 in H × 39.5 in W × 26.7 in D (111.5 cm × 100.3 cm × 67.8 cm)
Box Dimensions
• 16.5 in drawers: 27.0 in H × 16.5 in W × 18.0 in D (68.6 cm × 41.9 cm × 45.7 cm)
• 23 in drawers: 27.0 in H × 23.0 in W × 18.0 in D (68.6 cm × 58.4 cm × 45.7 cm)
• 29 in drawers: 27.0 in H × 29.0 in W × 18.0 in D (68.6 cm × 73.7 cm × 45.7 cm)
Available Color Finish
• 10 standard colors
• Optional: All Pantone & RAL colors
Handrails
• Options: 0 to 3 (None, Back Only, Both Sides, Back and Both Sides)
Top Work Surface Dimensions
• 16.5 in drawers: 20.6 in W × 19.0 in D (52.3 cm × 48.2 cm)
• 23 in drawers: 27.1 in W × 19.0 in D (68.8 cm × 48.2 cm)
• 29 in drawers: 33.1 in W × 19.0 in D (84.1 cm × 48.2 cm)
Drawer Configuration (Height Options)
• 3 in (7.6 cm)
• 6 in (15.2 cm)
• 9 in (22.9 cm)
• 12 in (30.5 cm)
Drawer Internal Dimensions
• Width × Depth
• 16.5 in drawers: 16.4 in × 17.9 in (41.7 cm × 45.5 cm)
• 23 in drawers: 22.9 in × 17.9 in (58.2 cm × 45.5 cm)
• 29 in drawers: 28.9 in × 17.9 in (73.4 cm × 45.5 cm)
• Height
• 3 in drawers: 2.6 in (6.6 cm)
• 6 in drawers: 5.6 in (14.2 cm)
• 9 in drawers: 8.6 in (21.8 cm)
• 12 in drawers: 11.6 in (29.5 cm)
Drawer Weight Capacity
• 3 in, 6 in, 9 in drawers: 50 lb (22 kg)
• 12 in drawers: 100 lb (45 kg)
Wheels
• Diameter: 5 in (12.7 cm), anti-static 1-wheel casters
• Two locking casters, two non-locking casters (2-wheel casters optional)
Operating Environment
• Temperature: 14 to 104 ºF (-10 to +40 ºC)
• Humidity: 0 to 90% non-condensing
Storage Environment
• Temperature: -4 to 176 ºF (-20 to +80 ºC)
• Humidity: 0 to 95%
Country of Origin
• USA
Lock Types Available

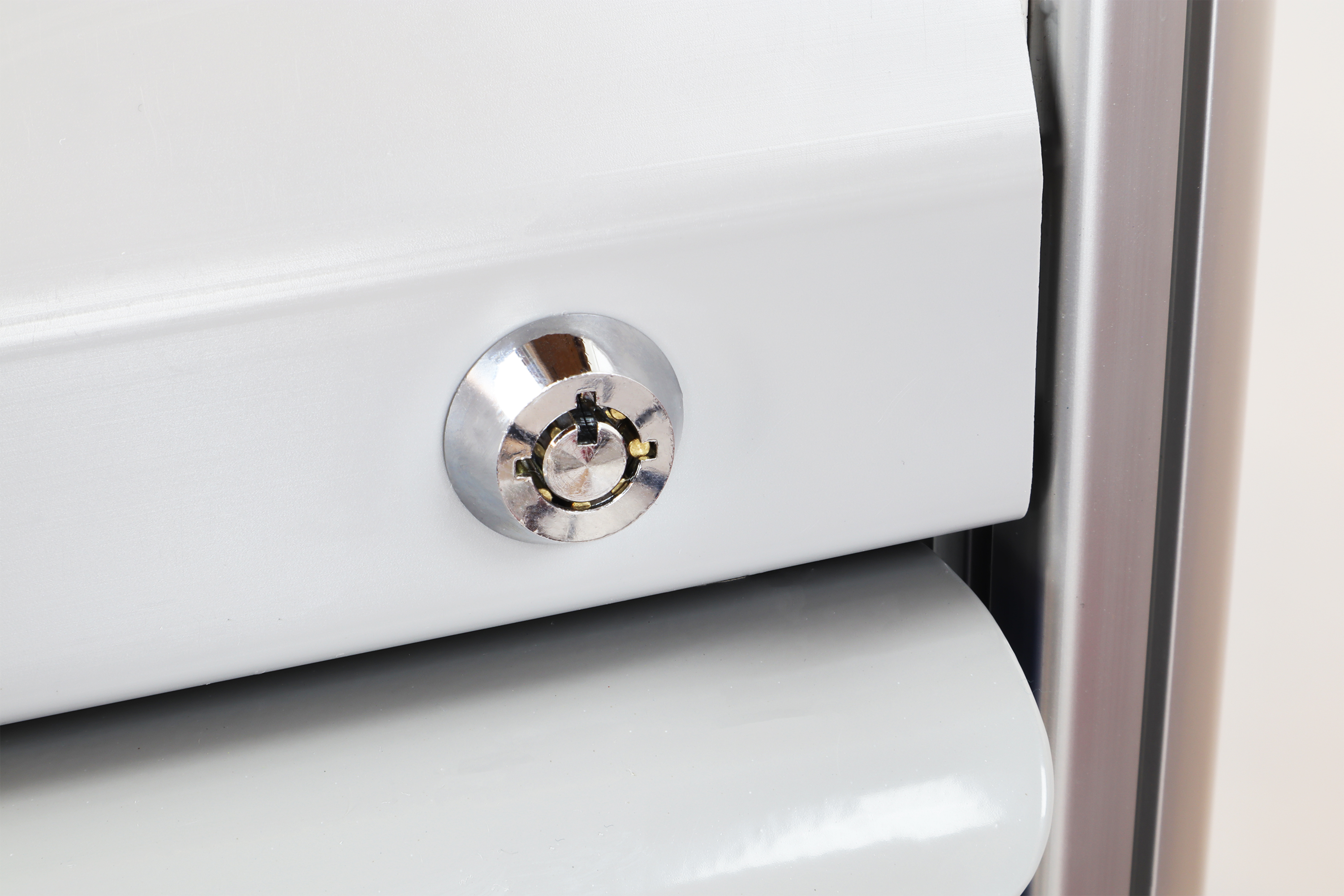

• Keyed Lock
• Quick Release
• Electronic, Standard Lock
• Electronic, Standard Lock with Individual Drawer Sensors
• Electronic, Individual Drawer Lock with Individual Drawer Sensor
PC Software Requirements
• Windows 10 or greater / Windows Server 2016 or greater + SQL Express
• Hardware (SQL Express)
• Hard Disk: ≥6 GB free space
• Memory: 1 GB recommended
• Processor: 2.0 GHz or faster
• Monitor: Super-VGA (800 × 600) or higher
• Internet: For online functionality (fees may apply)
Capacity
• Cart Users: 5,000
• PC Software Records: 50,000 in audit trail
Power Requirements
• 100–240V AC universal switching power supply
• Or 12 “D” cell Alkaline, Ni-Cad, or NiMH batteries (not included)
Battery Runtime
• 45 days with Alkaline batteries
• 30 days per charge with 10,000mAh NiMH battery
• Based on 20 unlock/lock cycles/day & 5 min active/hour
• Recharge Time: 40 hours for fully depleted 10,000mAh batteries
Net Weight
• 16.5 in Drawer Models: 148 lb (67.1 kg)
• 23 in Drawer Models: 163 lb (73.9 kg)
• 29 in Drawer Models: 188 lb (85.3 kg)
Shipping Weight
• 16.5 in Drawer Models: 203 lb (92.1 kg)
• 23 in Drawer Models: 218 lb (98.9 kg)
• 29 in Drawer Models: 243 lb (110.2 kg)
