Description
Hillrom Welch Allyn Connectors & Adaptors
Welch Allyn Connectors and Adapters are designed to ensure secure, leak-free connections between blood pressure cuffs, inflation systems, and monitoring devices. These high-quality OEM parts help maintain accuracy, compatibility, and durability in clinical environments.
| SKU | Product Description | Key Technical Details |
| Welch Allyn/Hillrom-5082-195 | FlexiPort BP Port Fitting for Large Bulb | 2-Tube Barb style; Pack of 10; Designed for high-volume inflation systems. |
| Welch Allyn/Hillrom-5082-159 | FlexiPort BP Cuff Wash Cap | Protective cap for automated washing; Ensures internal bladder stays dry. |

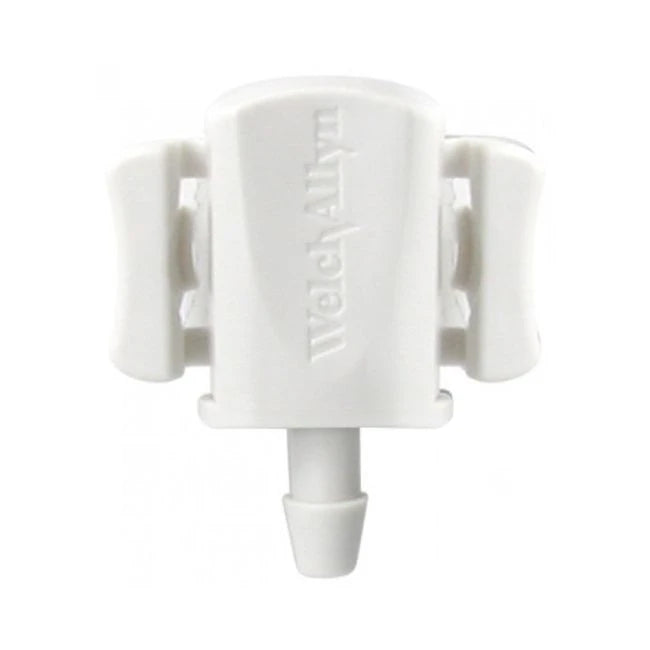

| Welch Allyn/Hillrom-PORT-1 | FlexiPort Standard Fitting 1-Tube | Single tube port adapter; Pack of 10; Standardizes cuff connections. |
| Welch Allyn/Hillrom-PORT-2 | FlexiPort Standard Fitting 2-Tube | Dual tube port adapter; Pack of 10; Converts cuffs for 2-tube monitors. |
| Welch Allyn/Hillrom-2-BVSC | FlexiPort Premium Valve and Small Clamp | 2-Tube configuration; Tri-Purpose connector; Pack of 10; Includes inflation clamp. |
| Welch Allyn/Hillrom-1-HP | FlexiPort Bayonet Connector | 1-Tube Bayonet style; Pack of 10; Secure push-and-twist locking mechanism. |
| Welch Allyn/Hillrom-1-MQ | FlexiPort Locking Connector 1-Tube | Single tube subminiature locking style; Pack of 10; High-security fit. |
| Welch Allyn/Hillrom-1-SC | FlexiPort Screw Connector 1-Tube | 1-Tube threaded screw style; Pack of 10; Eliminates accidental disconnects. |
| Welch Allyn/Hillrom-2-SC | FlexiPort Screw Connector 2-Tube | 2-Tube threaded screw style; Pack of 10; For heavy-duty monitoring leads. |
| Welch Allyn/Hillrom-2-TP | FlexiPort Tri-Purpose Connector | 2-Tube Tri-Purpose style; Pack of 10; Universal monitor compatibility. |

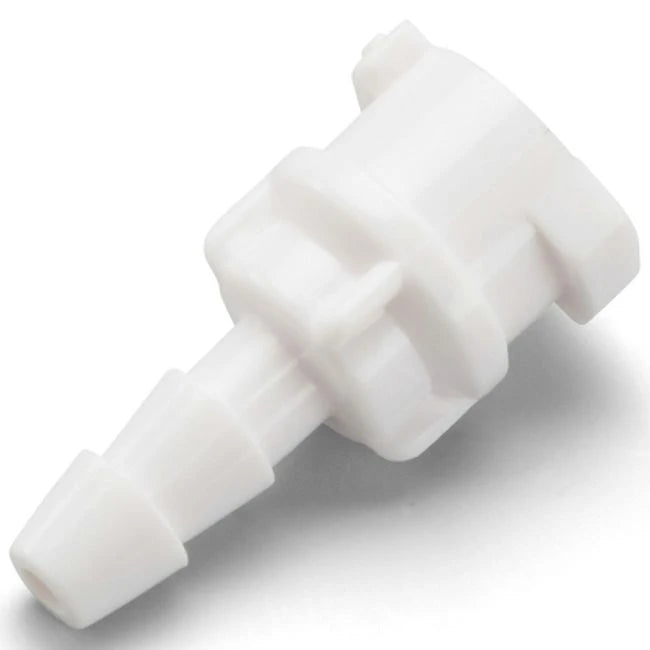

| Welch Allyn/Hillrom-5082-191 | FlexiPort Plastic Locking Connector | 1/8" to 5/32" sizing; Pack of 10; Transitions varied tubing diameters. |
| Welch Allyn/Hillrom-2-SRC | FlexiPort Tri-Purpose Cuff Connector | Specifically for BP cuff integration; Pack of 10; Streamlines workflow. |
| Welch Allyn/Hillrom-1-BARB | FlexiPort Hose Barb Adapter | 1-Tube Barb to Port adapter; Pack of 10; Standardizes loose tubing. |
| Welch Allyn/Hillrom-1SRCL | Large Inflation Bulb to DuraShock Adapter | 1-Tube; Includes premium valve; Connects large bulbs to Classic gauges. |
| Welch Allyn/Hillrom-2-BVL | FlexiPort 2-Tube Large Bulb Set | Includes 8" and 13" tubes; Premium valve and Tri-Purpose connector. |
| Welch Allyn/Hillrom-1-TPS | FlexiPort 24-inch Tri-Purpose Tube Set | 1-Tube; 24" length; Includes 5082-168 connectors; Pack of 10. |

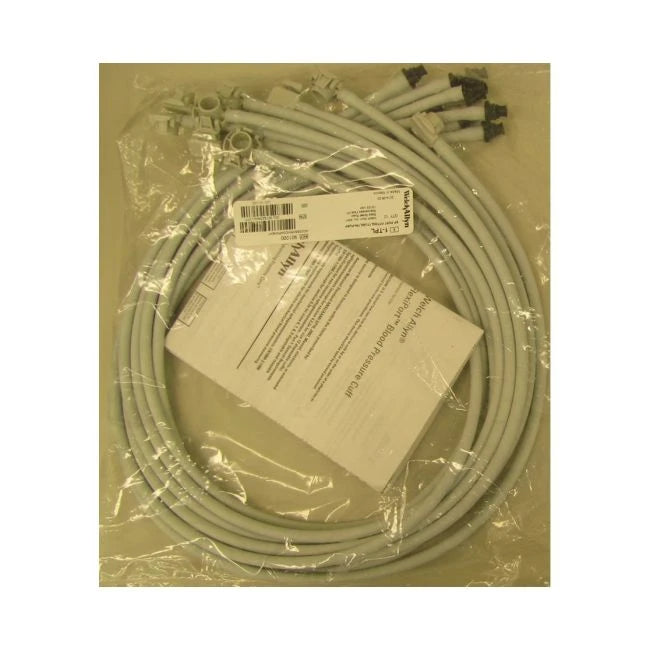

| Welch Allyn/Hillrom-1-TPL | FlexiPort 31.5-inch Tri-Purpose Tube Set | 1-Tube; 80cm extended length; For distant monitor placement. |
| Welch Allyn/Hillrom-2-MQ | FlexiPort 2-Tube Subminiature Set | Dual 8" tubes; Female subminiature connectors; Pack of 10. |
| Welch Allyn/Hillrom-2-MF | FlexiPort Mated Subminiature Set | Dual 8" tubes; Mated 5082-182 & 5082-178 connectors; Pack of 10. |
| Welch Allyn/Hillrom-1DSAL | Integrated Gauge Adapter Large | 1-Tube; Includes large premium bulb/valve for integrated cuffs. |
| Welch Allyn/Hillrom-1DSLC | DS44 Tubing Adapter with Economy Bulb | Standard economy inflation system for DS44 integrated manometers. |
| Welch Allyn/Hillrom-1DSAS | DS45 Tubing Adapter with Small Bulb | Precision inflation system for DS45 gauges; Includes small bulb. |
Features
- FlexiPort Standardization: Enables a single cuff to work across virtually any department or monitor by simply swapping the connector fitting.
- Leak-Proof Performance: Every fitting and adapter is precision-engineered to maintain a hermetic seal, ensuring high-accuracy blood pressure readings.
- Simplified Workflow: Reduces the need for multiple cuff inventories; clinicians can switch between manual and electronic monitors in seconds.
- Color-Coded Sizing Compatibility: Designed to fit the entire range of Welch Allyn FlexiPort cuffs, from neonatal to thigh sizes.
- Clinical Durability: Built with high-impact medical-grade plastics and reinforced tubing to withstand the stress of continuous hospital use.
- Infection Control: The 5082-159 wash cap allows for deep cleaning of cuffs without damaging the internal pneumatic systems.
Specifications
- Connection Types: Bayonet, Screw, Tri-Purpose, Barb, and Locking
- Material: Medical-grade Polycarbonate and PVC-free Tubing
- Tube Lengths: Ranging from 8 inches to 31.5 inches
- Tube Configuration: Single (1-Tube) and Dual (2-Tube) lumens
- Quantity: Available in packs of 10 or single units as specified
- 5082-195 Weight: 0.45 lb
- 5082-159 Weight: 0.05 lb
- PORT-1 Weight: 0.12 lb
- PORT-2 Weight: 0.14 lb
- 2-BVSC Weight: 0.52 lb
- 1-HP Weight: 0.18 lb
- 1-MQ Weight: 0.15 lb
- 1-SC Weight: 0.16 lb
- 2-SC Weight: 0.19 lb
- 2-TP Weight: 0.20 lb
- 5082-191 Weight: 0.11 lb
- 2-SRC Weight: 0.18 lb
- 1-BARB Weight: 0.13 lb
- 1SRCL Weight: 0.35 lb
- 2-BVL Weight: 0.58 lb
- 1-TPS Weight: 0.65 lb
- 1-TPL Weight: 0.72 lb
- 2-MQ Weight: 0.48 lb
- 2-MF Weight: 0.50 lb
- 1DSAL Weight: 0.38 lb
- 1DSLC Weight: 0.32 lb
- 1DSAS Weight: 0.30 lb
Configurations
- 5082-195: FlexiPort BP Port Fitting for Large Bulb2-Tube Barb style; Pack of 10; Designed for high-volume inflation systems.
- 5082-159: FlexiPort BP Cuff Wash CapProtective cap for automated washing; Ensures internal bladder stays dry.
- PORT-1: FlexiPort Standard Fitting 1-TubeSingle tube port adapter; Pack of 10; Standardizes cuff connections.
- PORT-2: FlexiPort Standard Fitting 2-TubeDual tube port adapter; Pack of 10; Converts cuffs for 2-tube monitors.
- 2-BVSC: FlexiPort Premium Valve and Small Clamp2-Tube configuration; Tri-Purpose connector; Pack of 10; Includes inflation clamp.
- 1-HP: FlexiPort Bayonet Connector1-Tube Bayonet style; Pack of 10; Secure push-and-twist locking mechanism.
- 1-MQ: FlexiPort Locking Connector 1-TubeSingle tube subminiature locking style; Pack of 10; High-security fit.
- 1-SC: FlexiPort Screw Connector 1-Tube1-Tube threaded screw style; Pack of 10; Eliminates accidental disconnects.
- 2-SC: FlexiPort Screw Connector 2-Tube2-Tube threaded screw style; Pack of 10; For heavy-duty monitoring leads.
- 2-TP: FlexiPort Tri-Purpose Connector2-Tube Tri-Purpose style; Pack of 10; Universal monitor compatibility.
- 5082-191: FlexiPort Plastic Locking Connector1/8" to 5/32" sizing; Pack of 10; Transitions varied tubing diameters.
- 2-SRC: FlexiPort Tri-Purpose Cuff ConnectorSpecifically for BP cuff integration; Pack of 10; Streamlines workflow.
- 1-BARB: FlexiPort Hose Barb Adapter1-Tube Barb to Port adapter; Pack of 10; Standardizes loose tubing.
- SRCL: Large Inflation Bulb to DuraShock Adapter1-Tube; Includes premium valve; Connects large bulbs to Classic gauges.
- 2-BVL: FlexiPort 2-Tube Large Bulb SetIncludes 8" and 13" tubes; Premium valve and Tri-Purpose connector.
- 1-TPS: FlexiPort 24-inch Tri-Purpose Tube Set1-Tube; 24" length; Includes #5082-168 connectors; Pack of 10.
- 1-TPL: FlexiPort 31.5-inch Tri-Purpose Tube Set1-Tube; 80cm extended length; For distant monitor placement.
- 2-MQ: FlexiPort 2-Tube Subminiature SetDual 8" tubes; Female subminiature connectors; Pack of 10.
- 2-MF: FlexiPort Mated Subminiature SetDual 8" tubes; Mated 5082-182 & 5082-178 connectors; Pack of 10.
- 1DSAL: Integrated Gauge Adapter Large1-Tube; Includes large premium bulb/valve for integrated cuffs.
- 1DSLC: DS44 Tubing Adapter with Economy BulbStandard economy inflation system for DS44 integrated manometers.
- 1DSAS: DS45 Tubing Adapter with Small BulbPrecision inflation system for DS45 gauges; Includes small bulb.
/
