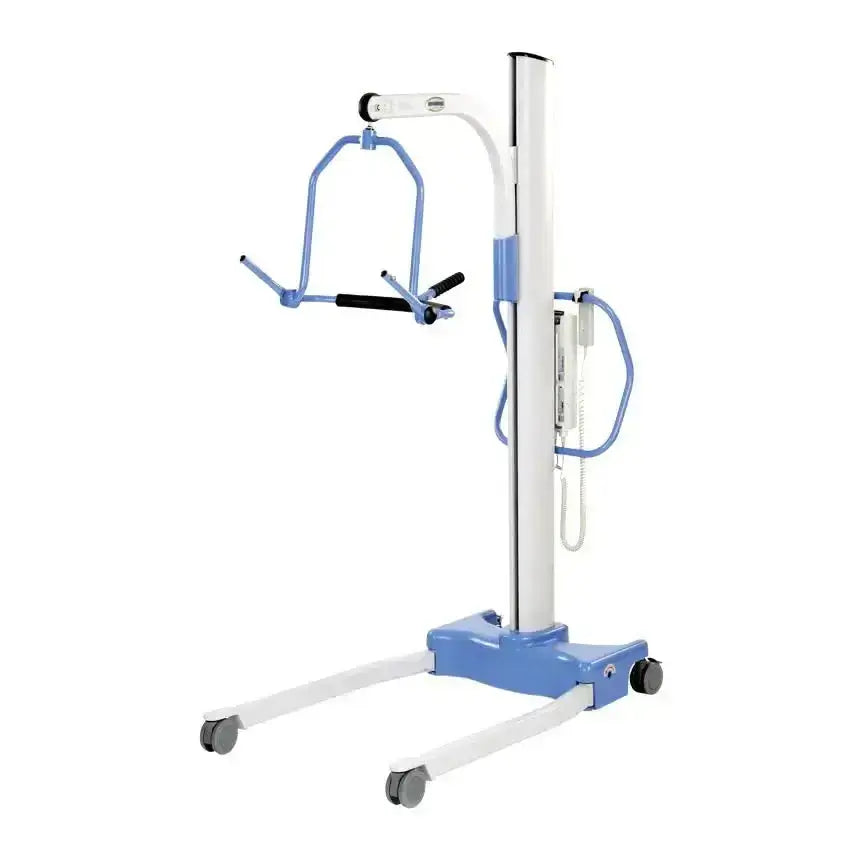

Joerns-Hoyer Stature Patient Lift - 500 lbs Weight Capacity

Features

• Massive Lifting Range: The curved boom architecture allows the lift to reach deep onto beds or down to the floor, providing total flexibility for high-acuity environments.
• Smart Monitor Technology: An onboard diagnostic computer records lift cycles, overload events, and maintenance intervals to ensure safety and equipment longevity.
• 500 lb Safe Working Load: Constructed with high-strength materials to provide stable and secure lifting for a broad spectrum of patient sizes and weights.
• Ergonomic "Cow-Horn" Handles: Features multi-position handles that allow caregivers to steer and maneuver the lift with minimal effort and improved posture.
• Powered Base Adjustment: Legs open and close via the hand control, allowing the lift to navigate around wheelchairs, large chairs, and wide bed frames effortlessly.
• Interchangeable Cradle System: Compatible with various cradle designs, including 4-point, 6-point, and power-tilting cradles to match specific sling requirements.
• Integrated Digital Scale Option: The "WSC" model allows for the immediate and accurate weighing of patients during the transfer process, streamlining clinical data collection.
• Precision Footpad Maneuverability: Includes a specialized footpad that helps caregivers initiate movement and steer the lift in tight spaces using their body weight.

Specifications

• Safe Working Load: 500 lbs
• Maximum Overall Height: 77.8 Inches
• Minimum Overall Height: 15.4 Inches
• Base Width (Open): 53.5 Inches
• Base Width (Closed): 29.9 Inches
• Battery Type: 24V DC Rechargeable (Removable)
• Chassis Material: Aluminum and Steel Construction
• Safety Features: Emergency Stop and Manual Emergency Lowering
• Latex-Free: Yes
• Warranty: 2-Year Limited
• Weight: 142.0 lbs

Configurations

• HOY-STATURE: Stature® Professional Vertical Patient Lift
• HOY-STATUREWSC: Stature® Professional Vertical Patient Lift with Integrated Digital
