Specifications
Overall Dimensions: 24.1” W x 28.6” D x 50.5” – 64.5” H

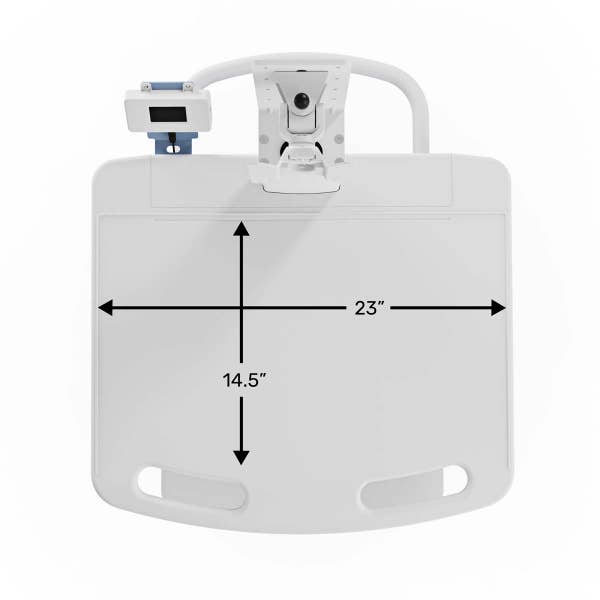

Desktop Writing Surface: 23” W x 14.5” D

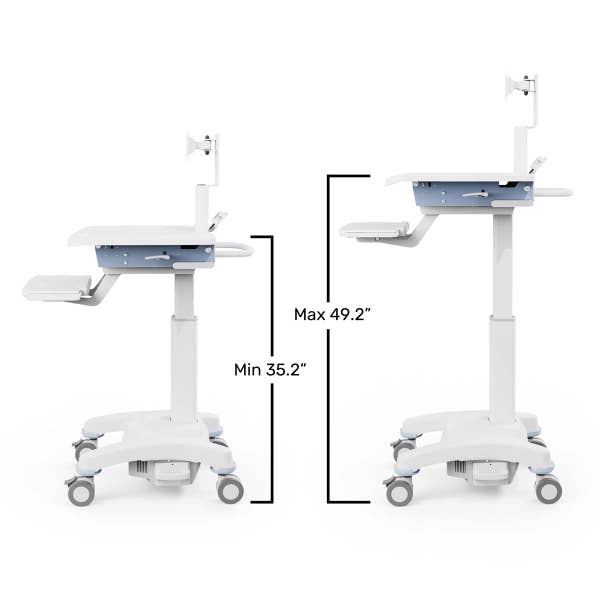

Desktop Height Adjustment Range: 35.2” – 49.2” H
Retractable Keyboard Tray: 18.1” W x 9.9” D
Adjustment Range: +/-10° tilt (up/down), 7.5” pull-out
Mouse Tray: 24.1” W x 28.6” D (extends from left or right)
VESA Monitor Mount:

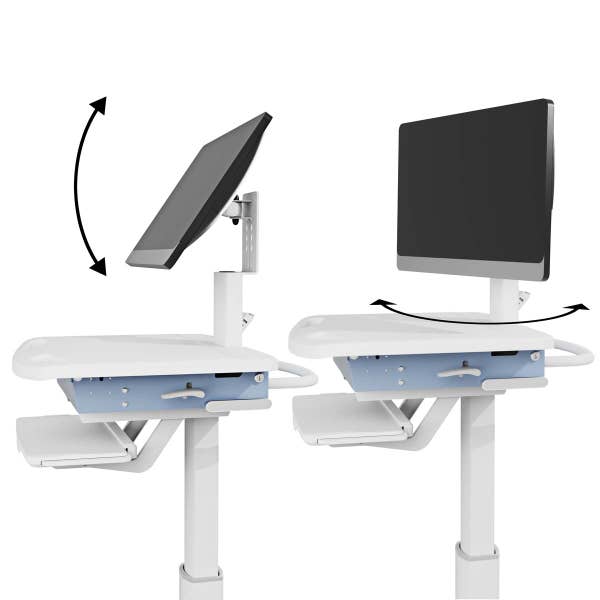

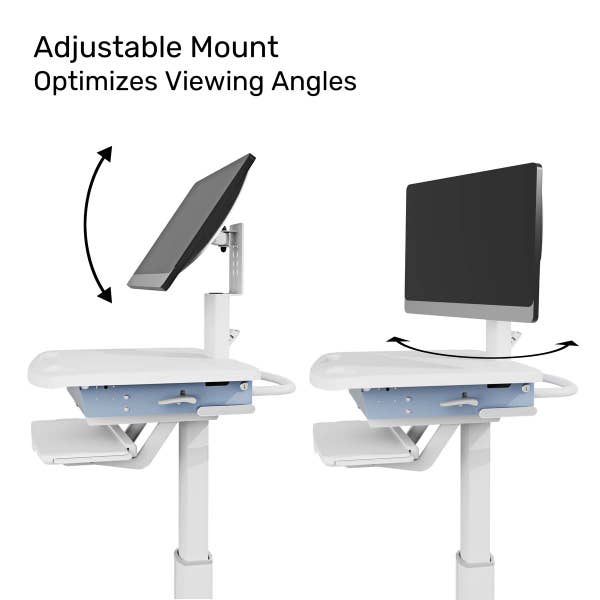

Height above desktop: 15.3” VESA Dimensions: 100 x 100 and 75 x 75 Adjustment Range: +/-90° swivel, +/-55° tilt
2-Drawer Cabinet Pack (MCWS004-only): 17.3” W x 12.5” D x 7.2” H
Product Weight
MCWS003 (Standard): 99.8 lbs. MCWS004 (Deluxe): 119.5 lbs. MCWS005 (Battery): 3.4 lbs.
Weight Capacity
Desktop Lift Capacity: 35 lbs. Casters Load Capacity:
Dynamic Load: 176 lbs. Static Load: 352 lbs.
Casters
4” full-swivel casters, two with locking brakes
Shipping
MCWS003 (Standard)
Shipping Dimensions: 27.5” W x 27.5” D x 44.5” H Shipping Weight: 138.8 lbs. Shipping Method: Freight
MCWS004 (Deluxe)
Shipping Dimensions: 27.5” W x 27.5” D x 44.5” H Shipping Weight: 163.3 lbs.
Shipping Method: Freight
Assembly Required
Yes (attachment of VESA mount and accessories)
Certifications
Workstation: FDA, ANSI/BIFMA X5.5-2021, IEC 60601-1 Inverter: Conforms to UL62368 Adapter: cULus Listed Casters: ISO 9001/13485
Warranty
Cart: Lifetime Limited Battery: 1-Year Limited
