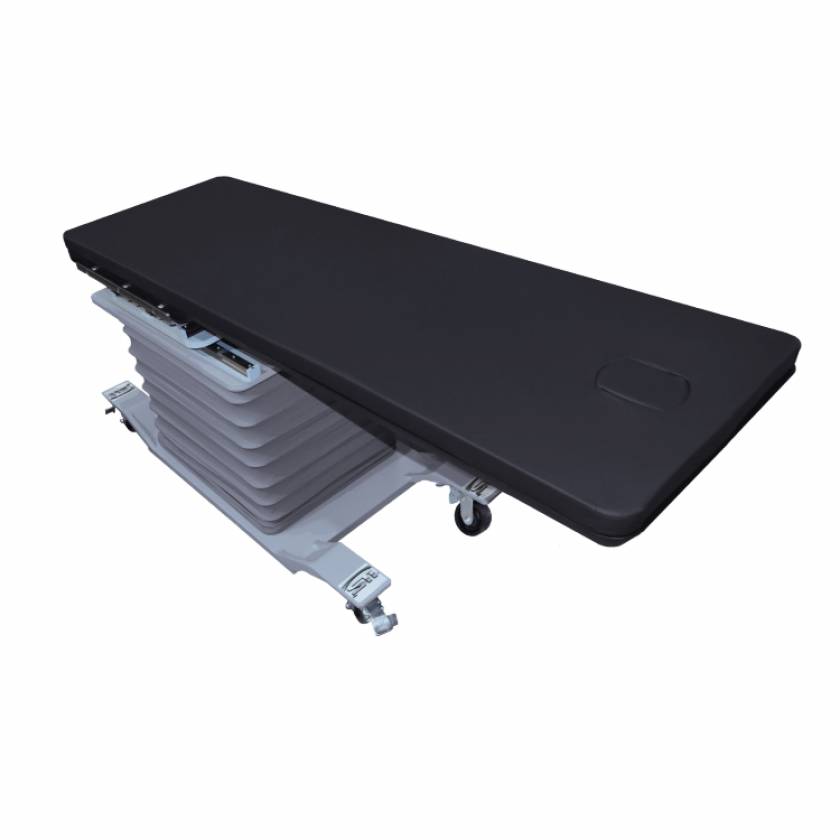

Does your facility perform bariatric surgery and needs a bariatric surgery c-arm table? At Surgical Tables, Inc. we carry a bariatric c-arm table that holds up to 1,000 lbs. What’s more, it is the only diving board style mobile imaging table on the market that can hold 1,000 pounds. The BT table comes in three models. It offers a 27” wide tabletop. In addition, the BT tables feature a short, H-style square base allowing for excellent c-arm clearance.
The only Bariatric C-Arm tables on the market which can hold 1,000 lbs.
The BT series bariatric imaging c-arm tables can be used for a multitude of procedures including not only pain management/spine, but GI, bariatric surgery, and more. You will love not only the quality of our tables, but the excellent service we provide. We make our c-arm tables in our factory in Massachusetts.
Specifications For BT-3:
| Control |
Hand control activates all motions |
| Tabletop and Mattress Attenuation |
2.1mm Al. (+/-0.2mm tolerance) |
| Tabletop Material |
Carbon fiber skin/foam core with integral facial cut-out*
|
| Radiolucent Area |
56" L x 24" W unobstructed |
| Tabletop |
84" L x 27" W x 2" T |
| Table Dimensions |
86" L x 29" W |
| Mattress |
2" thick |
| Patient Straps |
2 |
| Castors |
5", full swivel & wheel lock |
| Base |
H-Shaped Steel Base with Epoxy Finish - 63" L x 26" W |
| AC Voltage |
120V |
| Frequency |
60 Hz |
| AC Current |
6.5A, for BT-5 its 10A |
| Electric Shock Protection |
Class I |
| Applied Part Rating |
Type B |
| Mode of Operation |
10% Duty Cycle - 1 min on / 9 minutes off |
| Manufacturer |
Surgical Tables Inc |
| Actual Product Weight |
785 lbs. |
| Overall Height |
37" |
| Overall Width |
29" |
| Overall Length |
86" |
| Weight Capacity |
1000 lbs |
| Country of Manufacture |
United States |
| Item Ships From |
Massachusetts |
Note: Shipping, liftgate, inside delivery, and white glove services are not included. Standard delivery is curbside only. Please provide your ZIP code so we can quote the exact shipping cost. For any questions, please contact us at our Toll-Free number: 800-202-6207.
