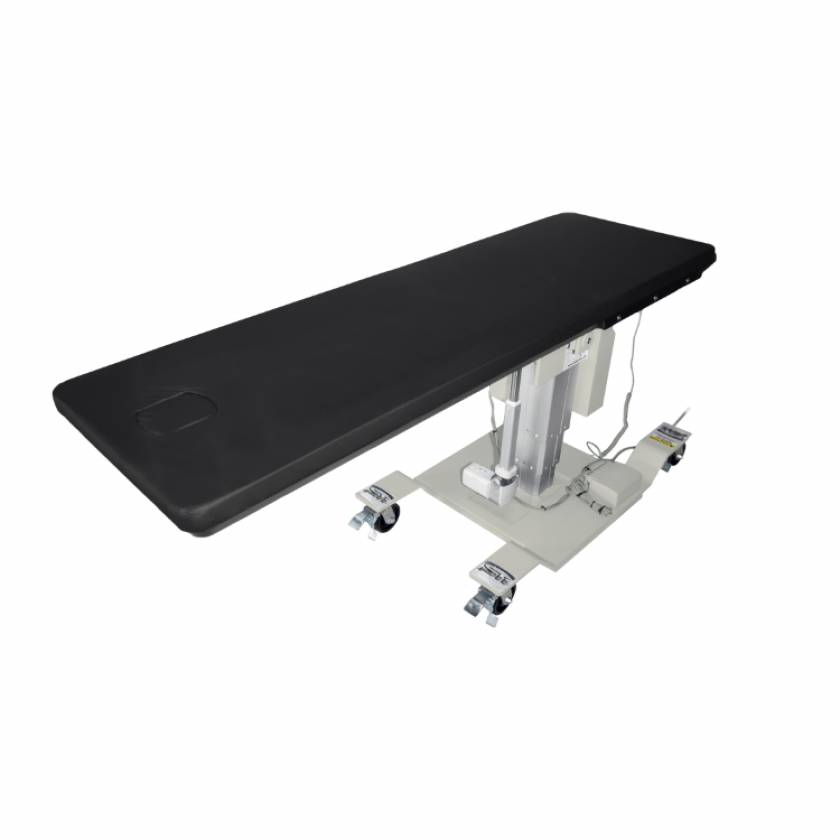

Surgical Table Inc EconoMAX Pain Management C-Arm Imaging Table

Roll over image to zoom in Click on image to zoom

Surgical Table Inc EconoMAX Pain Management C-Arm Imaging Table

Surgical Table Inc

SKU: STI-EC1

SKU: STI-EC1
Condition: Brand New
Warranty: Manufacturer's Warranty
MPN: EC1
Est. Delivery: 5 to 7 Days
Shipping: Calculated at Checkout
Country Of Origin: USA

MPN: EC1

Est. Delivery Date: Sep 06 to Sep 18

Details: Description| Features| Specifications| Configurations| Data Sheets

Select a configuration: STI-EC1 1 Movement 1/ea

Variant

Price:

$11,186.40 $13,518.00

Shipping calculated at checkout

Stock:

In stock

Quantity:

Share this product

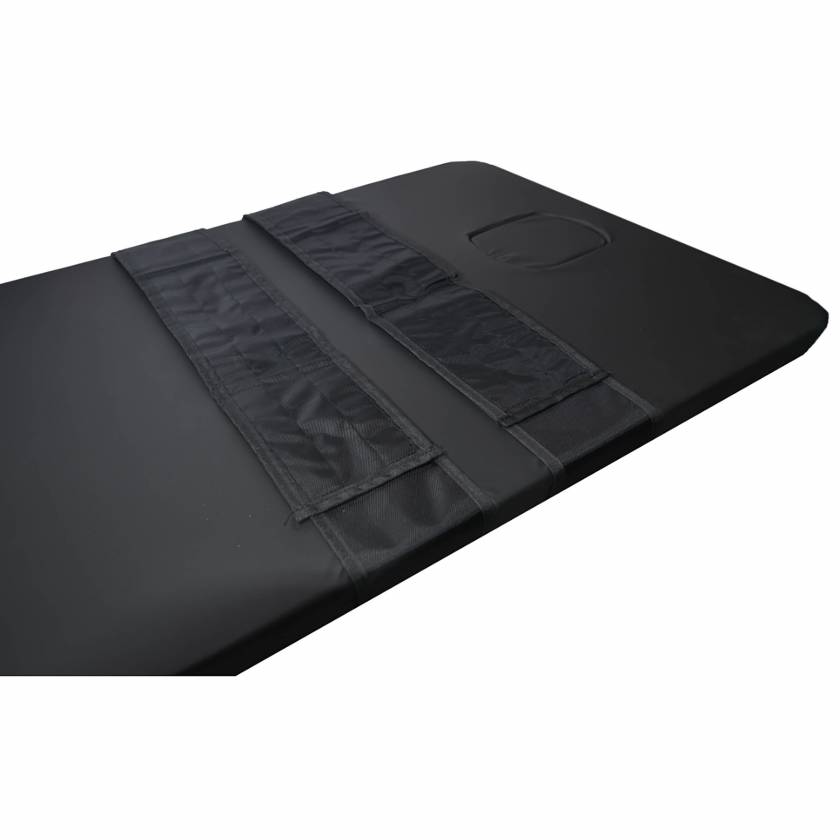

The STI EconoMAX C-Arm Imaging Table is perfect for pain management. Each diving board style table comes with a pair of patient straps, a facial cutout (which can be filled), and a hand control. Pain procedures often require precise positioning. These c-arm tables are quiet and vibration free leaving the end user worry free. Additionally, the radiolucent tabletop does not have any cross-members, allowing for full visualization under fluoro.

At Surgical Tables, Inc, we know pain management. With this in mind, our EconoMAX Series c-arm table was designed with the needs pain doctors in mind.

In addition, they feature a short H-style base. An EconoMAX table can hold patients up to 500 lbs regardless of the positioning of the patient. You will love not only the quality and performance of the EconoMAX series c-arm tables, but also the price. Most importantly, our EconoMAX series imaging tables are very affordable, however they do not compromise quality. Additionally, we make our imaging tables in our factory in Massachusetts.

Control	Height motion hand control
Tabletop and Mattress Attenuation	1.6mm Al.(+/-0.2mm tolerance)
Tabletop Material	Carbon fiber skin/foam core with integral facial cut-out*
Radiolucent Area	56" L x 24" W unobstructed
Tabletop	84" L x 24" W x 1.62" T
Table Dimensions	86" L x 26" W
Mattress	2" thick
Patient Straps	2
Castors	5", full swivel & wheel lock
Base	H-Shaped Steel Base with Epoxy Finish - 51" L x 26" W
AC Voltage	120V
Frequency	60 Hz
AC Current	2.5A, for Move 4,5 its 6.5A
Electric Shock Protection	Class I
Applied Part Rating	Type B
Mode of Operation	10% Duty Cycle - 1 min on / 9 minutes off

In conclusion, along with our best selling MAX series and Streamline series, STI gives your practice plenty of options for a pain management table.

Note: Shipping, liftgate, inside delivery, and white glove services are not included. Standard delivery is curbside only. Please provide your ZIP code so we can quote the exact shipping cost. For any questions, please contact us at our Toll-Free number: 800-202-6207.

Features

Carbon fiber, diving board style for easy C-arm access
Large patient capacity – high-end actuator motor supports 500-pound loads
An 84″ length can accommodate even the tallest of patients
A 24″ top eliminates the need for arm boards
Two-inch thick, patient comfort pad
Facial cut-out for prone procedures
Light weight – easy to physically move the table within the room or from room to room
Simple to use, high quality wheel locks
Extreme low position makes boarding patients fast, easy and safe

The EconoMAX series comes in five different models.

Specifications

EC-1 – Height adjustment (28″ to 38″)
EC-2 – Height (28″ to 38″) and also Lateral Tilt adjustments (tilt of +/- 17° ).
EC-3 – Height (28″ to 38″), and also Lateral Tilt (+/- 17° ), and Trendelenburg (+/- 13°) adjustments.
EC-4 – Height (30″ to 40″), and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 13°), and longitudinal travel (10″, +/- 5″) adjustments.
EC-5 – Height (33.5″ to 43.5″), and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 13°), longitudinal travel (10″, +/- 5″), and lateral travel (10″, +/- 5″) adjustments.
