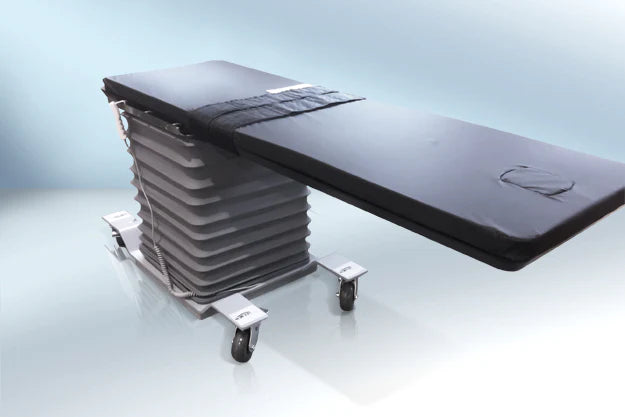

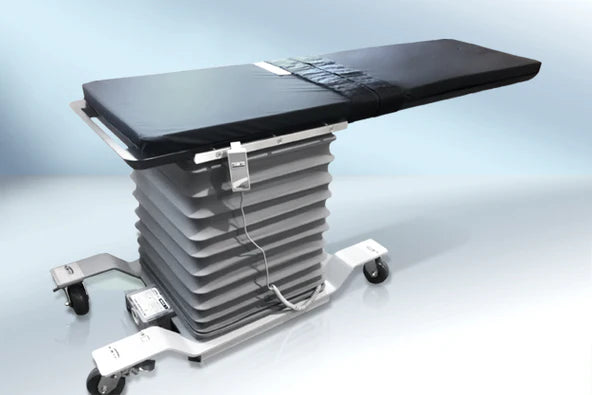

At Surgical Tables, Inc, we know mobile c-arm tables. With this in mind, our MAX Series c-arm table was designed with the needs of multiple doctors in mind.

In addition, they feature a short H-style base. A MAX table can hold patients up to 500 lbs regardless of the positioning of the patient. You will love not only the quality and performance of the MAX series c-arm tables, but also the price. Most importantly, our MAX series imaging tables are very affordable, however they do not compromise quality. Additionally, we make our imaging tables in our factory in Massachusetts.

The MAX series can be used for multiple modalities, and they are often found being used for both pain management and GI procedures. Along with our EconoMAX series and Streamline series, STI gives your practice plenty of options for a pain management table.

SKU	Description	Key Technical Details
MAX1	MAX1 1 Movement- Rectangular or Cervical top (1 EA)	Single-motion motorized height adjustment system designed for reliable baseline patient positioning and ease of transfer.
MAX2	MAX2 2 Movement- Rectangular or Cervical top (1 EA)	Dual-motion configuration adding motorized lateral tilt control to height adjustment for enhanced procedural angles.
MAX3	MAX3 3 Movement- Rectangular or Cervical top (1 EA)	Triple-motion system featuring height adjustment, lateral tilt, and Trendelenburg positioning capabilities.
MAX4	MAX4 4 Movement- Rectangular or Cervical top (1 EA)	Four-motion advanced positioning including height adjustment, lateral tilt, Trendelenburg, and longitudinal travel.
MAX5	MAX5 5 Movement- Rectangular or Cervical top (1 EA)	Comprehensive five-motion system equipped with height adjustment, lateral tilt, Trendelenburg, longitudinal travel, and lateral travel.
MAX-ERCP-4	MAX-ERCP-4 4 Movement- Rectangular or Cervical top (1 EA)	Specialized 4-motion ERCP and gastroenterology configuration optimized for targeted endoscopic and C-arm imaging workflows.
MAX-ERCP-5	MAX-ERCP-5 5 Movement- Rectangular or Cervical top (1 EA)	Advanced 5-motion ERCP and multi-disciplinary configuration providing maximum positioning flexibility and precise travel control.

Note: Shipping, liftgate, inside delivery, and white glove services are not included. Standard delivery is curbside only. Please provide your ZIP code so we can quote the exact shipping cost. For any questions, please contact us at our Toll-Free number: 800-202-6207.

Features

Carbon fiber, diving board style for easy C-arm access
Large patient capacity – high-end actuator motor supports 500-pound loads
An 84″ length can accommodate even the tallest of patients
A 24″ top eliminates the need for arm boards
Two-inch thick, high quality patient comfort pad

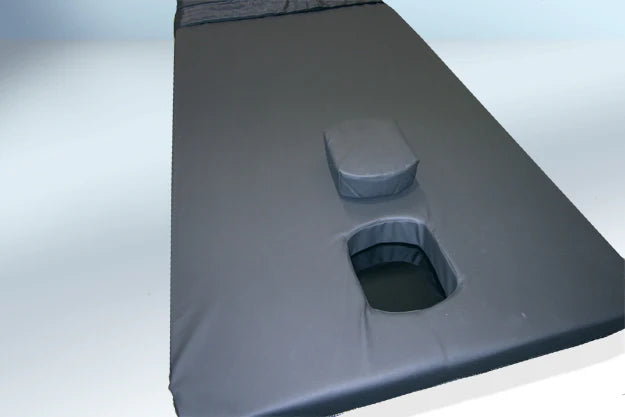

Facial cut-out for prone procedures
Light weight – easy to physically move the table within the room or from room to room
Simple to use, high quality wheel locks
Extreme low position makes boarding patients fast, easy and safe

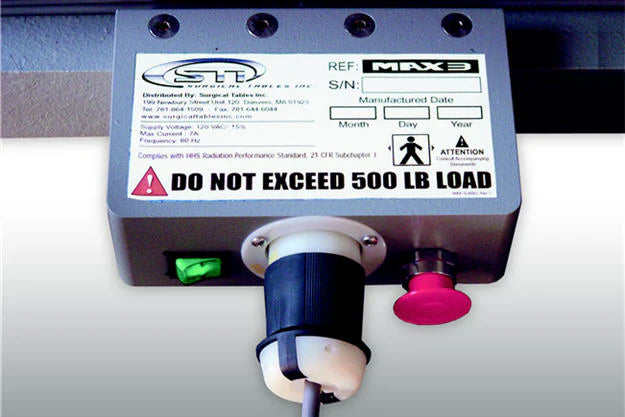

Emergency Stop Switch

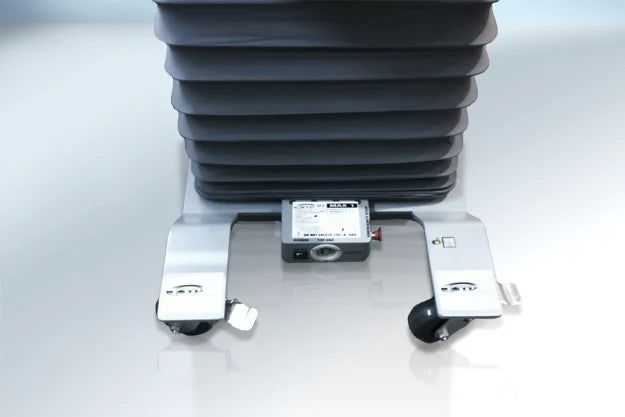

Protective bellows provides safety by enclosing all motors, controls and wiring. The protective bellows are also easily cleaned with standard operating or procedural room sanitizing procedures

Specifications

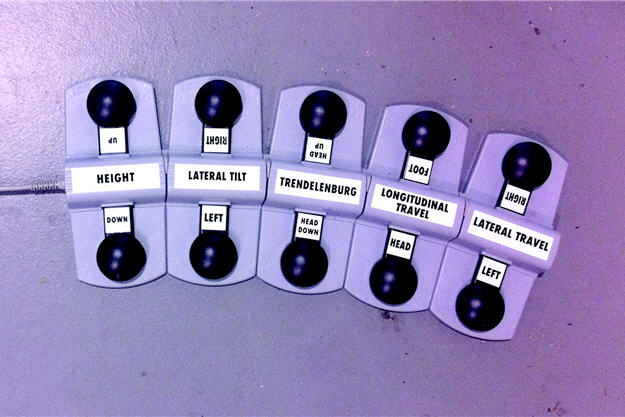

MAX-1 – Height adjustment (28″ to 38″)
MAX-2 – Height (28″ to 38″) and also Lateral Tilt adjustments (tilt of +/- 17° ).
MAX-3 – Height (28″ to 38″), and also Lateral Tilt (+/- 17° ), and Trendelenburg (+/- 13°) adjustments.
MAX 4 – Height (30″ to 40″), and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 13°), and longitudinal travel (10″, +/- 5″) adjustments.
MAX 5 – Height (33.5″ to 43.5″), and also Lateral Tilt (+/- 17°), Trendelenburg (+/- 13°), longitudinal travel (10″, +/- 5″), and lateral travel (10″, +/- 5″) adjustments
