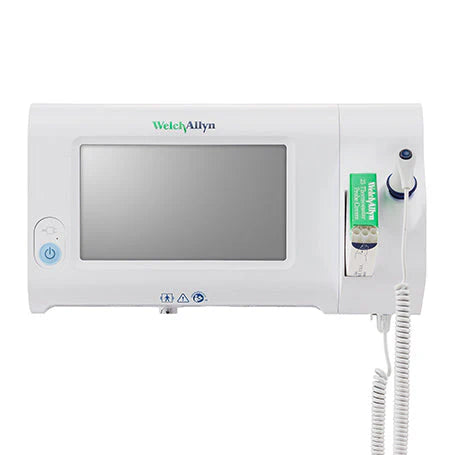

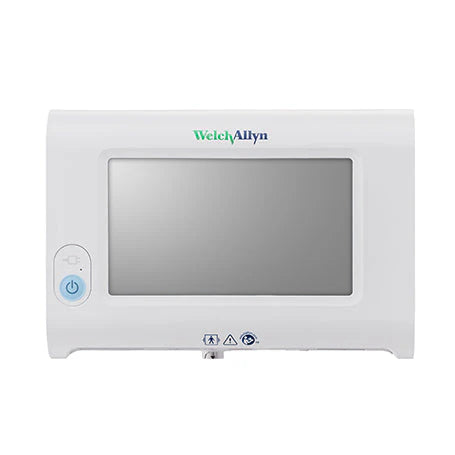

Welch Allyn 7300 Connex Spot Monitor with Bluetooth Connectivity

Features

• SureBP technology can provide blood pressure readings in only 15 seconds.
• SureTemp Plus Oral / Axillary or Braun ThermoScan PRO 6000 Tympanic Thermometry.
• Single sign-on options (including integration with Imprivata) available for quick, secure clinician login.
• FIPS-approved encryption of transmitted data and a range of additional security features.
• Customizable workflow options for documenting patient observations and vitals modifiers.
• Choice of leading SpO2 technologies: Masimo, Covidien, or Nonin.
• Blood Pressure averaging to help ensure accurate hypertension diagnosis.
• Connectivity to Detecto, Health o Meter, and SECA scales.
• Options for mobile stands, wall mounts, and integrated exam systems to solve workflow requirements.
• Automated Early Warning Scoring to help clinicians identify and respond to signs of patient deterioration.

Specifications

• Electrical Rating: 100 to 240 V AC, 50 to 60 Hz, 0.8X to 1.5 A.
• Duty Cycle: Continuous operation.
• Electric Shock Protection: Class I internally powered.
• Recovery Time Following Defibrillator Discharge: Less than or equal to 15 seconds.
• Dimensions:
• Weight:
• Display Resolution: 800 x 480 pixels.
• Speaker Minimum Output Sound Pressure: 60 dB at 1 meter.

Configurations

• #73XT-B: SureTemp Plus Thermometer.
• #73WX-B: Nonin SpO2.

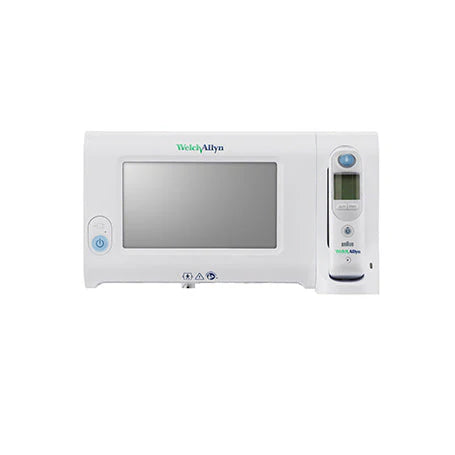

• #73XE-B: Braun ThermoScan PRO 6000 Ear Thermometer.
• #73WT-B: Nonin SpO2; SureTemp Plus Thermometer.
• #73MT-B: Masimo SpO2; SureTemp Plus Thermometer.
• #73WE-B: Nonin SpO2; Braun ThermoScan PRO 6000 Ear Thermometer.
• #73ME-B: Masimo SpO2; Braun ThermoScan PRO 6000 Ear Thermometer.
• #73CT-B: Covidien SpO2; SureTemp Plus Thermometer.
• #73CE-B: Covidien SpO2; Braun ThermoScan PRO 6000 Ear Thermometer.

Data Sheets

Welch Allyn Connex Spot Monitor Brochure

Welch Allyn Connex Spot Monitor Service Manual

Welch Allyn Connex Spot Monitor Directions for Use
