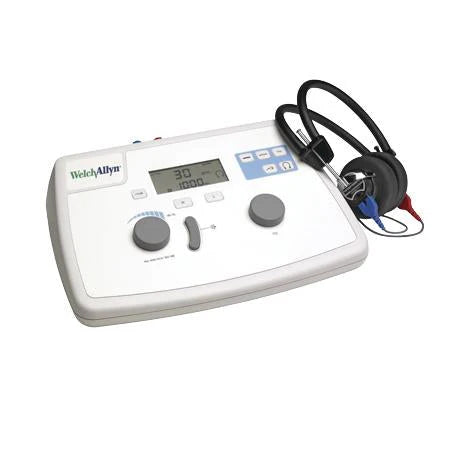

Welch Allyn 28200 AM282 Manual Audiometer

Why You Should Use 28200 Welch Allyn AM282 Manual Audiometer with Case

Welch Allyn is one of the most reputable brands of diagnostic products on the market, ensuring that the tool is built for strength and durability under even the most demanding conditions of clinical use.

Unlike its digital counterparts with more advanced features, this welch allyn am 282 manual audiometer
offers simplicity and reliability without sacrificing accuracy. It is the workhorse of choice for practitioners who demand greater performance and flexibility to meet their changing needs for hearing screening, diagnostic testing, and hearing aid fitting.

Key Features:

• Total of 11 Frequencies Tested: Tests 11 important frequencies from 125 Hz - 8,000 Hz that comprise the standard or complete hearing screening.

• Accurate Attenuation Control: Manual dial allows for precise 5dB incremental steps to determine the hearing threshold.

• Everything You Need Kit: Included is a dependable audiometry headset, threshold card, 50 audiogram forms, and a soft storage case with a built-in handle for convenient portability and organization.

  World Power Capable: (100-240 V, 50-60 Hz) A universal power supply with an IEC connection allows it to be used in most countries.

• Easy, Intuitive Operation: Frequency, intensity, and signal routing (right/left/both ears) adjustments have dedicated controls with mode errors eliminated.

Specifications

• Weight: 2.55 lb (1.16 kg).
• Dimensions: 12.6" x 8.8" x 3.2" (32 cm x 22.3 cm x 8.1 cm).
• Frequency Range:
• Intensity (Ranges in increments of 5 dB steps): 125 Hz: -10 to 50 dB HL; 500 to 4000 Hz: -10 to 90 dB HL; 6000 Hz: -10 to 85 dB HL; 250 and 8000 Hz: -10 to 70 dB HL.
• Tone Type: Continuous: Steady when present bar depressed.
• Pulsed: 2.5 pulse/sec.
• FM: ± 5%, 5 Hz, triangular modulation.
• Power: Line Voltage: Universal autoranging AC-DC adapter with an input voltage range of 90 to 264 V at 47 to 63 Hz.
• Consumption: 1.5 watts.
• Battery: 5x AA, 1.5 V.

How to Use Welch Allyn Manual Audiometer AM282 :

Preparation: Ask the patient in a non-noisy setting to follow instructions. Properly position the headset over the patient’s ears.

• Calibrate: Choose your required frequency with the rotary knob.
• Test: Play the tone to one ear at an audible level (e.g., 40 dB). Use the attenuator knob; decrease in 5dB steps until the patient can no longer hear the tone, then increase to their threshold.
• Record: Indicate the threshold for that frequency on the audiogram form.
  Repeat: Repeat the steps for all necessary frequencies and the opposite ear to fill in the audiogram.282
