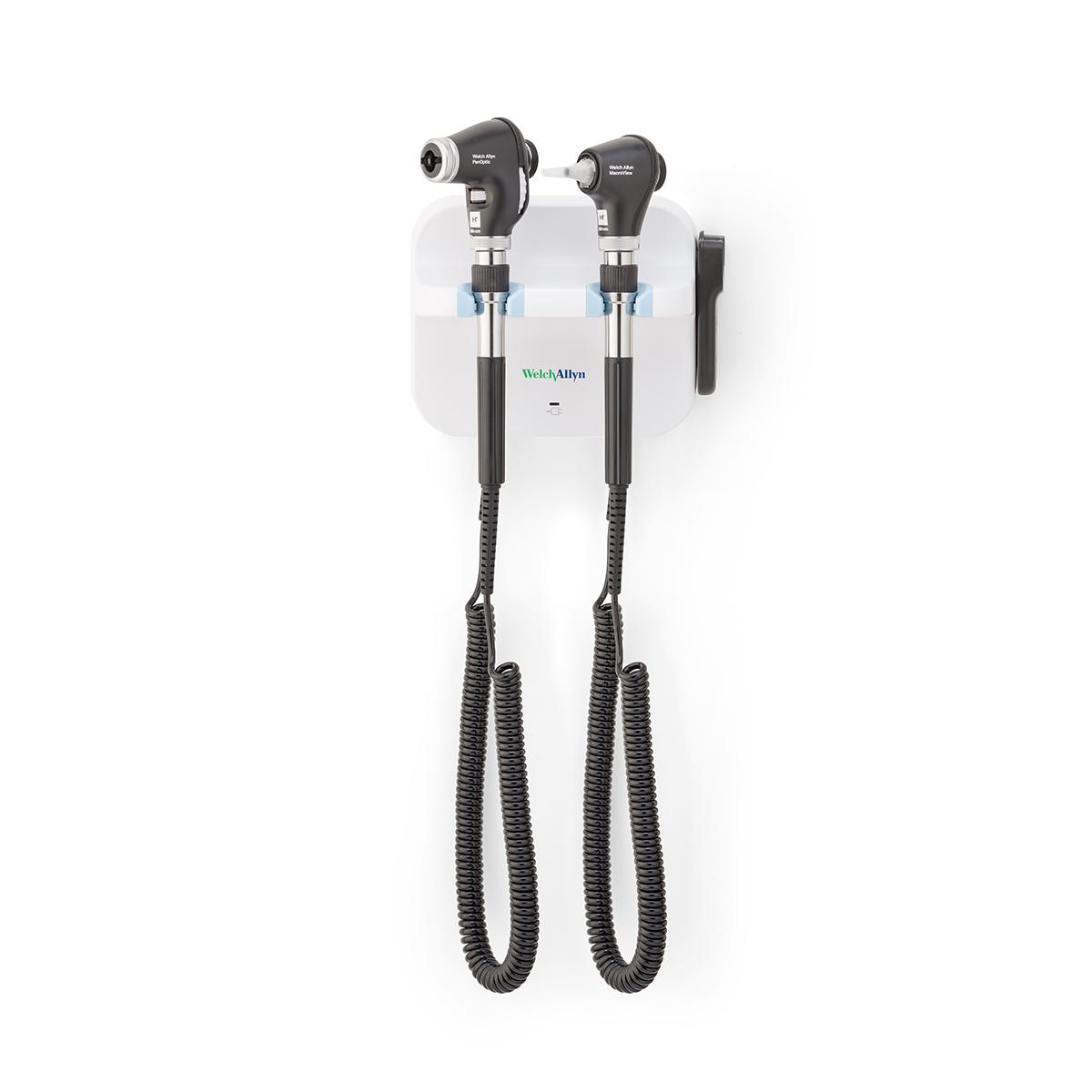

Welch Allyn/Hillrom-777-PM3XXX-US Green Series 777 Wall Transformer with Otoscope and Ophthalmoscope

Welch Allyn/Hillrom-777-PM3XXX-US Green Series 777 Wall Transformer with Otoscope and Ophthalmoscope,Green Series 777 Wall Transformer with PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope for iExaminer, with iExaminer SmartBracket Accessory

The Welch Allyn Green Series 777 Wall Transformer with Otoscope and Ophthalmoscope includes Wall Transformer Panel and an Otoscope and Ophthalmoscope (see Configurations tab for options).

• PanOptic Basic LED Ophthalmoscope:
• Dimensions: 3.14" H x 1.77" W x 2.95" D(8 cm x 4.5 cm x 7.5 cm).
• Weight: 130 g.
• Apertures: Small, Large, Red Free, Slit, Fixation target, Cobalt Blue.
• Diopter Range: -20 to +25 D.
• Diopter Steps: -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25.
• Crossed-Linear Polarizers: Yes.
• Lamp Type: SureColor LED.
• Lamp Warranty: 7 Years.
• Color: Color Rendering Index (CRI): 95 typical; R9: 85 typical; Color Temperature: 2700K - 3500K.
• Lamp Life: 80+ years (typical).
• Field of View: 20 degrees.
• MacroView Basic LED Otoscope:
• Dimensions: 2.75" H x 1.77" W x 2.16" D (7 cm x 4.5 cm x 5.5 cm).
• Weight: 115 g.
• Sealed Pneumatic Otoscopy: Yes.
• Illumination Type: Ring Fiber Optics.
• Lamp Type: SureColor LED.
• Lamp Life, Rated: 60+ years based on typical use.
• Field of View: ~3 times that of a single-lens otoscope, like the standard-style 250-2.
• Magnification: ~5X.
• Focus-Free Design: Extended focal length virtually eliminates the need to focus on wide-view otoscope.
• Total Light Output: 5200 lux; 2.5 times brighter than traditional halogen scopes.
• Color: Color rendering index (CRI): typical; R9: 90 typical; Color Temperature: 3400K - 4500K.

PanOptic Plus LED Ophthalmoscope:

• Dimensions: 8 cm x 4.5 cm x 7.5 cm.
• Weight: 130 g.
• Apertures: Small, Large, Red Free, Slit, Fixation Target, Cobalt Blue.
• Diopter Range: -20 to +25 D.
• Diopter Steps: -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25.
• Lamp Type: SureColor LED.
• ColorRendering Index (CRI): 95 typical.
• R9: 85 typical.
• Lamp Life: 80+ years (typical).
• Field of View: 20 degree.

Environmental Conditions:

• Operating Temperature: 59 degrees F (10 degrees C) to 104 degrees F (49 degrees C).
• Transport/Storage Temperature: -4 degrees F (-20 degrees C) to 120 degrees F (55 degrees C).
• Operating Humidity: 30% to 90%.
• Transport/Storage Humidity: 10% to 95%.
• Atmospheric Pressure Limitation: 500 hPa to 1060 hPa.

• Transformer: 5 Years.
• PanOptic Basic LED Ophthalmoscope: 1 Year.
• MacroView Basic LED Otoscope: 1 Year.
• PanOptic Plus LED Ophthalmoscope: 5 Years.
• MacroView Plus LED Otoscope for iExaminer: 5 Years.
• Coaxial LED Ophthalmoscope: 1 Year.The Welch Allyn Green Series 777 Wall Transformer with Otoscope and Ophthalmoscope is a convenient system that allows users to conduct ENT examinations as easily and efficiently as possible. This energy-efficient wall transformer features automatic on/off sensors and handle-based rheostats for simple operation.



  What’s in the Box

  • Wall Transformer
  • 2 - Handles
  • 2 - 8-Foot Coiled Cords
  • User's Manual
  • Warranty Card
